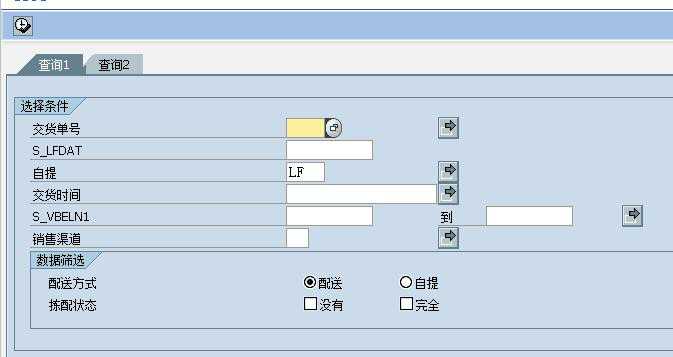

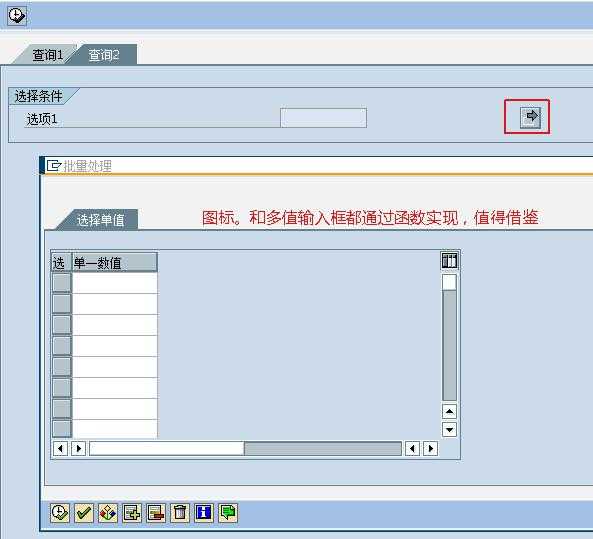

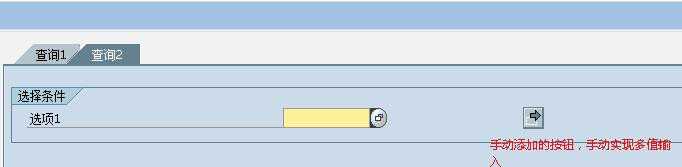

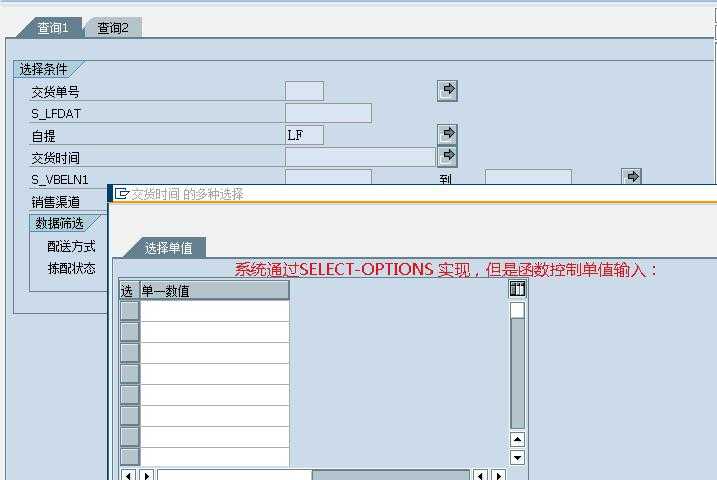

参考选择屏幕（控制选择屏幕两个屏幕，单值输入……通过函数实现单值输入）

  1 TABLES:likp,vbap,vbak,vttp.
  2 DATA:gl_restrict TYPE sscr_restrict.
  3
  4 SELECTION-SCREEN BEGIN OF SCREEN 100 AS SUBSCREEN.
  5 SELECTION-SCREEN BEGIN OF BLOCK bk1 WITH FRAME TITLE text-001.
  6 SELECT-OPTIONS: s_vstel FOR likp-vstel NO INTERVALS,               "装运点
  7                 s_lfdat FOR likp-lfdat NO INTERVALS    NO-EXTENSION ,                            "交货日期
  8                 s_lfart FOR likp-lfart DEFAULT ‘LF‘ NO INTERVALS MODIF ID lf,              "交货类型
  9                 s_prodh FOR vbap-prodh NO INTERVALS,                          "产品层次
 10                 s_vbeln1 FOR likp-vbeln,                                       "交货单号
 11                 s_vtweg FOR vbak-vtweg NO INTERVALS.                          "销售渠道
 12
 13 SELECTION-SCREEN BEGIN OF BLOCK bk2 WITH FRAME TITLE text-002.
 14 * 配送方式
 15 SELECTION-SCREEN BEGIN OF LINE.
 16 SELECTION-SCREEN COMMENT 1(8) text-003.
 17 SELECTION-SCREEN POSITION 33.
 18 PARAMETERS r_rd1 RADIOBUTTON GROUP sg1 DEFAULT ‘X‘ USER-COMMAND rd_click.
 19 SELECTION-SCREEN COMMENT 34(4) text-004 FOR FIELD r_rd1.
 20 SELECTION-SCREEN POSITION 45.
 21 PARAMETERS r_rd2 RADIOBUTTON GROUP sg1.
 22 SELECTION-SCREEN COMMENT 46(4) text-005 FOR FIELD r_rd2.
 23 SELECTION-SCREEN END OF LINE.
 24 * 拣配状态
 25 SELECTION-SCREEN BEGIN OF LINE.
 26 SELECTION-SCREEN COMMENT 1(8) text-006.
 27 SELECTION-SCREEN POSITION 33.
 28 PARAMETERS p_ck1 AS CHECKBOX.
 29 SELECTION-SCREEN COMMENT 34(4) text-007 FOR FIELD p_ck1.
 30 SELECTION-SCREEN POSITION 45.
 31 PARAMETERS p_ck2 AS CHECKBOX.
 32 SELECTION-SCREEN COMMENT 46(4) text-008 FOR FIELD p_ck2.
 33 SELECTION-SCREEN END OF LINE.
 34
 35 SELECTION-SCREEN END OF BLOCK bk2.
 36 SELECTION-SCREEN END OF BLOCK bk1.
 37 SELECTION-SCREEN END OF SCREEN 100.
 38
 39 * subscreen 200
 40 SELECTION-SCREEN BEGIN OF SCREEN 200 AS SUBSCREEN.
 41 SELECTION-SCREEN BEGIN OF BLOCK bk3 WITH FRAME TITLE text-015.
 42 PARAMETERS: p_vbeln TYPE likp-vbeln   MODIF ID mop.
 43 SELECTION-SCREEN: PUSHBUTTON 63(5) pubu USER-COMMAND mailbutt.
 44 SELECT-OPTIONS: s_vbeln FOR likp-vbeln NO-DISPLAY.
 45 SELECTION-SCREEN END OF BLOCK bk3.
 46 SELECTION-SCREEN END OF SCREEN 200.
 47
 48 * tab screen
 49 SELECTION-SCREEN: BEGIN OF TABBED BLOCK mytab FOR 25 LINES,
 50                   TAB (20) button1 USER-COMMAND push1,
 51                   TAB (20) button2 USER-COMMAND push2,
 52                   END OF BLOCK mytab.
 53
 54 INITIALIZATION.
 55   PERFORM frm_set_tab.
 56   PERFORM frm_select_option.
 57
 58 AT SELECTION-SCREEN OUTPUT.
 59   PERFORM frm_output_set.
 60
 61 *&---------------------------------------------------------------------*
 62 *& 参数输入检查
 63 *&---------------------------------------------------------------------*
 64 AT SELECTION-SCREEN.
 65   PERFORM frm_set_screen.
 66 *&---------------------------------------------------------------------*
 67 *&      Form  frm_set_tab
 68 *&---------------------------------------------------------------------*
 69 *       text
 70 *----------------------------------------------------------------------*
 71 FORM frm_set_tab.
 72   DATA: lv_tab TYPE char1.
 73
 74   button1 = ‘查询1‘.
 75   button2 = ‘查询2‘.
 76   mytab-prog = sy-repid.
 77   IMPORT p1 = lv_tab FROM MEMORY ID ‘ZDQWM_099_TAB‘.
 78   IF lv_tab IS INITIAL.
 79     mytab-dynnr = 100.
 80     mytab-activetab = ‘PUSH1‘.
 81   ELSE.
 82     IF lv_tab = ‘A‘.
 83       mytab-dynnr = 100.
 84       mytab-activetab = ‘PUSH1‘.
 85     ENDIF.
 86     IF lv_tab = ‘B‘.
 87       mytab-dynnr = 200.
 88       mytab-activetab = ‘PUSH2‘.
 89     ENDIF.
 90   ENDIF.
 91 *  mytab-dynnr = 100.
 92 *  mytab-activetab = ‘PUSH1‘.
 93 ENDFORM.                    "frm_set_tab
 94 *&---------------------------------------------------------------------*
 95 *&      Form  frm_set_screen
 96 *&---------------------------------------------------------------------*
 97 *       text
 98 *----------------------------------------------------------------------*
 99 FORM frm_set_screen.
100
101   CASE sy-ucomm.
102     WHEN ‘PUSH1‘.
103       mytab-dynnr = 100.
104       EXPORT p1 = ‘A‘ TO MEMORY ID ‘ZDQWM_099_TAB‘.
105     WHEN ‘PUSH2‘.
106       mytab-dynnr = 200.
107       EXPORT p1 = ‘B‘ TO MEMORY ID ‘ZDQWM_099_TAB‘.
108     WHEN ‘MAILBUTT‘.
109       PERFORM show_box.
110
111     WHEN OTHERS.
112       ...
113   ENDCASE.
114
115 ENDFORM.                    "frm_set_screen
116 *&---------------------------------------------------------------------*
117 *&      Form  FRM_OUTPUT_SET
118 *&---------------------------------------------------------------------*
119 *       text
120 *----------------------------------------------------------------------*
121 *  -->  p1        text
122 *  <--  p2        text
123 *----------------------------------------------------------------------*
124 FORM frm_output_set .
125   IF p_vbeln IS INITIAL.
126     WRITE icon_enter_more  AS ICON TO pubu.
127   ELSE.
128     WRITE icon_display_more AS ICON TO pubu.
129   ENDIF.
130 ENDFORM.                    " FRM_OUTPUT_SET
131
132 *&---------------------------------------------------------------------*
133 *&      Form  frm_select_option
134 *&---------------------------------------------------------------------*
135 *       text
136 *----------------------------------------------------------------------*
137 FORM frm_select_option.
138
139   REFRESH gl_restrict-ass_tab.
140   PERFORM frm_set_key USING ‘KEY1‘ ‘S_VSTEL‘.
141   PERFORM frm_set_key USING ‘KEY2‘ ‘S_PRODH‘.
142   PERFORM frm_set_key USING ‘KEY3‘ ‘S_VTWEG‘.
143   PERFORM frm_set_key USING ‘KEY4‘ ‘S_LFART‘.
144   PERFORM frm_set_key USING ‘KEY10‘ ‘S_VBELN2‘.
145 *    PERFORM frm_set_key USING ‘KEY11‘ ‘S_POS‘.
146   CALL FUNCTION ‘SELECT_OPTIONS_RESTRICT‘                 "只执行一次
147     EXPORTING
148       restriction            = gl_restrict
149     EXCEPTIONS
150       too_late               = 1
151       repeated               = 2
152       selopt_without_options = 3
153       selopt_without_signs   = 4
154       invalid_sign           = 5
155       empty_option_list      = 6
156       invalid_kind           = 7
157       repeated_kind_a        = 8
158       OTHERS                 = 9.
159   IF sy-subrc <> 0.
160     MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
161     WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
162   ENDIF.
163
164 ENDFORM.                    "frm_select_option
165 *&---------------------------------------------------------------------*
166 *&      Form  frm_set_key
167 *&---------------------------------------------------------------------*
168 *       text
169 *----------------------------------------------------------------------*
170 *      -->L_KEY      text
171 *      -->L_NAME     text
172 *----------------------------------------------------------------------*
173 FORM frm_set_key USING l_key l_name.
174   DATA: wl_restrict TYPE sscr_restrict,
175         wl_optlist TYPE sscr_opt_list,
176         wl_ass TYPE sscr_ass.
177
178   CONSTANTS:  cl_s TYPE char1 VALUE ‘S‘,
179               cl_x TYPE c VALUE ‘X‘,
180               cl_i TYPE char1 VALUE ‘I‘.
181
182   wl_optlist-name = l_key.      "选项框id,不同select-option不能重复
183   wl_optlist-options-eq = cl_x.
184   APPEND wl_optlist TO gl_restrict-opt_list_tab.
185   CLEAR: wl_optlist.
186
187   wl_ass-kind = cl_s.
188   wl_ass-name = l_name.   "select-option id
189   wl_ass-sg_main = cl_i.
190   wl_ass-sg_addy = space.
191   wl_ass-op_main = l_key.
192   APPEND wl_ass TO gl_restrict-ass_tab.
193   CLEAR: wl_ass.
194 ENDFORM.                    "frm_set_key
195 *&---------------------------------------------------------------------*
196 *&      Form  SHOW_BOX
197 *&---------------------------------------------------------------------*
198 *       text
199 *----------------------------------------------------------------------*
200 *  -->  p1        text
201 *  <--  p2        text
202 *----------------------------------------------------------------------*
203 FORM show_box .
204   DATA: wh_excluded_options TYPE rsoptions.
205   DATA: w_message TYPE char100.
206 *输入单值,排除其他
207   wh_excluded_options-ne = ‘X‘.
208   wh_excluded_options-bt = ‘X‘.
209   wh_excluded_options-nb = ‘X‘.
210   wh_excluded_options-ge = ‘X‘.
211   wh_excluded_options-gt = ‘X‘.
212   wh_excluded_options-le = ‘X‘.
213   wh_excluded_options-lt = ‘X‘.
214   wh_excluded_options-cp = ‘X‘.
215   wh_excluded_options-np = ‘X‘.
216
217   CALL FUNCTION ‘COMPLEX_SELECTIONS_DIALOG‘
218     EXPORTING
219       title             = ‘批量处理‘
220       just_incl         = ‘X‘         "只有包含输入
221       excluded_options  = wh_excluded_options
222     TABLES
223       range             = s_vbeln
224     EXCEPTIONS
225       no_range_tab      = 1
226       cancelled         = 2
227       internal_error    = 3
228       invalid_fieldname = 4
229       OTHERS            = 5.
230   IF sy-subrc <> 0.
231     IF sy-subrc = 2.
232       MESSAGE ‘取消批量处理‘ TYPE ‘S‘.
233       EXIT.
234     ENDIF.
235     CALL FUNCTION ‘MESSAGE_TEXT_BUILD‘
236       EXPORTING
237         msgid               = sy-msgid
238         msgnr               = sy-msgno
239         msgv1               = sy-msgv1
240         msgv2               = sy-msgv2
241         msgv3               = sy-msgv3
242         msgv4               = sy-msgv4
243       IMPORTING
244         message_text_output = w_message.
245     MESSAGE w_message TYPE ‘S‘ DISPLAY LIKE ‘E‘.
246     EXIT.
247   ENDIF.
248 ENDFORM.                    " SHOW_BOX
