最近在使用Testlink时，发现导入的用例是xml格式，且没有合适的工具转成excel格式，xml使用excel打开显示的东西也太多，网上也有相关工具转成csv格式的，结果也不合人意。
那求人不如尔己，自己写一个吧
需要用到的模块有：xml.dom.minidom(python自带)、xlwt
使用版本：
python:2.7.5
xlwt:1.0.0

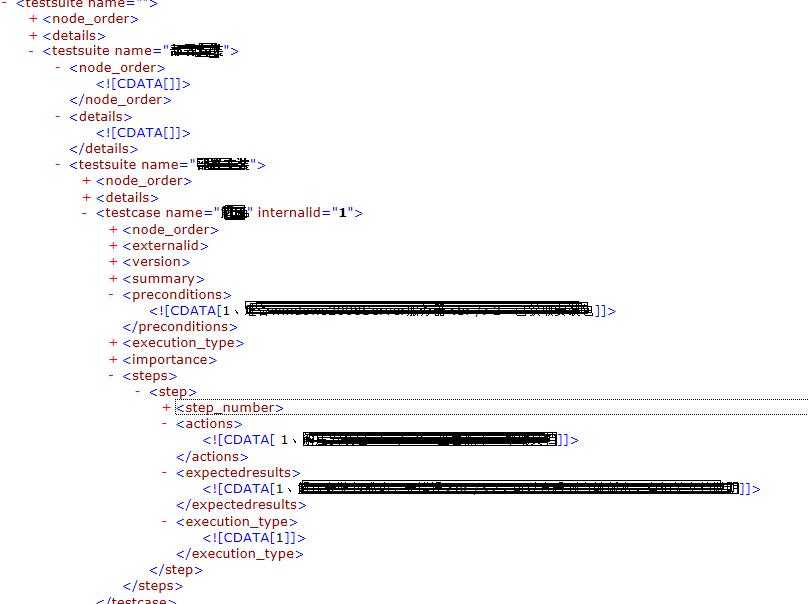

一、先分析Testlink XML格式：
这是一个有两级testusuit的典型的testlink用例结构，我们只需要取testsuite name,testcase name，preconditions，actions，expectedresults
二、程序如下：
#coding:utf-8 ‘‘‘ Created on 2015-8-20 @author: Administrator ‘‘‘ ‘‘‘ ‘‘‘ import xml.etree.cElementTree as ET import xml.dom.minidom as xx import os,xlwt,datetime workbook=xlwt.Workbook(encoding="utf-8") # booksheet=workbook.add_sheet(u‘sheet_1‘) booksheet.col(0).width= 5120 booksheet.col(1).width= 5120 booksheet.col(2).width= 5120 booksheet.col(3).width= 5120 booksheet.col(4).width= 5120 booksheet.col(5).width= 5120 dom=xx.parse(r‘D:\\Python27\test.xml‘) root = dom.documentElement row=1 col=1 borders=xlwt.Borders() borders.left=1 borders.right=1 borders.top=1 borders.bottom=1 style = xlwt.easyxf(‘align: wrap on,vert centre, horiz center‘) #自动换行、水平居中、垂直居中 #设置标题的格式，字体方宋、加粗、背景色：菊黄
#测试项的标题
title=xlwt.easyxf(u‘font:name 仿宋,height 240 ,colour_index black, bold on, italic off; align: wrap on, vert centre, horiz center;pattern: pattern solid, fore_colour light_orange;‘) item=‘测试项‘ Subitem=‘测试分项‘ CaseTitle=‘测试用例标题‘ Condition=‘预置条件‘ actions=‘操作步骤‘ Result=‘预期结果‘ booksheet.write(0,0,item,title) booksheet.write(0,1,Subitem,title) booksheet.write(0,2,CaseTitle,title) booksheet.write(0,3,Condition,title) booksheet.write(0,4,actions,title) booksheet.write(0,5,Result,title) #冻结首行 booksheet.panes_frozen=True booksheet.horz_split_pos= 1 #一级目录 for i in root.childNodes: testsuite=i.getAttribute(‘name‘).strip() #print testsuite #print testsuite ‘‘‘ 写测试项 ‘‘‘ print "row is :",row booksheet.write(row,col,testsuite,style) #二级目录 for dd in i.childNodes: print " %s" % dd.getAttribute(‘name‘) testsuite2=dd.getAttribute(‘name‘) if not dd.getElementsByTagName(‘testcase‘): print "Testcase is %s" % testsuite2 row=row+1 booksheet.write(row,2,testsuite2,style) #写测试分项 row=row+1 booksheet.write(row,1,testsuite2,style) itemlist=dd.getElementsByTagName(‘testcase‘) for subb in itemlist: #print " %s" % subb.getAttribute(‘name‘) testcase=subb.getAttribute(‘name‘) row=row+1 booksheet.write(row,2,testcase,style) ilist=subb.getElementsByTagName(‘preconditions‘) for ii in ilist: preconditions=ii.firstChild.data.replace("<br />"," ") col=col+1 booksheet.write(row,3,preconditions,style) steplist=subb.getElementsByTagName(‘actions‘) #print steplist for step in steplist: actions=step.firstChild.data.replace("<br />"," ") col=col+1 booksheet.write(row,4,actions,style) #print "测试步骤：",steplist[0].firstChild.data.replace("<br />"," ") expectlist=subb.getElementsByTagName(‘expectedresults‘) for expect in expectlist: result=expect.childNodes[0].nodeValue.replace("<br />","" ) booksheet.write(row,5,result,style) row=row+1 workbook.save(‘demo.xls‘)
写入excel的效果如下：
参考文档：
1、python对excel操作：http://www.open-open.com/lib/view/open1385174954276.html
2、python之xml操作:http://www.jb51.net/article/63780.htm
原文：http://www.cnblogs.com/landhu/p/4978797.html
