通信录分组并且分组标签悬停划入划出（包含错误信息及修改）--第三方开源--PinnedSectionListView

时间：2015-11-26 15:18:52 阅读：452 评论：0 收藏：0 [点我收藏+]

技术分享

PinnedSectionListView在github上的链接地址是：https://github.com/beworker/pinned-section-listview 。

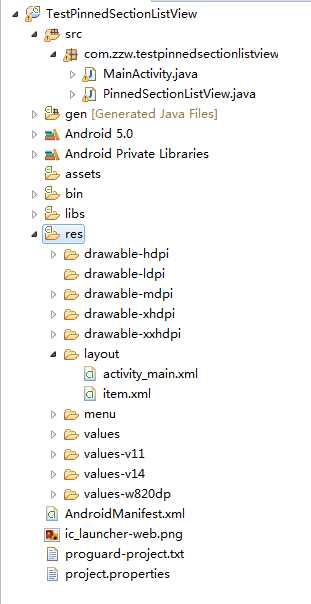

下载下来后直接将PinnedSectionListView.java（在一些SDK版本拉动的时候会异常崩溃，异常信息和修改后的文档在后面）复制粘贴在要用的包中：

技术分享

activity_main.xml：

 1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:tools="http://schemas.android.com/tools"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent"
 5     tools:context="com.zzw.testpinnedsectionlistview.MainActivity" >
 6
 7     <com.zzw.testpinnedsectionlistview.PinnedSectionListView
 8         android:id="@+id/listView"
 9         android:layout_width="match_parent"
10         android:layout_height="match_parent" />
11
12 </RelativeLayout>

item.xml:

 1 <?xml version="1.0" encoding="utf-8"?>
 2 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent"
 5     android:orientation="vertical" >
 6
 7     <ImageView
 8         android:id="@+id/imageView"
 9         android:layout_width="wrap_content"
10         android:layout_height="wrap_content"
11         android:layout_alignParentLeft="true"
12         android:layout_centerVertical="true"
13         android:src="@drawable/ic_launcher" />
14
15     <TextView
16         android:id="@+id/textView"
17         android:layout_width="wrap_content"
18         android:layout_height="wrap_content"
19         android:layout_alignBottom="@+id/imageView1"
20         android:layout_alignParentRight="true"
21         android:gravity="center"
22         android:textSize="20sp"
23         android:layout_alignTop="@+id/imageView1"
24         android:layout_toRightOf="@+id/imageView1"
25         android:text="TextView" />
26
27 </RelativeLayout>

item.xml

MainActivity.java：

  1 package com.zzw.testpinnedsectionlistview;
  2
  3 import java.util.ArrayList;
  4
  5 import com.zzw.testpinnedsectionlistview.PinnedSectionListView.PinnedSectionListAdapter;
  6
  7 import android.app.Activity;
  8 import android.content.Context;
  9 import android.graphics.Color;
 10 import android.os.Bundle;
 11 import android.view.LayoutInflater;
 12 import android.view.View;
 13 import android.view.ViewGroup;
 14 import android.widget.ArrayAdapter;
 15 import android.widget.TextView;
 16
 17 public class MainActivity extends Activity {
 18
 19     private ArrayList<Item> items = null;
 20
 21     private final int VIEW_TYPE_COUNT = 2;
 22
 23     @Override
 24     protected void onCreate(Bundle savedInstanceState) {
 25         super.onCreate(savedInstanceState);
 26         setContentView(R.layout.activity_main);
 27
 28         items =new ArrayList<MainActivity.Item>();
 29         // 假设我们演示以A,B,C,,,F这样的字符串作为分组的标签。
 30         // 每一组装载5个子数据。
 31         String[] groups = { "A", "B", "C", "D", "E" };
 32         for (int i = 0; i < groups.length; i++) {
 33             String s = groups[i];
 34
 35             Item group = new Item();
 36             group.type = Item.GROUP;
 37             group.text = s;
 38             items.add(group);
 39
 40             for (int j = 0; j < 10; j++) {
 41                 Item child = new Item();
 42                 child.type = Item.CHILD;
 43                 child.text = s + "组数据：" + j;
 44                 items.add(child);
 45             }
 46         }
 47
 48         PinnedSectionListView listView = (PinnedSectionListView) findViewById(R.id.listView);
 49         listView.setAdapter(new MyAdapter(this, -1));
 50
 51     }
 52
 53     private class Item {
 54         public static final int GROUP = 0;
 55         public static final int CHILD = 1;
 56
 57         public int type;
 58         public String text;
 59     }
 60
 61     private class MyAdapter extends ArrayAdapter<Item> implements PinnedSectionListAdapter {
 62
 63         private LayoutInflater inflater;
 64
 65         public MyAdapter(Context context, int resource) {
 66             super(context, resource);
 67
 68             inflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
 69         }
 70
 71         @Override
 72         public int getItemViewType(int position) {
 73
 74             return items.get(position).type;
 75         }
 76
 77         @Override
 78         public int getCount() {
 79
 80             return items.size();
 81         }
 82
 83         @Override
 84         public int getViewTypeCount() {
 85
 86             return VIEW_TYPE_COUNT;
 87         }
 88
 89         @Override
 90         public Item getItem(int position) {
 91
 92             return items.get(position);
 93         }
 94
 95         @Override
 96         public View getView(int position, View convertView, ViewGroup parent) {
 97             switch (getItemViewType(position)) {
 98             case Item.GROUP:
 99
100                 if (convertView == null) {
101                     convertView = inflater.inflate(android.R.layout.simple_list_item_1, null);
102                 }
103
104                 TextView textView_group = (TextView) convertView.findViewById(android.R.id.text1);
105                 textView_group.setText(getItem(position).text);
106                 textView_group.setTextColor(Color.BLUE);
107                 textView_group.setTextSize(30);
108                 textView_group.setBackgroundColor(Color.GRAY);
109
110                 break;
111
112             case Item.CHILD:
113                 if (convertView == null) {
114                     convertView = inflater.inflate(R.layout.item, null);
115                 }
116
117                 TextView textView_child = (TextView) convertView.findViewById(R.id.textView);
118                 textView_child.setText(getItem(position).text);
119                 textView_child.setBackgroundColor(Color.YELLOW);
120
121                 break;
122             }
123             return convertView;
124         }
125
126         /*
127          * 假设此方法返回皆为false。那么PinnedSectionListView将退化成为一个基础的ListView.
128          * 只不过退化后的ListView只是一个拥有两个View Type的ListView。
129          *
130          * 从某种角度上讲，此方法对于PinnedSectionListView至关重要
131          * 返回值true或false，将直接导致PinnedSectionListView是一个PinnedSectionListView，
132          * 还是一个普通的ListView
133          *
134          */
135         @Override
136         public boolean isItemViewTypePinned(int viewType) {
137             boolean type = false;
138             switch (viewType) {
139             case Item.GROUP:
140                 type = true;
141                 break;
142
143             case Item.CHILD:
144                 type = false;
145                 break;
146
147             default:
148                 type = false;
149                 break;
150             }
151             return type;
152         }
153     }
154 }

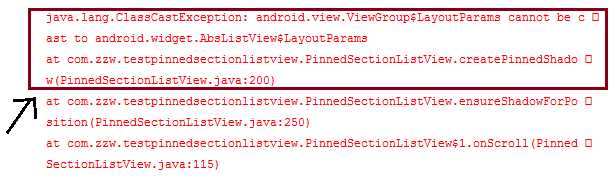

程序运行拉动的时候有的sdk版本会出现程序崩溃，LogCat是这样情况：

技术分享

报错的是原代码PinnedSectionListView.java中的（200行左右）：

// read layout parameters
        LayoutParams layoutParams = (LayoutParams) pinnedView.getLayoutParams();
        if (layoutParams == null) {
            layoutParams = (LayoutParams) generateDefaultLayoutParams();
            pinnedView.setLayoutParams(layoutParams);
        }

主要是这句话：

layoutParams = (LayoutParams) generateDefaultLayoutParams();

经由研究发现，此原因是在调用Android系统的generateDefaultLayoutParams()方法时候，发生异常，致使代码运行获得的结果layoutParams不正常，进而导致PinnedSectionListView崩溃。

解决方案：
自己动手重写Android系统的generateDefaultLayoutParams()方法，返回自己定制的LayoutParams值。

具体实现：
在PinnedSectionListView.java中增加自己重写的generateDefaultLayoutParams()方法：

1 @Override
2    protected ViewGroup.LayoutParams generateDefaultLayoutParams() {
3
4     LayoutParams mLayoutParams=new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT);
5
6     return mLayoutParams;
7    }

最终修复bug，改进后的PinnedSectionListView.java全部源代码为如下（可直接复制粘贴使用）：

  1 /*
  2  * Copyright (C) 2013 Sergej Shafarenka, halfbit.de
  3  *
  4  * Licensed under the Apache License, Version 2.0 (the "License");
  5  * you may not use this file kt in compliance with the License.
  6  * You may obtain a copy of the License at
  7  *
  8  * http://www.apache.org/licenses/LICENSE-2.0
  9  *
 10  * Unless required by applicable law or agreed to in writing, software
 11  * distributed under the License is distributed on an "AS IS" BASIS,
 12  * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 13  * See the License for the specific language governing permissions and
 14  * limitations under the License.
 15  */
 16
 17 package com.zzw.testpinnedsectionlistview;
 18
 19
 20 import android.content.Context;
 21 import android.database.DataSetObserver;
 22 import android.graphics.Canvas;
 23 import android.graphics.Color;
 24 import android.graphics.PointF;
 25 import android.graphics.Rect;
 26 import android.graphics.drawable.GradientDrawable;
 27 import android.graphics.drawable.GradientDrawable.Orientation;
 28 import android.os.Parcelable;
 29 import android.util.AttributeSet;
 30 import android.view.MotionEvent;
 31 import android.view.SoundEffectConstants;
 32 import android.view.View;
 33 import android.view.ViewConfiguration;
 34 import android.view.ViewGroup;
 35 import android.view.accessibility.AccessibilityEvent;
 36 import android.widget.AbsListView;
 37 import android.widget.HeaderViewListAdapter;
 38 import android.widget.ListAdapter;
 39 import android.widget.ListView;
 40 import android.widget.SectionIndexer;
 41
 42
 43 /**
 44  * ListView, which is capable to pin section views at its top while the rest is still scrolled.
 45  */
 46 public class PinnedSectionListView extends ListView {
 47
 48     //-- inner classes
 49
 50     /** List adapter to be implemented for being used with PinnedSectionListView adapter. */
 51     public static interface PinnedSectionListAdapter extends ListAdapter {
 52         /** This method shall return ‘true‘ if views of given type has to be pinned. */
 53         boolean isItemViewTypePinned(int viewType);
 54     }
 55
 56     /** Wrapper class for pinned section view and its position in the list. */
 57     static class PinnedSection {
 58         public View view;
 59         public int position;
 60         public long id;
 61     }
 62
 63     //-- class fields
 64
 65     // fields used for handling touch events
 66     private final Rect mTouchRect = new Rect();
 67     private final PointF mTouchPoint = new PointF();
 68     private int mTouchSlop;
 69     private View mTouchTarget;
 70     private MotionEvent mDownEvent;
 71
 72     // fields used for drawing shadow under a pinned section
 73     private GradientDrawable mShadowDrawable;
 74     private int mSectionsDistanceY;
 75     private int mShadowHeight;
 76
 77     /** Delegating listener, can be null. */
 78     OnScrollListener mDelegateOnScrollListener;
 79
 80     /** Shadow for being recycled, can be null. */
 81     PinnedSection mRecycleSection;
 82
 83     /** shadow instance with a pinned view, can be null. */
 84     PinnedSection mPinnedSection;
 85
 86     /** Pinned view Y-translation. We use it to stick pinned view to the next section. */
 87     int mTranslateY;
 88
 89     /** Scroll listener which does the magic */
 90     private final OnScrollListener mOnScrollListener = new OnScrollListener() {
 91
 92         @Override public void onScrollStateChanged(AbsListView view, int scrollState) {
 93             if (mDelegateOnScrollListener != null) { // delegate
 94                 mDelegateOnScrollListener.onScrollStateChanged(view, scrollState);
 95             }
 96         }
 97
 98         @Override
 99         public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
100
101             if (mDelegateOnScrollListener != null) { // delegate
102                 mDelegateOnScrollListener.onScroll(view, firstVisibleItem, visibleItemCount, totalItemCount);
103             }
104
105             // get expected adapter or fail fast
106             ListAdapter adapter = getAdapter();
107             if (adapter == null || visibleItemCount == 0) return; // nothing to do
108
109             final boolean isFirstVisibleItemSection =
110                     isItemViewTypePinned(adapter, adapter.getItemViewType(firstVisibleItem));
111
112             if (isFirstVisibleItemSection) {
113                 View sectionView = getChildAt(0);
114                 if (sectionView.getTop() == getPaddingTop()) { // view sticks to the top, no need for pinned shadow
115                     destroyPinnedShadow();
116                 } else { // section doesn‘t stick to the top, make sure we have a pinned shadow
117                     ensureShadowForPosition(firstVisibleItem, firstVisibleItem, visibleItemCount);
118                 }
119
120             } else { // section is not at the first visible position
121                 int sectionPosition = findCurrentSectionPosition(firstVisibleItem);
122                 if (sectionPosition > -1) { // we have section position
123                     ensureShadowForPosition(sectionPosition, firstVisibleItem, visibleItemCount);
124                 } else { // there is no section for the first visible item, destroy shadow
125                     destroyPinnedShadow();
126                 }
127             }
128         };
129
130     };
131
132     /** Default change observer. */
133     private final DataSetObserver mDataSetObserver = new DataSetObserver() {
134         @Override public void onChanged() {
135             recreatePinnedShadow();
136         };
137         @Override public void onInvalidated() {
138             recreatePinnedShadow();
139         }
140     };
141
142     //-- constructors
143
144     public PinnedSectionListView(Context context, AttributeSet attrs) {
145         super(context, attrs);
146         initView();
147     }
148
149     public PinnedSectionListView(Context context, AttributeSet attrs, int defStyle) {
150         super(context, attrs, defStyle);
151         initView();
152     }
153
154     private void initView() {
155         setOnScrollListener(mOnScrollListener);
156         mTouchSlop = ViewConfiguration.get(getContext()).getScaledTouchSlop();
157         initShadow(true);
158     }
159
160     //-- public API methods
161
162     public void setShadowVisible(boolean visible) {
163         initShadow(visible);
164         if (mPinnedSection != null) {
165             View v = mPinnedSection.view;
166             invalidate(v.getLeft(), v.getTop(), v.getRight(), v.getBottom() + mShadowHeight);
167         }
168     }
169
170     //-- pinned section drawing methods
171
172     public void initShadow(boolean visible) {
173         if (visible) {
174             if (mShadowDrawable == null) {
175                 mShadowDrawable = new GradientDrawable(Orientation.TOP_BOTTOM,
176                         new int[] { Color.parseColor("#ffa0a0a0"), Color.parseColor("#50a0a0a0"), Color.parseColor("#00a0a0a0")});
177                 mShadowHeight = (int) (8 * getResources().getDisplayMetrics().density);
178             }
179         } else {
180             if (mShadowDrawable != null) {
181                 mShadowDrawable = null;
182                 mShadowHeight = 0;
183             }
184         }
185     }
186
187
188     @Override
189     protected ViewGroup.LayoutParams generateDefaultLayoutParams() {
190         LayoutParams mLayoutParams=new LayoutParams(LayoutParams.MATCH_PARENT,LayoutParams.WRAP_CONTENT);
191         return mLayoutParams;
192     }
193
194     /** Create shadow wrapper with a pinned view for a view at given position */
195     void createPinnedShadow(int position) {
196
197         // try to recycle shadow
198         PinnedSection pinnedShadow = mRecycleSection;
199         mRecycleSection = null;
200
201         // create new shadow, if needed
202         if (pinnedShadow == null) pinnedShadow = new PinnedSection();
203         // request new view using recycled view, if such
204         View pinnedView = getAdapter().getView(position, pinnedShadow.view, PinnedSectionListView.this);
205
206         // read layout parameters
207         LayoutParams layoutParams = (LayoutParams) pinnedView.getLayoutParams();
208         if (layoutParams == null) {
209             layoutParams = (LayoutParams) generateDefaultLayoutParams();
210             pinnedView.setLayoutParams(layoutParams);
211         }
212
213         int heightMode = MeasureSpec.getMode(layoutParams.height);
214         int heightSize = MeasureSpec.getSize(layoutParams.height);
215
216         if (heightMode == MeasureSpec.UNSPECIFIED) heightMode = MeasureSpec.EXACTLY;
217
218         int maxHeight = getHeight() - getListPaddingTop() - getListPaddingBottom();
219         if (heightSize > maxHeight) heightSize = maxHeight;
220
221         // measure & layout
222         int ws = MeasureSpec.makeMeasureSpec(getWidth() - getListPaddingLeft() - getListPaddingRight(), MeasureSpec.EXACTLY);
223         int hs = MeasureSpec.makeMeasureSpec(heightSize, heightMode);
224         pinnedView.measure(ws, hs);
225         pinnedView.layout(0, 0, pinnedView.getMeasuredWidth(), pinnedView.getMeasuredHeight());
226         mTranslateY = 0;
227
228         // initialize pinned shadow
229         pinnedShadow.view = pinnedView;
230         pinnedShadow.position = position;
231         pinnedShadow.id = getAdapter().getItemId(position);
232
233         // store pinned shadow
234         mPinnedSection = pinnedShadow;
235     }
236
237     /** Destroy shadow wrapper for currently pinned view */
238     void destroyPinnedShadow() {
239         if (mPinnedSection != null) {
240             // keep shadow for being recycled later
241             mRecycleSection = mPinnedSection;
242             mPinnedSection = null;
243         }
244     }
245
246     /** Makes sure we have an actual pinned shadow for given position. */
247     void ensureShadowForPosition(int sectionPosition, int firstVisibleItem, int visibleItemCount) {
248         if (visibleItemCount < 2) { // no need for creating shadow at all, we have a single visible item
249             destroyPinnedShadow();
250             return;
251         }
252
253         if (mPinnedSection != null
254                 && mPinnedSection.position != sectionPosition) { // invalidate shadow, if required
255             destroyPinnedShadow();
256         }
257
258         if (mPinnedSection == null) { // create shadow, if empty
259             createPinnedShadow(sectionPosition);
260         }
261
262         // align shadow according to next section position, if needed
263         int nextPosition = sectionPosition + 1;
264         if (nextPosition < getCount()) {
265             int nextSectionPosition = findFirstVisibleSectionPosition(nextPosition,
266                     visibleItemCount - (nextPosition - firstVisibleItem));
267             if (nextSectionPosition > -1) {
268                 View nextSectionView = getChildAt(nextSectionPosition - firstVisibleItem);
269                 final int bottom = mPinnedSection.view.getBottom() + getPaddingTop();
270                 mSectionsDistanceY = nextSectionView.getTop() - bottom;
271                 if (mSectionsDistanceY < 0) {
272                     // next section overlaps pinned shadow, move it up
273                     mTranslateY = mSectionsDistanceY;
274                 } else {
275                     // next section does not overlap with pinned, stick to top
276                     mTranslateY = 0;
277                 }
278             } else {
279                 // no other sections are visible, stick to top
280                 mTranslateY = 0;
281                 mSectionsDistanceY = Integer.MAX_VALUE;
282             }
283         }
284
285     }
286
287     int findFirstVisibleSectionPosition(int firstVisibleItem, int visibleItemCount) {
288         ListAdapter adapter = getAdapter();
289
290         int adapterDataCount = adapter.getCount();
291         if (getLastVisiblePosition() >= adapterDataCount) return -1; // dataset has changed, no candidate
292
293         if (firstVisibleItem+visibleItemCount >= adapterDataCount){//added to prevent index Outofbound (in case)
294             visibleItemCount = adapterDataCount-firstVisibleItem;
295         }
296
297         for (int childIndex = 0; childIndex < visibleItemCount; childIndex++) {
298             int position = firstVisibleItem + childIndex;
299             int viewType = adapter.getItemViewType(position);
300             if (isItemViewTypePinned(adapter, viewType)) return position;
301         }
302         return -1;
303     }
304
305     int findCurrentSectionPosition(int fromPosition) {
306         ListAdapter adapter = getAdapter();
307
308         if (fromPosition >= adapter.getCount()) return -1; // dataset has changed, no candidate
309
310         if (adapter instanceof SectionIndexer) {
311             // try fast way by asking section indexer
312             SectionIndexer indexer = (SectionIndexer) adapter;
313             int sectionPosition = indexer.getSectionForPosition(fromPosition);
314             int itemPosition = indexer.getPositionForSection(sectionPosition);
315             int typeView = adapter.getItemViewType(itemPosition);
316             if (isItemViewTypePinned(adapter, typeView)) {
317                 return itemPosition;
318             } // else, no luck
319         }
320
321         // try slow way by looking through to the next section item above
322         for (int position=fromPosition; position>=0; position--) {
323             int viewType = adapter.getItemViewType(position);
324             if (isItemViewTypePinned(adapter, viewType)) return position;
325         }
326         return -1; // no candidate found
327     }
328
329     void recreatePinnedShadow() {
330         destroyPinnedShadow();
331         ListAdapter adapter = getAdapter();
332         if (adapter != null && adapter.getCount() > 0) {
333             int firstVisiblePosition = getFirstVisiblePosition();
334             int sectionPosition = findCurrentSectionPosition(firstVisiblePosition);
335             if (sectionPosition == -1) return; // no views to pin, exit
336             ensureShadowForPosition(sectionPosition,
337                     firstVisiblePosition, getLastVisiblePosition() - firstVisiblePosition);
338         }
339     }
340
341     @Override
342     public void setOnScrollListener(OnScrollListener listener) {
343         if (listener == mOnScrollListener) {
344             super.setOnScrollListener(listener);
345         } else {
346             mDelegateOnScrollListener = listener;
347         }
348     }
349
350     @Override
351     public void onRestoreInstanceState(Parcelable state) {
352         super.onRestoreInstanceState(state);
353         post(new Runnable() {
354             @Override public void run() { // restore pinned view after configuration change
355                 recreatePinnedShadow();
356             }
357         });
358     }
359
360     @Override
361     public void setAdapter(ListAdapter adapter) {
362
363         // assert adapter in debug mode
364         if (BuildConfig.DEBUG && adapter != null) {
365             if (!(adapter instanceof PinnedSectionListAdapter))
366                 throw new IllegalArgumentException("Does your adapter implement PinnedSectionListAdapter?");
367             if (adapter.getViewTypeCount() < 2)
368                 throw new IllegalArgumentException("Does your adapter handle at least two types" +
369                         " of views in getViewTypeCount() method: items and sections?");
370         }
371
372         // unregister observer at old adapter and register on new one
373         ListAdapter oldAdapter = getAdapter();
374         if (oldAdapter != null) oldAdapter.unregisterDataSetObserver(mDataSetObserver);
375         if (adapter != null) adapter.registerDataSetObserver(mDataSetObserver);
376
377         // destroy pinned shadow, if new adapter is not same as old one
378         if (oldAdapter != adapter) destroyPinnedShadow();
379
380         super.setAdapter(adapter);
381     }
382
383     @Override
384     protected void onLayout(boolean changed, int l, int t, int r, int b) {
385         super.onLayout(changed, l, t, r, b);
386         if (mPinnedSection != null) {
387             int parentWidth = r - l - getPaddingLeft() - getPaddingRight();
388             int shadowWidth = mPinnedSection.view.getWidth();
389             if (parentWidth != shadowWidth) {
390                 recreatePinnedShadow();
391             }
392         }
393     }
394
395     @Override
396     protected void dispatchDraw(Canvas canvas) {
397         super.dispatchDraw(canvas);
398
399         if (mPinnedSection != null) {
400
401             // prepare variables
402             int pLeft = getListPaddingLeft();
403             int pTop = getListPaddingTop();
404             View view = mPinnedSection.view;
405
406             // draw child
407             canvas.save();
408
409             int clipHeight = view.getHeight() +
410                     (mShadowDrawable == null ? 0 : Math.min(mShadowHeight, mSectionsDistanceY));
411             canvas.clipRect(pLeft, pTop, pLeft + view.getWidth(), pTop + clipHeight);
412
413             canvas.translate(pLeft, pTop + mTranslateY);
414             drawChild(canvas, mPinnedSection.view, getDrawingTime());
415
416             if (mShadowDrawable != null && mSectionsDistanceY > 0) {
417                 mShadowDrawable.setBounds(mPinnedSection.view.getLeft(),
418                         mPinnedSection.view.getBottom(),
419                         mPinnedSection.view.getRight(),
420                         mPinnedSection.view.getBottom() + mShadowHeight);
421                 mShadowDrawable.draw(canvas);
422             }
423
424             canvas.restore();
425         }
426     }
427
428     //-- touch handling methods
429
430     @Override
431     public boolean dispatchTouchEvent(MotionEvent ev) {
432
433         final float x = ev.getX();
434         final float y = ev.getY();
435         final int action = ev.getAction();
436
437         if (action == MotionEvent.ACTION_DOWN
438                 && mTouchTarget == null
439                 && mPinnedSection != null
440                 && isPinnedViewTouched(mPinnedSection.view, x, y)) { // create touch target
441
442             // user touched pinned view
443             mTouchTarget = mPinnedSection.view;
444             mTouchPoint.x = x;
445             mTouchPoint.y = y;
446
447             // copy down event for eventually be used later
448             mDownEvent = MotionEvent.obtain(ev);
449         }
450
451         if (mTouchTarget != null) {
452             if (isPinnedViewTouched(mTouchTarget, x, y)) { // forward event to pinned view
453                 mTouchTarget.dispatchTouchEvent(ev);
454             }
455
456             if (action == MotionEvent.ACTION_UP) { // perform onClick on pinned view
457                 super.dispatchTouchEvent(ev);
458                 performPinnedItemClick();
459                 clearTouchTarget();
460
461             } else if (action == MotionEvent.ACTION_CANCEL) { // cancel
462                 clearTouchTarget();
463
464             } else if (action == MotionEvent.ACTION_MOVE) {
465                 if (Math.abs(y - mTouchPoint.y) > mTouchSlop) {
466
467                     // cancel sequence on touch target
468                     MotionEvent event = MotionEvent.obtain(ev);
469                     event.setAction(MotionEvent.ACTION_CANCEL);
470                     mTouchTarget.dispatchTouchEvent(event);
471                     event.recycle();
472
473                     // provide correct sequence to super class for further handling
474                     super.dispatchTouchEvent(mDownEvent);
475                     super.dispatchTouchEvent(ev);
476                     clearTouchTarget();
477
478                 }
479             }
480
481             return true;
482         }
483
484         // call super if this was not our pinned view
485         return super.dispatchTouchEvent(ev);
486     }
487
488     private boolean isPinnedViewTouched(View view, float x, float y) {
489         view.getHitRect(mTouchRect);
490
491         // by taping top or bottom padding, the list performs on click on a border item.
492         // we don‘t add top padding here to keep behavior consistent.
493         mTouchRect.top += mTranslateY;
494
495         mTouchRect.bottom += mTranslateY + getPaddingTop();
496         mTouchRect.left += getPaddingLeft();
497         mTouchRect.right -= getPaddingRight();
498         return mTouchRect.contains((int)x, (int)y);
499     }
500
501     private void clearTouchTarget() {
502         mTouchTarget = null;
503         if (mDownEvent != null) {
504             mDownEvent.recycle();
505             mDownEvent = null;
506         }
507     }
508
509     private boolean performPinnedItemClick() {
510         if (mPinnedSection == null) return false;
511
512         OnItemClickListener listener = getOnItemClickListener();
513         if (listener != null && getAdapter().isEnabled(mPinnedSection.position)) {
514             View view =  mPinnedSection.view;
515             playSoundEffect(SoundEffectConstants.CLICK);
516             if (view != null) {
517                 view.sendAccessibilityEvent(AccessibilityEvent.TYPE_VIEW_CLICKED);
518             }
519             listener.onItemClick(this, view, mPinnedSection.position, mPinnedSection.id);
520             return true;
521         }
522         return false;
523     }
524
525     public static boolean isItemViewTypePinned(ListAdapter adapter, int viewType) {
526         if (adapter instanceof HeaderViewListAdapter) {
527             adapter = ((HeaderViewListAdapter)adapter).getWrappedAdapter();
528         }
529         return ((PinnedSectionListAdapter) adapter).isItemViewTypePinned(viewType);
530     }
531
532 }

PinnedSectionListView.java

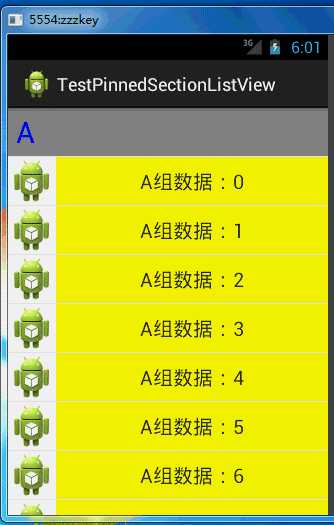

通信录分组并且分组标签悬停划入划出（包含错误信息及修改）--第三方开源--PinnedSectionListView

原文：http://www.cnblogs.com/zzw1994/p/4997601.html

踩

(0)

评论一句话评论（0）

分享档案

更多>

2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
