k8s google sample - guestbook

时间：2015-12-17 20:48:12 阅读：586 评论：0 收藏：0 [点我收藏+]

Redis读写分离作为存储

PHP网页作为前端

github地址

https://github.com/kubernetes/kubernetes/blob/release-1.1/examples/guestbook/README.md

Create guest book sample on k8s

1. 创建Redis写端RC yaml

apiVersion: v1
kind: ReplicationController
metadata:
  name: redis-master
  labels:
    name: redis-master
spec:
  replicas: 1
  selector:
    name: redis-master
  template:
    metadata:
      labels:
        name: redis-master
    spec:
      containers:
      - name: master
        image: redis
        ports:
        - containerPort: 6379

可以到开头的github地址下载dockfile，自己创建image

2. k8s创建RC redis master

kubectl create -f redis-master-controller.yaml

3. k8s创建 redis master service yaml

apiVersion: v1

kind: Service

metadata:

  name: redis-master

  labels:

    name: redis-master

spec:

  ports:

    # the port that this service should serve on

  - port: 6379

    targetPort: 6379

  selector:

    name: redis-master

4. k8s创建SVC

kubectl create -f redis-master-service.yaml

5. 创建Redis读端 RC redis slave yaml

apiVersion: v1

kind: ReplicationController

metadata:

  name: redis-slave

  labels:

    name: redis-slave

spec:

  replicas: 2

  selector:

    name: redis-slave

  template:

    metadata:

      labels:

        name: redis-slave

    spec:

      containers:

      - name: slave

        image: kubeguide/guestbook-redis-slave

        env:

        - name: GET_HOSTS_FROM

          value: env

          # If your cluster config does not include a dns service, then to

          # instead access an environment variable to find the master

          # service‘s host, comment out the ‘value: dns‘ line above, and

          # uncomment the line below.

          #value: env

        ports:

        - containerPort: 6379

示例文档中说明如果放在云端并且有DNS服务器可以写入dns，但是实验中是在局域网内，所以使用env

6. k8s创建redis slave RC

kubectl create -f redis-slave-controller.yaml

7. 创建redis slave svc yaml

apiVersion: v1

kind: Service

metadata:

  name: redis-slave

  labels:

    name: redis-slave

spec:

  ports:

    # the port that this service should serve on

  - port: 6379

  selector:

    name: redis-slave

8. k8s创建redis slave svc

kubectl create -f redis-slave-service.yaml

9. 创建php frontend rc yaml

apiVersion: v1

kind: ReplicationController

metadata:

  name: frontend

  labels:

    name: frontend

spec:

  replicas: 3

  selector:

    name: frontend

  template:

    metadata:

      labels:

        name: frontend

    spec:

      containers:

      - name: frontend

        image: peter/php-frontend:v1

        env:

        - name: GET_HOSTS_FROM

          value: env

          # If your cluster config does not include a dns service, then to

          # instead access environment variables to find service host

          # info, comment out the ‘value: dns‘ line above, and uncomment the

          # line below.

          # value: env

        ports:

        - containerPort: 80

这是下载了github的dockfile，本地构建的镜像

技术分享

10. k8s创建 php frontend rc

kubectl create -f frontend-controller.yaml

11. 创建php frontend svc yaml

apiVersion: v1

kind: Service

metadata:

  name: frontend

  labels:

    name: frontend

spec:

  # if your cluster supports it, uncomment the following to automatically create

  # an external load-balanced IP for the frontend service.

  type: NodePort

  ports:

    # the port that this service should serve on

    - port: 80

      nodePort: 30001

  selector:

    name: frontend

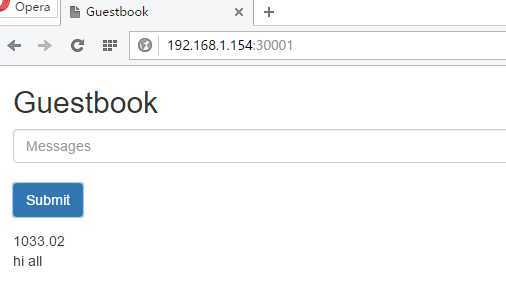

打开节点机器30001端口

12. k8s创建php frontend svc

kubectl create -f frontend-service.yaml

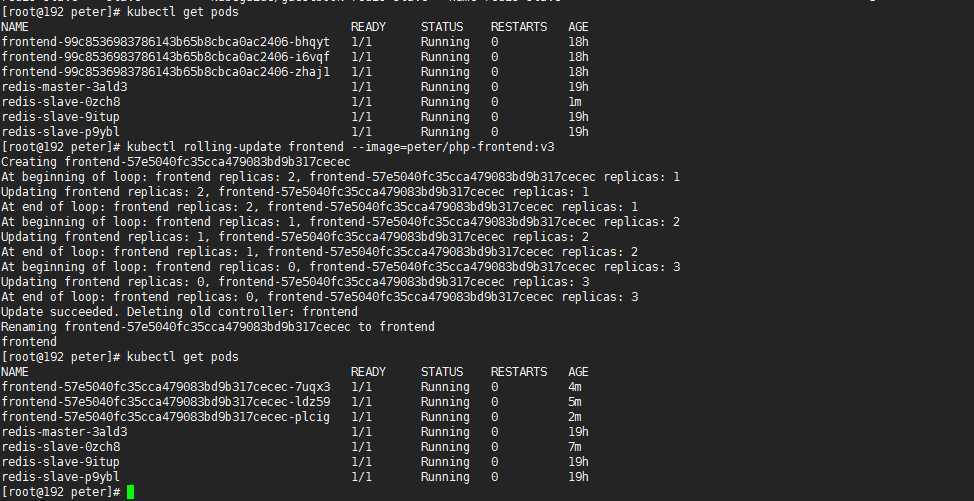

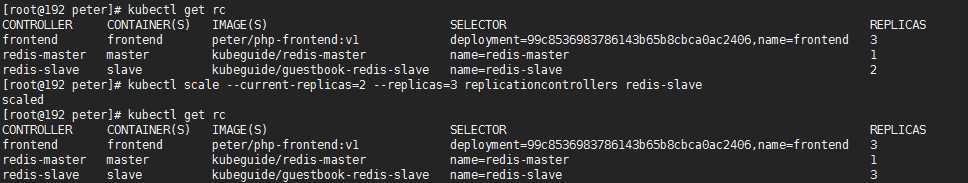

查看k8s的pods svc rc

技术分享
