.NET 日志系统设计思路及实现代码

时间:2016-02-05 10:35:28      阅读:119      评论:0      收藏:0      [点我收藏+]

日志很明显是帮助大家定位到问题的一个很重要的手段,本来是想直接使用的NLog 来做系统的日志工具,哎伤不起,一变态非要说这个有很多不可控制的因素,这里我给大家讲一下我是怎么实现日志模块的,欢迎拍砖

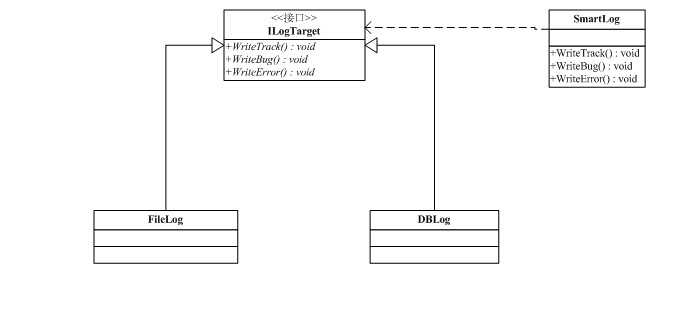

总体架构图

技术分享

•    在这里我把日子的等级分为 跟踪,BUG 和错误 3种  定义枚举如下

复制代码 代码如下:

/// <summary>
    /// 日志等级
    /// </summary>
    public enum Loglevel
    {
        Track=1,
        Bug,
        Error
    }

•    这里考虑日志的模块的可扩展性 (这里支持 数据库 和文件 2种方式)  这里使用适配器模式来完成本模块。 这里给大家来年终福利。贴点代码
定义一个接口ILogTarget
复制代码 代码如下:

public interface ILogTarget
    {
        /// <summary>
        /// 写入追踪信息
        /// </summary>
        /// <param name="LogContent"></param>
        void WriteTrack(string LogContent);

        /// <summary>
        /// 写入BUG信息
        /// </summary>
        /// <param name="LogContent"></param>
        void WriteBug(string LogContent);

        /// <summary>
        /// 写入错误信息
        /// </summary>
        /// <param name="LogContent"></param>
        void WriteError(string LogContent);

    }



•     FileLog ,和DBLog 2个类实现上面的接口 这里不贴上具体的现实
复制代码 代码如下:

/// <summary>
    /// 文件日志实现类
    /// </summary>
    public class FileLog : ILogTarget
    {
        public void WriteTrack(string LogContent)
        {
            throw new NotImplementedException();
        }

        public void WriteBug(string LogContent)
        {
            throw new NotImplementedException();
        }

        public void WriteError(string LogContent)
        {
            throw new NotImplementedException();
        }
    }


复制代码 代码如下:

public class DBLog : ILogTarget
    {
        public void WriteTrack(string LogContent)
        {
            throw new NotImplementedException();
        }

        public void WriteBug(string LogContent)
        {
            throw new NotImplementedException();
        }

        public void WriteError(string LogContent)
        {
            throw new NotImplementedException();
        }
    }


复制代码 代码如下:

public class SmartLog
    {
        private ILogTarget _adaptee;

        public SmartLog(ILogTarget tragent)
        {
            this._adaptee = tragent;
        }
        public void WriteTrack(string LogContent)
        {
            _adaptee.WriteTrack(LogContent);
        }

        public void WriteBug(string LogContent)
        {
            _adaptee.WriteBug(LogContent);
        }

        public void WriteError(string LogContent)
        {
            _adaptee.WriteError(LogContent);
        }
    }


•   调用方式
复制代码 代码如下:

SmartLog log =new SmartLog (new FileLog());

log.WriteTrack("Hello word");

.NET 日志系统设计思路及实现代码
