1. 准备工作:
step1: 下载Mybatis-Generator
step2: 数据库(本例为mysql)添加表
DROP TABLE IF EXISTS `springmvc_user`; CREATE TABLE `springmvc_user` ( `id` int(11) NOT NULL AUTO_INCREMENT, `username` varchar(11) NOT NULL, `password` varchar(50) NOT NULL, `age` int(11) NOT NULL, `email` varchar(12) NOT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8;
step3: 下载mysql连接驱动包(本例为mysql-connector-java-5.1.18-bin.jar)
2. 正式操作
step1:打开配置文件generator.xml,修改注释部分内容
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd"> <generatorConfiguration> <!-- 数据库驱动包位置 --> <classPathEntry location="E:\ZHY\app\generator\mysql-connector-java-5.1.18-bin.jar" /> <context id="DB2Tables" targetRuntime="MyBatis3"> <commentGenerator> <property name="suppressAllComments" value="true" /> </commentGenerator> <!-- 数据库链接URL、用户名、密码 --> <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/zhy" userId="root" password=""> </jdbcConnection> <javaTypeResolver> <property name="forceBigDecimals" value="false" /> </javaTypeResolver> <!-- 生成模型的包名和位置 --> <javaModelGenerator targetPackage="zhy.model" targetProject="E:\ZHY\app\generator\src"> <property name="enableSubPackages" value="true" /> <property name="trimStrings" value="true" /> </javaModelGenerator> <!-- 生成的映射文件包名和位置 --> <sqlMapGenerator targetPackage="zhy.mapping" targetProject="E:\ZHY\app\generator\src"> <property name="enableSubPackages" value="true" /> </sqlMapGenerator> <!-- 生成DAO的包名和位置 --> <javaClientGenerator type="XMLMAPPER" targetPackage="zhy.dao" targetProject="E:\ZHY\app\generator\src"> <property name="enableSubPackages" value="true" /> </javaClientGenerator> <!-- 要生成那些表(更改tableName和domainObjectName就可以) --> <table tableName="springmvc_user" domainObjectName="User" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false" /> </context> </generatorConfiguration>
step2:shift+鼠标右键 选择“在此处打开命令窗口” 输入命令:
java -jar mybatis-generator-core-1.3.2.jar -configfile generator.xml -overwrite

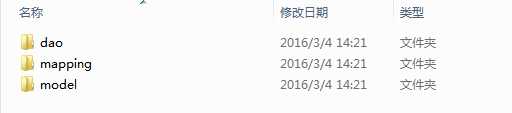

这样即为成功,可以看到在src目录下已经生成了对应文件。
UserMapper.xml:
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" > <mapper namespace="zhy.dao.UserMapper" > <resultMap id="BaseResultMap" type="zhy.model.User" > <id column="id" property="id" jdbcType="INTEGER" /> <result column="username" property="username" jdbcType="VARCHAR" /> <result column="password" property="password" jdbcType="VARCHAR" /> <result column="age" property="age" jdbcType="INTEGER" /> <result column="email" property="email" jdbcType="VARCHAR" /> </resultMap> <sql id="Base_Column_List" > id, username, password, age, email </sql> <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" > select <include refid="Base_Column_List" /> from springmvc_user where id = #{id,jdbcType=INTEGER} </select> <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" > delete from springmvc_user where id = #{id,jdbcType=INTEGER} </delete> <insert id="insert" parameterType="zhy.model.User" > insert into springmvc_user (id, username, password, age, email) values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR}, #{age,jdbcType=INTEGER}, #{email,jdbcType=VARCHAR}) </insert> <insert id="insertSelective" parameterType="zhy.model.User" > insert into springmvc_user <trim prefix="(" suffix=")" suffixOverrides="," > <if test="id != null" > id, </if> <if test="username != null" > username, </if> <if test="password != null" > password, </if> <if test="age != null" > age, </if> <if test="email != null" > email, </if> </trim> <trim prefix="values (" suffix=")" suffixOverrides="," > <if test="id != null" > #{id,jdbcType=INTEGER}, </if> <if test="username != null" > #{username,jdbcType=VARCHAR}, </if> <if test="password != null" > #{password,jdbcType=VARCHAR}, </if> <if test="age != null" > #{age,jdbcType=INTEGER}, </if> <if test="email != null" > #{email,jdbcType=VARCHAR}, </if> </trim> </insert> <update id="updateByPrimaryKeySelective" parameterType="zhy.model.User" > update springmvc_user <set > <if test="username != null" > username = #{username,jdbcType=VARCHAR}, </if> <if test="password != null" > password = #{password,jdbcType=VARCHAR}, </if> <if test="age != null" > age = #{age,jdbcType=INTEGER}, </if> <if test="email != null" > email = #{email,jdbcType=VARCHAR}, </if> </set> where id = #{id,jdbcType=INTEGER} </update> <update id="updateByPrimaryKey" parameterType="zhy.model.User" > update springmvc_user set username = #{username,jdbcType=VARCHAR}, password = #{password,jdbcType=VARCHAR}, age = #{age,jdbcType=INTEGER}, email = #{email,jdbcType=VARCHAR} where id = #{id,jdbcType=INTEGER} </update> </mapper>
User.java:
package zhy.model; public class User { private Integer id; private String username; private String password; private Integer age; private String email; public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getUsername() { return username; } public void setUsername(String username) { this.username = username == null ? null : username.trim(); } public String getPassword() { return password; } public void setPassword(String password) { this.password = password == null ? null : password.trim(); } public Integer getAge() { return age; } public void setAge(Integer age) { this.age = age; } public String getEmail() { return email; } public void setEmail(String email) { this.email = email == null ? null : email.trim(); } }
UserMapper.java:
package zhy.dao; import zhy.model.User; public interface UserMapper { int deleteByPrimaryKey(Integer id); int insert(User record); int insertSelective(User record); User selectByPrimaryKey(Integer id); int updateByPrimaryKeySelective(User record); int updateByPrimaryKey(User record); }
