【Simulink应用-Stateflow01】

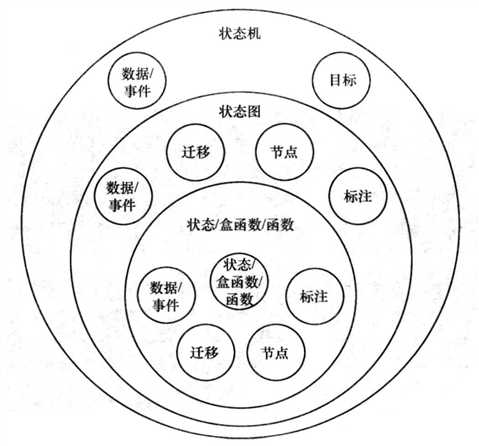

1.Stateflow Structure

2.State Description

Functon                         description

name/　　                       State name

entry:　　entry actions;   the actions into state

during:    during actions;  the actions during state

exit:　　　exit actions;　　the actions when exit state

on event_name: actions;　the actions when occur events

blind;　　 events/data;　　define the scope of events or data

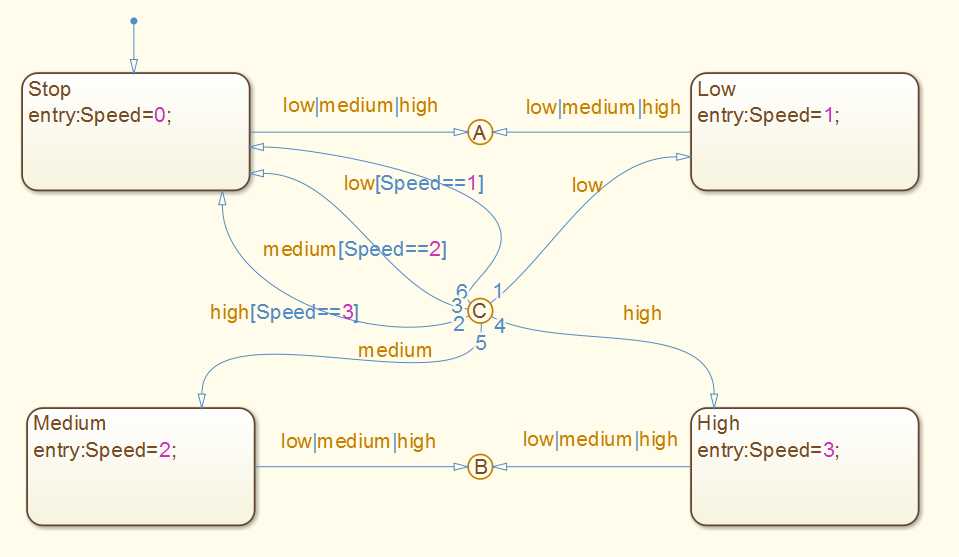

3.Application of Stateflow(Reference Book)

【Simulink应用-Stateflow01】
