Altium Designer 15 --- Nets Update

时间:2016-11-29 22:33:11      阅读:682      评论:0      收藏:0      [点我收藏+]

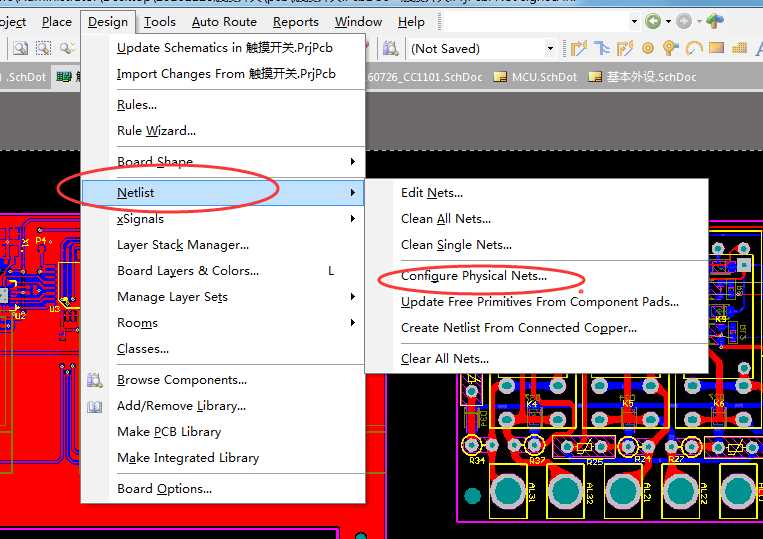

  Now I want to introduce the use of ‘Configure Physical Nets‘, as follows:
技术分享

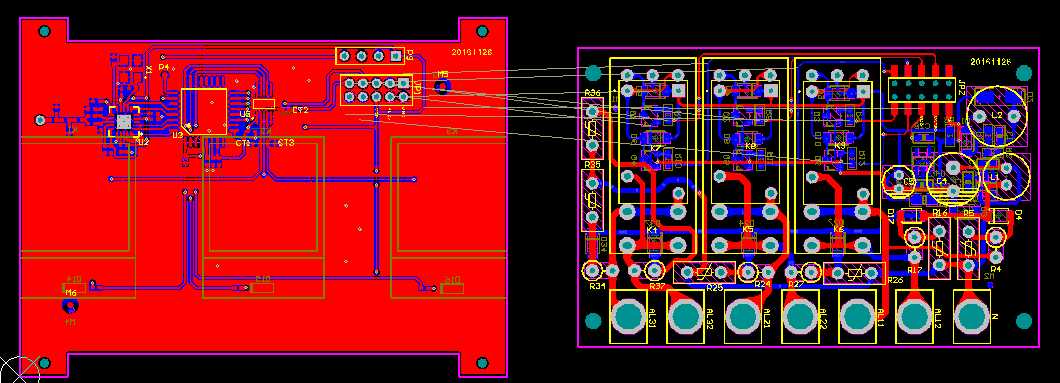

  If you has finished the PCB layout, as follows:

技术分享

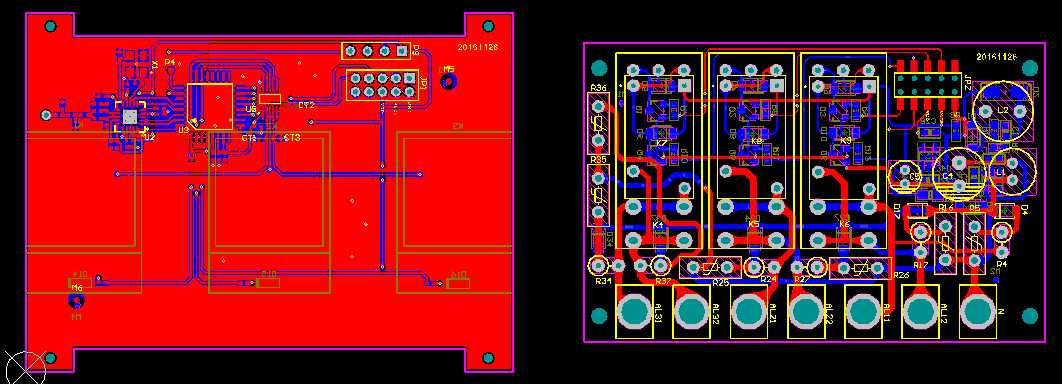

  Then you want to get rid of these white wires, so the two boards would be separated completely. And you change the nets of the one board, as follows:

技术分享

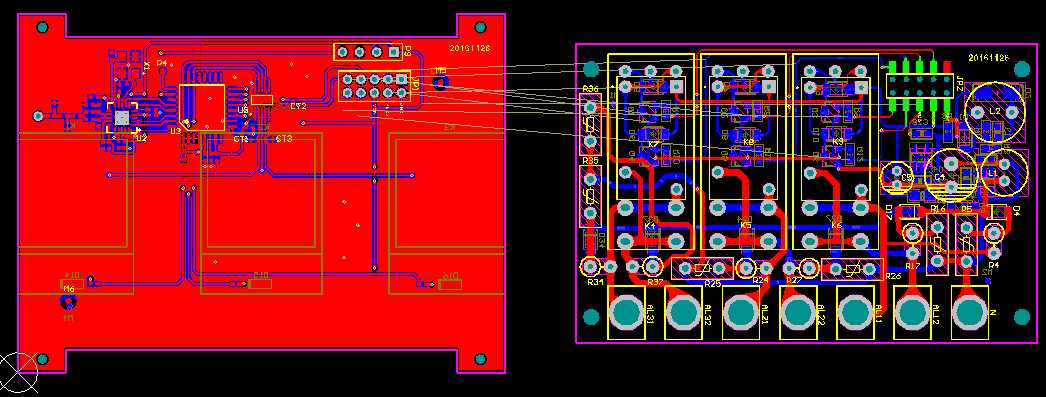

  The earlier routes collide with the current routes, then you can use ‘Configure Physical Nets‘ to eliminate this problem, as follows:

技术分享



Altium Designer 15 --- Nets Update
