Verilog 大小写敏感, 且所有关键字都是小写

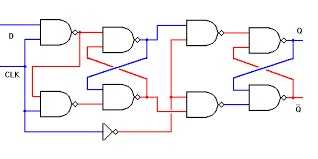

1 寄存器
register = storage，是数据存储单元的抽象，可视为能够存储数值的变量 (variable that can hold value)
关键字 reg; 缺省值 x;

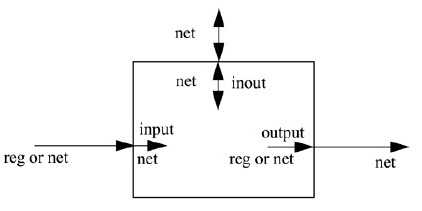

2 网络连接
net = connection, 表示寄存器之间的连接，只能采用连续赋值 (must be driven continuously)
关键字 wire; 缺省值 z;
例 1) D 触发器 (同步复位)
module dff(clk, rst, d, q); //dff with syn reset input clk, rst, d; output q; reg q; always @(posedge clk) begin if (rst) q <= 1‘b0; else q <= d; end endmodule
例 2) D 触发器 (异步复位)
module dff(clk, rst, d, q); // dff with asyn reset input clk, rst, d; output q; reg q; always @(posedge clk or posedge rst) begin if (rst) q <= 1‘b0; else q <= d; end endmodule
3 连续赋值 continuous assignment
assign data_left = data_right; // right drive left(net)
例 3) 选择器 mux
assign data_out = select ? data_in1 : data_in0;
4 procedural assignment
1) 阻塞赋值 ("=")
execute sequential
2) 非阻塞赋值 ("<=")
read (right) -> schedule (left) -> execute (<=)

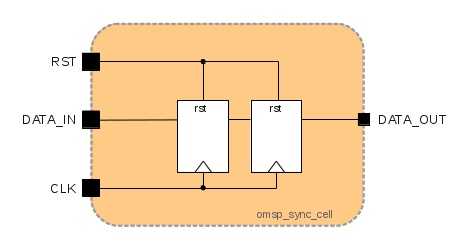

例 4) synchronizer
reg [1:0] data_sync; always @ (posedge clk or posedge rst) begin if (rst) data_sync <= 2‘b00; else data_sync <= {data_sync[0], data_in}; end assign data_out = data_sync[1];
