Use the following method printPrimes() for questions a–d.
/*******************************************************
* Finds and prints n prime integers
* Jeff Offutt, Spring 2003
******************************************************/
public static void printPrimes (int n)
{
int curPrime; // Value currently considered for primeness
int numPrimes; // Number of primes found so far.
boolean isPrime; // Is curPrime prime?
int [] primes = new int [MAXPRIMES]; // The list of prime numbers.
// Initialize 2 into the list of primes.
primes [0] = 2;
numPrimes = 1;
curPrime = 2;
while (numPrimes < n)
{
curPrime++; // next number to consider ...
isPrime = true;
for (int i = 0; i <= numPrimes-1; i++)
{ // for each previous prime.
if (isDivisable(primes[i],curPrime))
{ // Found a divisor, curPrime is not prime.
isPrime = false;
break; // out of loop through primes.
}
}
if (isPrime)
{ // save it!
primes[numPrimes] = curPrime;
numPrimes++;
}
} // End while
// Print all the primes out.
for (int i = 0; i <= numPrimes-1; i++)
{
System.out.println ("Prime: " + primes[i]);
}
} // end printPrimes
(a)
The meaning of these nodes are:
1: int curPrime; 2:
int numPrimes; 3: curPrime++;
boolean isPrime; isPrime = true;
int [] primes = new int [MAXPRIMES]; int i=0;
primes [0] = 2; 4:
numPrimes = 1; 5:
curPrime = 2; 7:
6: isPrime = false; 8: primes[numPrimes] = curPrime;
break; numPrimes++;
9: i++ 10: int i = 0; 11:
12: System.out.println ("Prime: " + primes[i]); 13:end
i++
(b) When MAXPRIMES=4, The t1 is running normally and the t2 has an array of cross-border errors.
(c) Input n=1.
(d)
node : { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 }
node coverage : {1, 2, 3, 4, 5, 9, 4, 5, 9, 4, 5, 6, 7, 8, 2, 10, 11, 12, 11, 13 }
edge : { (1,2), (2,3), (2,10), (3,4), (4,5), (4,7), (5,6), (5,9), (6,7), (7,8), (7,2), (8,2), (9,4), (10,11), (11,12), (11,13), (12,11) }
edge coverage: [1,2,3,4,5,9,4,7,2,10,11,12,11,13], [1,2,3,4,5,6,7,8,2,10,11,13]
prime path :
[1,2,3,4,5,6,7,8], [1,2,3,4,5,9], [1,2,10,11,13], [1,2,10,11,12], [2,3,4,5,6,7,8,2], [2,3,4,5,6,7,2], [2,10,11,13], [2,10,11,12], [2,3,4,7,2], [2,3,4,7,8,2], [4,5,9,4], [5,9,4,5], [11,12,11], [12,11,13], [12,11,12]
prime path coverage :
[1, 2, 3, 4, 5, 9, 4, 7, 2, 10, 11, 12, 11, 13] , [1, 2, 3, 4, 5, 6, 7, 8, 2, 10, 11, 13] , [1, 2, 10, 11, 13] , [1, 2, 10, 11, 12, 11, 13] , [1, 2, 3, 4, 5, 6, 7, 2, 10, 11, 13] , [1, 2, 3, 4, 7, 2, 10, 11, 13], [1, 2, 3, 4, 7, 8, 2, 10, 11, 13] , [1, 2, 3, 4, 5, 9, 4, 5, 6, 7, 2, 10, 11, 12, 11, 12, 11, 13].

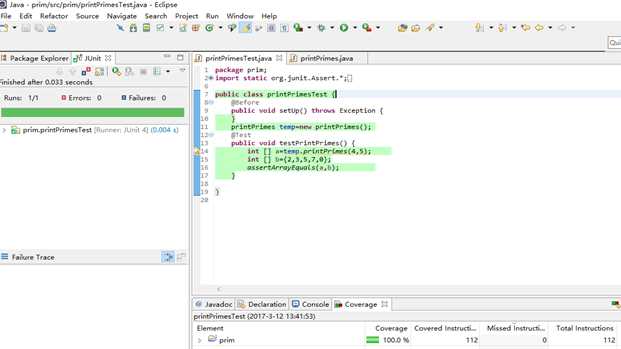

A testing for Prime Path Coverage
