LVDS 4K TCON w/ Scaler
1 Features
mini-LVDS Output
1/2/4-port 3/6-pair mini-LVDS interface
Up to 4K (3840*2160) supported
Port and polarity swap supported
Adjustable gate control timing
LVDS Input
Single/Dual-channel 6/8bit LVDS interface
400Mbps to 1Gbps per data pair
Built-in termination
Channel and polarity swap supported
Scaler
High-order high-quality scaling engine
Reference Clock
Any freq. between 19MHz and 100MHz
Crystal or single-ended clock input
Built-in 5000ppm SSC generator
Misc
I2C for chip configuration
Built-in video test pattern
Power
1.2V core supply
2.5V or 3.3V IO supply
Deep-sleep mode power <5mW
Power consumption ~ 400mW @ 4K
Package
LQFP-128 package
RoHS Compliant

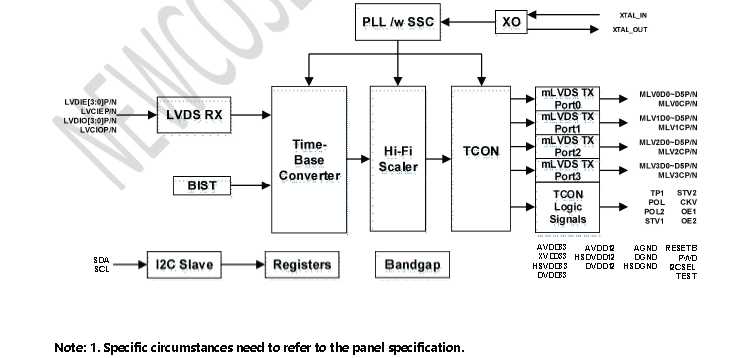

2 Block Diagram
3 General Description
NCS8807 is an LVDS 4K TCON with advanced scaling function. It takes LVDS input signal from the TV SOC, scales it up to 4K resolution, and drives the 4K panel.
By combining the 4K scaling and TCON functions into a single chip, NCS8807 enables the lowest cost solution for 4K TVs. Thanks to our proprietary scaling algorithm, NCS8807 provides high picture quality which is close to the current 4K TV solutions.
NCS8807 also supports mainstream HD (720p)/Full HD (1080p), scaling input signals to FHD/UHD display applications

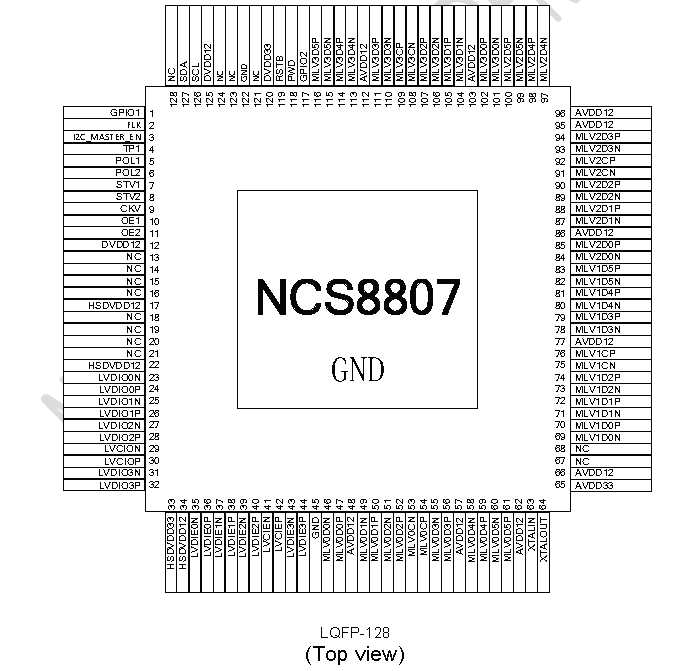

4 Pin Diagram
5 Pin Description
...
6 Electrical Specifications
...
7 Applications
...
8 Package
NCS8807 is packaged in LQFP-128.The package dimensions are shown below. (Unit: mm)
...
NCS8807:LVDS to mini LVDS,LVDS 4K TCON w/Scaler芯片
