1，ip说明

2，keepalived安装

keepalived通常与lvs或者nginx结合使用保证集群的高可用，keepalived的master会绑定一个vip用来对外服务并定期向backup发送消息，当backup接收不到消息时则会判定master已经挂掉，backup将升为master并且绑定vip继续对外提供服务，从而保证高可用。下面介绍keepalived的安装

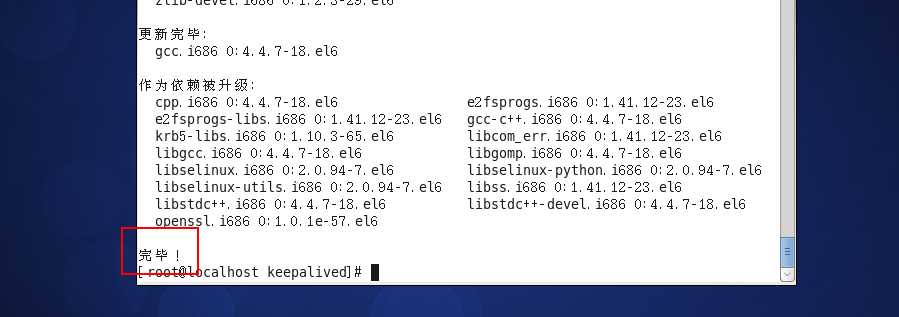

安装依赖 openssl-devel popt-devel

yum install -y gcc openssl-devel popt-devel

tar zxvf keepalived-1.2.24.tar.gz



cd keepalived-1.2.24



./configure --prefix=/opt/wacos/aaatool/keepalived



make && make install



设置开机启动

cp /opt/wacos/aaatool/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/

cp /opt/wacos/aaatool/keepalived/etc/sysconfig/keepalived /etc/sysconfig/



cp /ut/server/keepalived-1.2.24/sbin/keepalived /usr/sbin/



cp /opt/wacos/aaatool/keepalived/sbin/keepalived /usr/sbin/



chmod 755 /etc/init.d/keepalived



keepalived启动会默认读取keepalived/keepalived.conf配置文件

mkdir /etc/keepalived

 拷贝keepalived.conf配置文件到/etc/keepalived/



 keepalived.conf配置文件如下



! Configuration File for keepalived



global_defs {

   router_id edu-proxy-02

}



vrrp_script chk_nginx {

    script "/etc/keepalived/nginx_check.sh"

    interval 2

    weight -20

}



vrrp_instance VI_1 {

    state BACKUP

    interface eth0

    virtual_router_id 51

    mcast_src_ip 10.50.13.68

    priority 90

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass 1111

    }



    track_script {

        chk_nginx

    }



    virtual_ipaddress {

        10.50.13.67

    }

}





 启动 关闭 keepalived



service keepalived start[stop]







ip a查看是否绑定虚拟ip10.50.13.67



 3，备keepalived安装

 和说明主keepalived 过程一样，只是配置文件/etc/keepalived/keepalived。conf一处需要修改

 mcast_src_ip 10.50.13.140

4,测试高可用

关掉10.50.13.67的keepalived后，发现vip绑定到了10.50.13.140

重启10.50.13.67的keepalived，vip又重新绑定到了10.50.13.67
