Delphi10.2 VCL Forms Application 的构成

时间:2017-10-02 23:33:02      阅读:770      评论:0      收藏:0      [点我收藏+]

Delphi10.2 项目的构成(File Extensions of Files Generated by RAD Studio)

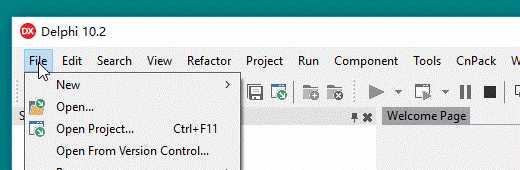

Step1、打开 Delphi10.2,选择【File | New | VCL Forms Application - Delphi】,创建一个 Delphi 应用程序;

技术分享

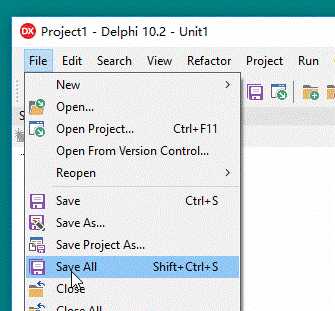

Step2、选择【File | Save All】,将我们的默认Delphi程序保存到一个独立的文件夹(例如 F:\Delphi10.2\First)中;

技术分享

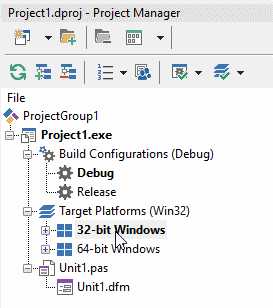

Step3、Project Manager 中的 Build Configurations Target Platforms 选项中分别选择 32位 Debug、32 位 Release、64位 Debug和64位 Release组合,并按【F9】运行我们的程序;

技术分享

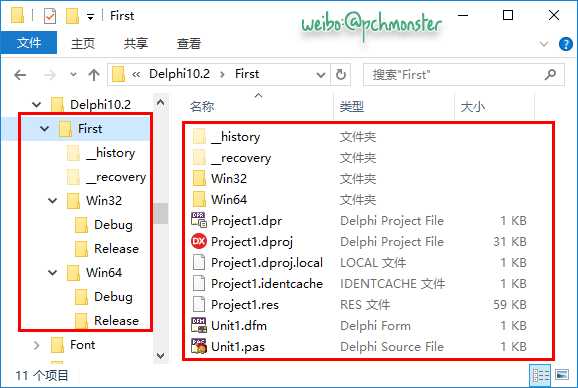

Step4、接下来打开Windows资源管理器,打开刚刚保存的文件夹看看,如下图:

技术分享

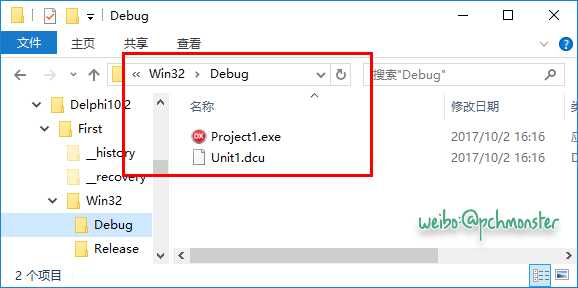

并且 Win32(Win64) 的 Debug(Release) 目录下文件如下:

技术分享

下面结合 Delphi10.2 的帮助文件说明下每个文件的具体意义:

  • Project1.dpr】Delphi project source; when compiled, produces .exe, .dll, or .ocx file.
  • Project1.dproj】Delphi project file created by the IDE. Contains the current settings for project options, such as compiler and linker settings, directories, conditional directives, and command-line parameters. Set these options using Project > Options. This file is not used when compiling a project from the command line using the command line compiler.
  • Project1.dproj.local】User-specific project options.
  • Project1.identcache】Information used for refactoring.
  • Project1.res】Compiled and uncompiled resource files.
  • Unit1.dfm】A Windows VCL form file.
  • Unit1.pas】Delphi source file.
  • _history 文件夹】 There are now three versions of the file stored in the current directory in a hidden directory named __history.
  • _recovery 文件夹】 When Tools > Options > Environment Options > AutoRecover is enabled, RAD Studio saves the recovery files in the hidden folder called _recovery, in the folder of your project.
  • Win32 文件夹 】Output folder, 32-bit Windows platform
  • Win64 文件夹】 Output folder, 64-bit Windows platform
  • Project1.exe】 应用程序
  • Unit1.dcu】Delphi compiled unit file.

Delphi10.2 VCL Forms Application 的构成

原文:http://www.cnblogs.com/pchmonster/p/7622902.html
