Spring整合MyBatis
 思想:整合一定不是两个框架jar包简单的堆砌  真正的思想是Spring接管了MyBatis框架的一部分工作
 1.SqlSessionFactory  创建权交给Spring
   生成SqlSession,打通通道

 2.如果你想将咱们的DAO配置到Spring。接口实现类
 <bean id="bookDAO" class="MapperScannerConfig">


你接口的命名规范起到非常重要的作用
接口以I开头,生成对象就是接口名称本身 IBookDAO  IBookDAO
没有以I开头, BookDAO  对象的名称 bookDAO


整合最根本的点:
1.Spring生成工厂
    SqlSessionFactoryBean------>dataSource  和mybatis-config.xml

Spring 整合JavaWeb
 spring-web

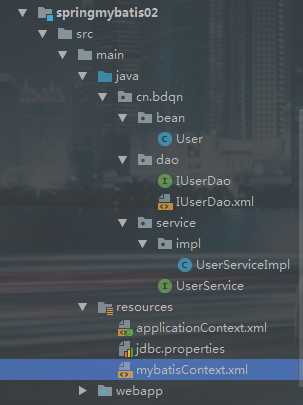

整体结构如下图:

技术分享

1、配置文件:

1>applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"

       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
         http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
         http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/tx
         http://www.springframework.org/schema/tx/spring-tx.xsd">
    <!--01.加载jdbc.properties文件-->
    <context:property-placeholder location="classpath:jdbc.properties"/>
    <!--02.配置数据源  002.使用dbcp数据源-->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource">
        <property name="driverClassName" value="${jdbc.driverClass}"/>
        <property name="url" value="${jdbc.jdbcUrl}"/>
        <property name="username" value="${jdbc.userName}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!--03. 配置sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="configLocation" value="classpath:mybatisContext.xml"/>
        <property name="dataSource" ref="dataSource" />
        <!-- 自动扫描mapping.xml文件,**表示迭代查找 ,,也可在mybatis-config.xml中单独指定xml文件
         <property name="mapperLocations" value="classpath:cn/bdqn/dao/*.xml"/>
         -->
    </bean>

<!-- 04.配置userDao-->
   <!-- <bean id="userDao" class="org.mybatis.spring.mapper.MapperFactoryBean">
        <property name="mapperInterface" value="cn.bdqn.dao.UserDao"/>
        <property name="sqlSessionFactory" ref="sqlSessionFactory"/>
    </bean>-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.bdqn.dao"/>
    </bean>
    <!--05.配置service-->
    <bean id="userService" class="cn.bdqn.service.impl.UserServiceImpl">
        <property name="userDao" ref="IUserDao"/>
    </bean>
    <!--06.配置事务-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="add*" isolation="DEFAULT" propagation="REQUIRED"/>
        </tx:attributes>
    </tx:advice>
    <aop:config>
        <aop:pointcut id="mypoint" expression="execution(* *..service.*.add*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="mypoint"/>
    </aop:config>
<!--扫描注解定义-->
    <!--<context:component-scan base-package="cn.bdqn.service"/>-->
</beans>



2>jdbc.properties外置文件:

jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.jdbcUrl=jdbc:mysql:///mybatis
jdbc.userName=root
jdbc.password=000

3>mybatis-config.xml



<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <typeAliases>
        <package name="cn.bdqn.bean"/>
    </typeAliases>
    <!--可以省略<mappers>
        <package name="cn.bdqn.dao"/>
    </mappers>-->
</configuration>

4>IUserDao.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.bdqn.dao.IUserDao">
    <insert id="addUser">
        INSERT  into user(name,address,birthday) VALUES (#{name},#{address},#{birthday})
    </insert>
</mapper>

5>pom.xml

 <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--spring对应的版本号-->
        <spring.version>4.2.1.RELEASE</spring.version>
    </properties>
    <dependencies>
        <!-- mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.0</version>
        </dependency>

        <!--aspectj需要的jar-->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.6.8</version>
        </dependency>
        <!--spring整合aspect需要的jar-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--spring事务管理需要的jar-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--aop联盟-->
        <dependency>
            <groupId>aopalliance</groupId>
            <artifactId>aopalliance</artifactId>
            <version>1.0</version>
        </dependency>
        <!--spring-aop-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--引入需要的spring 核心jar-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.1.1</version>
        </dependency>
        <!--Apache 的dbcp依赖-->
        <dependency>
            <groupId>commons-pool</groupId>
            <artifactId>commons-pool</artifactId>
            <version>1.6</version>
        </dependency>

        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.0</version>
            <scope>test</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/log4j/log4j -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.38</version>
        </dependency>
        <!--ServletAPI-->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>6.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
            <scope>runtime</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.google.code.gson/gson -->
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>2.2.4</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
    </dependencies>
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>

1>实体类Student

public class User implements Serializable {
    private int id;
    private String name;
    private String address;
    private Date birthday;

    public User() {
    }

    public User(int id, String name, String address, Date birthday) {
        this.id = id;
        this.name = name;
        this.address = address;
        this.birthday = birthday;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", name=‘" + name + ‘\‘‘ +
                ", address=‘" + address + ‘\‘‘ +
                ", birthday=" + birthday +
                ‘}‘;
    }
}

2>dao接口

public interface IUserDao {
    /**
     * 添加用户
     * @param user user对象
     * @return 影响横数
     */
    int addUser(User user);
}

3>service

public interface UserService  {
    int addUser(User user);

4.>serviceImpl

public class UserServiceImpl implements UserService{
    private IUserDao userDao;
    public int addUser(User user) {
        return userDao.addUser(user);
    }

    public IUserDao getUserDao() {
        return userDao;
    }

    public void setUserDao(IUserDao userDao) {
        this.userDao = userDao;
    }
}

5.test:

public class test01 {
    @Test
    public void test(){
        ApplicationContext context=new ClassPathXmlApplicationContext("applicationContext.xml");
        UserService userService = (UserService) context.getBean("userService");
        User user=new User();
        user.setName("小明");
        user.setAddress("五道口");
        user.setBirthday(new Date());
        userService.addUser(user);
    }
}
