自己打断点走的struts流程

    public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain) throws IOException, ServletException {

        HttpServletRequest request = (HttpServletRequest) req;
        HttpServletResponse response = (HttpServletResponse) res;

        try {
            if (excludedPatterns != null && prepare.isUrlExcluded(request, excludedPatterns)) {
                chain.doFilter(request, response);
            } else {
                prepare.setEncodingAndLocale(request, response);
                prepare.createActionContext(request, response);
                prepare.assignDispatcherToThread();
                request = prepare.wrapRequest(request);

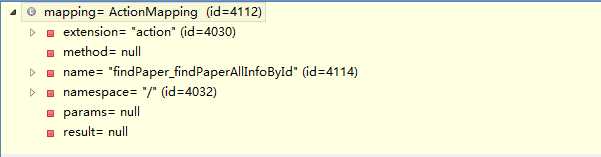

                ActionMapping mapping = prepare.findActionMapping(request, response, true);
                if (mapping == null) {
                    boolean handled = execute.executeStaticResourceRequest(request, response);
                    if (!handled) {
                        chain.doFilter(request, response);
                    }
                } else {
                    execute.executeAction(request, response, mapping);
                }
            }
        } finally {
            prepare.cleanupRequest(request);
        }
    }

    public HttpServletRequest wrapRequest(HttpServletRequest oldRequest) throws ServletException {
        HttpServletRequest request = oldRequest;
        try {
            // Wrap request first, just in case it is multipart/form-data
            // parameters might not be accessible through before encoding (ww-1278)
            request = dispatcher.wrapRequest(request);
            ServletActionContext.setRequest(request);
        } catch (IOException e) {
            throw new ServletException("Could not wrap servlet request with MultipartRequestWrapper!", e);
        }
        return request;
    }

    public HttpServletRequest wrapRequest(HttpServletRequest request) throws IOException {
        // don‘t wrap more than once
        if (request instanceof StrutsRequestWrapper) {
            return request;
        }

        String content_type = request.getContentType();
        if (content_type != null && content_type.contains("multipart/form-data")) {
            MultiPartRequest mpr = getMultiPartRequest();
            LocaleProvider provider = getContainer().getInstance(LocaleProvider.class);
            request = new MultiPartRequestWrapper(mpr, request, getSaveDir(), provider, disableRequestAttributeValueStackLookup);
        } else {
            request = new StrutsRequestWrapper(request, disableRequestAttributeValueStackLookup);
        }

        return request;
    }

    public ActionMapping findActionMapping(HttpServletRequest request, HttpServletResponse response, boolean forceLookup) {
        ActionMapping mapping = (ActionMapping) request.getAttribute(STRUTS_ACTION_MAPPING_KEY);
        if (mapping == null || forceLookup) {
            try {
                mapping = dispatcher.getContainer().getInstance(ActionMapper.class).getMapping(request, dispatcher.getConfigurationManager());
                if (mapping != null) {
                    request.setAttribute(STRUTS_ACTION_MAPPING_KEY, mapping);
                }
            } catch (Exception ex) {
                if (dispatcher.isHandleException() || dispatcher.isDevMode()) {
                    dispatcher.sendError(request, response, HttpServletResponse.SC_INTERNAL_SERVER_ERROR, ex);
                }
            }
        }

        return mapping;
    }

    public void serviceAction(HttpServletRequest request, HttpServletResponse response, ActionMapping mapping)
            throws ServletException {

        Map<String, Object> extraContext = createContextMap(request, response, mapping);

        // If there was a previous value stack, then create a new copy and pass it in to be used by the new Action
        ValueStack stack = (ValueStack) request.getAttribute(ServletActionContext.STRUTS_VALUESTACK_KEY);
        boolean nullStack = stack == null;
        if (nullStack) {
            ActionContext ctx = ActionContext.getContext();
            if (ctx != null) {
                stack = ctx.getValueStack();
            }
        }
        if (stack != null) {
            extraContext.put(ActionContext.VALUE_STACK, valueStackFactory.createValueStack(stack));
        }

        String timerKey = "Handling request from Dispatcher";
        try {
            UtilTimerStack.push(timerKey);
            String namespace = mapping.getNamespace();
            String name = mapping.getName();
            String method = mapping.getMethod();

            ActionProxy proxy = getContainer().getInstance(ActionProxyFactory.class).createActionProxy(
                    namespace, name, method, extraContext, true, false);

            request.setAttribute(ServletActionContext.STRUTS_VALUESTACK_KEY, proxy.getInvocation().getStack());

            // if the ActionMapping says to go straight to a result, do it!
            if (mapping.getResult() != null) {
                Result result = mapping.getResult();
                result.execute(proxy.getInvocation());
            } else {
                proxy.execute();
            }

            // If there was a previous value stack then set it back onto the request
            if (!nullStack) {
                request.setAttribute(ServletActionContext.STRUTS_VALUESTACK_KEY, stack);
            }
        } catch (ConfigurationException e) {
            logConfigurationException(request, e);
            sendError(request, response, HttpServletResponse.SC_NOT_FOUND, e);
        } catch (Exception e) {
            if (handleException || devMode) {
                sendError(request, response, HttpServletResponse.SC_INTERNAL_SERVER_ERROR, e);
            } else {
                throw new ServletException(e);
            }
        } finally {
            UtilTimerStack.pop(timerKey);
        }
    }

    protected DefaultActionProxy(ActionInvocation inv, String namespace, String actionName, String methodName, boolean executeResult, boolean cleanupContext) {

        this.invocation = inv;
        this.cleanupContext = cleanupContext;
        if (LOG.isDebugEnabled()) {
            LOG.debug("Creating an DefaultActionProxy for namespace [#0] and action name [#1]", namespace, actionName);
        }

        this.actionName = StringEscapeUtils.escapeHtml4(actionName);
        this.namespace = namespace;
        this.executeResult = executeResult;
        this.method = StringEscapeUtils.escapeEcmaScript(StringEscapeUtils.escapeHtml4(methodName));
    }

    public ActionInvocation getInvocation() {
        return invocation;
    }

    public String invoke() throws Exception {
        String profileKey = "invoke: ";
        try {
            UtilTimerStack.push(profileKey);

            if (executed) {
                throw new IllegalStateException("Action has already executed");
            }

            if (interceptors.hasNext()) {
                final InterceptorMapping interceptor = interceptors.next();
                String interceptorMsg = "interceptor: " + interceptor.getName();
                UtilTimerStack.push(interceptorMsg);
                try {
                                resultCode = interceptor.getInterceptor().intercept(DefaultActionInvocation.this);
                            }
                finally {
                    UtilTimerStack.pop(interceptorMsg);
                }
            } else {
                resultCode = invokeActionOnly();
            }

            // this is needed because the result will be executed, then control will return to the Interceptor, which will
            // return above and flow through again
            if (!executed) {
                if (preResultListeners != null) {
                    LOG.trace("Executing PreResultListeners for result [#0]", result);

                    for (Object preResultListener : preResultListeners) {
                        PreResultListener listener = (PreResultListener) preResultListener;

                        String _profileKey = "preResultListener: ";
                        try {
                            UtilTimerStack.push(_profileKey);
                            listener.beforeResult(this, resultCode);
                        }
                        finally {
                            UtilTimerStack.pop(_profileKey);
                        }
                    }
                }

                // now execute the result, if we‘re supposed to
                if (proxy.getExecuteResult()) {
                    executeResult();
                }

                executed = true;
            }

            return resultCode;
        }
        finally {
            UtilTimerStack.pop(profileKey);
        }
    }
