基于链路的OSPF简单口令认证

实验要求：掌握基于链路的OSPF简单口令认证

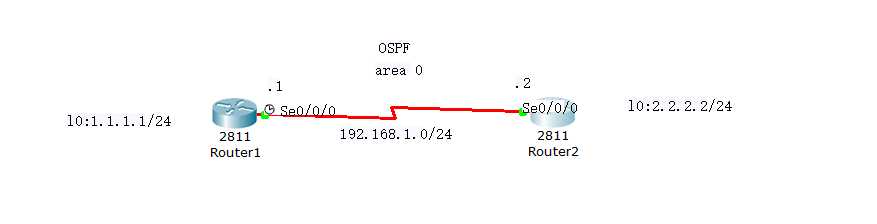

拓扑如下：

配置如下：

R1
enable
configure terminal
interface s0/0/0
ip address 192.168.1.1 255.255.255.0
no shutdown
clock rate 64000
interface l0
ip address 1.1.1.1 255.255.255.0
exit
router ospf 1
network 192.168.1.0 0.0.0.255 area 0
network 1.1.1.0 0.0.0.255 area 0
interface s0/0/0
ip ospf authentication
ip ospf authentication-key 123

R2
enable
configure terminal
interface s0/0/0
ip address 192.168.1.2 255.255.255.0
no shutdown
clock rate 64000
interface l0
ip address 2.2.2.2 255.255.255.0
exit
router ospf 1
network 192.168.1.0 0.0.0.255 area 0
network 2.2.2.0 0.0.0.255 area 0
interface s0/0/0
ip ospf authentication
ip ospf authentication-key 123
