Flink HA

standalone 模式的高可用

部署

flink 使用zookeeper协调多个运行的jobmanager,所以要启用flink HA 你需要把高可用模式设置成zookeeper，配置zookeeper相关参数，并且在masters配置文件中配置所有的jobmanager主机地址和web UI 端口

在一下例子中，我们配置node1,node2,node3三个jobmanager

1. 编辑conf/masters
node1:8081 node2:8081 node3:8081

2. 编辑conf/flink-conf.yaml

   high-availability: zookeeper
   high-availability.zookeeper.quorum: node1:2181,node2:2181,node3:2181
   high-availability.zookeeper.path.root: /flink
   high-availability.cluster-id: /cluster_one  high-availability.storageDir: hdfs:///flink/recovery

3. 启动集群

   bin/start-cluster.sh

yarn 模式的高可用?

yarn 模式中不会同时运行多个jobmanager(ApplicationMaster) instances,而是只运行一个，如果ApplicationMaster异常会依靠Yarn机制进行重启.

部署

1. 编辑yarn-site.xml添加如下配置

   <property>
       <name>yarn.resourcemanager.am.max-attempts</name>
       <value>4</value>
       <description>
       The maximum number of application master execution attempts.
       </description>
   </property>

   设置application master 最大重启次数

2. 编辑conf/flink-conf.yaml

   high-availability: zookeeper
   high-availability.zookeeper.quorum: node1:2181,node2:2181,node3:2181
   high-availability.storageDir: hdfs:///flink/recovery
   high-availability.zookeeper.path.root: /flink
   yarn.application-attempts: 10

   配置HA模式为zookeeper,并设置应用的最大重启次数

3. 启动一个yarn session

   bin/yarn-session.sh -n 2

原理

采用curator库中的LeaderLatch实现leader选举。不了解的同学可以移步curator相关文档LeaderLatch

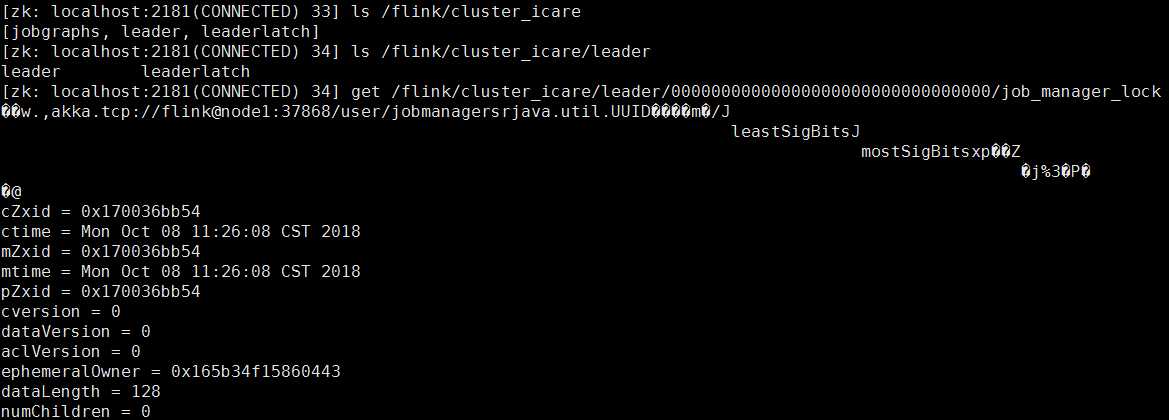

在zookeeper中生成的主要目录结构如下图:

涉及到的主要类:

• 选举:

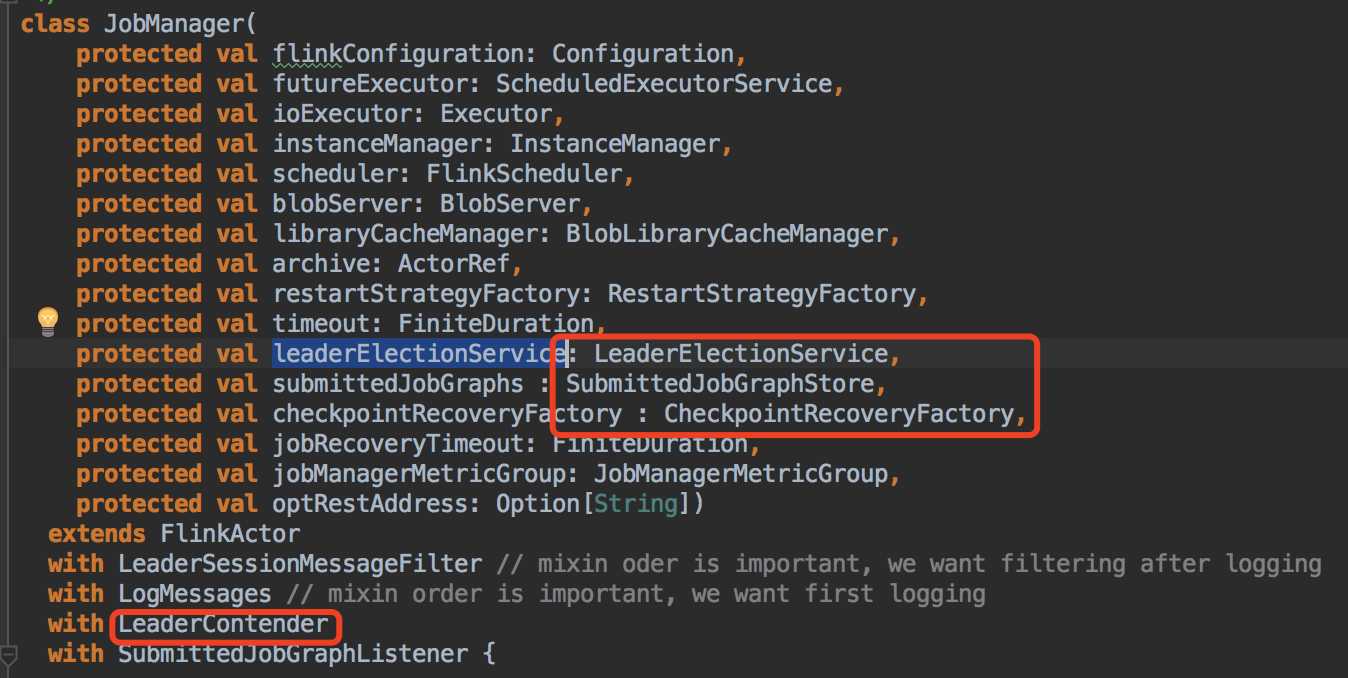

  首先我们看一下JobManager的构造函数：


  注意它的构造函数需要LeaderElectionService对象作为参数以及它本身实现了LeaderContender接口。那么LeaderElectionService是怎么创建的？其实就是根据high-availability: zookeeper此配置项，由HighAvailabilityServicesUtils工具类的createAvailableOrEmbeddedServices方法创建HighAvailabilityServices对象然后通过其getJobManagerLeaderElectionService方法创建：

  public static HighAvailabilityServices createAvailableOrEmbeddedServices(
      Configuration config,
      Executor executor) throws Exception {
      HighAvailabilityMode highAvailabilityMode = LeaderRetrievalUtils.getRecoveryMode(config);

      switch (highAvailabilityMode) {
          case NONE:
              return new EmbeddedHaServices(executor);

          case ZOOKEEPER:
              BlobStoreService blobStoreService = BlobUtils.createBlobStoreFromConfig(config);

              return new ZooKeeperHaServices(
                  ZooKeeperUtils.startCuratorFramework(config),
                  executor,
                  config,
                  blobStoreService);

          default:
              throw new Exception("High availability mode " + highAvailabilityMode + " is not supported.");
      }
  }

  public static ZooKeeperLeaderElectionService createLeaderElectionService(
      final CuratorFramework client,
      final Configuration configuration,
      final String pathSuffix)
  {
      final String latchPath = configuration.getString(
          HighAvailabilityOptions.HA_ZOOKEEPER_LATCH_PATH) + pathSuffix;
      final String leaderPath = configuration.getString(
          HighAvailabilityOptions.HA_ZOOKEEPER_LEADER_PATH) + pathSuffix;

      return new ZooKeeperLeaderElectionService(client, latchPath, leaderPath);
  }

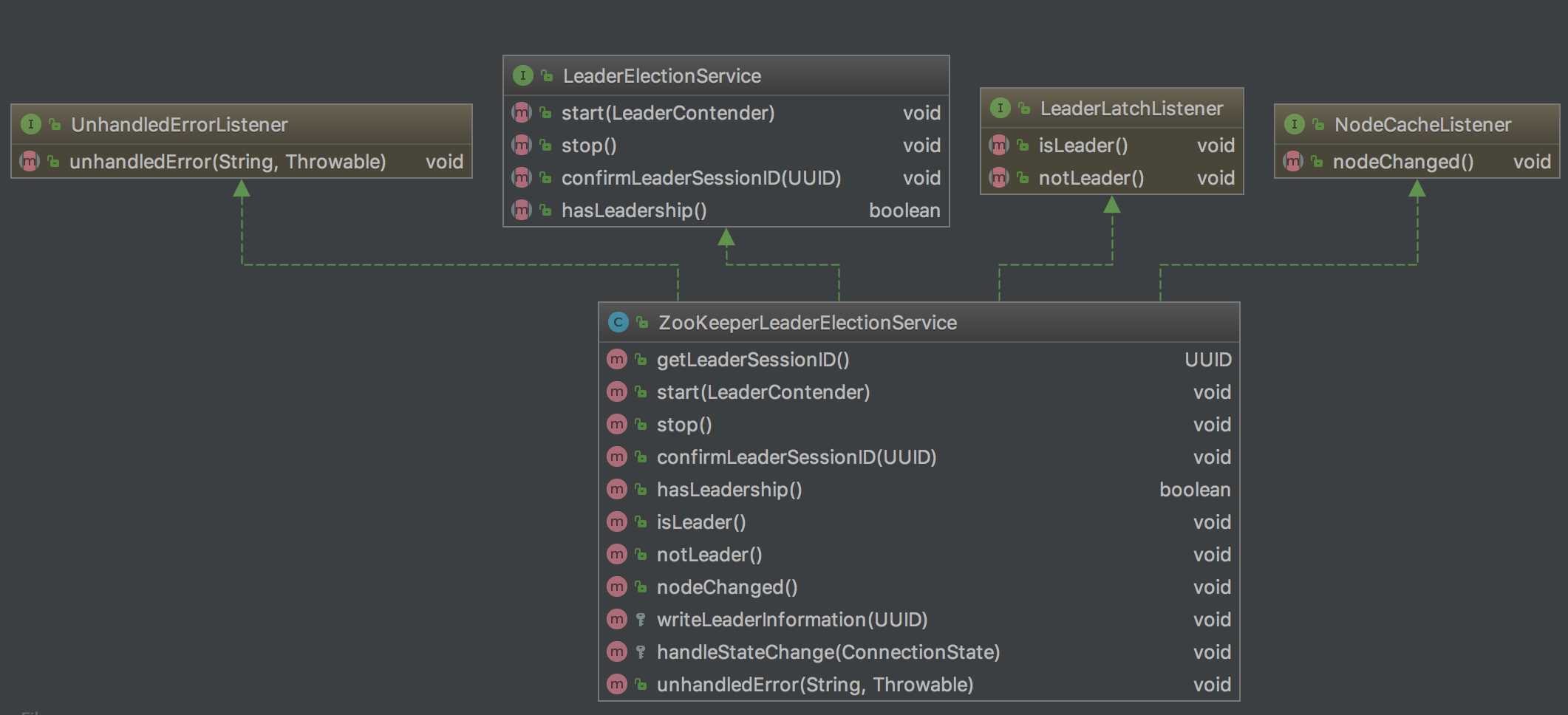

  我们再了解一下ZooKeeperLeaderElectionService

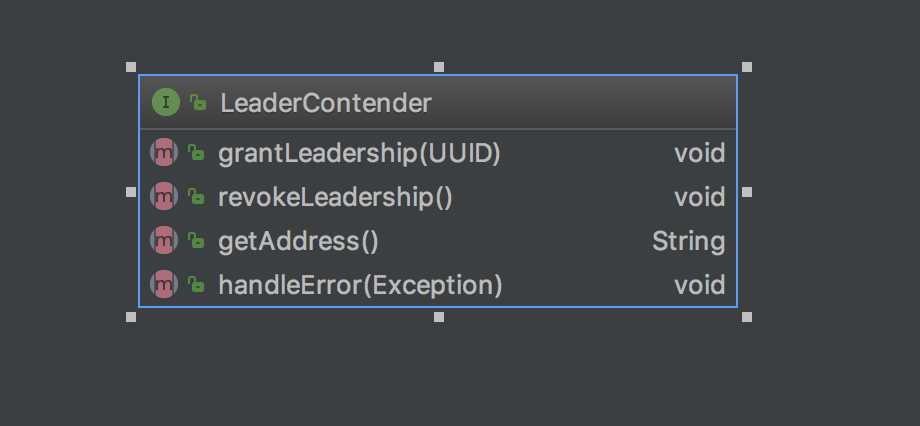

  以及LeaderContender


  ZooKeeperLeaderElectionService类主要管理namespace下的两个路径,即latchPath(/leaderlatch)和leaderPath(/leader),latchPath用来进行leader选举,leaderPath存储选举出的leader的地址和UUID。

  LeaderContender类用于当leader发生改变时，收到相应的通知以进行相关业务处理。比如：自己变成leader时，进行job恢复；当自己被撤销leader时，断开注册的TaskManager。

  在JobManager的preStart方法中会调用ZooKeeperLeaderElectionService的start方法注册LeaderLatch(/leaderlatch)和NodeCache(/leader)的监听器。如果某个LeaderLatch被选为leader,则对应的ZooKeeperLeaderElectionService对象的isLeader方法会被回调，从而调用LeaderContender->grantLeadership()通知被选中的竞选者(此处为JobManager),然后JobManager会调用LeaderElectionService->confirmLeaderSessionID()把被选中的leader的相关信息写入到/leader目录下，并异步进行job恢复工作。
  NodeCache(/leader)的监听器监听写入数据的变化，并具备纠错功能。

  public void isLeader() {
      synchronized (lock) {
          if (running) {
              issuedLeaderSessionID = UUID.randomUUID();
              confirmedLeaderSessionID = null;

              if (LOG.isDebugEnabled()) {
                  LOG.debug(
                      "Grant leadership to contender {} with session ID {}.",
                      leaderContender.getAddress(),
                      issuedLeaderSessionID);
              }

              leaderContender.grantLeadership(issuedLeaderSessionID);
          } else {
              LOG.debug("Ignoring the grant leadership notification since the service has " +
                  "already been stopped.");
          }
      }
  }

  leader重新选举后需要恢复提交的Job以及恢复相应job的checkpoint。 这就涉及到JobManager构造函数图示中圈红的SubmittedJobGraphStore和CheckpointRecoveryFactory这两个类,我们后边专门进行详细讲解。

• 查询:

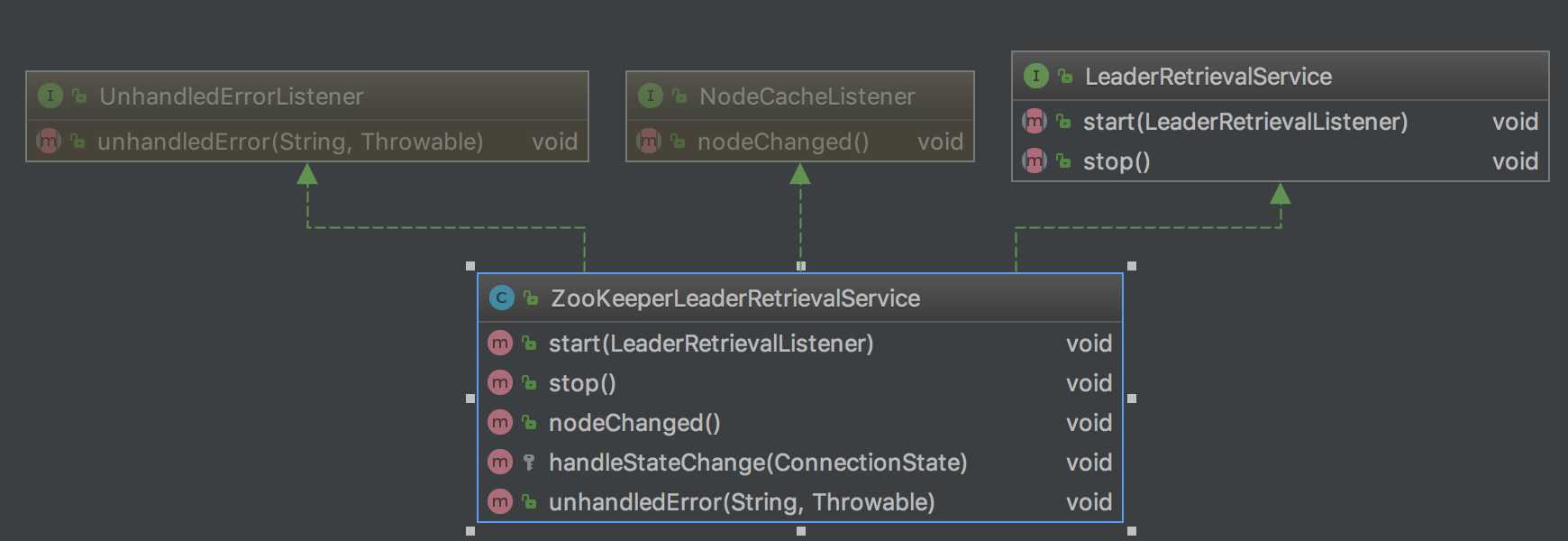

  ZooKeeperLeaderRetrievalService通过监听/flink/{cluster_id}/leader/{default_jobid}/job_manager_lock目录的变化，读取该目录下的数据然后通过LeaderRetrievalListener的notifyLeaderAddress方法通知实现该接口的对象。比如更新FlinkMiniCluster的leaderGateway
