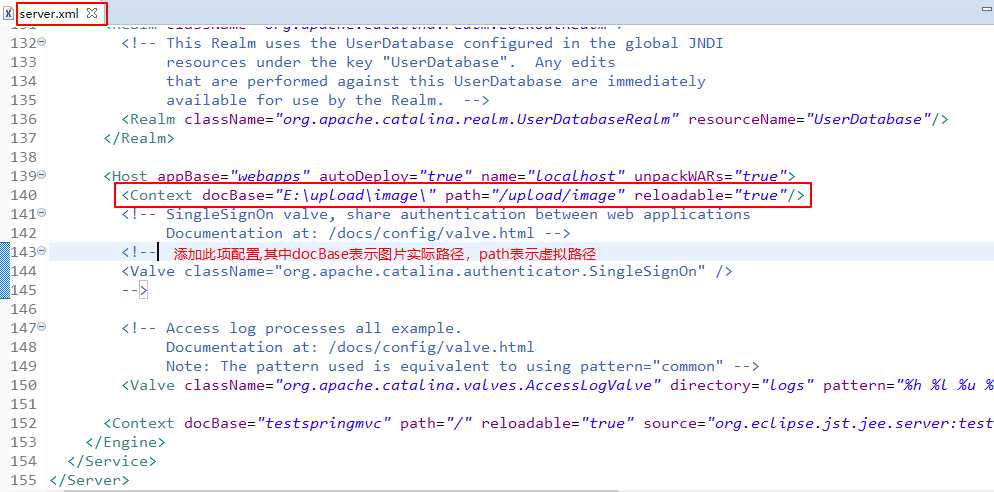

找到 eclipse 中 tomcat 下面的 server.xml 文件,在 Host 标签里面添加 <Context docBase="E:\upload\image\" path="/upload/image" reloadable="true"/>。
其中,docBase 表示的是图片的实际路径, path 表示的是图片的虚拟路径。

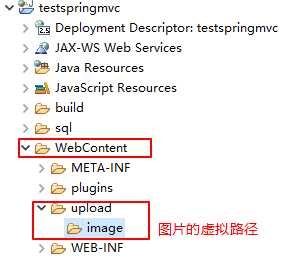

在项目根目录下面建立图片的访问路径,即 path 指向的是图片的虚拟路径,如下所示：

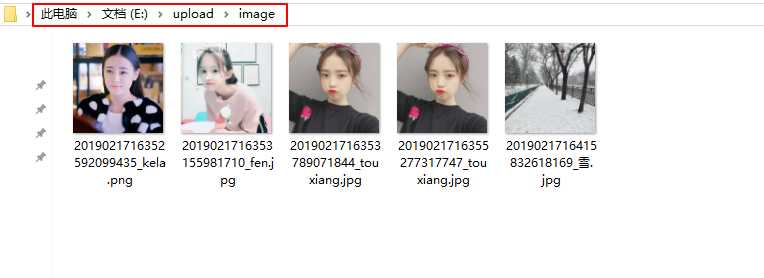

图片在磁盘上的实际保存地址如下：
数据库中存放图片的访问路径：
index.jsp 文件
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>springmvc测试页面</title>
<link rel="stylesheet"
href="${pageContext.request.contextPath}/plugins/layui/css/layui.css"
media="all">
</head>
<body>
<h1>大家好，我来复习springmvc了</h1>
<table class="layui-table">
<thead>
<tr>
<th>学号</th>
<th>姓名</th>
<th>年龄</th>
<th>性别</th>
<th>班级</th>
</tr>
</thead>
<c:forEach items="${list}" var="student">
<tr>
<td>${student.sno }</td>
<td>${student.sname }</td>
<td>${student.age }</td>
<td>${student.gender }</td>
<td>${student.grade }</td>
</tr>
</c:forEach>
</table>

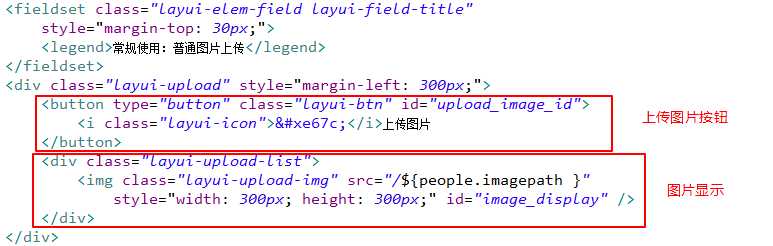

<fieldset class="layui-elem-field layui-field-title"
style="margin-top: 30px;">
<legend>常规使用：普通图片上传</legend>
</fieldset>
<div class="layui-upload" style="margin-left: 300px;">
<button type="button" class="layui-btn" id="upload_image_id">
<i class="layui-icon"></i>上传图片
</button>
<div class="layui-upload-list">
<img class="layui-upload-img" src="/${people.imagepath }"
style="width: 300px; height: 300px;" id="image_display" />
</div>
</div>

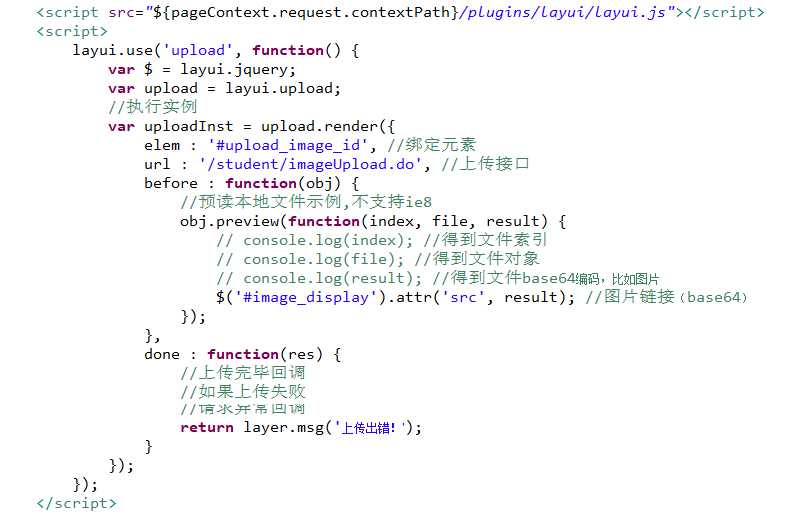

<script src="${pageContext.request.contextPath}/plugins/layui/layui.js"></script>
<script>
layui.use('upload', function() {
var $ = layui.jquery;
var upload = layui.upload;
//执行实例
var uploadInst = upload.render({
elem : '#upload_image_id', //绑定元素
url : '/student/imageUpload.do', //上传接口
before : function(obj) {
//预读本地文件示例,不支持ie8
obj.preview(function(index, file, result) {
// console.log(index); //得到文件索引
// console.log(file); //得到文件对象
// console.log(result); //得到文件base64编码，比如图片
$('#image_display').attr('src', result); //图片链接（base64）
});
},
done : function(res) {
//上传完毕回调
//如果上传失败
if (res.code > 0) {
return layer.msg('上传失败！');
}
//上传成功
if (res.code == 0 && res.row > 0) {
return layer.msg('上传成功！');
}
},
error : function() {
//请求异常回调
return layer.msg('上传出错！');
}
});
});
</script>
</body>
</html>
StudentInfoSelect.java 文件
package com.libin.springmvc.controller;
import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Random;
import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.multipart.MultipartFile;
import com.libin.springmvc.entity.People;
import com.libin.springmvc.entity.Student;
import com.libin.springmvc.service.PeopleService;
import com.libin.springmvc.service.StudentService;
import com.libin.springmvc.utils.PropertiesUtil;
import com.libin.springmvc.utils.WebUtil;
@Controller
@RequestMapping("/student")
public class StudentInfoSelect {
@Resource
private StudentService studentService;
@Resource
private PeopleService peopleService;
@RequestMapping("/info")
public String studentInfo(Model model, Student student) {
List<Student> list = studentService.findAllStudent();
People peopleName = new People();
peopleName.setName("Tom");
People people = peopleService.getPeopleByName(peopleName);
model.addAttribute("list", list);
model.addAttribute("people", people);
return "index";
}
@RequestMapping("/imageUpload")
public void imageUpload(HttpServletRequest request, HttpServletResponse response, MultipartFile file) {
Map<String, Object> dataMap = new HashMap<>();
if (!file.isEmpty()) {
try {
String contextPath = PropertiesUtil.getValue("image");
String img = uploadFile(file, contextPath);
String imgPath = "upload/image/" + img;
dataMap.put("code", 0);
dataMap.put("image", imgPath);
People people = new People();
people.setName("Tom");
people.setImagepath(imgPath);
int row = peopleService.updatePeopleImage(people);
dataMap.put("row", row);
} catch (Exception e) {
dataMap.put("code", 1);
e.printStackTrace();
}
}
WebUtil.responseOutWithJson(response, dataMap);
}

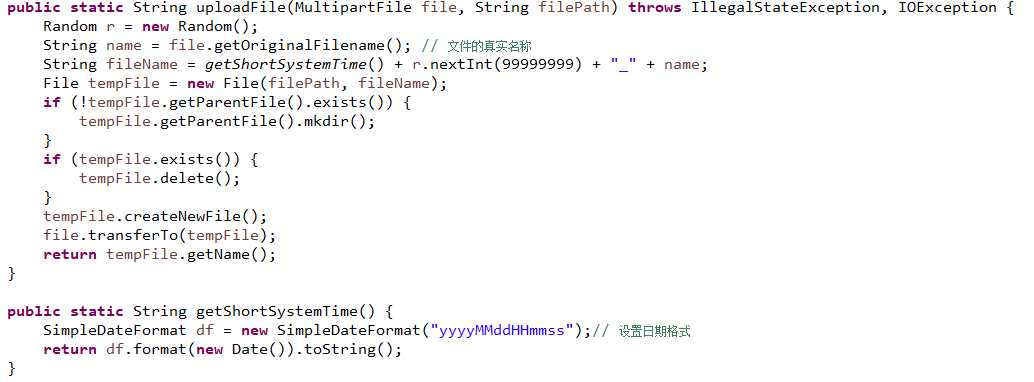

public static String uploadFile(MultipartFile file, String filePath) throws IllegalStateException, IOException {
Random r = new Random();
String name = file.getOriginalFilename(); // 文件的真实名称
String fileName = getShortSystemTime() + r.nextInt(99999999) + "_" + name;
File tempFile = new File(filePath, fileName);
if (!tempFile.getParentFile().exists()) {
tempFile.getParentFile().mkdir();
}
if (tempFile.exists()) {
tempFile.delete();
}
tempFile.createNewFile();
file.transferTo(tempFile);
return tempFile.getName();
}
public static String getShortSystemTime() {
SimpleDateFormat df = new SimpleDateFormat("yyyyMMddHHmmss");// 设置日期格式
return df.format(new Date()).toString();
}
}完整项目地址：testspringmvc
项目运行界面如下：

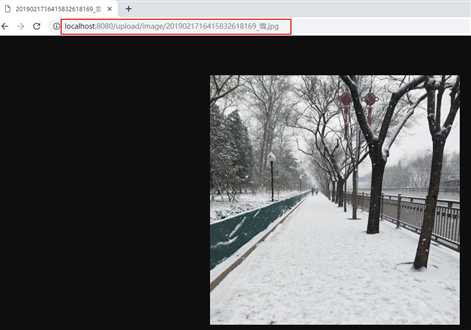

访问图片如下：
