Zabbix监控,Mysql,Nginx,PHP-FTPM

时间:2019-02-22 14:13:37      阅读:187      评论:0      收藏:0      [点我收藏+]

一 Zabbix监控Mysql

    监控Mysql,Zabbix提供了一个监控模板,所有可以直接使用.或者使用Percona提供的监控模板.

1. 使用自带监控模板

1.1.1 编写监控模板

#!/bin/bash

# 主机地址IP
MYSQL_HOST=‘127.0.0.1‘

# 端口
MYSQL_PORT=‘3306‘

# 数据连接
MYSQL_CONN="/usr/bin/mysqladmin -h${MYSQL_HOST} -P${MYSQL_PORT}"

# 检查参数是否正确
if [ $# -ne "1" ];then
    echo "arg Error!"
fi

# 获取数据
case $1 in
    Uptime)
        result=`${MYSQL_CONN} status|cut -f2 -d":"|cut -f1 -d"T"`
        echo $result
        ;;
    Com_update)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_update"|cut -d"|" -f3`
        echo $result
        ;;
    Slow_queries)
        result=`${MYSQL_CONN} status |cut -f5 -d":"|cut -f1 -d"O"`
        echo $result
        ;;
    Com_select)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_select"|cut -d"|" -f3`
        echo $result
                ;;
    Com_rollback)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_rollback"|cut -d"|" -f3`
                echo $result
                ;;
    Questions)
        result=`${MYSQL_CONN} status|cut -f4 -d":"|cut -f1 -d"S"`
                echo $result
                ;;
    Com_insert)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_insert"|cut -d"|" -f3`
                echo $result
                ;;
    Com_delete)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_delete"|cut -d"|" -f3`
                echo $result
                ;;
    Com_commit)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_commit"|cut -d"|" -f3`
                echo $result
                ;;
    Bytes_sent)
        result=`${MYSQL_CONN} extended-status |grep -w "Bytes_sent" |cut -d"|" -f3`
                echo $result
                ;;
    Bytes_received)
        result=`${MYSQL_CONN} extended-status |grep -w "Bytes_received" |cut -d"|" -f3`
                echo $result
                ;;
    Com_begin)
        result=`${MYSQL_CONN} extended-status |grep -w "Com_begin"|cut -d"|" -f3`
                echo $result
                ;;

        *)
        echo "Usage:$0(Uptime|Com_update|Slow_queries|Com_select|Com_rollback|Questions|Com_insert|Com_delete|Com_commit|Bytes_sent|Bytes_received|C
om_begin)"
        ;;
esac

1.1.2 异常处理

  如果mysql5.7以上版本执行脚本出现Waring信息,解决如下:

[mnysqladmin]
user=root
password=xxxxx

1.1.3 添加权限以及定义监控项

# 添加权限属主信息
chmod 755 check_mysql.sh
chown zabbix.zabbix check_mysql.sh
chmod +x check_mysql.sh

# /etc/zabbix/zabbix_agentd.d 下创建 UserParameter_mysql.conf文件,内容如下:
UserParameter=mysql.status[*],/etc/zabbix/zabbix_agentd.d/check_mysql.sh $1
UserParameter=mysql.ping,HOME=/etc /usr/local/mysql/bin/mysqladmin ping  2>/dev/null| grep -c alive
UserParameter=mysql.version,/usr/local/mysql/bin/mysql -V

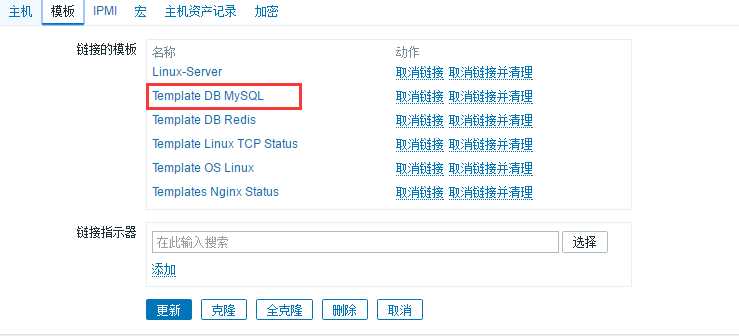

1.1.4 Mysql监控主机添加模板

   技术分享图片



Zabbix监控,Mysql,Nginx,PHP-FTPM

原文:https://www.cnblogs.com/yanshicheng/p/10418019.html
