一、实践流程

1、数据预处理

主要是对训练数据进行随机偏移、转动等变换图像处理，这样可以尽可能让训练数据多样化

另外处理数据方式采用分批无序读取的形式，避免了数据按目录排序训练

1.
   #数据准备
2.
   def DataGen(self, dir_path, img_row, img_col, batch_size, is_train):
3.
   if is_train:
4.
   datagen = ImageDataGenerator(rescale=1./255,
5.
   zoom_range=0.25, rotation_range=15.,
6.
   channel_shift_range=25., width_shift_range=0.02, height_shift_range=0.02,
7.
   horizontal_flip=True, fill_mode=‘constant‘)
8.
   else:
9.
   datagen = ImageDataGenerator(rescale=1./255)
10.

11.
    generator = datagen.flow_from_directory(
12.
    dir_path, target_size=(img_row, img_col),
13.
    batch_size=batch_size,
14.
    shuffle=is_train)
15.

16.
    return generator

2、载入现有模型

这个部分是核心工作，目的是使用ImageNet训练出的权重来做我们的特征提取器，注意这里后面的分类层去掉

1.
   base_model = InceptionV3(weights=‘imagenet‘, include_top=False, pooling=None,
2.
   input_shape=(img_rows, img_cols, color),
3.
   classes=nb_classes)

然后是冻结这些层，因为是训练好的

1.
   for layer in base_model.layers:
2.
   layer.trainable = False

1.
   x = base_model.output
2.
   # 添加自己的全链接分类层
3.
   x = GlobalAveragePooling2D()(x)
4.
   x = Dense(1024, activation=‘relu‘)(x)
5.
   predictions = Dense(nb_classes, activation=‘softmax‘)(x)

1.
   x = base_model.output
2.
   #添加自己的全链接分类层
3.
   x = Flatten()(x)
4.
   predictions = Dense(nb_classes, activation=‘softmax‘)(x)

3、训练模型

这里我们用fit_generator函数，它可以避免了一次性加载大量的数据，并且生成器与模型将并行执行以提高效率。比如可以在CPU上进行实时的数据提升，同时在GPU上进行模型训练

1.
   history_ft = model.fit_generator(
2.
   train_generator,
3.
   steps_per_epoch=steps_per_epoch,
4.
   epochs=epochs,
5.
   validation_data=validation_generator,
6.
   validation_steps=validation_steps)

二、猫狗大战数据集

训练数据540M，测试数据270M，大家可以去官网下载

https://www.kaggle.com/c/dogs-vs-cats-redux-kernels-edition/data

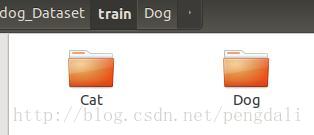

下载后把数据分成dog和cat两个目录来存放

三、训练

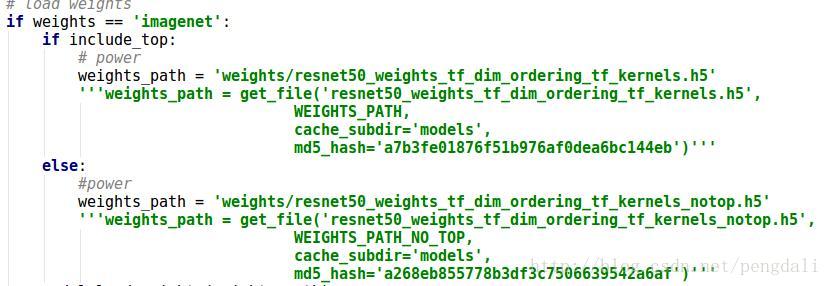

训练的时候会自动去下权值，比如vgg19_weights_tf_dim_ordering_tf_kernels_notop.h5，但是如果我们已经下载好了的话，可以改源代码，让他直接读取我们的下载好的权值，比如在resnet50.py中

1、VGG19

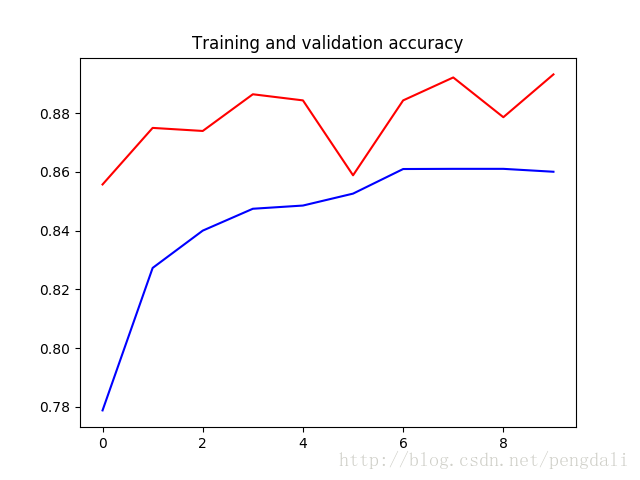

vgg19的深度有26层，参数达到了549M，原模型最后有3个全连接层做分类器所以我还是加了一个1024的全连接层，训练10轮的情况达到了89%

2、ResNet50

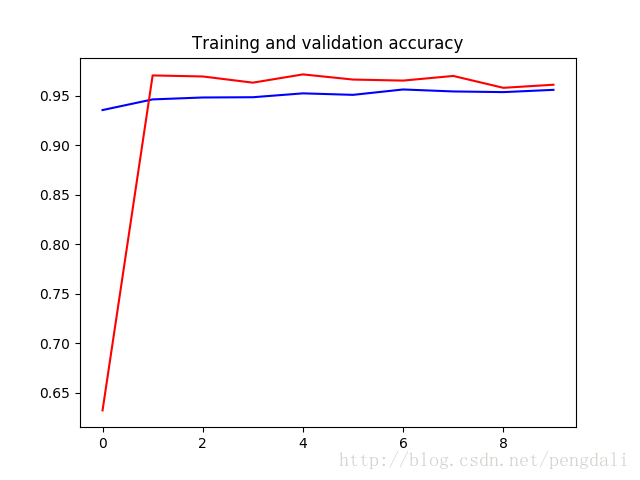

ResNet50的深度达到了168层，但是参数只有99M，分类模型我就简单点，一层直接分类，训练10轮的达到了96%的准确率

3、inception_v3

InceptionV3的深度159层，参数92M，训练10轮的结果

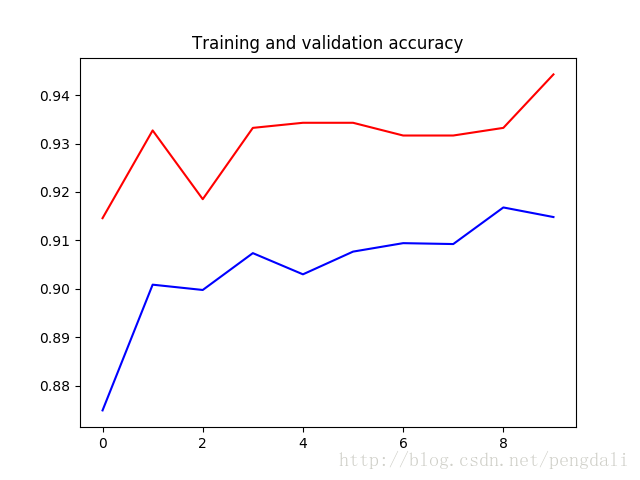

这是一层直接分类的结果

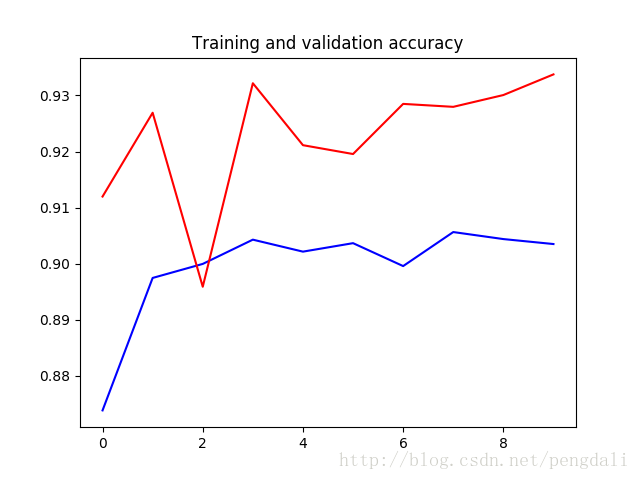

这是加了一个512全连接的，大家可以随意调整测试

四、完整的代码

1.
   # -*- coding: utf-8 -*-
2.
   import os
3.
   from keras.utils import plot_model
4.
   from keras.applications.resnet50 import ResNet50
5.
   from keras.applications.vgg19 import VGG19
6.
   from keras.applications.inception_v3 import InceptionV3
7.
   from keras.layers import Dense,Flatten,GlobalAveragePooling2D
8.
   from keras.models import Model,load_model
9.
   from keras.optimizers import SGD
10.
    from keras.preprocessing.image import ImageDataGenerator
11.
    import matplotlib.pyplot as plt
12.

13.
    class PowerTransferMode:
14.
    #数据准备
15.
    def DataGen(self, dir_path, img_row, img_col, batch_size, is_train):
16.
    if is_train:
17.
    datagen = ImageDataGenerator(rescale=1./255,
18.
    zoom_range=0.25, rotation_range=15.,
19.
    channel_shift_range=25., width_shift_range=0.02, height_shift_range=0.02,
20.
    horizontal_flip=True, fill_mode=‘constant‘)
21.
    else:
22.
    datagen = ImageDataGenerator(rescale=1./255)
23.

24.
    generator = datagen.flow_from_directory(
25.
    dir_path, target_size=(img_row, img_col),
26.
    batch_size=batch_size,
27.
    #class_mode=‘binary‘,
28.
    shuffle=is_train)
29.

30.
    return generator
31.

32.
    #ResNet模型
33.
    def ResNet50_model(self, lr=0.005, decay=1e-6, momentum=0.9, nb_classes=2, img_rows=197, img_cols=197, RGB=True, is_plot_model=False):
34.
    color = 3 if RGB else 1
35.
    base_model = ResNet50(weights=‘imagenet‘, include_top=False, pooling=None, input_shape=(img_rows, img_cols, color),
36.
    classes=nb_classes)
37.

38.
    #冻结base_model所有层，这样就可以正确获得bottleneck特征
39.
    for layer in base_model.layers:
40.
    layer.trainable = False
41.

42.
    x = base_model.output
43.
    #添加自己的全链接分类层
44.
    x = Flatten()(x)
45.
    #x = GlobalAveragePooling2D()(x)
46.
    #x = Dense(1024, activation=‘relu‘)(x)
47.
    predictions = Dense(nb_classes, activation=‘softmax‘)(x)
48.

49.
    #训练模型
50.
    model = Model(inputs=base_model.input, outputs=predictions)
51.
    sgd = SGD(lr=lr, decay=decay, momentum=momentum, nesterov=True)
52.
    model.compile(loss=‘categorical_crossentropy‘, optimizer=sgd, metrics=[‘accuracy‘])
53.

54.
    #绘制模型
55.
    if is_plot_model:
56.
    plot_model(model, to_file=‘resnet50_model.png‘,show_shapes=True)
57.

58.
    return model
59.

60.

61.
    #VGG模型
62.
    def VGG19_model(self, lr=0.005, decay=1e-6, momentum=0.9, nb_classes=2, img_rows=197, img_cols=197, RGB=True, is_plot_model=False):
63.
    color = 3 if RGB else 1
64.
    base_model = VGG19(weights=‘imagenet‘, include_top=False, pooling=None, input_shape=(img_rows, img_cols, color),
65.
    classes=nb_classes)
66.

67.
    #冻结base_model所有层，这样就可以正确获得bottleneck特征
68.
    for layer in base_model.layers:
69.
    layer.trainable = False
70.

71.
    x = base_model.output
72.
    #添加自己的全链接分类层
73.
    x = GlobalAveragePooling2D()(x)
74.
    x = Dense(1024, activation=‘relu‘)(x)
75.
    predictions = Dense(nb_classes, activation=‘softmax‘)(x)
76.

77.
    #训练模型
78.
    model = Model(inputs=base_model.input, outputs=predictions)
79.
    sgd = SGD(lr=lr, decay=decay, momentum=momentum, nesterov=True)
80.
    model.compile(loss=‘categorical_crossentropy‘, optimizer=sgd, metrics=[‘accuracy‘])
81.

82.
    # 绘图
83.
    if is_plot_model:
84.
    plot_model(model, to_file=‘vgg19_model.png‘,show_shapes=True)
85.

86.
    return model
87.

88.
    # InceptionV3模型
89.
    def InceptionV3_model(self, lr=0.005, decay=1e-6, momentum=0.9, nb_classes=2, img_rows=197, img_cols=197, RGB=True,
90.
    is_plot_model=False):
91.
    color = 3 if RGB else 1
92.
    base_model = InceptionV3(weights=‘imagenet‘, include_top=False, pooling=None,
93.
    input_shape=(img_rows, img_cols, color),
94.
    classes=nb_classes)
95.

96.
    # 冻结base_model所有层，这样就可以正确获得bottleneck特征
97.
    for layer in base_model.layers:
98.
    layer.trainable = False
99.

100.
     x = base_model.output
101.
     # 添加自己的全链接分类层
102.
     x = GlobalAveragePooling2D()(x)
103.
     x = Dense(1024, activation=‘relu‘)(x)
104.
     predictions = Dense(nb_classes, activation=‘softmax‘)(x)
105.

106.
     # 训练模型
107.
     model = Model(inputs=base_model.input, outputs=predictions)
108.
     sgd = SGD(lr=lr, decay=decay, momentum=momentum, nesterov=True)
109.
     model.compile(loss=‘categorical_crossentropy‘, optimizer=sgd, metrics=[‘accuracy‘])
110.

111.
     # 绘图
112.
     if is_plot_model:
113.
     plot_model(model, to_file=‘inception_v3_model.png‘, show_shapes=True)
114.

115.
     return model
116.

117.
     #训练模型
118.
     def train_model(self, model, epochs, train_generator, steps_per_epoch, validation_generator, validation_steps, model_url, is_load_model=False):
119.
     # 载入模型
120.
     if is_load_model and os.path.exists(model_url):
121.
     model = load_model(model_url)
122.

123.
     history_ft = model.fit_generator(
124.
     train_generator,
125.
     steps_per_epoch=steps_per_epoch,
126.
     epochs=epochs,
127.
     validation_data=validation_generator,
128.
     validation_steps=validation_steps)
129.
     # 模型保存
130.
     model.save(model_url,overwrite=True)
131.
     return history_ft
132.

133.
     # 画图
134.
     def plot_training(self, history):
135.
     acc = history.history[‘acc‘]
136.
     val_acc = history.history[‘val_acc‘]
137.
     loss = history.history[‘loss‘]
138.
     val_loss = history.history[‘val_loss‘]
139.
     epochs = range(len(acc))
140.
     plt.plot(epochs, acc, ‘b-‘)
141.
     plt.plot(epochs, val_acc, ‘r‘)
142.
     plt.title(‘Training and validation accuracy‘)
143.
     plt.figure()
144.
     plt.plot(epochs, loss, ‘b-‘)
145.
     plt.plot(epochs, val_loss, ‘r-‘)
146.
     plt.title(‘Training and validation loss‘)
147.
     plt.show()
148.

149.

150.
     if __name__ == ‘__main__‘:
151.
     image_size = 197
152.
     batch_size = 32
153.

154.
     transfer = PowerTransferMode()
155.

156.
     #得到数据
157.
     train_generator = transfer.DataGen(‘data/cat_dog_Dataset/train‘, image_size, image_size, batch_size, True)
158.
     validation_generator = transfer.DataGen(‘data/cat_dog_Dataset/test‘, image_size, image_size, batch_size, False)
159.

160.
     #VGG19
161.
     #model = transfer.VGG19_model(nb_classes=2, img_rows=image_size, img_cols=image_size, is_plot_model=False)
162.
     #history_ft = transfer.train_model(model, 10, train_generator, 600, validation_generator, 60, ‘vgg19_model_weights.h5‘, is_load_model=False)
163.

164.
     #ResNet50
165.
     model = transfer.ResNet50_model(nb_classes=2, img_rows=image_size, img_cols=image_size, is_plot_model=False)
166.
     history_ft = transfer.train_model(model, 10, train_generator, 600, validation_generator, 60, ‘resnet50_model_weights.h5‘, is_load_model=False)
167.

168.
     #InceptionV3
169.
     #model = transfer.InceptionV3_model(nb_classes=2, img_rows=image_size, img_cols=image_size, is_plot_model=True)
170.
     #history_ft = transfer.train_model(model, 10, train_generator, 600, validation_generator, 60, ‘inception_v3_model_weights.h5‘, is_load_model=False)
171.

172.
     # 训练的acc_loss图
173.
     transfer.plot_training(history_ft)
