REST easy with kbmMW #1

时间:2019-07-31 15:30:06      阅读:85      评论:0      收藏:0      [点我收藏+]





kbmMW 5.0支持REST服务器的开发,并且非常简单,下面看看如何实作一个REST服务器。

首先我们制作一个服务器应用程序,增加一个简单的Form,并放置kbmMW组件。

在Delphi中单击File - New - VCL Forms Application

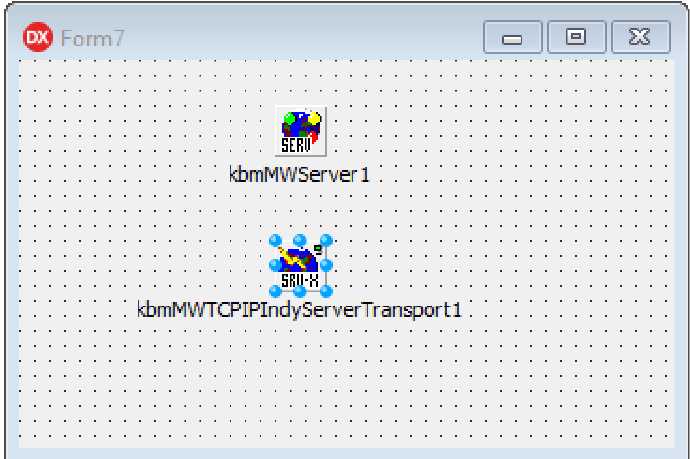

然后将以下kbmMW组件添加到Form中:

  • TkbmMWServer
  • TkbmMWTCPIPIndyServerTransport

技术分享图片

将kbmMWTCPIPIndyServerTran

sport1的Server属性设置为kbmMWServer1。

双击kbmMWTCPIPIndyServerTransport1的Bindings属性打开其编辑器,添加0.0.0.0及绑定80端口,这是默认的HTTP服务器端口。您可以选择所需的任何其他端口来绑定,但请确保告知您的REST用户要访问的端口。
技术分享图片

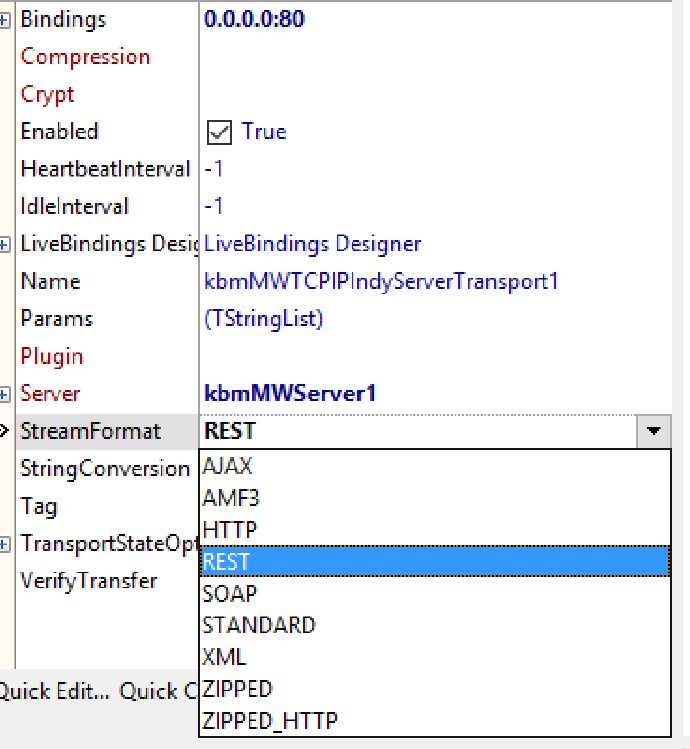

设置组件kbmMWTCPIPIndyTransport1的Streamformat属性为REST,如下图:

技术分享图片

保存项目,Delphi将自动填加引用的单元,双击Form,建立OnCreate事件:

procedure TForm7.FormCreate(Sender: TObject);
begin
    kbmMWServer1.AutoRegisterServices;
    kbmMWServer1.Active:=true;
end;

定位到单元的interface段,手动填加引用的单元kbmMWRESTTransStream.
再次保存,得到如下的单元:

unit Unit7;

interface

uses
 Winapi.Windows, Winapi.Messages, System.SysUtils, System.Variants, System.Classes, Vcl.Graphics,
 Vcl.Controls, Vcl.Forms, Vcl.Dialogs, kbmMWCustomTransport, kbmMWServer,
 kbmMWTCPIPIndyServerTransport, kbmMWRESTTransStream;

type
 TForm7 = class(TForm)
 kbmMWServer1: TkbmMWServer;
 kbmMWTCPIPIndyServerTransport1: TkbmMWTCPIPIndyServerTransport;
 procedure FormCreate(Sender: TObject);
 private
 { Private declarations }
 public
 { Public declarations }
 end;

var
 Form7: TForm7;

implementation

{$R *.dfm}

procedure TForm7.FormCreate(Sender: TObject);
begin
 kbmMWServer1.AutoRegisterServices;
 kbmMWServer1.Active:=true;
end;

end.

我们现在拥有了一个实现REST服务器的基础,接下来,我们来填加一些可以从任意REST客户端调用的具体功能.
在Delphi中,单击File-New-Other-Components4Developers wizard:

技术分享图片

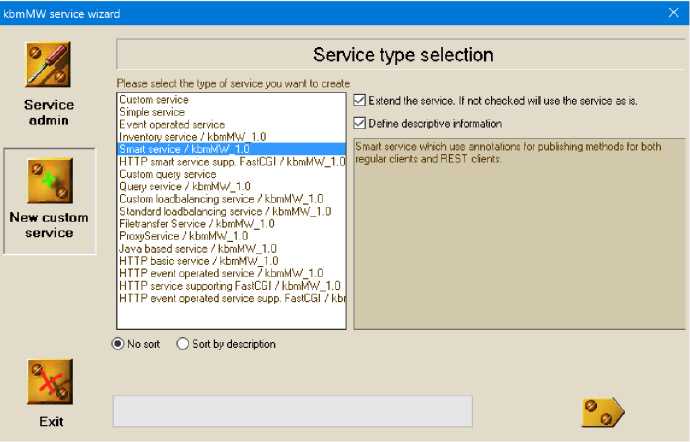

在继续选择我们要添加的kbmMW Service的类型之前,需要确定我们要创建什么类型的REST服务器。它可以是一个纯粹的REST服务器,只提供自己的代码中的数据,也可以是常规的Web服务器,可以从磁盘上的文件(如html模板,图像,CSS文件等)提供数据。

这里,我们只想做一个纯粹的REST服务器,所以选择了Smart service / kbmMW_1.0。

如果你希望能够从磁盘提供文件,甚至可以将代理请求提供给其他FastCGI兼容服务器(如PHP等),那么您将选择HTTP智能服务。

技术分享图片

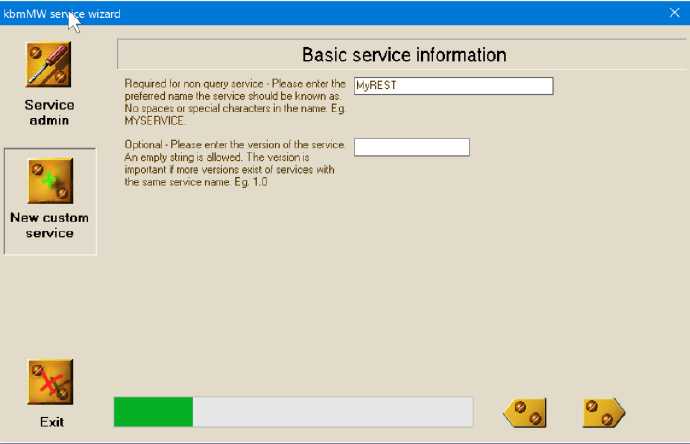

点击下一步,输入REST服务的默认名称,在这个例子中,我称之为MyREST。

技术分享图片

点击下一步,直到这个页面,然后点击绿色的勾号按钮

技术分享图片

现在已经为您生成了没有功能的服务。

表象上,这个服务看起来像一个常规的TDataModule,因此可以包含可以放在TDataModule上的任何组件。但是现在我们对它的代码更感兴趣。按F12切换到代码视图。浏览顶部的解释性说明,直到找到实际的代码。

type

[kbmMW_Service(name:MyREST, flags:[listed])]
[kbmMW_Rest(path:/MyREST)]
 // Access to the service can be limited using the [kbmMW_Auth..] attribute.
 // [kbmMW_Auth(‘role:[SomeRole,SomeOtherRole], grant:true‘)]

TkbmMWCustomSmartService8 = class(TkbmMWCustomSmartService)
 private
 { Private declarations }
 protected
 { Protected declarations }
 public
 { Public declarations }
 // HelloWorld function callable from both a regular client,
 // due to the optional [kbmMW_Method] attribute,
 // and from a REST client due to the optional [kbmMW_Rest] attribute.
 // The access path to the function from a REST client (like a browser)+
 // is in this case relative to the services path.
 // In this example: http://.../MyREST/helloworld
 // Access to the function can be limited using the [kbmMW_Auth..] attribute.
 // [kbmMW_Auth(‘role:[SomeRole,SomeOtherRole], grant:true‘)]
 [kbmMW_Rest(method:get, path:helloworld)]
 [kbmMW_Method]
 function HelloWorld:string;
 end;

implementation

uses kbmMWExceptions;

{$R *.dfm}

// Service definitions.
//---------------------

function TkbmMWCustomSmartService8.HelloWorld:string;
begin
 Result:=Hello world;
end;

如果您现在编译和运行应用程序,就得到了只有一个REST功能的Web服务器,这个功能叫HelloWorld,不带参数,并返回一个字符串。

打开你最喜欢的浏览器,并通过在地址栏中输入这个功能的地址来测试该功能:

http://localhost/MyREST/helloworld

确保地址的大小写是正确的,因为HTTP标准描述地址的URL部分必须区分大小写。如果你写的是http://localhost/MyREST/HelloWorld,你会被告知请求无效。

这看起来已经很好了,但我的REST客户端期望接收一个JSON对象,而不仅仅是简单的文本。

好的,我会显示3种方法来做到这一点 - 非常手动的方式,半自动化方式和完全自动化的方式。

手动方式,将HelloWorld函数更改为如下所示:

function TkbmMWCustomSmartService8.HelloWorld:string;
begin
 Result:={‘‘result‘‘:‘‘Hello world‘‘};
end;

REST客户端将收到一个名为result的属性的匿名对象,其中包含“Hello world”。

半自动化方式:

uses kbmMWExceptions
 ,kbmMWObjectNotation
 ,kbmMWJSON;

{$R *.dfm}


// Service definitions.
//---------------------

function TkbmMWCustomSmartService8.HelloWorld:string;
var
 o:TkbmMWONObject;
 jsonstreamer:TkbmMWJSONStreamer;
begin
 o:=TkbmMWONObject.Create;
 jsonstreamer:=TkbmMWJSONStreamer.Create;

 o.AsString[result]:=Hello world;
 Result:=jsonstreamer.SaveToUTF16String(o);

 jsonstreamer.Free;
 o.Free;
end;

这样可以很容易地创建复杂的JSON文档,更爽的是,由于我们使用kbmMW的object notation framework,因此可以选择XML或YAML或BSON或MessagePack等格式进行传输。

自动化方式:

type

TMyResult = class
private
 FResult:string;
public
 property Result:string read FResult write FResult;
end;

 [kbmMW_Service(name:MyREST, flags:[listed])]
 [kbmMW_Rest(path:/MyREST)]
 // Access to the service can be limited using the [kbmMW_Auth..] attribute.
 // [kbmMW_Auth(‘role:[SomeRole,SomeOtherRole], grant:true‘)]

TkbmMWCustomSmartService8 = class(TkbmMWCustomSmartService)
 private
 [kbmMW_Rest(method:get, path:helloworld, anonymousResult:true)]
 [kbmMW_Method]
 function HelloWorld:TMyResult;
 end;

implementation

uses kbmMWExceptions;

{$R *.dfm}

// Service definitions.
//---------------------

function TkbmMWCustomSmartService8.HelloWorld:TMyResult;
begin
 Result:=TMyResult.Create;
 Result.Result:=Hello world;
end;

initialization
 TkbmMWRTTI.EnableRTTI(TkbmMWCustomSmartService8);
 kbmMWRegisterKnownClasses([TMyResult]);
end.

自动化方式简单的实现返回具有所需信息的对象,kbmMW自动将对象转换为JSON(因为我们正在使用REST streamformat)。

为了确保kbmMW知道对象类型,我们通过kbmMWRegisterKnownClasse

s进行注册。如果我们没有,kbmMW会抱怨它不知道该对象。

不要担心泄漏TMyResult实例。当不再使用时,kbmMW将自动释放它。如果您特别不希望通过kbmMW释放返回的对象,可以通过在HelloWorld方法的kbmMW_Rest属性中包含freeResult:false来进行说明。

还要注意,kbmMW_Rest属性现在包括  anonymousResult:true。

这告诉kbmMW我们希望生成的JSON是匿名的。如果我们没有包含该属性设置,结果将如下所示:

{“TMyResult”:{“Result”:“Hello world”}}

哪个不一定是错的,但不一样。

有很多控制选项可以通过设置对象的各种属性来流式传输对象。例如可以选择要以不同的名称返回Result属性。

kbmMW还能返回TkbmMemTable实例,数组和许多其他类型的信息,因此几乎不用其他代码行就可以轻松地实现您的kbmMW业务功能。

作为最后的评论,由于HelloWorld方法也被标记为属性[kbmMW_Method],它也可以由kbmMW客户端调用。

你可以随意转发、评论、点赞这篇文章 ??
