ZYNQ随笔——AXI_GPIO裸机设计

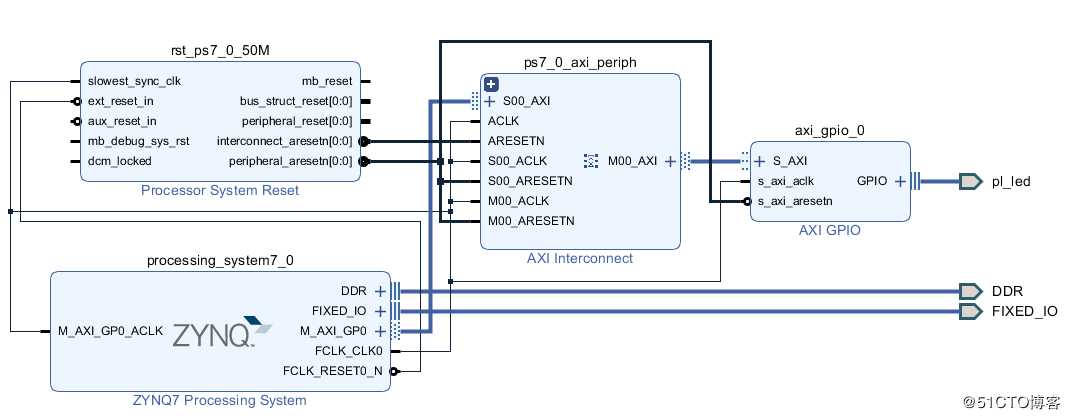

• int XGpio_Initialize(XGpio * InstancePtr,u16 DeviceId)
• void XGpio_SetDataDirection(XGpio * InstancePtr,unsigned Channel,u32 DirectionMask)
• void XGpio_DiscreteWrite(XGpio * InstancePtr,unsigned Channel,u32 Data)
• u32 XGpio_DiscreteRead(XGpio * InstancePtr,unsigned Channel)
• void XGpio_DiscreteClear(XGpio * InstancePtr,unsigned Channel,u32 Mask)

具体代码如下，

int main(void)
{
    int Status;
    volatile int Delay;

    /* Initialize the GPIO driver */
    Status = XGpio_Initialize(&Gpio, GPIO_EXAMPLE_DEVICE_ID);
    if (Status != XST_SUCCESS) {
        xil_printf("Gpio Initialization Failed\r\n");
        return XST_FAILURE;
    }

    /* Set the direction for all signals as inputs except the LED output */
    XGpio_SetDataDirection(&Gpio, LED_CHANNEL, ~LED);

    xil_printf("Gpio Example\r\n");

    /* Loop forever blinking the LED */

    while (1) {
        /* Set the LED to High */
        XGpio_DiscreteWrite(&Gpio, LED_CHANNEL, LED);

        /* Wait a small amount of time so the LED is visible */
        for (Delay = 0; Delay < LED_DELAY; Delay++);

        /* Clear the LED bit */
        XGpio_DiscreteClear(&Gpio, LED_CHANNEL, LED);

        /* Wait a small amount of time so the LED is visible */
        for (Delay = 0; Delay < LED_DELAY; Delay++);
    }

    xil_printf("Successfully ran Gpio Example\r\n");
    return XST_SUCCESS;
}

3. 编译运行

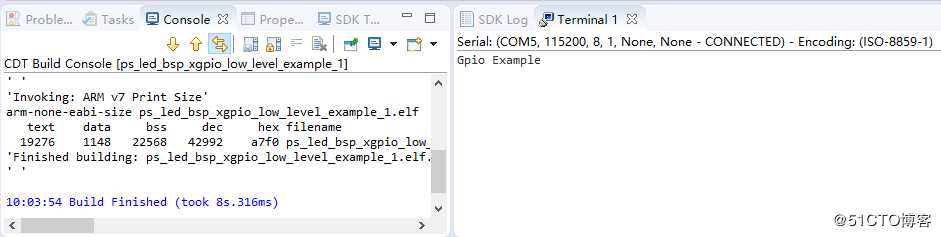

下载FPGA代码，以Hardware运行软件后，在终端打印了GPIO Example，外部LED不停闪烁。
