opencv::Harris角点检测

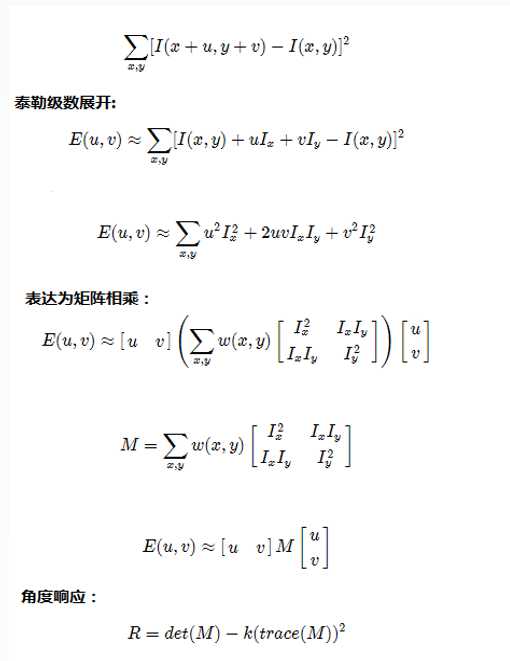

根据矩阵M的特征值，对图像上的每个像素点来说：

-边缘

-平坦区域

-角点

各有不通的特征值

void cv::cornerHarris(
    InputArray src,    //输入灰度图像
    OutputArray dst,   //输出矩阵
    int blockSize,     //计算大小
    int ksize,         //窗口大小  一般为3
    double k,          //计算角度响应时候的参数大小， 默认在0.04-0.06之间
    int borderType     //BORDER_DEFAULT 阈值，用来过滤角度响应
)

#include <opencv2/opencv.hpp>
#include <iostream>

using namespace cv;
using namespace std;
Mat src, gray_src;
int thresh = 130;
int max_count = 255;
const char* output_title = "HarrisCornerDetection Result";

void Harris_Demo(int, void*);
int main(int argc, char** argv) {

    src = imread("D:/vcprojects/images/home.jpg");
    if (src.empty()) {
        printf("could not load image...\n");
        return -1;
    }
    namedWindow("input image", CV_WINDOW_AUTOSIZE);
    imshow("input image", src);

    namedWindow(output_title, CV_WINDOW_AUTOSIZE);
    //灰度图
    cvtColor(src, gray_src, COLOR_BGR2GRAY);

    //创建一个拉条
    createTrackbar("Threshold:", output_title, &thresh, max_count, Harris_Demo);

    Harris_Demo(0, 0);

    waitKey(0);
    return 0;
}

void Harris_Demo(int, void*) {
    Mat dst, norm_dst, normScaleDst;

    //创建输出图像
    dst = Mat::zeros(gray_src.size(), CV_32FC1);

    int blockSize = 2;
    int ksize = 3;
    double k = 0.04;
    //角点检测
    cornerHarris(gray_src, dst, blockSize, ksize, k, BORDER_DEFAULT);
    //最大最小值归一化，将值规划到0-255，输入输出CV_32FC1保持一致
    normalize(dst, norm_dst, 0, 255, NORM_MINMAX, CV_32FC1, Mat());
    //绝对值
    convertScaleAbs(norm_dst, normScaleDst);

    //对角点检测并画圈
    Mat resultImg = src.clone();
    for (int row = 0; row < resultImg.rows; row++) {
        uchar* currentRow = normScaleDst.ptr(row);
        for (int col = 0; col < resultImg.cols; col++) {
            int value = (int)*currentRow;
            if (value > thresh) {
                circle(resultImg, Point(col, row), 2, Scalar(0, 0, 255), 2, 8, 0);
            }
            currentRow++;
        }
    }
    imshow(output_title, resultImg);
}
