【Halcon示例002---varaition_model_illumination】 利用单张图像创建可变模板

 1 * This example demonstrates the print inspection using
 2 * a variation model. The variation model is trained
 3 * using a single model image. Before applying the print inspection,
 4 * the images are scaled to the same gray value range like the model.
 5 *
 6 *这个例子演示使用变化模型执行打印检查
 7 *利用单个模型图像对变差模型进行训练
 8 *【注意】在应用打印检查之前，图像被缩放到与模型相同的灰度值范围。
 9 dev_update_off ()
10 dev_close_window ()
11 *
12 * Read model image and init visualization
13 read_image (ModelImage, ‘cap_illumination/cap_illumination_01‘)
14 get_image_size (ModelImage, Width, Height)
15 dev_open_window (0, 0, Width / 2, Height / 2, ‘black‘, WindowHandle)
16 set_display_font (WindowHandle, 14, ‘mono‘, ‘true‘, ‘false‘)
17 *
18 * Segment model region
19 dev_display (ModelImage)
20 get_model_region (ModelImage, RegionROI, ImageReduced)
21 area_center (RegionROI, Area, RowModel, ColumnModel)
22 dev_set_draw (‘margin‘)
23 dev_set_color (‘green‘)
24 dev_display (RegionROI)
25 *
26 * Create model for shape-based-matching
27 *注意这里的技巧：
28 disp_message (WindowHandle, ‘Model generation...‘, ‘window‘, 12, 12, ‘black‘, ‘true‘)
29 *1.创建模板
30 create_scaled_shape_model (ImageReduced, ‘auto‘, 0, rad(360), ‘auto‘, 0.8, 1.2, ‘auto‘, ‘auto‘, ‘use_polarity‘, ‘auto‘, ‘auto‘, ModelID)
31 *2.得到模板轮廓（位置在原点）
32 get_shape_model_contours (ModelContours, ModelID, 1)
33 * Transform model contours from the original position for visualization

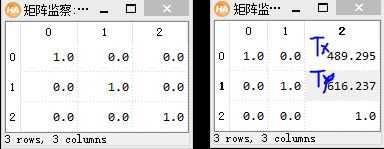

34 *3.生成一个平移矩阵（平移XY为模板图像中心的位置RowModel, ColumnModel）
35 hom_mat2d_identity (HomMat2DIdentity)
36 *将平移添加到齐次二维变换矩阵
37 hom_mat2d_translate (HomMat2DIdentity, RowModel, ColumnModel, HomMat2DTranslate)
38 *4.把原点处的模板放射变换到图像上，查看效果
39 affine_trans_contour_xld (ModelContours, ModelContoursAffineTrans, HomMat2DTranslate)
40 *
41 * Create variation model for print inspection
42 *【核心算子一】创建一个印刷检测模板
43 create_variation_model (Width, Height, ‘byte‘, ‘direct‘, VariationID)
44 * Generate variation image
45 *使用sobel算子检测边缘（振幅）
46 sobel_amp (ModelImage, VarImage, ‘sum_abs‘, 5)
47 *【核心算子二】生成一个可变模板图像
48 prepare_direct_variation_model (ModelImage, VarImage, VariationID, [20,25], [1.6,1.6])
49 *
50 * Get gray value range of the variation model
51 *得到前景色和背景色的灰度平均值
52 get_grayval_range (ModelImage, RegionROI, RegionForeground, RegionBackground, BackgroundGVModel, ForegroundGVModel)
53 *
54 * Perform print inspection
55 *循环执行印刷检测
56 for I := 1 to 9 by 1
57     read_image (rImage, ‘cap_illumination/cap_illumination_‘ + I$‘.2‘)
58     inspect_cap (rImage, RegionROI, WindowHandle, ModelID, VariationID, RowModel, ColumnModel, BackgroundGVModel, ForegroundGVModel)
59     if (I < 9)
60         disp_continue_message (WindowHandle, ‘black‘, ‘true‘)
61         stop ()
62     endif
63 endfor
64 *
65 clear_shape_model (ModelID)
66 clear_variation_model (VariationID)

 1 *
 2 * Segment label on the cap
 3 *使用二进制阈值分割图像
 4 binary_threshold (rImage, BrightRegion, ‘max_separability‘, ‘light‘, UsedThreshold)
 5 dilation_circle (BrightRegion, RegionDilation, 1.5)
 6 connection (RegionDilation, ConnectedRegions)
 7 select_shape (ConnectedRegions, SelectedRegions, ‘area‘, ‘and‘, 100, 99999)
 8 union1 (SelectedRegions, LabelRegion)
 9 smallest_circle (LabelRegion, Row, Column, Radius)
10 smallest_rectangle1 (LabelRegion, Row1, Column1, Row2, Column2)
11 *
12 * Define model region
13 gen_circle (Region, Row, Column, Radius)
14 gen_rectangle1 (LabelRectangle, Row1, Column1, Row2, Column2)
15 intersection (Region, LabelRectangle, RegionIntersection)
16 dilation_circle (RegionIntersection, RegionROI, 5.5)
17 reduce_domain (rImage, RegionROI, ImageReduced)
18 return ()

 1 *
 2 * Find shape model in the input image
 3 count_seconds (StartSeconds)
 4 find_scaled_shape_model (rImage, ModelID, 0, rad(360), 0.98, 1.02, 0.4, 1, 1, ‘least_squares_high‘, [5,3], 0.9, Row, Column, Angle, Scale, Score)
 5 count_seconds (EndSeconds)
 6 TimeObjSearch := EndSeconds - StartSeconds
 7 *
 8 get_shape_model_contours (ModelContours, ModelID, 1)
 9 * 定位成功
10 if (|Row| > 0)
11     *
12     * Align the model region and the found label region
13     *定位模板区域，找到标签区域
14     vector_angle_to_rigid (Row[0], Column[0], Angle, RowModel[0], ColumnModel[0], 0, HomMat2DImage)
15     affine_trans_image (rImage, ImageAffineTrans, HomMat2DImage, ‘constant‘, ‘false‘)
16     get_grayval_range (ImageAffineTrans, RegionROI, RegionForegroundImage, RegionBackgroundImage, BackgroundImage, ForegroundImage)
17     *
18     * Scale image to the model‘s gray value range
19     Mult := (ForegroundGVModel - BackgroundGVModel) / (ForegroundImage - BackgroundImage)
20     Add := ForegroundGVModel - Mult * ForegroundImage
21     * Transform the contours of the models for the visualization
22     vector_angle_to_rigid (0, 0, 0, Row[0], Column[0], Angle, HomMat2DContour)
23     affine_trans_contour_xld (ModelContours, ModelContoursTrans, HomMat2DContour)
24     reduce_domain (ImageAffineTrans, RegionROI, ImageReduced)
25     scale_image (ImageReduced, ImageScaled, Mult, Add)
26     *
27     * Print Inspection
28     count_seconds (StartSeconds)
29     *【核心算子三】比较可变模板
30     compare_ext_variation_model (ImageScaled, RegionDiff, VariationID, ‘light_dark‘)
31     count_seconds (EndSeconds)
32     * Analyze bright and dark defect regions
33     dev_display (rImage)
34     count_obj (RegionDiff, NumberRegionDiff)
35     for i := 1 to NumberRegionDiff by 1
36         select_obj (RegionDiff, RegionDiffSelected, i)
37         opening_circle (RegionDiffSelected, RegionOpening, 2.5)
38         connection (RegionOpening, ConnectedRegions)
39         select_shape (ConnectedRegions, DefectRegions, ‘height‘, ‘and‘, 20, 99999)
40         *
41         * Transform regions to the original position in the input image
42         hom_mat2d_invert (HomMat2DImage, HomMat2DInvert)
43         affine_trans_region (DefectRegions, DefectRegionsTrans, HomMat2DInvert, ‘nearest_neighbor‘)
44         closing_circle (DefectRegionsTrans, DefectRegionsClosing, 1.5)
45         *
46         * Display bright and dark defects using different colors
47         dev_set_line_width (2)
48         dev_set_draw (‘fill‘)
49         if (i == 1)
50             dev_set_color (‘red‘)
51         else
52             dev_set_color (‘orange‘)
53         endif
54         dev_display (DefectRegionsClosing)
55         *
56         * Emphasize defect regions
57         dev_set_color (‘magenta‘)
58         dev_set_draw (‘margin‘)
59         union1 (DefectRegionsClosing, RegionUnion)
60         closing_circle (RegionUnion, RegionClosing, 10)
61         connection (RegionClosing, DefectRegionEnlarged)
62         *计算等效椭圆的参数。
63         elliptic_axis (DefectRegionEnlarged, Ra, Rb, Phi)
64         if (|Phi|)
65             area_center (DefectRegionEnlarged, Area, RowEllipse, ColumnEllipse)
66             gen_ellipse (Ellipse, RowEllipse, ColumnEllipse, Phi, Ra * 2, Rb * 2)
67             dev_display (Ellipse)
68         endif
69     endfor
70     dev_set_line_width (1)
71     dev_set_color (‘green‘)
72     dev_display (ModelContoursTrans)
73     *
74     TimePrintInspect := EndSeconds - StartSeconds
75     disp_message (WindowHandle, ‘Inspection Time: ‘ + ((TimeObjSearch + TimePrintInspect) * 1000.0)$‘.04‘ + ‘ ms‘, ‘window‘, 12, 12, ‘black‘, ‘true‘)
76 else
77     disp_message (WindowHandle, ‘No shape model found.‘, ‘window‘, 12, 12, ‘red‘, ‘true‘)
78 endif
79 *
80 return ()
