上一篇文章大致解读了官方文档给出的开发概述，本文正式开始开发步骤的记录。

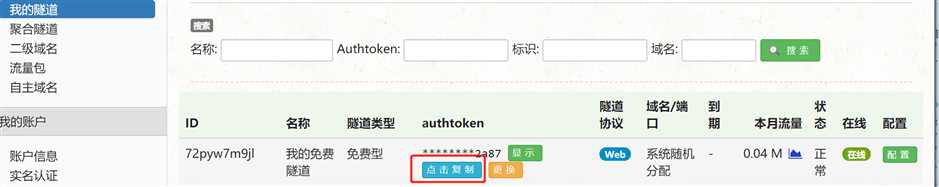

1. 为了配合微信请求只能使用域名的要求，可以使用natapp搭建外网服务器，模拟域名访问，详细的步骤可参考文章：搭建外网传送门。主要就是配置一个免费隧道，并下载对应的natapp插件，按照免费隧道中的authtoken，配置config.ini文件放在natapp根目录下，双击启动即可。

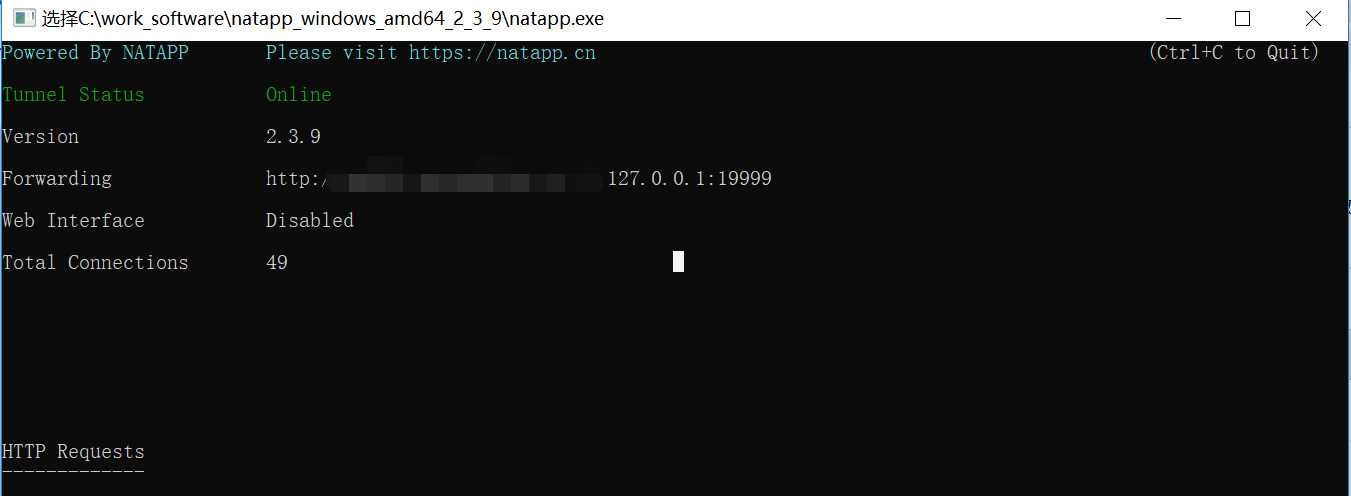

启动natapp见下列这样即说明配置成功，可通过域名访问
域名设置成功就可以进行公众号开发了.
step1 引包
<!--微信封装类-->
<dependency>
<groupId>com.github.binarywang</groupId>
<artifactId>weixin-java-mp</artifactId>
<version>3.2.0</version>
</dependency>
<!--用于进行配置文件的注入-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
step2 微信相关配置信息的设置
server:
port: 8803
# 测试公众号
hwy.wx.mp:
configs[0]:
appId: 你的公众号appid
secret: 你的公众号appsecret
token: 自定义设置一个token，会在公众号配置中使用，要保持一致
aesKey: 公众号中的
template1:
alarm: 告警推送信息的模板id
step3 代码开发
① 微信公众号相关配置信息注入到WxMpProperties类中，支持多公众号的注入
package com.iris.wechat.config;
import lombok.Data;
import lombok.ToString;
import org.springframework.boot.context.properties.ConfigurationProperties;
import java.util.List;
/**
* 注入微信公众号的配置信息
*/
@Data
@ConfigurationProperties(prefix = "hwy.wx.mp")
public class WxMpProperties {
private List<MpConfig> configs;
@Data
@ToString
public static class MpConfig {
/**
* 设置微信公众号的appid
*/
private String appId;
/**
* 设置微信公众号的app secret
*/
private String secret;
/**
* 设置微信公众号的token
*/
private String token;
/**
* 设置微信公众号的EncodingAESKey
*/
private String aesKey;
}
}

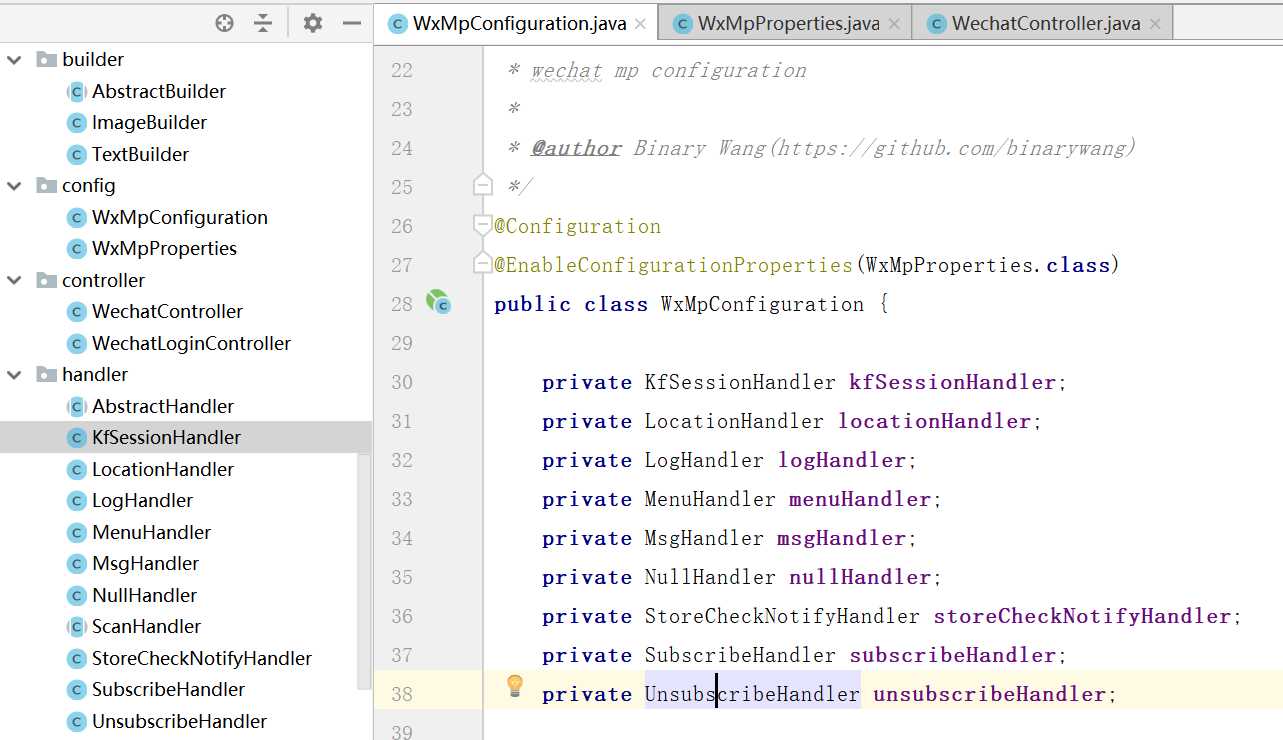

② 注入配置文件对象，公众号常见事件的路由层WxMpConfiguration
package com.iris.wechat.config; import com.google.common.collect.Maps; import com.iris.wechat.handler.*; import me.chanjar.weixin.common.api.WxConsts.EventType; import me.chanjar.weixin.common.api.WxConsts.MenuButtonType; import me.chanjar.weixin.common.api.WxConsts.XmlMsgType; import me.chanjar.weixin.mp.api.WxMpInMemoryConfigStorage; import me.chanjar.weixin.mp.api.WxMpMessageRouter; import me.chanjar.weixin.mp.api.WxMpService; import me.chanjar.weixin.mp.api.impl.WxMpServiceImpl; import me.chanjar.weixin.mp.constant.WxMpEventConstants; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.boot.context.properties.EnableConfigurationProperties; import org.springframework.context.annotation.Configuration; import javax.annotation.PostConstruct; import java.util.Map; import java.util.stream.Collectors; /** * wechat mp configuration * * @author Binary Wang(https://github.com/binarywang) */ @Configuration @EnableConfigurationProperties(WxMpProperties.class) public class WxMpConfiguration { private LogHandler logHandler; private NullHandler nullHandler; private KfSessionHandler kfSessionHandler; private StoreCheckNotifyHandler storeCheckNotifyHandler; private LocationHandler locationHandler; private MenuHandler menuHandler; private MsgHandler msgHandler; private UnsubscribeHandler unsubscribeHandler; private SubscribeHandler subscribeHandler; private WxMpProperties properties; private static Map<String, WxMpMessageRouter> routers = Maps.newHashMap(); private static Map<String, WxMpService> mpServices = Maps.newHashMap(); @Autowired public WxMpConfiguration(LogHandler logHandler, NullHandler nullHandler, KfSessionHandler kfSessionHandler, StoreCheckNotifyHandler storeCheckNotifyHandler, LocationHandler locationHandler, MenuHandler menuHandler, MsgHandler msgHandler, UnsubscribeHandler unsubscribeHandler, SubscribeHandler subscribeHandler, WxMpProperties properties) { this.logHandler = logHandler; this.nullHandler = nullHandler; this.kfSessionHandler = kfSessionHandler; this.storeCheckNotifyHandler = storeCheckNotifyHandler; this.locationHandler = locationHandler; this.menuHandler = menuHandler; this.msgHandler = msgHandler; this.unsubscribeHandler = unsubscribeHandler; this.subscribeHandler = subscribeHandler; this.properties = properties; } public static Map<String, WxMpMessageRouter> getRouters() { return routers; } @PostConstruct public void init() { services(); } public static Map<String, WxMpService> getMpServices() { return mpServices; } public Object services() { mpServices = this.properties.getConfigs() .stream() .map(a -> { WxMpInMemoryConfigStorage configStorage = new WxMpInMemoryConfigStorage(); configStorage.setAppId(a.getAppId()); configStorage.setSecret(a.getSecret()); configStorage.setToken(a.getToken()); configStorage.setAesKey(a.getAesKey()); WxMpService service = new WxMpServiceImpl(); service.setWxMpConfigStorage(configStorage); routers.put(a.getAppId(), this.newRouter(service)); return service; }).collect(Collectors.toMap(s -> s.getWxMpConfigStorage().getAppId(), a -> a)); return Boolean.TRUE; } private WxMpMessageRouter newRouter(WxMpService wxMpService) { final WxMpMessageRouter newRouter = new WxMpMessageRouter(wxMpService); // 记录所有事件的日志 （异步执行） newRouter.rule().handler(this.logHandler).next(); // 接收客服会话管理事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(WxMpEventConstants.CustomerService.KF_CREATE_SESSION) .handler(this.kfSessionHandler).end(); newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(WxMpEventConstants.CustomerService.KF_CLOSE_SESSION) .handler(this.kfSessionHandler) .end(); newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(WxMpEventConstants.CustomerService.KF_SWITCH_SESSION) .handler(this.kfSessionHandler).end(); // 门店审核事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(WxMpEventConstants.POI_CHECK_NOTIFY) .handler(this.storeCheckNotifyHandler).end(); // 自定义菜单事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(MenuButtonType.CLICK).handler(this.menuHandler).end(); // 点击菜单连接事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(MenuButtonType.VIEW).handler(this.nullHandler).end(); // 关注事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(EventType.SUBSCRIBE).handler(this.subscribeHandler) .end(); // 取消关注事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(EventType.UNSUBSCRIBE) .handler(this.unsubscribeHandler).end(); // 上报地理位置事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(EventType.LOCATION).handler(this.locationHandler) .end(); // 接收地理位置消息 newRouter.rule().async(false).msgType(XmlMsgType.LOCATION) .handler(this.locationHandler).end(); // 扫码事件 newRouter.rule().async(false).msgType(XmlMsgType.EVENT) .event(EventType.SCAN).handler(this.nullHandler).end(); // 默认 newRouter.rule().async(false).handler(this.msgHandler).end(); return newRouter; } }
③ 根据WxMpConfiguration类中的handler完成各个handler的开发，根据自己的业务场景作相应的开发，
④ 完成验证接口的开发，分两个接口，接口的路径一致只是方法不同，一个get方法：用于用户界面上域名接口验证，一个post方法：用于关注，取关，自定义菜单等事件的触发。
package com.iris.wechat.controller;
import com.iris.wechat.config.WxMpConfiguration;
import com.iris.wechat.log.XlyLogger;
import me.chanjar.weixin.mp.api.WxMpService;
import me.chanjar.weixin.mp.bean.message.WxMpXmlMessage;
import me.chanjar.weixin.mp.bean.message.WxMpXmlOutMessage;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.springframework.web.bind.annotation.*;
import javax.servlet.http.HttpServletRequest;
/**
* 与微信交互的API文件
* @Date 2019-11-22 16:41:00
* @author muruan.lt
* 配合华为云公众号绑定
*/
@RestController
@RequestMapping("/wx/{appid}")
public class WechatController {
private static Logger log = XlyLogger.get();
// 接口配置信息调用接口(GET)
@GetMapping(produces = "text/plain;charset=utf-8")
public String doGet(@PathVariable String appid, HttpServletRequest request) {
// 微信加密签名
String signature = request.getParameter("signature");
// 时间戳
String timestamp = request.getParameter("timestamp");
// 随机数
String nonce = request.getParameter("nonce");
// 随机字符串
String echostr = request.getParameter("echostr");
log.info("\n接收到来自微信服务器的认证消息：[{}, {}, {}, {}]", signature, timestamp, nonce, echostr);
if (StringUtils.isAnyBlank(signature, timestamp, nonce, echostr)) {
log.info("signature " + signature + " timestamp " + timestamp + " nonce " + nonce
+ " echostr " + echostr);
throw new IllegalArgumentException("请求参数非法，请核实!");
}
final WxMpService wxService = WxMpConfiguration.getMpServices().get(appid);
if (wxService == null) {
throw new IllegalArgumentException(String.format("未找到对应appid=[%d]的配置，请核实!", appid));
}
// 通过检验signature对请求进行校验，若校验成功则原样返回echostr，表示接入成功，否则接入失败
if (wxService.checkSignature(timestamp, nonce, signature)) {
log.info("weixin get success...."+echostr);
return echostr;
}else {
log.error("weixin get failed....");
return "weixin get failed....";
}
}
// 关注，取关，客服，菜单等调用接口(POST)
@PostMapping(produces = "application/xml; charset=UTF-8")
public String doPost(HttpServletRequest request, @PathVariable String appid, @RequestBody String requestBody) {
log.debug("weixin login get...");
// 获取微信公众号传输过来的code,通过code可获取access_token,进而获取用户信息
String code = request.getParameter("code");
// 微信加密签名
String signature = request.getParameter("signature");
// 时间戳
String timestamp = request.getParameter("timestamp");
// 随机数
String nonce = request.getParameter("nonce");
// openid
String openid = request.getParameter("openid");
// encType--可空
String encType = request.getParameter("encType");
// msgSignature--可空
String msgSignature = request.getParameter("msgSignature");
final WxMpService wxService = WxMpConfiguration.getMpServices().get(appid);
if (!wxService.checkSignature(timestamp, nonce, signature)) {
log.info(
"\n接收微信请求：[openid=[{}], [signature=[{}], encType=[{}], msgSignature=[{}],"
+ " timestamp=[{}], nonce=[{}], requestBody=[\n{}\n] ",
openid, signature, encType, msgSignature, timestamp, nonce, requestBody);
throw new IllegalArgumentException("非法请求，可能属于伪造的请求!");
}
String out = null;
if (StringUtils.isBlank(encType)) {
// 明文传输的消息
WxMpXmlMessage inMessage = WxMpXmlMessage.fromXml(requestBody);
WxMpXmlOutMessage outMessage = this.route(inMessage, appid);
if (outMessage == null) {
return "";
}
out = outMessage.toXml();
} else if ("aes".equalsIgnoreCase(encType)) {
// aes加密的消息
WxMpXmlMessage inMessage = WxMpXmlMessage.fromEncryptedXml(requestBody,
wxService.getWxMpConfigStorage(), timestamp, nonce, msgSignature);
log.debug("\n消息解密后内容为：\n{} ", inMessage.toString());
WxMpXmlOutMessage outMessage = this.route(inMessage, appid);
if (outMessage == null) {
return "";
}
out = outMessage.toEncryptedXml(wxService.getWxMpConfigStorage());
}
log.debug("\n组装回复信息：{}", out);
return out;
}
private WxMpXmlOutMessage route(WxMpXmlMessage message, String appid) {
try {
return WxMpConfiguration.getRouters().get(appid).route(message);
} catch (Exception e) {
log.error("路由消息时出现异常!", e);
}
return null;
}
}
其中doGet方法用于接口配置信息的调用接口,doPost方法用于关注，取关等事件的触发。
开发阶段若服务器，域名已经准备好，则可将代码打包上线，进行下一步开发调试，由于上线的代码并不是很方便调试故而可使用上文中natapp产生的域名代替，进行本地调试，详细配置如下，
① 接口配置信息修改：URL是验证接口，Token是自己定义的，务必与服务器配置文件中的token一致

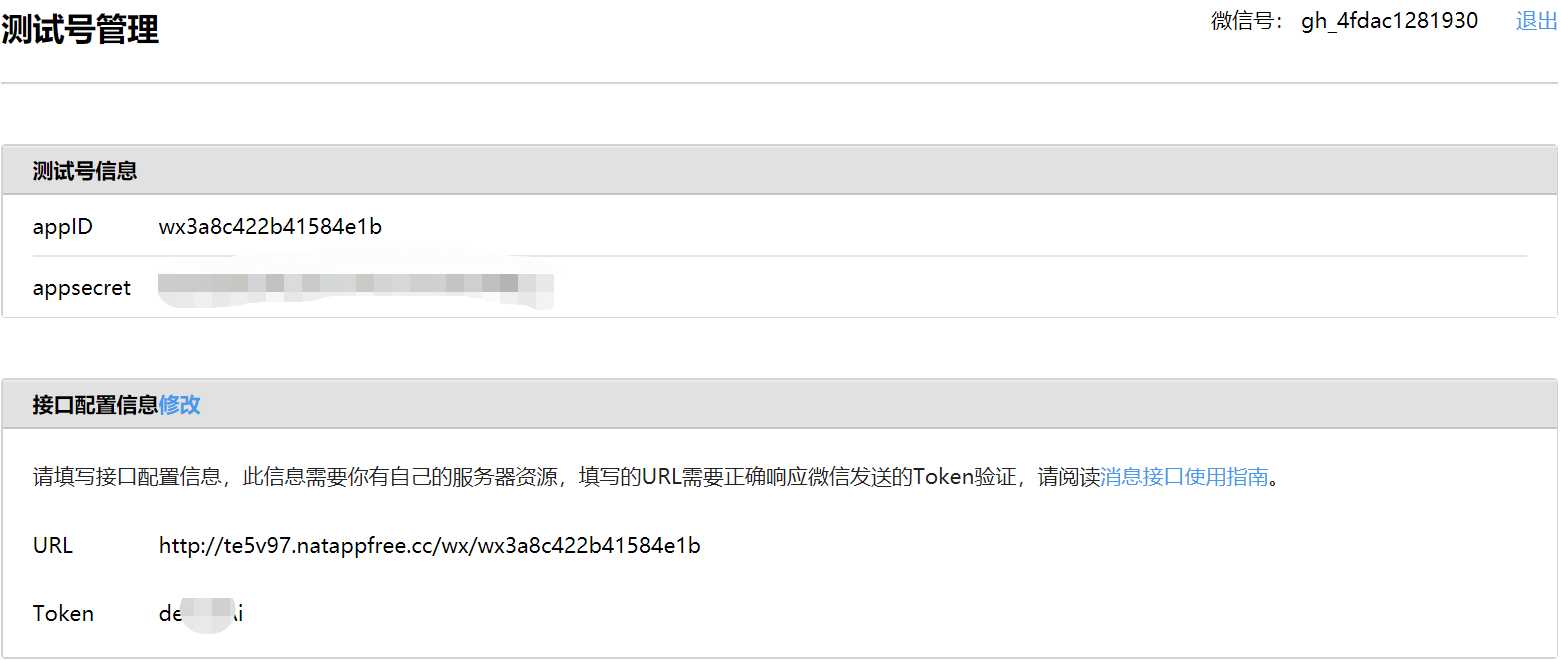

登陆公众号测试账号，找到如下位置，

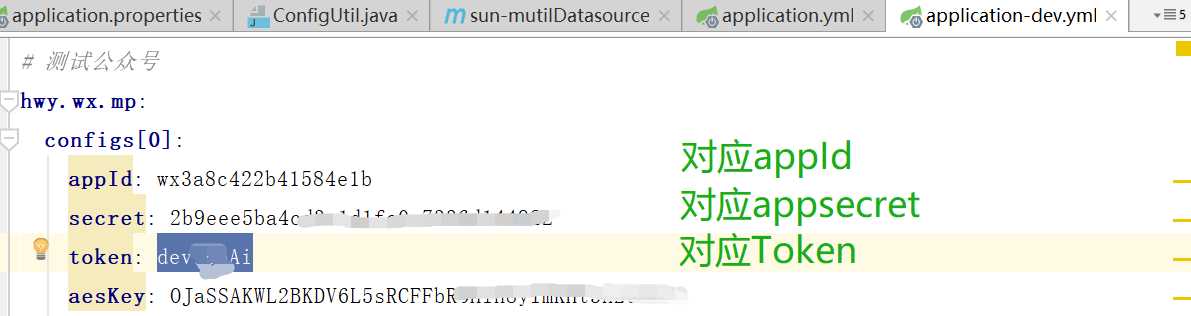

将上图中appID,appsecret信息添加到配置文件中，并启动服务。

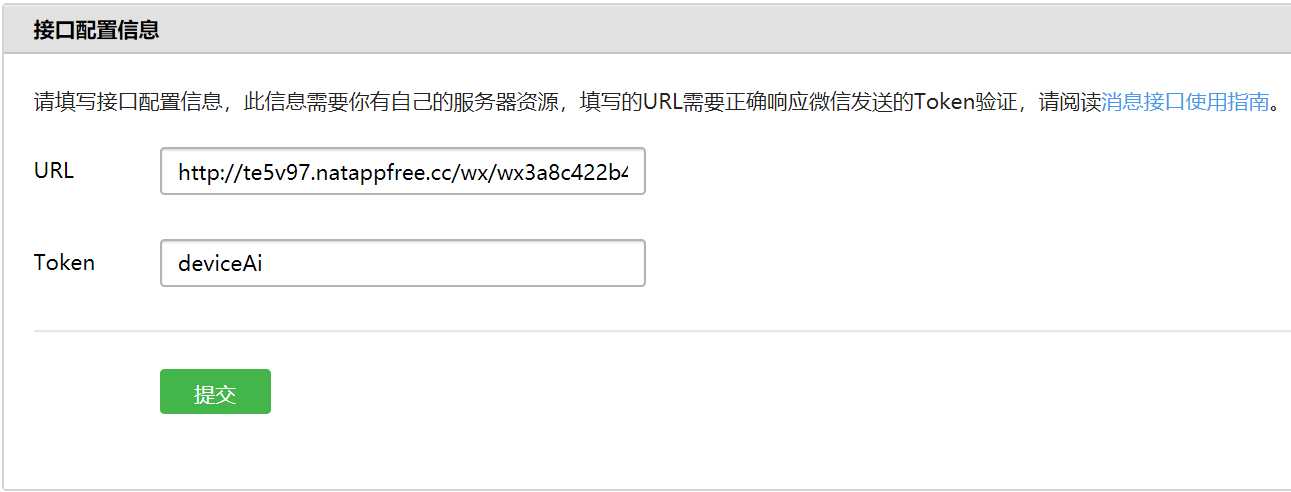

点击“修改“，将"接口配置信息"接口填在URL处，将上图中的token填在下图的Token处。其中URL的格式为natapp生成的外网访问地址+/wx/{appid}，如下图所示
点击提交，在本地如下方法中打断点，发现点击提交会进入下面方法，若没有进入则说明配置URL，token，appId，secret等出现错误，若进入该方法则说明配置没有问题。
// 接口配置信息调用接口(GET)
@GetMapping(produces = "text/plain;charset=utf-8")
public String doGet(@PathVariable String appid, HttpServletRequest request) {
// 微信加密签名
String signature = request.getParameter("signature");
// 时间戳
String timestamp = request.getParameter("timestamp");
// 随机数
String nonce = request.getParameter("nonce");
// 随机字符串
String echostr = request.getParameter("echostr");
log.info("\n接收到来自微信服务器的认证消息：[{}, {}, {}, {}]", signature, timestamp, nonce, echostr);
if (StringUtils.isAnyBlank(signature, timestamp, nonce, echostr)) {
log.info("signature " + signature + " timestamp " + timestamp + " nonce " + nonce
+ " echostr " + echostr);
throw new IllegalArgumentException("请求参数非法，请核实!");
}
final WxMpService wxService = WxMpConfiguration.getMpServices().get(appid);
if (wxService == null) {
throw new IllegalArgumentException(String.format("未找到对应appid=[%d]的配置，请核实!", appid));
}
// 通过检验signature对请求进行校验，若校验成功则原样返回echostr，表示接入成功，否则接入失败
if (wxService.checkSignature(timestamp, nonce, signature)) {
log.info("weixin get success...."+echostr);
return echostr;
}else {
log.error("weixin get failed....");
return "weixin get failed....";
}
}

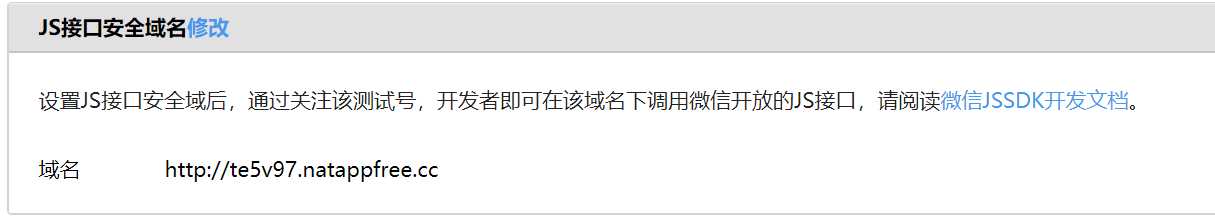

② 配置JS接口安全域名：点击修改将外网访问地址填好提交就可以了。

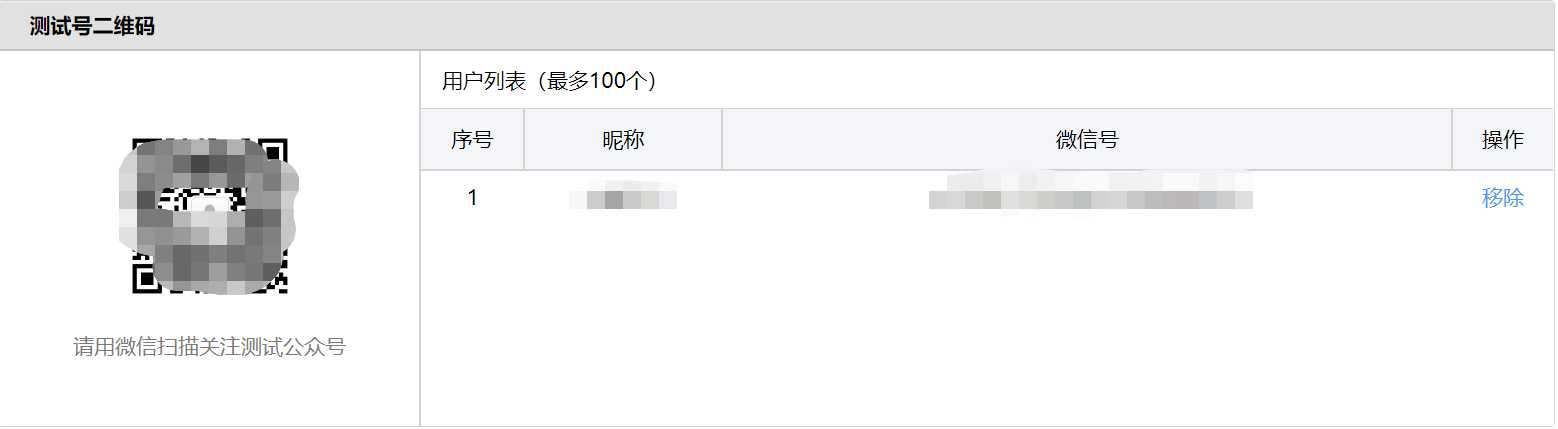

③ 检查关注公众号，取消关注是否生效
首先在下面方法上打断点，再扫码关注，会进入该方法，同样操作取关也会进入该方法，再需要自己根据实际需求进行业务代码的开发。
// 关注，取关，客服，菜单等调用接口(POST)
@PostMapping(produces = "application/xml; charset=UTF-8")
public String doPost(HttpServletRequest request, @PathVariable String appid, @RequestBody String requestBody) {
log.debug("weixin login get...");
// 获取微信公众号传输过来的code,通过code可获取access_token,进而获取用户信息
String code = request.getParameter("code");
// 微信加密签名
String signature = request.getParameter("signature");
// 时间戳
String timestamp = request.getParameter("timestamp");
// 随机数
String nonce = request.getParameter("nonce");
// openid
String openid = request.getParameter("openid");
// encType--可空
String encType = request.getParameter("encType");
// msgSignature--可空
String msgSignature = request.getParameter("msgSignature");
final WxMpService wxService = WxMpConfiguration.getMpServices().get(appid);
if (!wxService.checkSignature(timestamp, nonce, signature)) {
log.info(
"\n接收微信请求：[openid=[{}], [signature=[{}], encType=[{}], msgSignature=[{}],"
+ " timestamp=[{}], nonce=[{}], requestBody=[\n{}\n] ",
openid, signature, encType, msgSignature, timestamp, nonce, requestBody);
throw new IllegalArgumentException("非法请求，可能属于伪造的请求!");
}
String out = null;
if (StringUtils.isBlank(encType)) {
// 明文传输的消息
WxMpXmlMessage inMessage = WxMpXmlMessage.fromXml(requestBody);
WxMpXmlOutMessage outMessage = this.route(inMessage, appid);
if (outMessage == null) {
return "";
}
out = outMessage.toXml();
} else if ("aes".equalsIgnoreCase(encType)) {
// aes加密的消息
WxMpXmlMessage inMessage = WxMpXmlMessage.fromEncryptedXml(requestBody,
wxService.getWxMpConfigStorage(), timestamp, nonce, msgSignature);
log.debug("\n消息解密后内容为：\n{} ", inMessage.toString());
WxMpXmlOutMessage outMessage = this.route(inMessage, appid);
if (outMessage == null) {
return "";
}
out = outMessage.toEncryptedXml(wxService.getWxMpConfigStorage());
}
log.debug("\n组装回复信息：{}", out);
return out;
}
