matplotlib 自带的几种美化样式

时间:2019-12-15 22:28:18      阅读:323      评论:0      收藏:0      [点我收藏+]

1、用 matplotlib.pyplot.style.avaliable 可查看 matplotlib 自带的美化样式如下:

[‘bmh‘,            ‘classic‘,        ‘dark_background‘,
 ‘fast‘,             ‘fivethirtyeight‘,   ‘ggplot‘,
 ‘grayscale‘,         ‘seaborn-bright‘,    ‘seaborn-colorblind‘,
 ‘seaborn-dark-palette‘,  ‘seaborn-dark‘,      ‘seaborn-darkgrid‘,
 ‘seaborn-deep‘,       ‘seaborn-muted‘,     ‘seaborn-notebook‘,
 ‘seaborn-paper‘,       ‘seaborn-pastel‘,    ‘seaborn-poster‘,
 ‘seaborn-talk‘,       ‘seaborn-ticks‘,      ‘seaborn-white‘,
 ‘seaborn-whitegrid‘,      ‘seaborn‘,            ‘Solarize_Light2‘,
 ‘tableau-colorblind10‘,   ‘_classic_test‘]

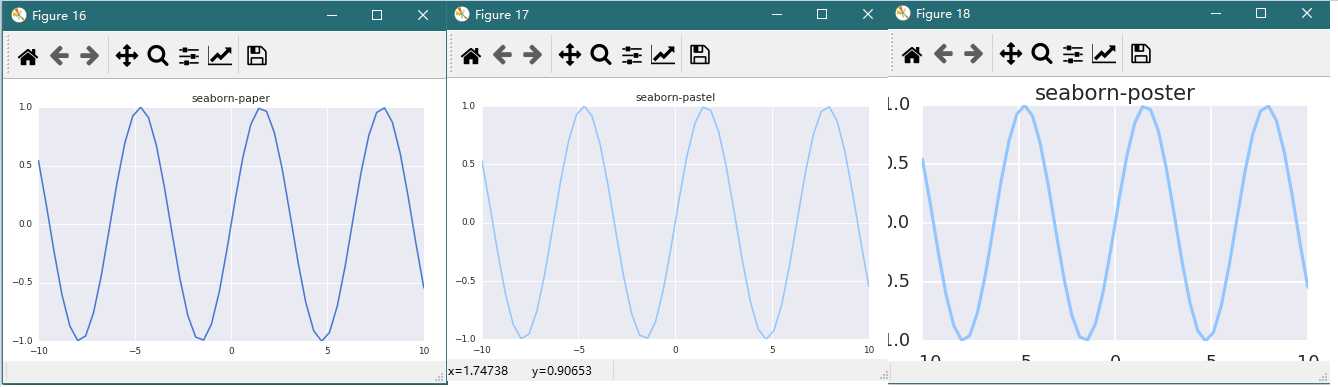

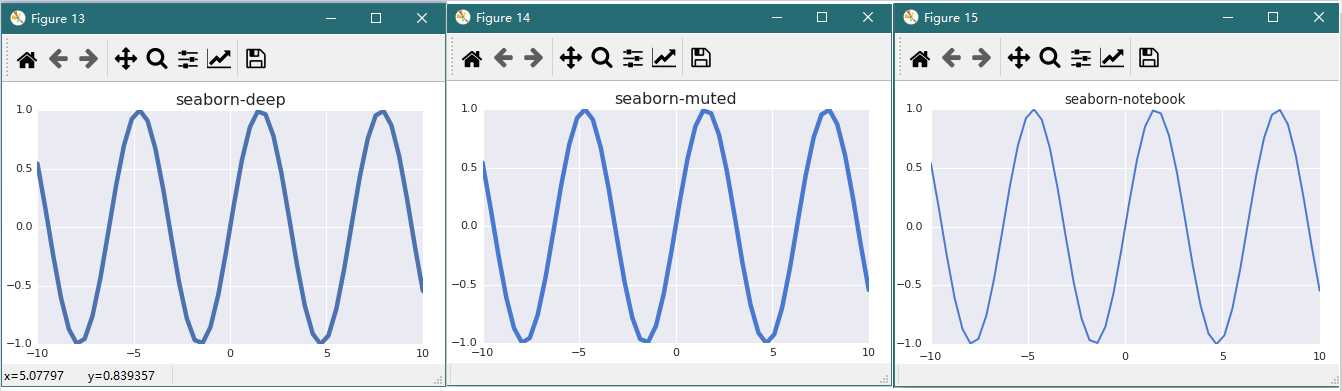

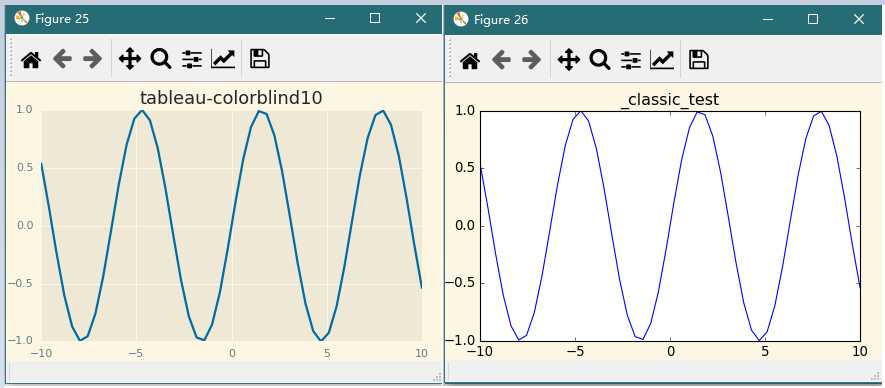

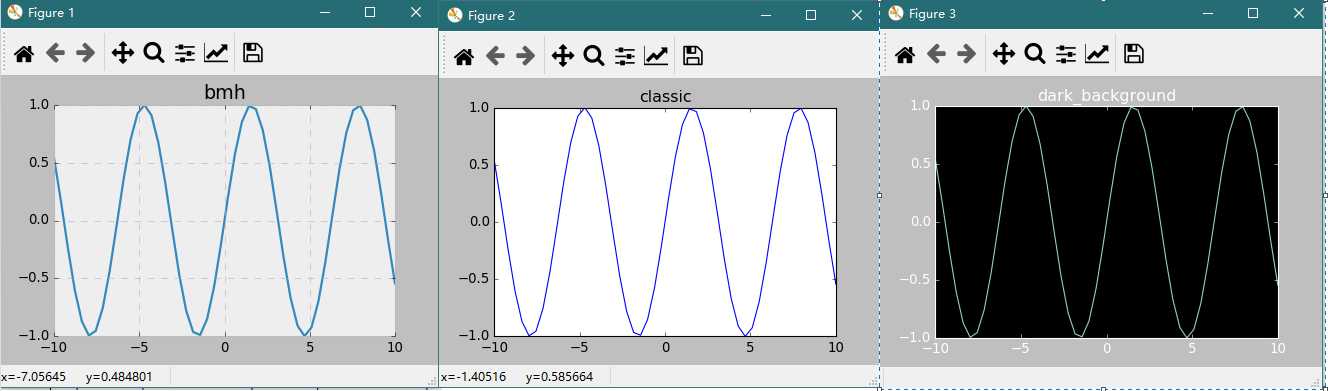

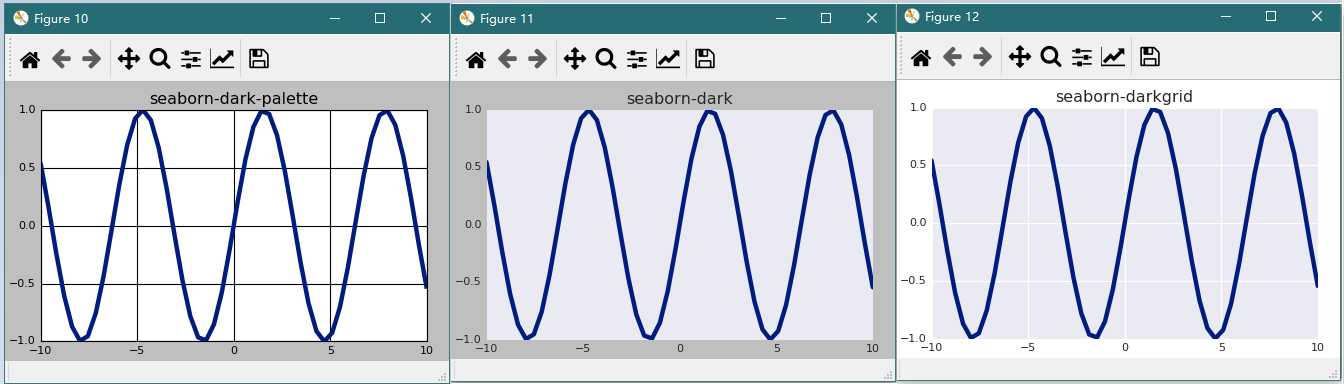

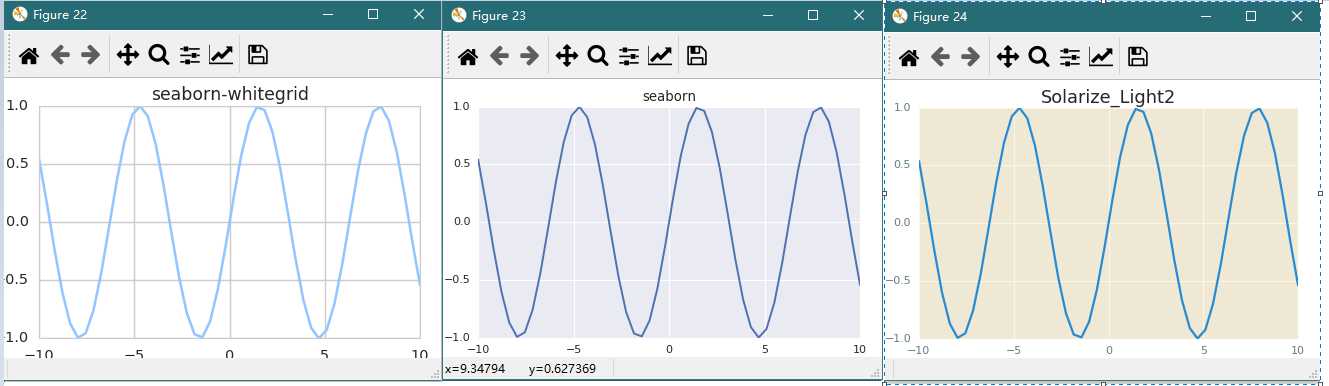

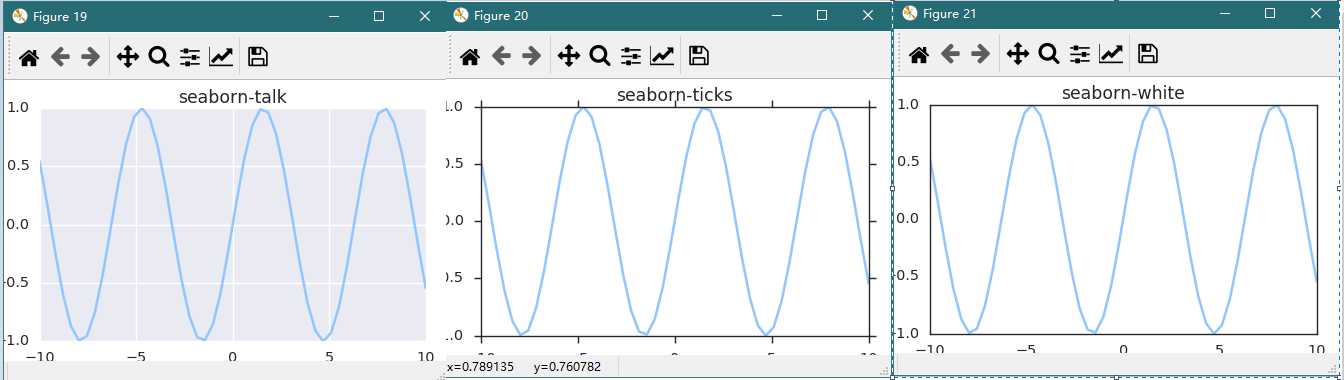

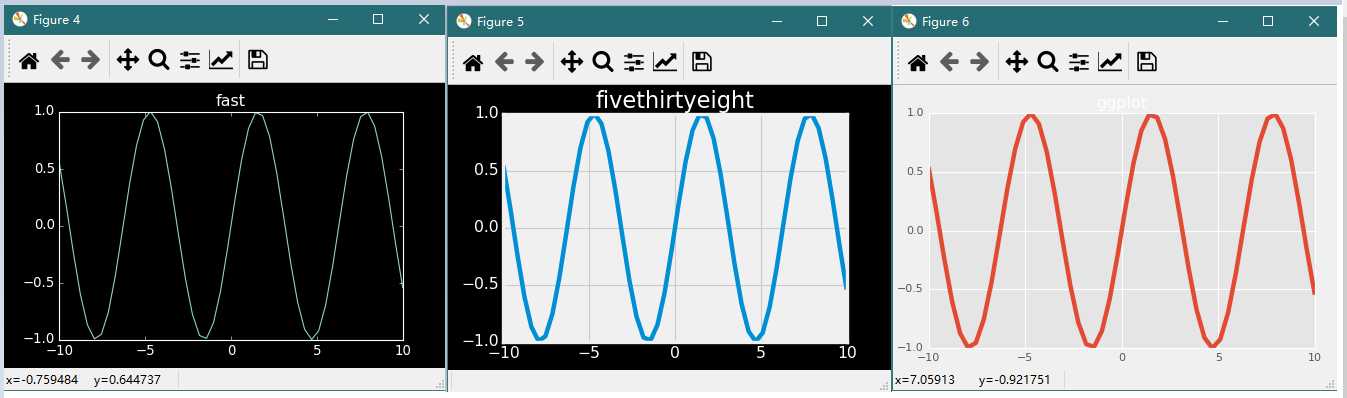

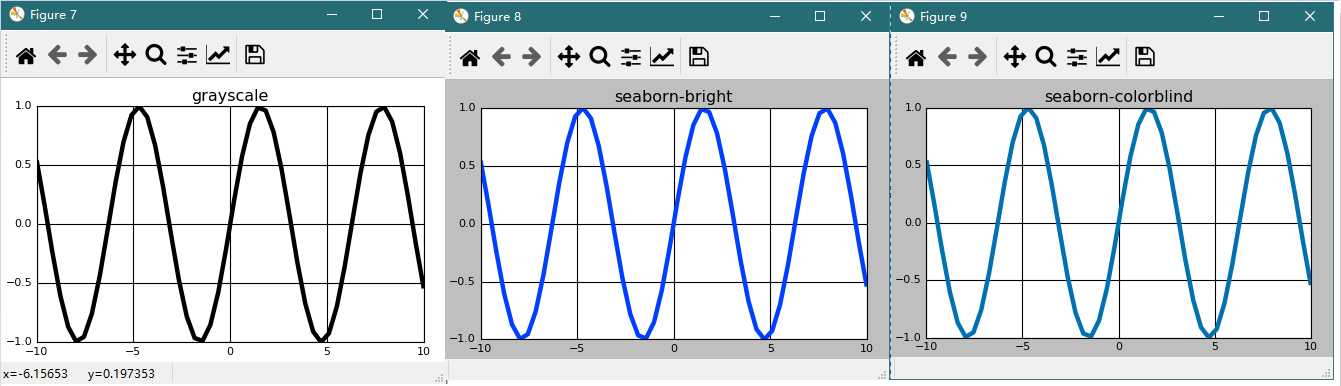

2、用如下的循环,可查看各种美化样式的效果

import numpy as np
import matplotlib.pyplot as plt

styles = plt.style.available

x = np.linspace(-10, 10)
y = np.sin(x)

for style in styles:
    plt.figure()
    plt.style.use(style)
    plt.plot(x, y)
    plt.title(style)
    plt.show()

技术分享图片

技术分享图片

技术分享图片

技术分享图片

技术分享图片

技术分享图片

技术分享图片

技术分享图片



 技术分享图片

matplotlib 自带的几种美化样式

原文:https://www.cnblogs.com/shanger/p/12046045.html
