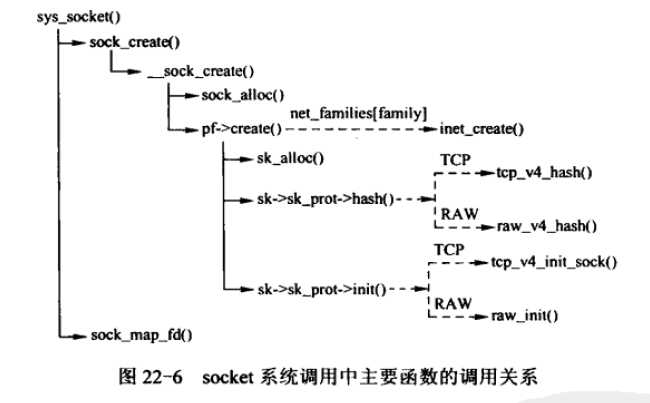

asmlinkage long sys_socket(int, int, int);

int sock_create(int family, int type, int protocol, struct socket **res)

{

    return __sock_create(current->nsproxy->net_ns, family, type, protocol, res, 0);

}

int __sock_create(struct net *net, int family, int type, int protocol,

             struct socket **res, int kern)

{

    int err;

    struct socket *sock;

    const struct net_proto_family *pf;



    /*

     *      Check protocol is in range

     */

    /*family和type字段范围检查*/

    if (family < 0 || family >= NPROTO)

        return -EAFNOSUPPORT;

    if (type < 0 || type >= SOCK_MAX)

        return -EINVAL;



    /* Compatibility.



       This uglymoron is moved from INET layer to here to avoid

       deadlock in module load.

     */

    /*兼容性考虑，IPv4协议族的SOCK_PACKET已经废弃，当family ==F_INET && type == SOCK_PACKET时，

    强制把family改为PF_PACKET。*/

    if (family == PF_INET && type == SOCK_PACKET) {

        static int warned;

        if (!warned) {

            warned = 1;

            pr_info("%s uses obsolete (PF_INET,SOCK_PACKET)\n",

                current->comm);

        }

        family = PF_PACKET;

    }



    /*安全模块对套接口的创建做检查，安全模块不是网络中必需的组成部门，不做讨论。*/

    // 检查权限，并考虑协议集、类型、协议，以及 socket 是在内核中创建还是在用户空间中创建

    // 可以参考：https://www.ibm.com/developerworks/cn/linux/l-selinux/

    err = security_socket_create(family, type, protocol, kern);

    if (err)

        return err;



    /*

     *    Allocate the socket and allow the family to set things up. if

     *    the protocol is 0, the family is instructed to select an appropriate

     *    default.

     */

    /*调用sock_alloc()在sock_inode_cache缓存中分配与套接口关联的i结点和套接口，同时

    初始化i结点和套接口，失败则直接返回错误码。*/

    sock = sock_alloc();

    if (!sock) {

        net_warn_ratelimited("socket: no more sockets\n");

        return -ENFILE;    /* Not exactly a match, but its the

                   closest posix thing */

    }



    sock->type = type;



/*如果协议族支持内核模块动态加载，但在创建此协议族类型的套接字时，内核模块并未被加载，则调用

request_module()进行内核模块的动态加载。*/

#ifdef CONFIG_MODULES

    /* Attempt to load a protocol module if the find failed.

     *

     * 12/09/1996 Marcin: But! this makes REALLY only sense, if the user

     * requested real, full-featured networking support upon configuration.

     * Otherwise module support will break!

     */

    if (rcu_access_pointer(net_families[family]) == NULL)

        request_module("net-pf-%d", family);

#endif



    rcu_read_lock();



    /*获取对应协议的net_proto_family指针*/

    pf = rcu_dereference(net_families[family]);

    err = -EAFNOSUPPORT;

    if (!pf)

        goto out_release;



    /*

     * We will call the ->create function, that possibly is in a loadable

     * module, so we have to bump that loadable module refcnt first.

     */

    /*如果对应协议族模块是动态加载到内核中去的，则对此内核模块的应用计数+1，以防

    在创建过程中，该模块被卸载，造成严重的后果。*/

    if (!try_module_get(pf->owner))

        goto out_release;



    /* Now protected by module ref count */

    rcu_read_unlock();



    /*在IPv4协议族中调用inet_create()对已创建的socket继续进行初始化，同时创建网络层socket。*/

    err = pf->create(net, sock, protocol, kern);

    if (err < 0)

        goto out_module_put;



    /*

     * Now to bump the refcnt of the [loadable] module that owns this

     * socket at sock_release time we decrement its refcnt.

     */

    /*如果proto_ops结构实例所在模块以内核模块方式动态加载进内核，

    则增加该模块的引用计数，在sock_release时，减小该计数。*/

    if (!try_module_get(sock->ops->owner))

        goto out_module_busy;



    /*

     * Now that we‘re done with the ->create function, the [loadable]

     * module can have its refcnt decremented

     */

    /*调用完inet_create函数后，对此模块的引用计数减一。*/

    module_put(pf->owner);



    /*安全模块对创建后的socket做安全检查，不做讨论。*/

    err = security_socket_post_create(sock, family, type, protocol, kern);

    if (err)

        goto out_sock_release;

    *res = sock;



    return 0;



out_module_busy:

    err = -EAFNOSUPPORT;

out_module_put:

    sock->ops = NULL;

    module_put(pf->owner);

out_sock_release:

    sock_release(sock);

    return err;



out_release:

    rcu_read_unlock();

    goto out_sock_release;

}

static struct socket *sock_alloc(void)

{

    struct inode *inode;

    struct socket *sock;



    /*创建i借点和socket*/

    inode = new_inode_pseudo(sock_mnt->mnt_sb);

    if (!inode)

        return NULL;



    /*返回创建的socket指针*/

    sock = SOCKET_I(inode);



    kmemcheck_annotate_bitfield(sock, type);



    /*inode相关初始化*/

    inode->i_ino = get_next_ino();

    inode->i_mode = S_IFSOCK | S_IRWXUGO;

    inode->i_uid = current_fsuid();//用户id

    inode->i_gid = current_fsgid();//组id

    inode->i_op = &sockfs_inode_ops;//inode的操作函数指针指向sockfs_inode_ops



    this_cpu_add(sockets_in_use, 1);

    return sock;

}
