ubuntu连接多个realsense d435

import pyrealsense2 as rs
import numpy as np
import cv2
import time
import datetime

import threading
from IPython import embed

#from worker import get_worker, get_ptx
from realsense_device_manager_old import DeviceManager
from depth_utils import get_depth, get_warner, save_img, warn_aloud
from usb_utils import get_usb_controller


CAM_ORDER = [837212070531,818312070327]

ori_w =1280
ori_h = 720
fps = 15

det_w = 512
det_h = 320 # x%64==0
det_ratio_w = det_w / float(ori_w)
det_ratio_h = det_h / float(ori_h)
det_ratio = (det_ratio_w, det_ratio_h)

show_h = 288
show_w = 512


def main(debug, noangle):
    if noangle:
        SETCONFIGS = {
                837212070531: None,
                818312070327:None,
                }
    else:
        SETCONFIGS = {
                837212070531: (mid, 45),
                818312070327:{left,45},
                }

    ## test save data
    test_data = []
    average_data = []

    # Configure depth and color streams
    config = rs.config()
    config.enable_stream(rs.stream.depth, ori_w, ori_h, rs.format.z16, fps)
    config.enable_stream(rs.stream.color, ori_w, ori_h, rs.format.bgr8, fps)

    # Use the device manager class to enable the devices and get the frames
    device_manager = DeviceManager(rs.context(), config)
    device_manager.enable_all_devices()
    frames_dict_q = []

    def get_frames_process():
        tmp = device_manager.wait_frames()
        frames_dict_q.append(tmp)



    frames_dict_q.append(device_manager.wait_frames())
    try:
        cnt = 0
        while True:
            if cnt==0:
                ts = time.time()


            ###### batch to get boxes
            imgs = []
            ks = []
            box_dict = {}
            frames_dict = frames_dict_q.pop(0)
            for k,v in frames_dict.items():
                depth_image, color_image = v
                img = cv2.resize(color_image,                         (int(det_w), int(det_h)),                         interpolation=cv2.INTER_AREA)
                imgs.append(img)
                ks.append(k)

            # start process for get frames
            t = threading.Thread(target=get_frames_process)
            t.start()


            ###### get depth after boxes
            imgs = {}
            txts = []
            is_warns = 0
            for k,v in frames_dict.items():
                depth_image, color_image = v

                img = cv2.resize(color_image, (show_w,show_h),                     interpolation=cv2.INTER_AREA)
                imgs[k] = img


            # Show images
            if len(imgs)==3:
                img1row = np.hstack((imgs[CAM_ORDER[0]], imgs[CAM_ORDER[2]]))
                img2row = np.hstack((imgs[CAM_ORDER[1]], np.zeros([show_h,show_w,3],dtype=np.uint8)))
                tot_img = np.concatenate([img1row, img2row])
            else:
                tot_img = np.concatenate([v for k,v in imgs.items()])
            cv2.namedWindow(RealSense, cv2.WINDOW_AUTOSIZE)
            cv2.imshow(RealSense, tot_img)
            cv2.waitKey(1)




    finally:
        # Stop streaming
        device_manager.disable_streams()
        cv2.destroyAllWindows()

if __name__==__main__:
    import argparse
    parser = argparse.ArgumentParser()
    parser.add_argument(-d,--debug,action=store_true, default=False)
    parser.add_argument(-a,--noangle,action=store_true, default=False)
    args = parser.parse_args()
    main(args.debug, args.noangle)

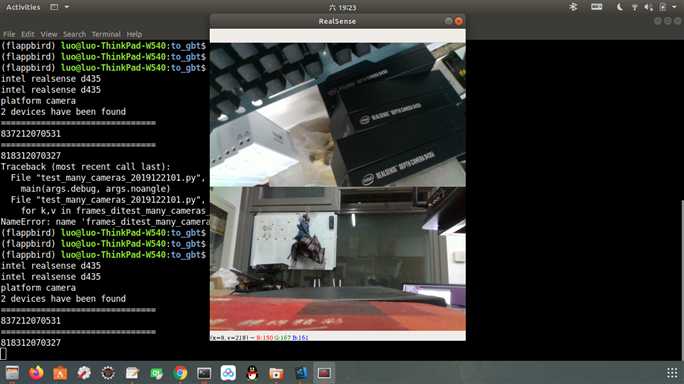

技术分享图片
