项目演示 https://5mfivemeter.github.io/THREE/chapter02.html

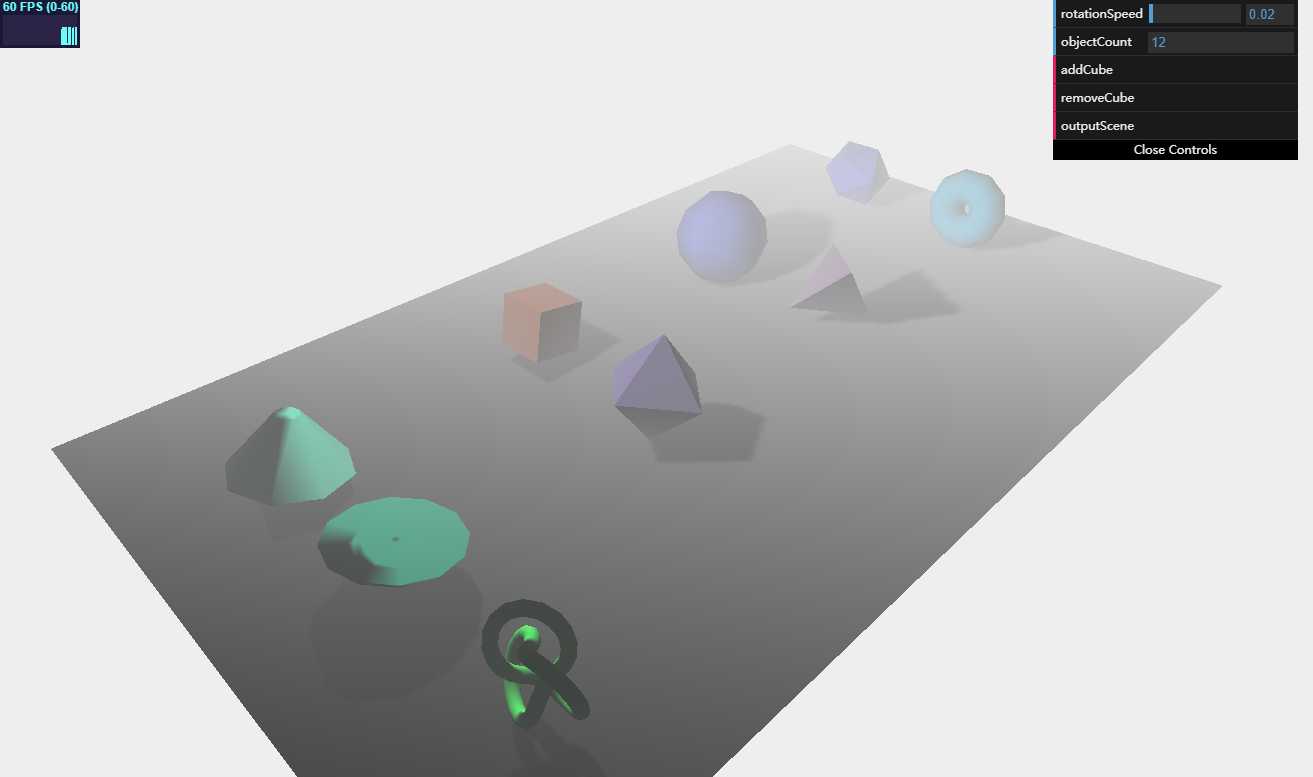

项目截图
项目源码 https://github.com/5mFiveMeter/5mFiveMeter.github.io/blob/master/THREE/chapter02.html
源码展示
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport"
content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Document</title>
<style>
html,body{margin: 0;padding: 0;overflow: hidden;}
</style>
<script src="three.js"></script>
<script src="stats.js"></script>
<script src="dat.gui.js"></script>
</head>
<body>
<div id="Stats-output"></div>
<div id="WebGL-output"></div>
<script>
function init(){
var stats = initStats();
//场景/相机/渲染器
var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera(45,window.innerWidth/window.innerHeight,0.1,1000);
camera.position.set(-100,100,100);
camera.lookAt(scene.position);
var renderer = new THREE.WebGLRenderer();
renderer.setClearColor(new THREE.Color(0xEEEEEE));
renderer.setSize(window.innerWidth,window.innerHeight);
renderer.shadowMap.enabled = true;
//迷雾
scene.fog = new THREE.Fog(0xe2e2e2,0,300);
//材料色覆盖
//scene.overrideMaterial = new THREE.MeshLambertMaterial({color:0x000000});
//底部
var planeGeometry = new THREE.PlaneGeometry(200,120);
var planeMeterial = new THREE.MeshLambertMaterial({color:0xffffff});
var plane = new THREE.Mesh(planeGeometry,planeMeterial);
plane.rotation.x = -0.5*Math.PI;
plane.position.set(15,0,0);
plane.receiveShadow = true;
scene.add(plane);
//环境灯
var ambientLight = new THREE.AmbientLight(0x090909);
scene.add(ambientLight);
//聚光灯
var spotLight = new THREE.SpotLight(0xffffff);
spotLight.position.set(-40,60,-10);
spotLight.castShadow = true;
scene.add(spotLight);
//将渲染器放入dom
document.getElementById("WebGL-output").appendChild(renderer.domElement);
renderer.render(scene,camera);
//添加物体
addGeometries();
function addGeometries(){
var geoms = [];
//圆柱体 顶部半径1 底部半径4 高度4
geoms.push(new THREE.CylinderGeometry(2,10,10));
//正方体
geoms.push(new THREE.BoxGeometry(10,10,10));
//球体
geoms.push(new THREE.SphereGeometry(10));
//十二面几何体 半径4
geoms.push(new THREE.IcosahedronGeometry(8));
//车削几何体
var pts = [],detail = 0.1,radius = 10;
for(var angle=0.0;angle<Math.PI;angle += detail){
pts.push(new THREE.Vector3(Math.cos(angle)*radius,0,Math.sin(angle)*radius));
}
geoms.push(new THREE.LatheGeometry(pts,12));
//八面几何体
geoms.push(new THREE.OctahedronGeometry(10));
//四面几何
geoms.push(new THREE.TetrahedronGeometry(10));
//圆环几何体
geoms.push(new THREE.TorusGeometry(5,4,10,10));
//圆环扭结几何
geoms.push(new THREE.TorusKnotGeometry(5,1,50,20));
//几何体定位
var j = 0;
for(var i=0;i<geoms.length;i++){
var material = new THREE.MeshLambertMaterial({color:Math.random()*0xffffff,shading:THREE.FlatShading});
var mesh = new THREE.Mesh(geoms[i],material);
mesh.castShadow = true;
mesh.position.set(-60+(i%4)*50,10,-20+j*30);
(i+1)%4==0?j++:"";
scene.add(mesh);
}
}
//--------------------------------
var controls = {
rotationSpeed:0.02,
objectCount:scene.children.length,
addCube:function(){
var cubeSize = Math.ceil( Math.random()*10 );
var cubeGeometry = new THREE.BoxGeometry(cubeSize,cubeSize,cubeSize);
var cubeMaterial = new THREE.MeshLambertMaterial({color:Math.random()*0xffffff});
var cube = new THREE.Mesh(cubeGeometry,cubeMaterial);
cube.castShadow = true;
cube.name = "cube-"+scene.children.length;
cube.position.set(
-100 + Math.round( Math.random() * planeGeometry.parameters.width ),
Math.round( Math.random() * 10 ),
-60 + Math.round( Math.random() * planeGeometry.parameters.height )
);
scene.add(cube);
this.objectCount = scene.children.length;
},
removeCube:function(){
var allChildren = scene.children;
var lastCube = allChildren[allChildren.length - 1];
if(lastCube instanceof THREE.Mesh){
scene.remove(lastCube);
this.objectCount = scene.children.length;
}
},
outputScene:function(){
console.log(scene);
}
};
var gui = new dat.GUI();
gui.add(controls,"rotationSpeed",0,0.5);
gui.add(controls,"objectCount").listen();
gui.add(controls,"addCube");
gui.add(controls,"removeCube");
gui.add(controls,"outputScene");
renderScene();
function renderScene(){
stats.update();
scene.traverse(function(target){
if(target instanceof THREE.Mesh && target != plane){
target.rotation.x += controls.rotationSpeed;
target.rotation.y += controls.rotationSpeed;
target.rotation.z += controls.rotationSpeed;
}
});
requestAnimationFrame(renderScene);
renderer.render(scene,camera);
}
function initStats(){
var stats = new Stats();
stats.setMode(0);
stats.domElement.style.position = "absolute";
stats.domElement.style.left = "0";
stats.domElement.style.top = "0";
document.getElementById("Stats-output").appendChild(stats.domElement);
return stats;
}
window.addEventListener("resize",function(){
camera.aspect = window.innerWidth/window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth,window.innerHeight);
})
}
window.onload = init;
</script>
</body>
</html>
原文：https://www.cnblogs.com/fivemeter/p/12107110.html
