from keras.utils import plot_model plot_model(model)
出现错误：
ImportError: Failed to importpydot. Please installpydot. For example withpip install pydot.
继续查阅：
并且按照顺序：

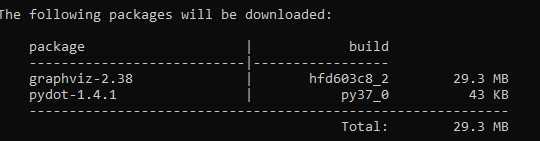

Edit:Try uninstalling all pydot related modules and graphiviz, then reinstall in the following order:（如果很混乱，就全部重装，按照以下顺序再安装一遍）
我装了pydotplus还是不行，继续，尝试这种方法保存model也可以_只是保存的model流程图不够全面。
1 import keras 2 import pydot as pyd 3 from IPython.display import SVG 4 from keras.utils.vis_utils import model_to_dot 5 6 keras.utils.vis_utils.pydot = pyd 7 8 #Visualize Model 9 10 def visualize_model(model): 11 return SVG(model_to_dot(model).create(prog=‘dot‘, format=‘svg‘)) 12 #create your model 13 #then call the function on your model 14 visualize_model(model)
Just in case someone using windows might need it, modify the pydot.py file. It should be in <python_install_path>\Lib\Site-packages\pydot.py. Besides pip install pydot and pip install graphviz, also install graphviz software. And add the software bin directory to the system‘s path. And in class Dot(Graph), change self.prog = ‘dot‘ to self.prog = ‘dot.exe‘
按照这个方案，先修改pydot.py，加上.exe
然后把exe文件的路径加入系统
我的是C:\Users\user\Anaconda3\Library\bin\graphviz
然后就解决了！~~~
keras 显示错误 无法保存model图片_ImportError: Failed to import pydot.
