pip install sip
pip install PyQt5
pip install PyQt5-tools -i http://pypi.douban.com/simple --trusted-host=pypi.douban.com
pip install PyQt5-stubs

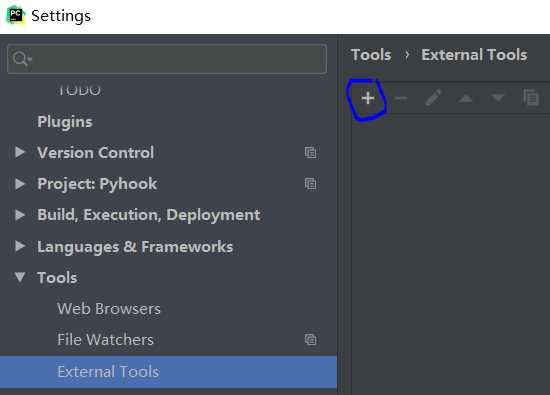

打开Pycharm，进入设置，添加外部工具

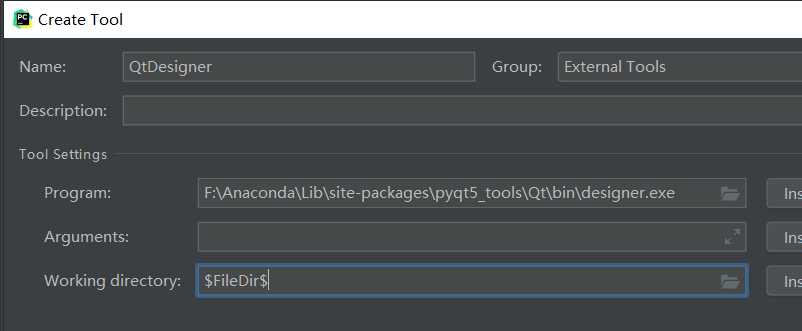

添加Qtdesigner.exe 路径
F:\Anaconda\Lib\site-packages\pyqt5_tools\Qt\bin\designer.exe
PyUIC
Name : PyUIC Programe : F:\Anaconda\Scripts\pyuic5.exe Arguments : $FileName$ -o $FileNameWithoutExtension$.py Working directory : $FileDir$
Pyrcc
Pyrcc Programe : F:\Anaconda\Scripts\pyrcc5.exe Arguments : $FileName$ -o $FileNameWithoutExtension$_rc.py Working directory : $FileDir$
新建项目

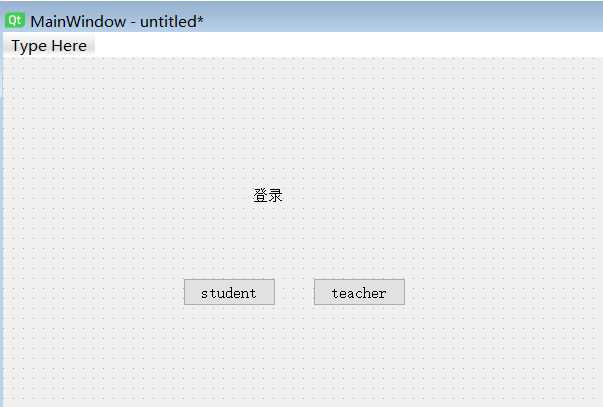

TOOLS -external tools 使用QtDesigner 设计mainwindow Form -> Preview可以预览

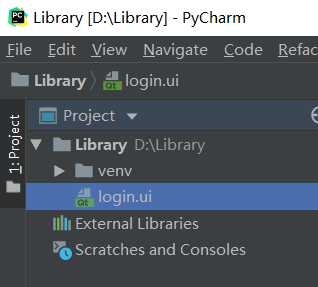

保存为 login .ui

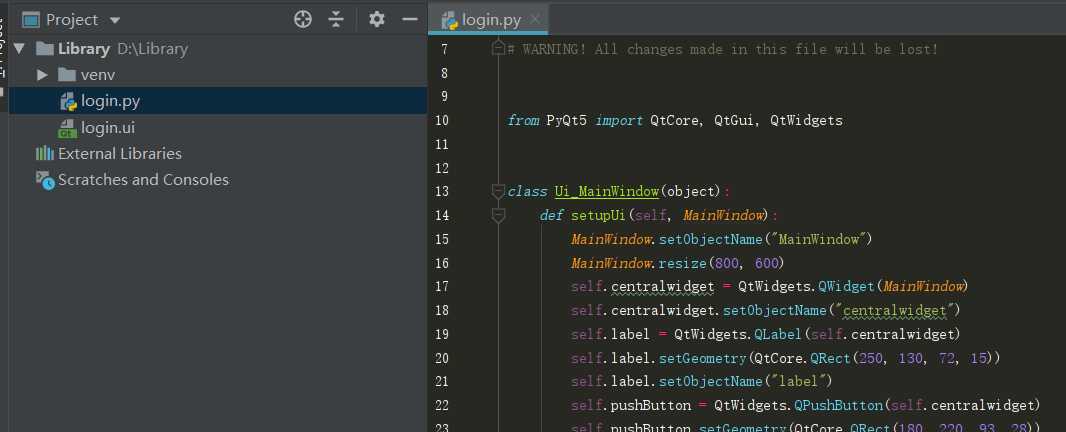

然后选中login.ui ，右键使用 External Tools PyUIC 转换为py文件

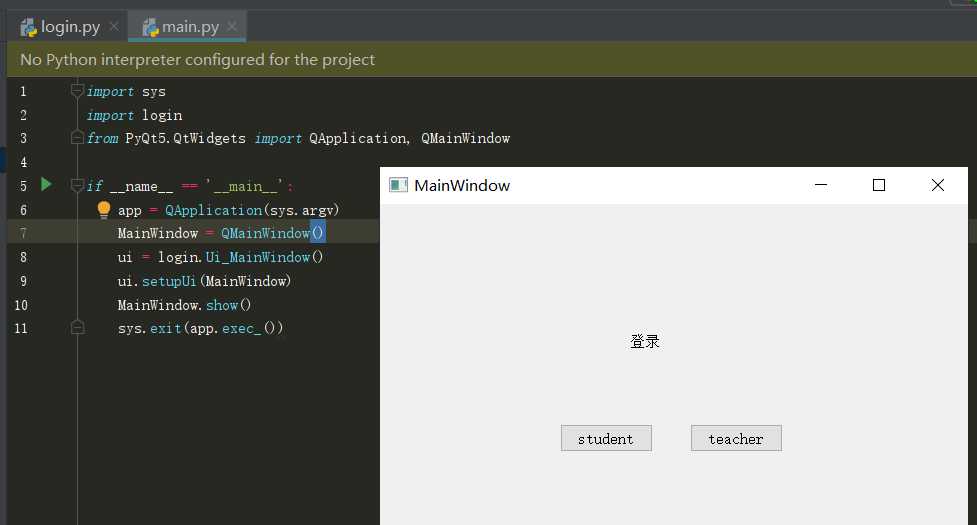

然后添加main 文件，引用 login
import sys import login from PyQt5.QtWidgets import QApplication, QMainWindow if __name__ == ‘__main__‘: app = QApplication(sys.argv) MainWindow = QMainWindow() ui = login.Ui_MainWindow() ui.setupUi(MainWindow) MainWindow.show() sys.exit(app.exec_())
安装参考：https://blog.csdn.net/qq_38232378/article/details/94979661
https://www.cnblogs.com/dalanjing/p/6978373.html
QTdesigner 参考
https://www.jianshu.com/p/5b063c5745d0
https://blog.csdn.net/shangxiaqiusuo1/article/details/81035046
https://github.com/maicss/PyQt5-Chinese-tutorial
http://code.py40.com/pyqt5/16.html
anaconda + pyqt5 + pycharm 安装，测试
原文：https://www.cnblogs.com/lqerio/p/12179525.html
