K8S 之 Flannel之SNAT规划优化

解决两宿主机容器之间的透明访问，如不进行优化，容器之间的访问，日志记录为宿主机的IP地址。

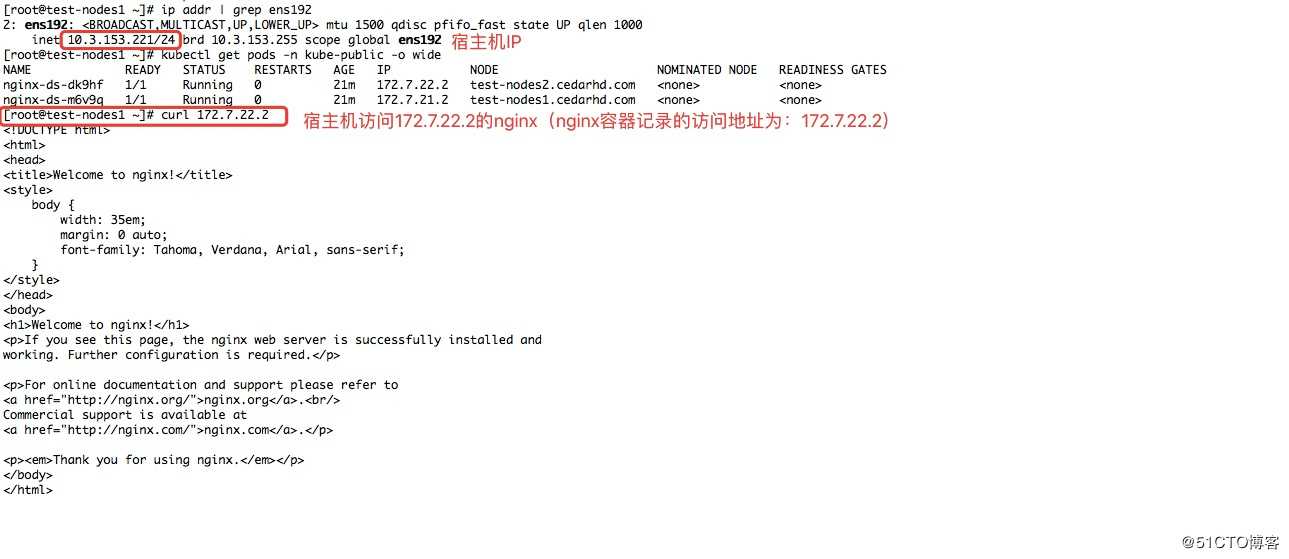

1、宿主机访问172.7.22.2的nginx容器情况

2、172.7.22.2查看nginx访问日志

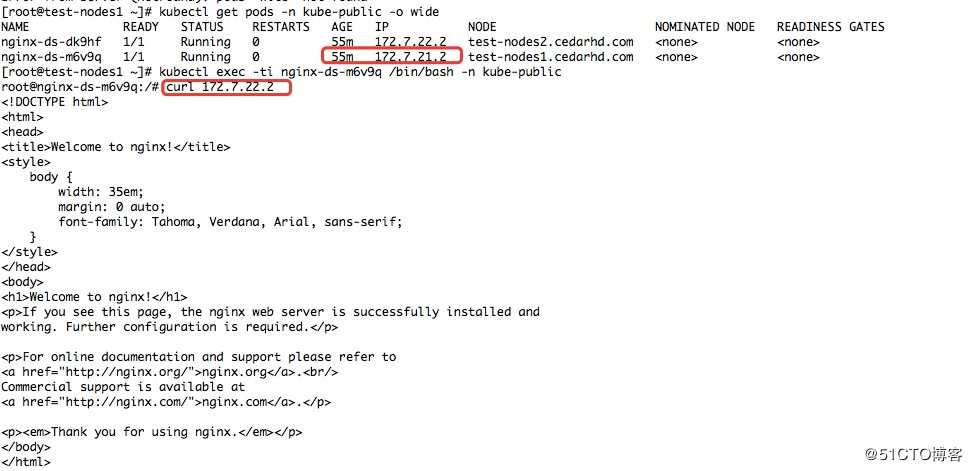

3、进入172.7.21.2的容器访问172.7.22.2的nginx容器，查看日志

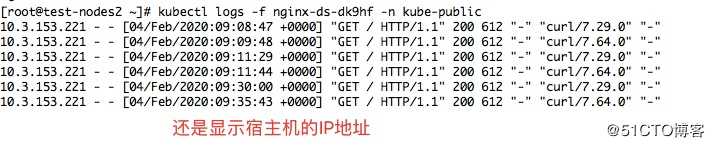

4、再次查看172.7.22.2的nginx访问日志

5、解决问题：当容器172.7.21.2访问172.7.22.2的nginx容器时，展示的日志应为172.7.21.2

二、解决方法

1、安装iptables-services组件
[root@test-nodes1 ~]# yum -y install iptables-services
[root@test-nodes1 ~]# systemctl start iptables
[root@test-nodes1 ~]# systemctl enable iptables
Created symlink from /etc/systemd/system/basic.target.wants/iptables.service to /usr/lib/systemd/system/iptables.service.
-----------------------------------------------------------------------------------------------

2、把以下iptable记录的伪装转向删除
[root@test-nodes1 ~]# iptables-save |grep -i postrouting
:POSTROUTING ACCEPT [68:4098]
:KUBE-POSTROUTING - [0:0]
-A POSTROUTING -m comment --comment "kubernetes postrouting rules" -j KUBE-POSTROUTING
-A POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE       #删除此条
-A KUBE-POSTROUTING -m comment --comment "kubernetes service traffic requiring SNAT" -m mark --mark 0x4000/0x4000 -j MASQUERADE
-----------------------------------------------------------------------------------------------

3、删除该记录
[root@test-nodes1 ~]# iptables -t nat -D POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE
-----------------------------------------------------------------------------------------------

4、插入一条新的记录（排除对172.7.0.0/16网络访问的伪装）
[root@test-nodes1 ~]# iptables -t nat -I POSTROUTING -s 172.7.21.0/24 ! -d 172.7.0.0/16 ! -o docker0 -j MASQUERADE
-----------------------------------------------------------------------------------------------

5、查看是否生效
[root@test-nodes1 ~]# iptables-save |grep -i postrouting
:POSTROUTING ACCEPT [13:814]
:KUBE-POSTROUTING - [0:0]
-A POSTROUTING -s 172.7.21.0/24 ! -d 172.7.0.0/16 ! -o docker0 -j MASQUERADE
-A POSTROUTING -m comment --comment "kubernetes postrouting rules" -j KUBE-POSTROUTING
-A KUBE-POSTROUTING -m comment --comment "kubernetes service traffic requiring SNAT" -m mark --mark 0x4000/0x4000 -j MASQUERADE
-----------------------------------------------------------------------------------------------

6、删除iptables上所有reject拒绝规则
[root@test-nodes1 ~]# iptables-save | grep -i reject
-A INPUT -j REJECT --reject-with icmp-host-prohibited
-A FORWARD -j REJECT --reject-with icmp-host-prohibited
[root@test-nodes1 ~]# iptables -t filter -D INPUT -j REJECT --reject-with icmp-host-prohibited
[root@test-nodes1 ~]# iptables -t filter -D FORWARD -j REJECT --reject-with icmp-host-prohibited
[root@test-nodes1 ~]# iptables-save | grep -i reject
-----------------------------------------------------------------------------------------------

7、保存iptables规则
[root@test-nodes1 ~]# iptables-save > /etc/sysconfig/iptables

三、验证结果

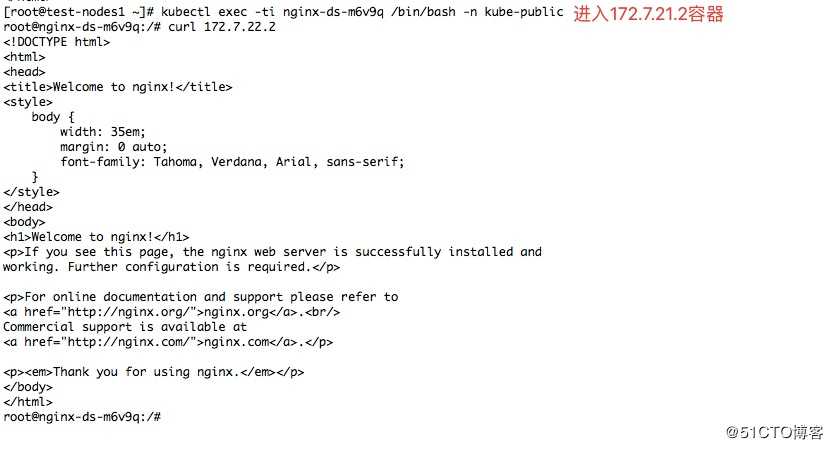

1、通过容器172.7.21.2访问172.7.22.2

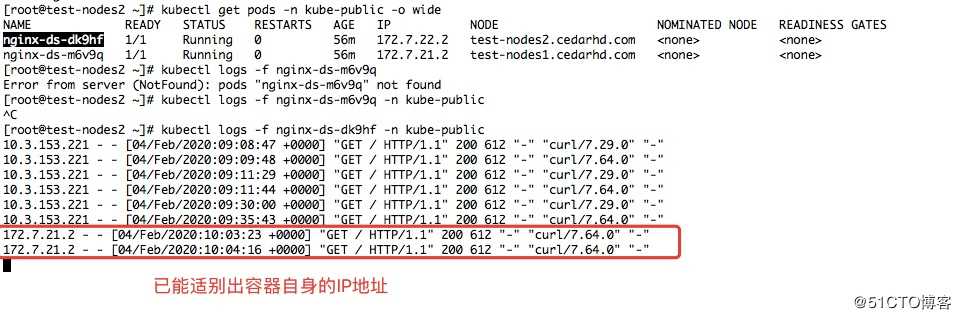

2、查看172.7.22.2的容器日志

备注：test-nodes需要有相同的操作
