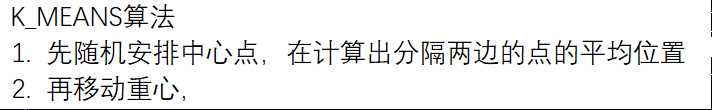

Python实现KMeans (图片压缩)

链接：https://pan.baidu.com/s/1QNkRKcWpLrpIeLmb29WxTg
提取码：pfor

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
from matplotlib import colors
from scipy import io as spio
from scipy import misc      # 图片操作

def findClosetCentroids(X,initial_centroids):
    K = initial_centroids.shape[0]
    idx = np.zeros((X.shape[0],1))
    dis = np.zeros((X.shape[0],K)) #储存每个点到分类中心的距离
    idx = np.zeros((X.shape[0],1)) # 记录属于哪一类，数值范围在 [0,K] 之间

    #计算每个点到类中心的距离
    for i in range(X.shape[0]):
        for j in range(K):
            dis[i,j] = np.dot((X[i,:] - initial_centroids[j,:]).reshape(1,-1) , (X[i,:] - initial_centroids[j,:]).reshape(-1,1))
        #使用矩阵的乘法代替sum函数
    ddd,idx = np.where(dis == np.min(dis, axis = 1).reshape(-1,1))
    return idx[0:dis.shape[0]]

def computerCentroids(X,idx,K):
    n = X.shape[1]
    centroids = np.zeros((K,n))
    for i in range(K):
        centroids[i,:] = np.mean(X[np.ravel(idx == i),:], axis = 0).reshape(1,-1)

    return centroids

def plotProcessKMeans(X,centroids, previous_centroids):
    plt.scatter(X[:,0],X[:,1])
    plt.plot(previous_centroids[:,0], previous_centroids[:,1],‘rx‘)
    #plt.plot(centroids[:,0], centroids[:,0],‘rx‘)
    for i in range(centroids.shape[0]):
        p1 = centroids[i,:]
        p2 = previous_centroids[i,:]
        plt.plot([p1[0],p2[0]],[p1[1],p2[1]],‘->‘)
    return plt

def runKMeans(X,initial_centroids,max_iters,plot_progress):
    m,n = X.shape
    K = initial_centroids.shape[0]
    centroids = initial_centroids
    previous_centroids = centroids
    idx = np.zeros((m,1))

    for i in range(max_iters):
        print("迭代次数：%d"%(i+1))
        idx = findClosetCentroids(X,centroids)
        if plot_progress:
            plt = plotProcessKMeans(X,centroids, previous_centroids)
            previous_centroids = centroids
            #plt.show()          # 此处的show()是过程
        centroids = computerCentroids(X,idx,K)
    if plot_progress:
        plt.show()              #此处的show()是结果
    return centroids,idx

def KMeansInitCentroids(X,K):
    m,n = X.shape
    m_arr = np.arange(0,m)
    centroids = np.zeros((K,n))
    np.random.shuffle(m_arr)   #打乱顺序
    rand_indices = m_arr[0:K]  #取前K个
    centroids = X[rand_indices,:]
    return centroids

def kMeansInitCentroids(X,K):
    XX = X.copy()
    np.random.shuffle(XX)
    return XX[0:K,:]

def KMeans():
    data = spio.loadmat("kmeandata.mat")
    X = data[‘X‘]
    initial_centroids = np.array([[3,3],[6,2],[8,5]])
    max_iters = 10
    runKMeans(X,initial_centroids,max_iters,True)

def picKMeans():
    print("K-Means压缩图片")
    img_data = misc.imread("图片名字.png")
    img_data = img_data / 255.0       #映射到0-1, 注意查看数据，此数据是个三维数据
    img_size = img_data.shape         #分别代表像素点，颜色数据
    X = img_data.reshape(img_size[0]*img_size[1],img_size[2]) #将数据调整为二维数据
    #print(pd.DataFrame(X))

    #应该尝试不同的K的数据。直到出现 断肘现象， 横轴是K，纵轴是损失函数
    K = 16
    max_iters = 10
    initial_centroids = kMeansInitCentroids(X,K)
    #print(pd.DataFrame(initial_centroids))
    centroids,idx = runKMeans(X,initial_centroids,max_iters,False) #False 表示不画图
    idx = findClosetCentroids(X,centroids)        # 找中心点
    #print(pd.DataFrame(centroids))
    #print(pd.DataFrame(idx))
    X_recovered = centroids[idx,:]                #将原来的颜色数据点，压缩为只有16个颜色数据点
    #print(pd.DataFrame(X_recovered))
    X_recovered = X_recovered.reshape(img_size[0],img_size[1],img_size[2])


    plt.figure(figsize=(10, 8))
    plt.subplot(1,2,1)
    plt.axis("off")
    plt.imshow(img_data)
    plt.subplot(1,2,2)
    plt.axis("off")
    plt.imshow(X_recovered)
    plt.show()


if __name__ == "__main__":
    KMeans()
    picKMeans()
