这是kubernetes二进制部署的第四篇
如果没有看过前面第一篇的朋友可以看看下面的：
Kubernetes二进制部署（一）单节点部署
kubernetes二进制部署（二）多节点部署
kubernetes二进制部署（三）负载均衡部署

在master01上操作

1、创建dashborad工作目录

[root@localhost k8s]# mkdir dashboard

2、拷贝官方文件

[root@localhost k8s]# cd dashboard/
[root@localhost dashboard]# ls? ? ? ? ? ??
dashboard-configmap.yaml ? dashboard-rbac.yaml ? ?dashboard-service.yaml
dashboard-controller.yaml ?dashboard-secret.yaml ?k8s-admin.yaml
##相关文件用途：
dashboard-configmap.yaml：配置应用
dashboard-rbac.yaml：授权访问api，web界面
dashboard-service.yaml：访问应用
dashboard-controller.yaml：控制器
dashboard-secret.yaml：安全、加密
k8s-admin.yaml：生成令牌

3、组件创建

[root@localhost dashboard]# kubectl create -f dashboard-rbac.yaml
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
[root@localhost dashboard]# kubectl create -f dashboard-secret.yaml
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-key-holder created
[root@localhost dashboard]# kubectl create -f dashboard-configmap.yaml
configmap/kubernetes-dashboard-settings created
[root@localhost dashboard]# kubectl create -f dashboard-controller.yaml
serviceaccount/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
[root@localhost dashboard]# kubectl create -f dashboard-service.yaml
service/kubernetes-dashboard created

4、完成后查看创建在指定的kube-system命名空间下

[root@localhost dashboard]# kubectl get pods -n kube-system
NAME ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?READY ? STATUS ? ?RESTARTS ? AGE
kubernetes-dashboard-65f974f565-8b88b ? 1/1 ? ? Running ? 0 ? ? ? ? ?2m56s

5、查看如何访问

[root@localhost dashboard]# kubectl get pods,svc -n kube-system
NAME ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?READY ? STATUS ? ?RESTARTS ? AGE
pod/kubernetes-dashboard-65f974f565-8b88b ? 1/1 ? ? Running ? 0 ? ? ? ? ?4m4s

NAME ? ? ? ? ? ? ? ? ? ? ? ? ? TYPE ? ? ? CLUSTER-IP ? EXTERNAL-IP ? PORT(S) ? ? ? ? AGE
service/kubernetes-dashboard ? NodePort ? 10.0.0.26 ? ?<none> ? ? ? ?443:30001/TCP ? 3m50s

6、访问nodeIP就可以访问

浏览器访问https://192.168.35.101:30001/

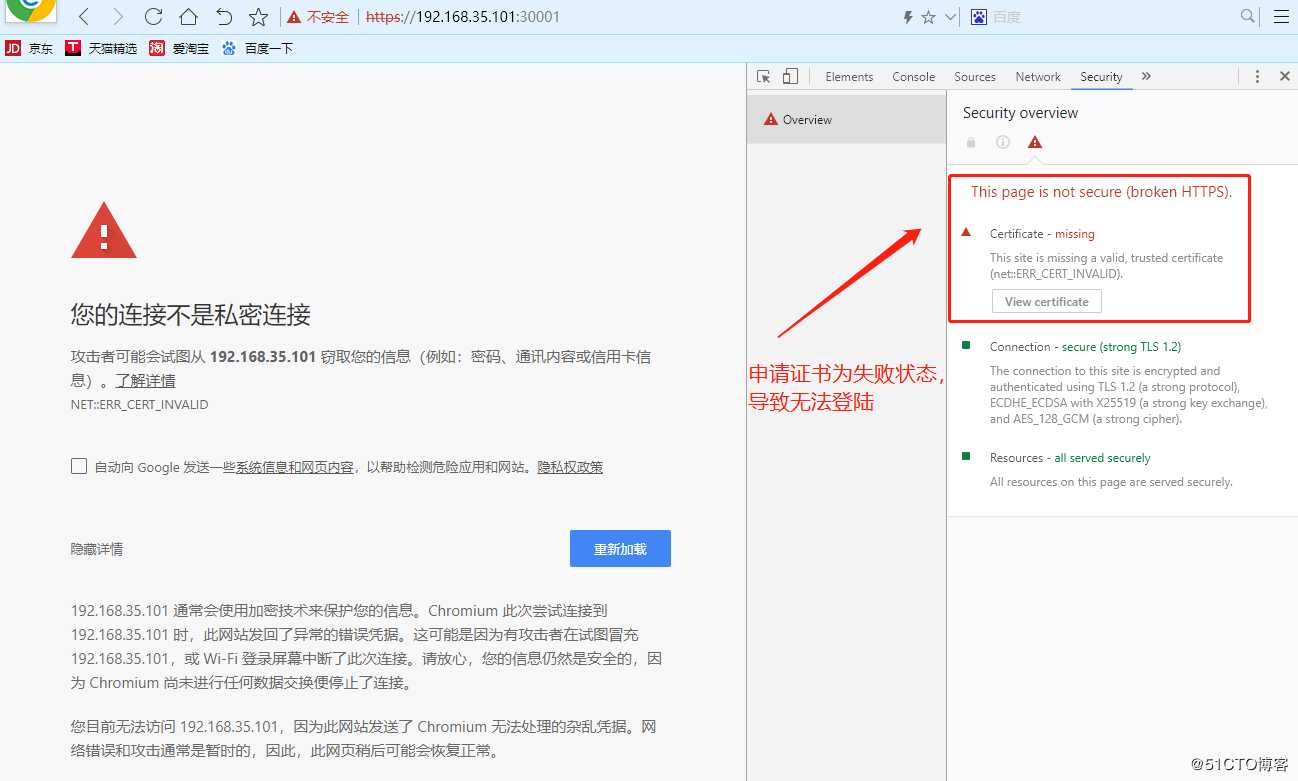

7、google浏览器无法访问的问题，解决办法如下

（1）证书自签

[root@localhost dashboard]# vim dashboard-cert.sh

cat > dashboard-csr.json <<EOF

{

???"CN": "Dashboard",

???"hosts": [],

???"key": {

???????"algo": "rsa",

???????"size": 2048

???},

???"names": [

???????{

???????????"C": "CN",

???????????"L": "BeiJing",

???????????"ST": "BeiJing"

???????}

???]

}

EOF

?

K8S_CA=$1

cfssl gencert -ca=$K8S_CA/ca.pem -ca-key=$K8S_CA/ca-key.pem -config=$K8S_CA/ca-config.json -profile=kubernetes dashboard-csr.json | cfssljson -bare dashboard

kubectl delete secret kubernetes-dashboard-certs -n kube-system

kubectl create secret generic kubernetes-dashboard-certs --from-file=./ -n kube-system

（2）生成证书

[root@localhost dashboard]# bash dashboard-cert.sh /root/k8s/k8s-cert/
2020/02/08 19:55:08 [INFO] generate received request
2020/02/08 19:55:08 [INFO] received CSR
2020/02/08 19:55:08 [INFO] generating key: rsa-2048
2020/02/08 19:55:09 [INFO] encoded CSR
2020/02/08 19:55:09 [INFO] signed certificate with serial number 702272605681507929850954926507995861695177925647
2020/02/08 19:55:09 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
secret "kubernetes-dashboard-certs" deleted
secret/kubernetes-dashboard-certs created

[root@localhost dashboard]# ls
dashboard-cert.sh ? ? ? ? ?dashboard-csr.json ? dashboard-secret.yaml
dashboard-configmap.yaml ? dashboard-key.pem ? ?dashboard-service.yaml
dashboard-controller.yaml ?dashboard.pem ? ? ? ?k8s-admin.yaml
dashboard.csr ? ? ? ? ? ? ?dashboard-rbac.yaml

（3）dashboard-controller.yaml 增加证书两行，然后apply

[root@localhost dashboard]# vim dashboard-controller.yaml

? ? ? ? args:
? ? ? ? ? # PLATFORM-SPECIFIC ARGS HERE
? ? ? ? ? - --auto-generate-certificates
? ? ? ? ? - --tls-key-file=dashboard-key.pem
? ? ? ? ? - --tls-cert-file=dashboard.pem

（4）重新部署

[root@localhost dashboard]# kubectl apply -f dashboard-controller.yaml
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
serviceaccount/kubernetes-dashboard configured
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
deployment.apps/kubernetes-dashboard configured

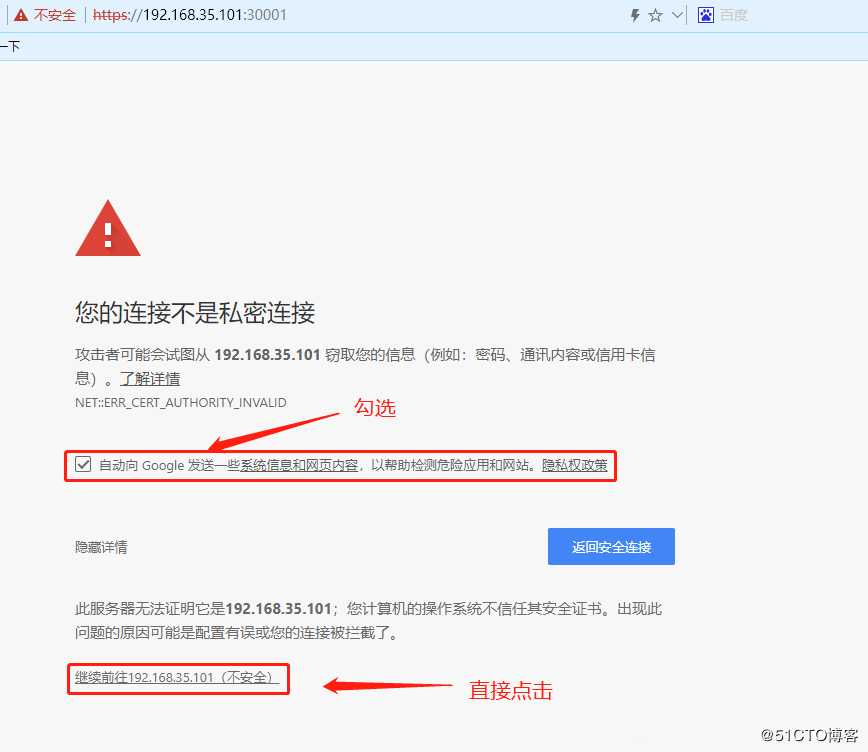

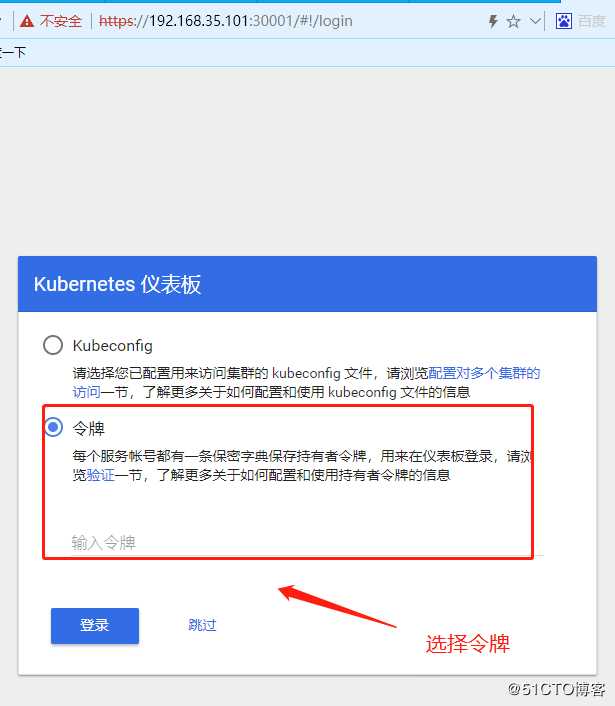

（5）再次进行访问：https://192.168.35.101:30001/

8、生成令牌

[root@localhost dashboard]# kubectl create -f k8s-admin.yaml
serviceaccount/dashboard-admin created
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin created

9、保存

[root@localhost dashboard]# kubectl get secret -n kube-system
NAME ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? TYPE ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?DATA ? AGE
dashboard-admin-token-ls8r7 ? ? ? ?kubernetes.io/service-account-token ? 3 ? ? ?73s
default-token-685rn ? ? ? ? ? ? ? ?kubernetes.io/service-account-token ? 3 ? ? ?6h26m
kubernetes-dashboard-certs ? ? ? ? Opaque ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?11 ? ? 16m
kubernetes-dashboard-key-holder ? ?Opaque ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2 ? ? ?41m
kubernetes-dashboard-token-drpwb ? kubernetes.io/service-account-token ? 3 ? ? ?40m

10、查看令牌

[root@localhost dashboard]# kubectl describe secret dashboard-admin-token-ls8r7 -n kube-system
Name: ? ? ? ? dashboard-admin-token-ls8r7
Namespace: ? ?kube-system
Labels: ? ? ? <none>
Annotations: ?kubernetes.io/service-account.name: dashboard-admin
? ? ? ? ? ? ? kubernetes.io/service-account.uid: f283296f-4a6b-11ea-b063-000c29148af8

Type: ?kubernetes.io/service-account-token

Data
====
ca.crt: ? ? 1359 bytes
namespace: ?11 bytes
token: ? ? ?eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tbHM4cjciLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiZjI4MzI5NmYtNGE2Yi0xMWVhLWIwNjMtMDAwYzI5MTQ4YWY4Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.dBbCRc4aRFrqAGxW55Zdu0JZz47Yh2DvtLUXZcK0-eV_3sdKz8fCS2K4x6Ey-USKRlIFc2VTH1AEIeWDzFvON5NrVLiyxEF5uQu9Ezo7f74lTwFnOYnASspF-8pi7_HzVQu9CtWcp1WEJAqQg_Ng2E7Ibo-gZmoy2DFgQ-60qcLfFm2ylxoM9yNrMEmSVcMDi8aC9JLsZxQlSRKb7gZn7Sns31Yot8NLxS8oXOmx8m7NysYWoOjZE3q645v96y4tqr3cuG9cCe1_tB5io3c1jiYxKfMLJetxcvNcyH4pbx6YwLu0PKI3o9tescu1uhRtxUN33dY5o4ple-ENPsan_w

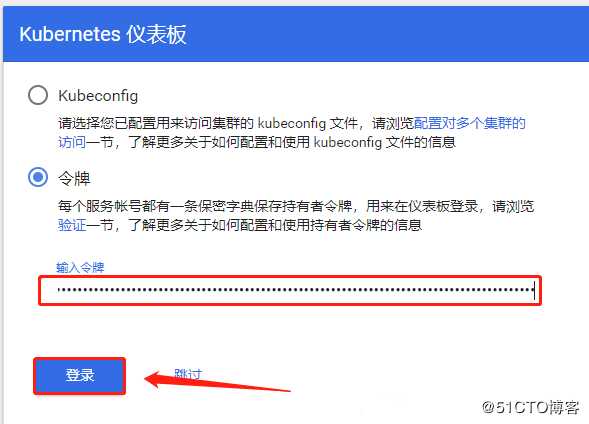

11、复制令牌进行登录

主界面：

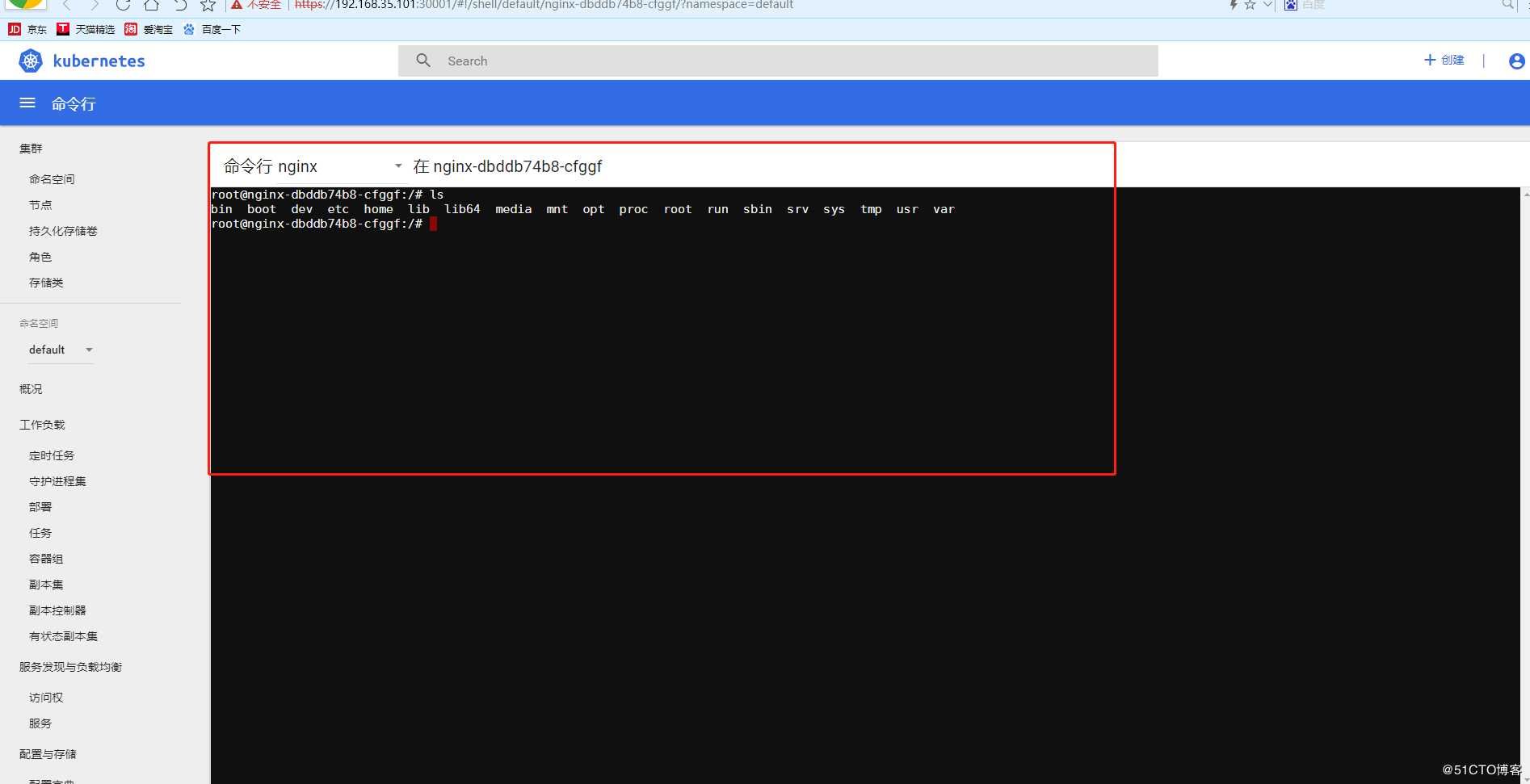

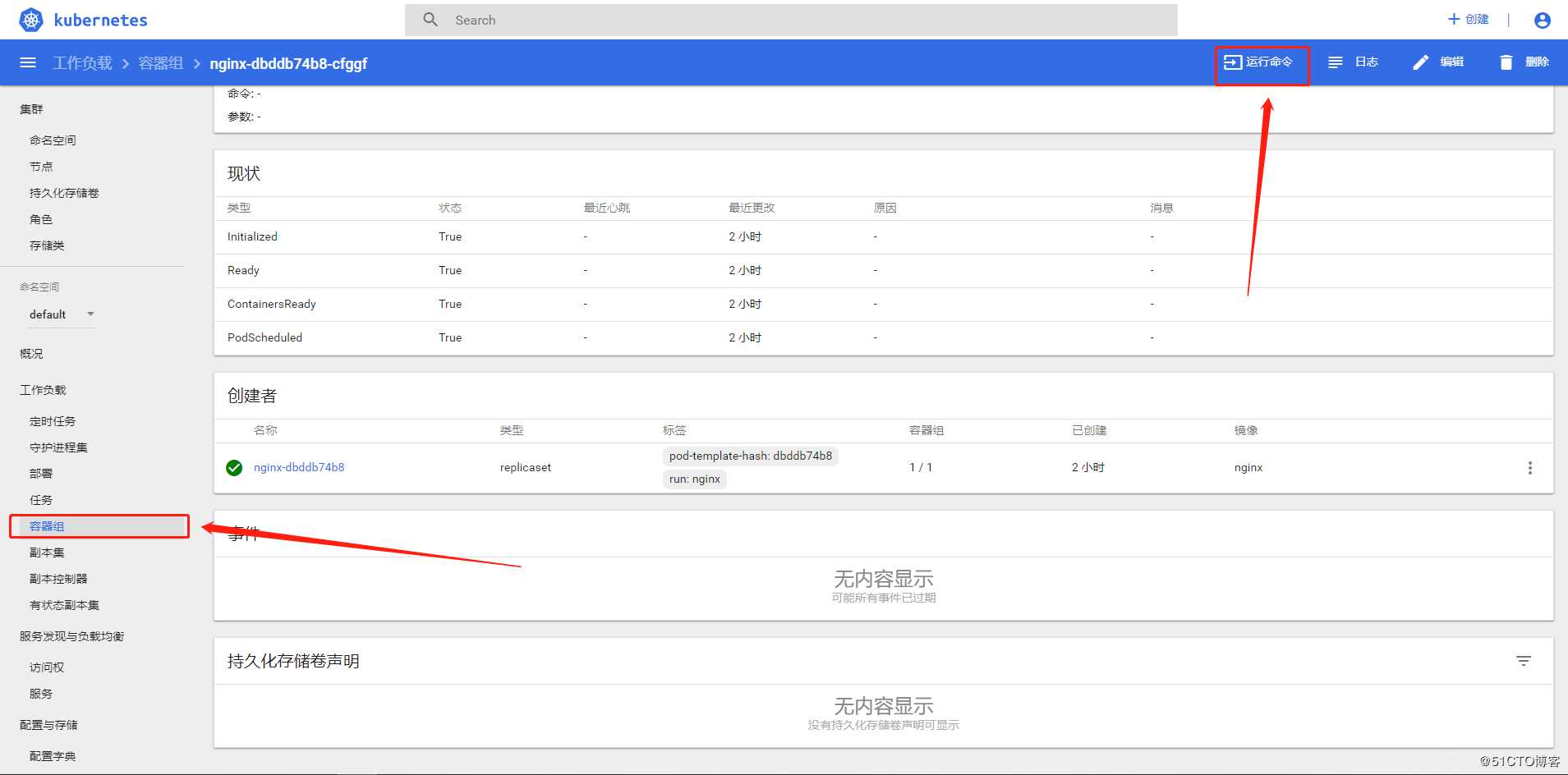

进入容器：点击容器组——》点击运行命令——》进入容器

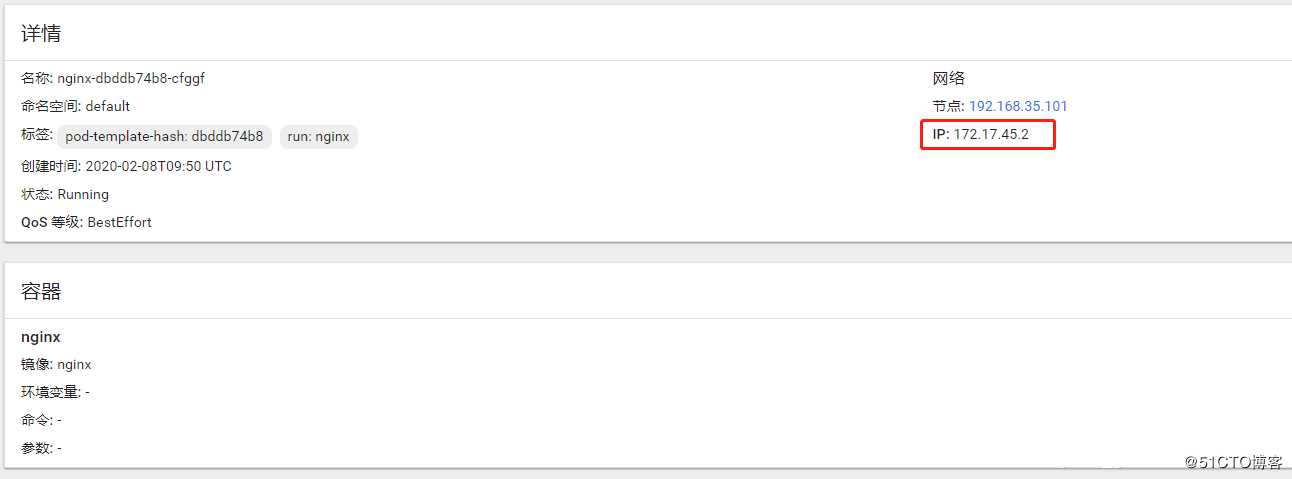

在node节点访问IP：

[root@localhost cfg]# curl 172.17.45.2
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
? ? body {
? ? ? ? width: 35em;
? ? ? ? margin: 0 auto;
? ? ? ? font-family: Tahoma, Verdana, Arial, sans-serif;
? ? }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

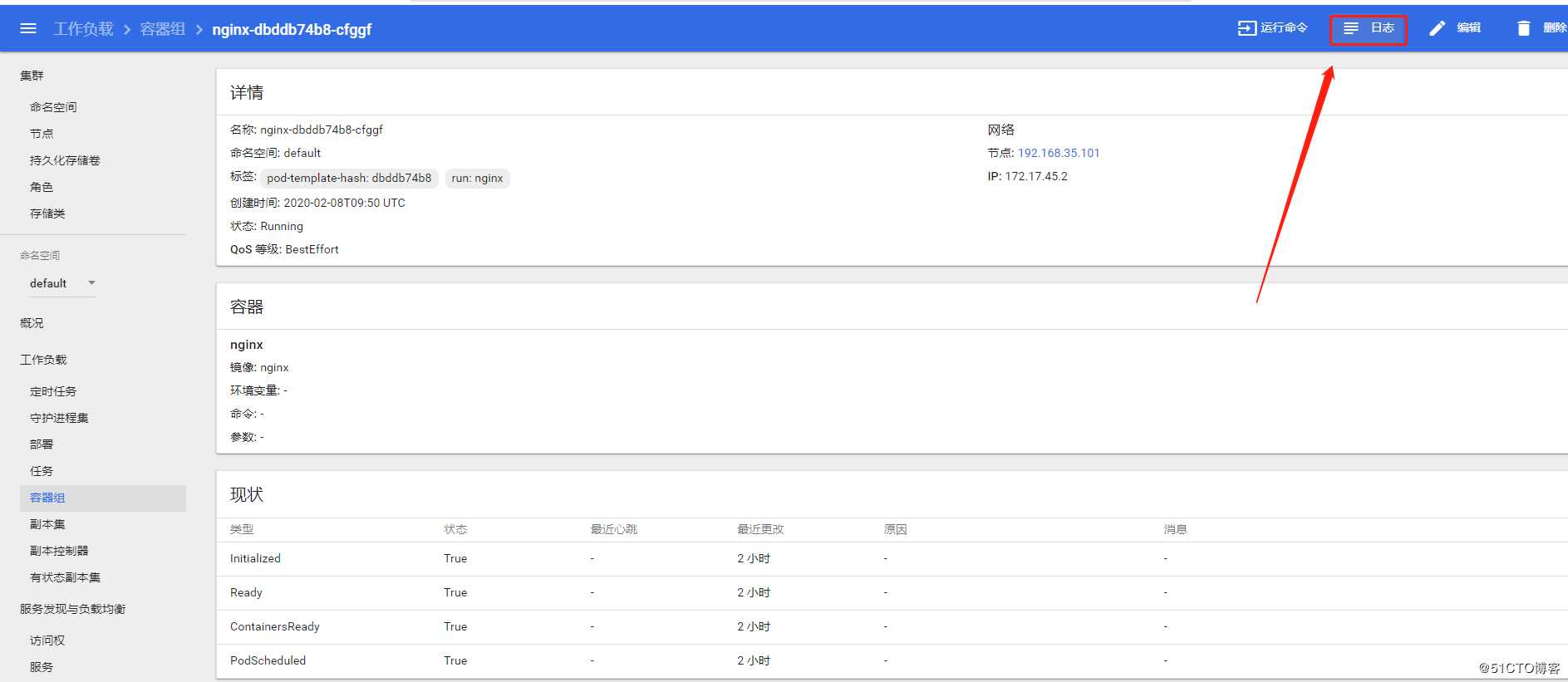

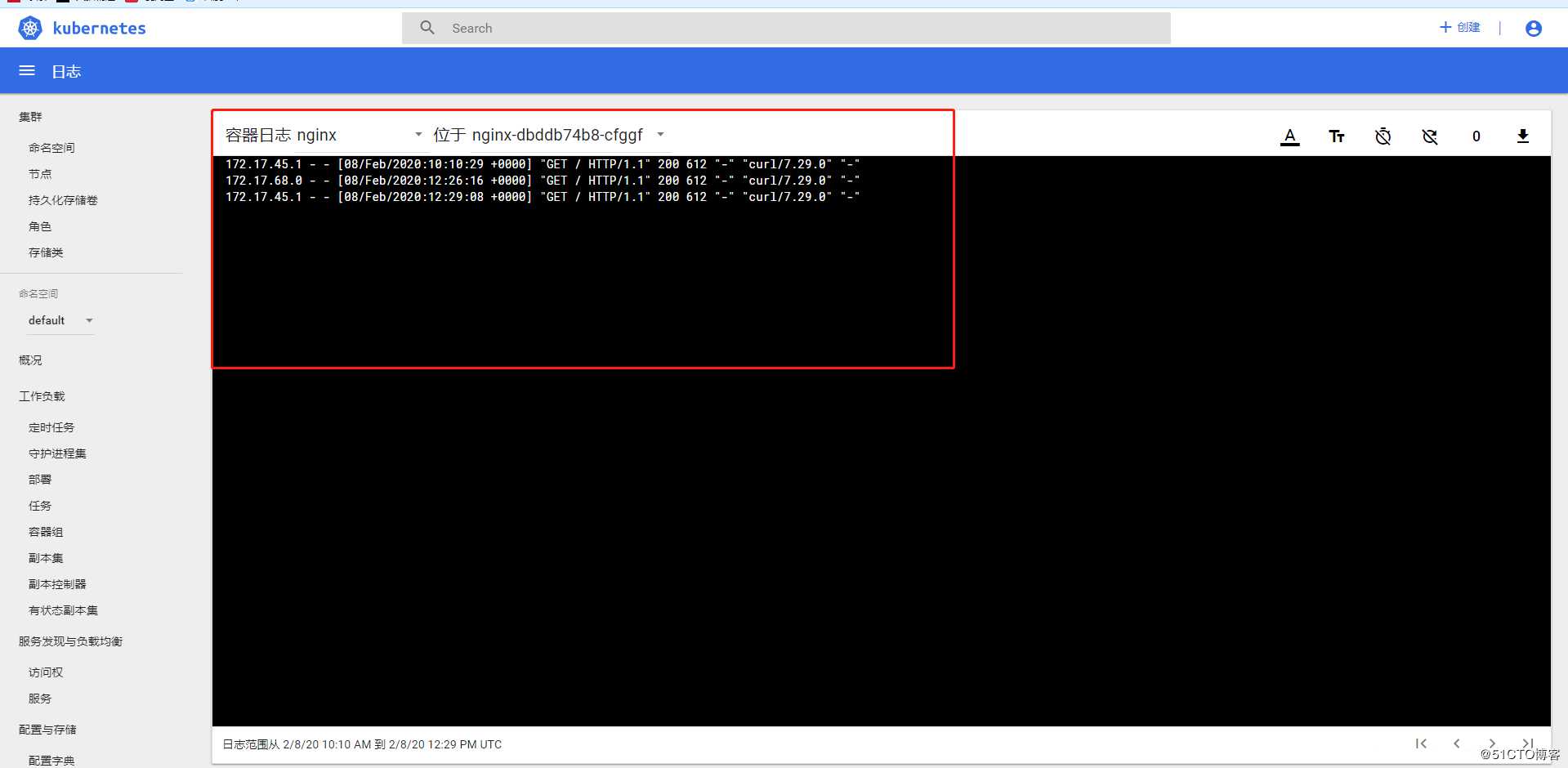

web界面查看日志：
