| 节点 | IP | 数据目录 |
|---|---|---|
| node01 | 192.168.180.130 | node01 |
| node02 | 192.168.180.131 | node02 |
| node03 | 192.168.180.132 | node03 |
| node04 | 192.168.180.133 | node04 |
| node05 | 192.168.180.134 | node05 |
从官网下载core二进制包
上传并解压到指定目录
tar -zxvf cockroach-v19.2.4.linux-amd64.tgz -C /opt/ronnie/
修改目录名称
cd /opt/ronnie/
mv cockroach-v19.2.4.linux-amd64/ cockroach
将目录传送至其他节点
cd /opt/ronnie
scp -r cockroach/ root@node02:`pwd`
scp -r cockroach/ root@node03:`pwd`
scp -r cockroach/ root@node04:`pwd`
scp -r cockroach/ root@node05:`pwd`
启动节点
# node01
/opt/ronnie/cockroach/cockroach start --insecure --store=node01 --host=192.168.180.130 --port=26257 --http-port=8080 &
# node02
/opt/ronnie/cockroach/cockroach start --insecure --store=node02 --host=192.168.180.131 --port=26257 --http-port=8080 --join=192.168.180.130:26257 &
# node03
/opt/ronnie/cockroach/cockroach start --insecure --store=node03 --host=192.168.180.132 --port=26257 --http-port=8080 --join=192.168.180.130:26257 &
# node04
/opt/ronnie/cockroach/cockroach start --insecure --store=node04 --host=192.168.180.133 --port=26257 --http-port=8080 --join=192.168.180.130:26257 &
# node05
/opt/ronnie/cockroach/cockroach start --insecure --store=node04 --host=192.168.180.134 --port=26257 --http-port=8080 --join=192.168.180.130:26257 &
启动界面
* WARNING: RUNNING IN INSECURE MODE!
*
* - Your cluster is open for any client that can access 192.168.180.130.
* - Any user, even root, can log in without providing a password.
* - Any user, connecting as root, can read or write any data in your cluster.
* - There is no network encryption nor authentication, and thus no confidentiality.
*
* Check out how to secure your cluster: https://www.cockroachlabs.com/docs/v19.2/secure-a-cluster.html
*
*
* WARNING: running ‘cockroach start‘ without --join is deprecated.
* Consider using ‘cockroach start-single-node‘ or ‘cockroach init‘ instead.
*
CockroachDB node starting at 2020-03-24 03:07:58.791675436 +0000 UTC (took 0.3s)
build: CCL v19.2.4 @ 2020/02/06 21:55:19 (go1.12.12)
webui: http://192.168.180.130:8080
sql: postgresql://root@192.168.180.130:26257?sslmode=disable
RPC client flags: /opt/ronnie/cockroach/cockroach <client cmd> --host=192.168.180.130:26257 --insecure
logs: /root/node01/logs
temp dir: /root/node01/cockroach-temp051514561
external I/O path: /root/node01/extern
store[0]: path=/root/node01
status: initialized new cluster
clusterID: ba298af3-801c-433c-a3ea-a8158dddb878
nodeID: 1
查询集群状态信息
cd /opt/ronnie/cockroach
./cockroach node status --insecure --host=192.168.180.130
# 查询结果
id | address | sql_address | build | started_at | updated_at | locality | is_available | is_live
+----+-----------------------+-----------------------+---------+----------------------------------+----------------------------------+----------+--------------+---------+
1 | 192.168.180.130:26257 | 192.168.180.130:26257 | v19.2.4 | 2020-03-24 03:07:58.660822+00:00 | 2020-03-24 03:16:13.640827+00:00 | | true | true
2 | 192.168.180.131:26257 | 192.168.180.131:26257 | v19.2.4 | 2020-03-24 03:08:06.856781+00:00 | 2020-03-24 03:16:12.903671+00:00 | | true | true
3 | 192.168.180.132:26257 | 192.168.180.132:26257 | v19.2.4 | 2020-03-24 03:08:08.054824+00:00 | 2020-03-24 03:16:14.065921+00:00 | | true | true
4 | 192.168.180.133:26257 | 192.168.180.133:26257 | v19.2.4 | 2020-03-24 03:08:08.886852+00:00 | 2020-03-24 03:16:14.886065+00:00 | | true | true
5 | 192.168.180.134:26257 | 192.168.180.134:26257 | v19.2.4 | 2020-03-24 03:08:09.710603+00:00 | 2020-03-24 03:16:15.735922+00:00 | | true | true
(5 rows)
查询集群ID信息
./cockroach node ls --insecure --host=192.168.180.130
# 查询结果
id
+----+
1
2
3
4
5
(5 rows)
查询单个节点信息
./cockroach node status 1 --insecure --host=192.168.180.131
# 查询结果
id | address | sql_address | build | started_at | updated_at | locality | is_available | is_live
+----+-----------------------+-----------------------+---------+----------------------------------+----------------------------------+----------+--------------+---------+
1 | 192.168.180.130:26257 | 192.168.180.130:26257 | v19.2.4 | 2020-03-24 03:07:58.660822+00:00 | 2020-03-24 03:17:34.650296+00:00 | | true | true
集群验证
登录第一个节点
./cockroach sql --insecure --host=192.168.180.130
创建数据库
root@192.168.180.130:26257/defaultdb> create database pandemic;
CREATE DATABASE
Time: 15.636534ms
查看数据库
root@192.168.180.130:26257/defaultdb> show databases;
database_name
+---------------+
defaultdb
pandemic
postgres
system
(4 rows)
Time: 1.049492ms
创建表
create table pandemic.countries(id int not null primary key, country_name varchar(20), comfirmed_cases int, total_deaths int, total_recovered int);
插入数据
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(1,‘China‘, 81498, 3274, 72822);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(2,‘Italy‘, 63927, 6077, 7432);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(3,‘United State‘, 43901, 610, 0);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(4,‘Spain‘, 35136, 2311, 3355);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(5,‘Germany‘, 29056, 123, 453);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(6,‘Iran‘, 23049, 1812, 8376);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(7,‘France‘, 20123, 862, 2207);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(8,‘South Korea‘, 8961, 111, 3507);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(9,‘Switzerland‘, 8795, 120, 131);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(10,‘United Kingdom‘, 67267, 336, 140);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(11,‘Netherlands‘, 4764, 214, 3);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(12,‘Austria‘, 4474, 21, 9);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(13,‘Belgium‘, 3743, 88, 401);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(14,‘Norway‘, 2621, 10, 6);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(15,‘Canada‘, 2621, 25, 0);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(16,‘Portugal‘, 2060, 23, 14);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(17,‘Sweden‘, 2046, 27, 16);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(18,‘Brazil‘, 1924, 34, 2);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(19,‘Australia‘, 1924, 7, 119);
insert into pandemic.countries(id,country_name,comfirmed_cases,total_deaths,total_recovered)values(20,‘Denmark‘, 1572, 24, 24);
查看数据
root@192.168.180.130:26257/defaultdb> select * from pandemic.countries;
id | country_name | comfirmed_cases | total_deaths | total_recovered
+----+----------------+-----------------+--------------+-----------------+
1 | China | 81498 | 3274 | 72822
2 | Italy | 63927 | 6077 | 7432
3 | United State | 43901 | 610 | 0
4 | Spain | 35136 | 2311 | 3355
5 | Germany | 29056 | 123 | 453
6 | Iran | 23049 | 1812 | 8376
7 | France | 20123 | 862 | 2207
8 | South Korea | 8961 | 111 | 3507
9 | Switzerland | 8795 | 120 | 131
10 | United Kingdom | 67267 | 336 | 140
11 | Netherlands | 4764 | 214 | 3
12 | Austria | 4474 | 21 | 9
13 | Belgium | 3743 | 88 | 401
14 | Norway | 2621 | 10 | 6
15 | Canada | 2621 | 25 | 0
16 | Portugal | 2060 | 23 | 14
17 | Sweden | 2046 | 27 | 16
18 | Brazil | 1924 | 34 | 2
19 | Australia | 1924 | 7 | 119
20 | Denmark | 1572 | 24 | 24
查找死亡率最低和最高的国家
死亡率最低的国家
select country_name, total_deaths/comfirmed_cases as death_rate from pandemic.countries order by death_rate asc limit 1;
country_name | death_rate
+--------------+--------------------------+
Australia | 0.0036382536382536382536
(1 row)
死亡率最高的国家
select country_name, total_deaths/comfirmed_cases as death_rate from pandemic.countries order by death_rate desc limit 1;
country_name | death_rate
+--------------+-------------------------+
Italy | 0.095061554585699313279
(1 row)
查找治愈率最高和最低的国家
治愈率最低的国家
select country_name, total_recovered/comfirmed_cases as recover_rate from pandemic.countries order by recover_rate asc limit 1;
查询结果
country_name | recover_rate
+--------------+--------------+
United State | 0
(1 row)
治愈率最高的国家
select country_name, total_recovered/comfirmed_cases as recover_rate from pandemic.countries order by recover_rate desc limit 1;
查询结果
country_name | recover_rate
+--------------+------------------------+
China | 0.89354339983803283516
(1 row)
登录其他节点查看数据
cd /opt/ronnie/cockroach
./cockroach sql --insecure --host=192.168.180.130
root@192.168.180.130:26257/defaultdb> select * from pandemic.countries;
id | country_name | comfirmed_cases | total_deaths | total_recovered
+----+----------------+-----------------+--------------+-----------------+
1 | China | 81498 | 3274 | 72822
2 | Italy | 63927 | 6077 | 7432
3 | United State | 43901 | 610 | 0
4 | Spain | 35136 | 2311 | 3355
5 | Germany | 29056 | 123 | 453
6 | Iran | 23049 | 1812 | 8376
7 | France | 20123 | 862 | 2207
8 | South Korea | 8961 | 111 | 3507
9 | Switzerland | 8795 | 120 | 131
10 | United Kingdom | 67267 | 336 | 140
11 | Netherlands | 4764 | 214 | 3
12 | Austria | 4474 | 21 | 9
13 | Belgium | 3743 | 88 | 401
14 | Norway | 2621 | 10 | 6
15 | Canada | 2621 | 25 | 0
16 | Portugal | 2060 | 23 | 14
17 | Sweden | 2046 | 27 | 16
18 | Brazil | 1924 | 34 | 2
19 | Australia | 1924 | 7 | 119
20 | Denmark | 1572 | 24 | 24
(20 rows)
Time: 2.119906ms
root@192.168.180.130:26257/defaultdb> select * from pandemic.countries;
id | country_name | comfirmed_cases | total_deaths | total_recovered
+----+----------------+-----------------+--------------+-----------------+
1 | China | 81498 | 3274 | 72822
2 | Italy | 63927 | 6077 | 7432
3 | United State | 43901 | 610 | 0
4 | Spain | 35136 | 2311 | 3355
5 | Germany | 29056 | 123 | 453
6 | Iran | 23049 | 1812 | 8376
7 | France | 20123 | 862 | 2207
8 | South Korea | 8961 | 111 | 3507
9 | Switzerland | 8795 | 120 | 131
10 | United Kingdom | 67267 | 336 | 140
11 | Netherlands | 4764 | 214 | 3
12 | Austria | 4474 | 21 | 9
13 | Belgium | 3743 | 88 | 401
14 | Norway | 2621 | 10 | 6
15 | Canada | 2621 | 25 | 0
16 | Portugal | 2060 | 23 | 14
17 | Sweden | 2046 | 27 | 16
18 | Brazil | 1924 | 34 | 2
19 | Australia | 1924 | 7 | 119
20 | Denmark | 1572 | 24 | 24
(20 rows)
Time: 2.5979ms
root@192.168.180.130:26257/defaultdb> select * from pandemic.countries;
id | country_name | comfirmed_cases | total_deaths | total_recovered
+----+----------------+-----------------+--------------+-----------------+
1 | China | 81498 | 3274 | 72822
2 | Italy | 63927 | 6077 | 7432
3 | United State | 43901 | 610 | 0
4 | Spain | 35136 | 2311 | 3355
5 | Germany | 29056 | 123 | 453
6 | Iran | 23049 | 1812 | 8376
7 | France | 20123 | 862 | 2207
8 | South Korea | 8961 | 111 | 3507
9 | Switzerland | 8795 | 120 | 131
10 | United Kingdom | 67267 | 336 | 140
11 | Netherlands | 4764 | 214 | 3
12 | Austria | 4474 | 21 | 9
13 | Belgium | 3743 | 88 | 401
14 | Norway | 2621 | 10 | 6
15 | Canada | 2621 | 25 | 0
16 | Portugal | 2060 | 23 | 14
17 | Sweden | 2046 | 27 | 16
18 | Brazil | 1924 | 34 | 2
19 | Australia | 1924 | 7 | 119
20 | Denmark | 1572 | 24 | 24
(20 rows)
Time: 2.077044ms
root@192.168.180.130:26257/defaultdb> select * from pandemic.countries;
id | country_name | comfirmed_cases | total_deaths | total_recovered
+----+----------------+-----------------+--------------+-----------------+
1 | China | 81498 | 3274 | 72822
2 | Italy | 63927 | 6077 | 7432
3 | United State | 43901 | 610 | 0
4 | Spain | 35136 | 2311 | 3355
5 | Germany | 29056 | 123 | 453
6 | Iran | 23049 | 1812 | 8376
7 | France | 20123 | 862 | 2207
8 | South Korea | 8961 | 111 | 3507
9 | Switzerland | 8795 | 120 | 131
10 | United Kingdom | 67267 | 336 | 140
11 | Netherlands | 4764 | 214 | 3
12 | Austria | 4474 | 21 | 9
13 | Belgium | 3743 | 88 | 401
14 | Norway | 2621 | 10 | 6
15 | Canada | 2621 | 25 | 0
16 | Portugal | 2060 | 23 | 14
17 | Sweden | 2046 | 27 | 16
18 | Brazil | 1924 | 34 | 2
19 | Australia | 1924 | 7 | 119
20 | Denmark | 1572 | 24 | 24
(20 rows)
Time: 2.177364ms
默认端口为8080, 可以在启动时自行修改

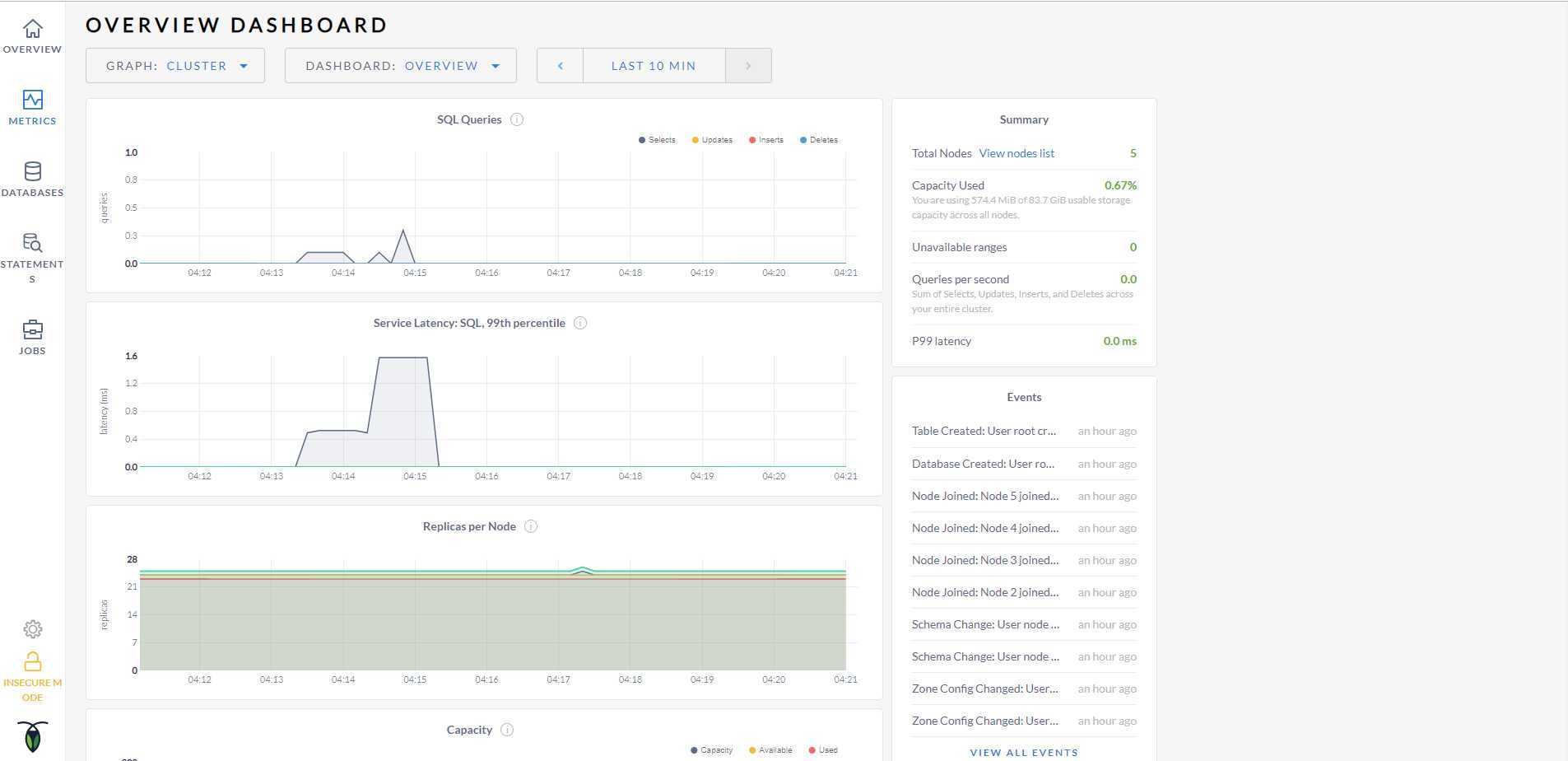

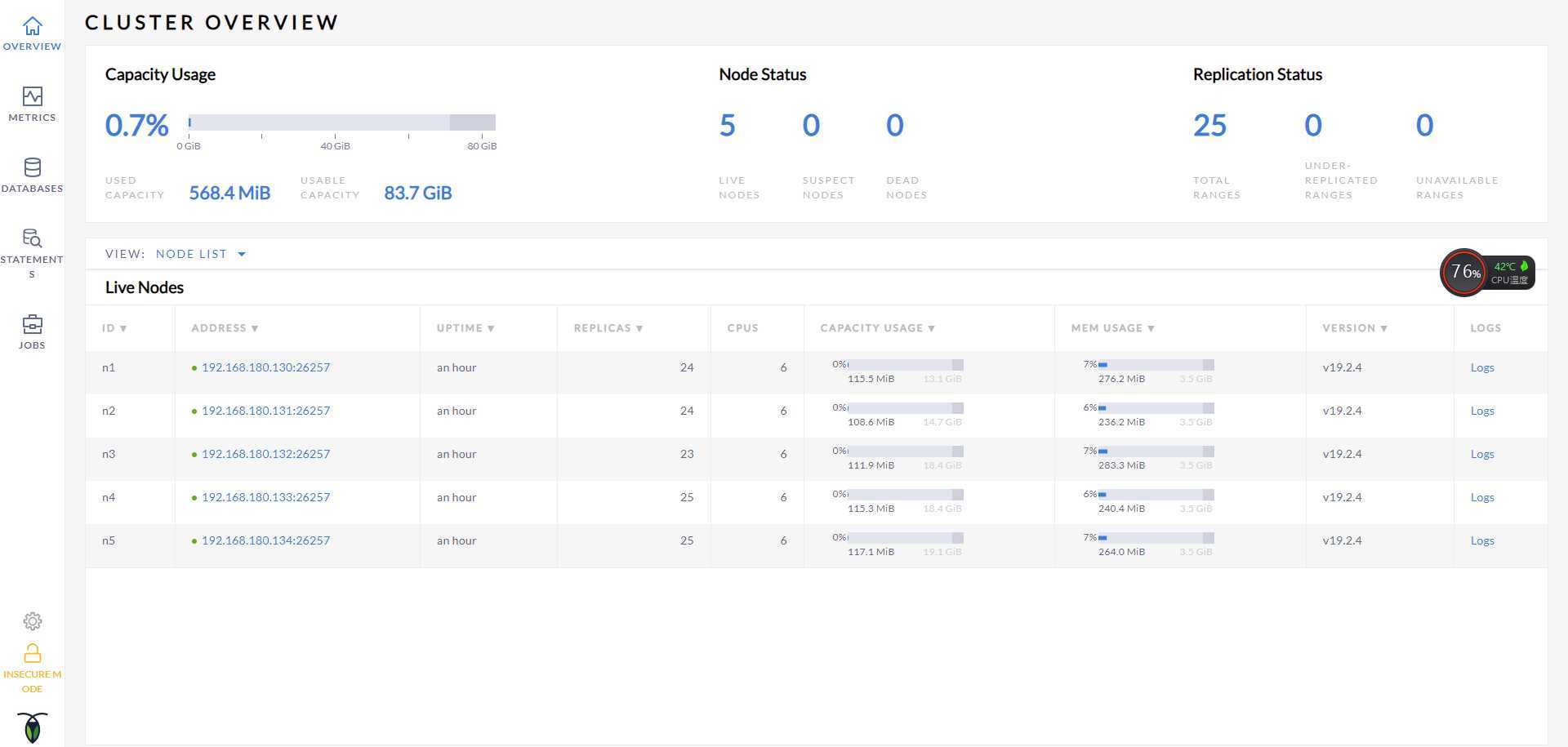

集群总览
度量指标

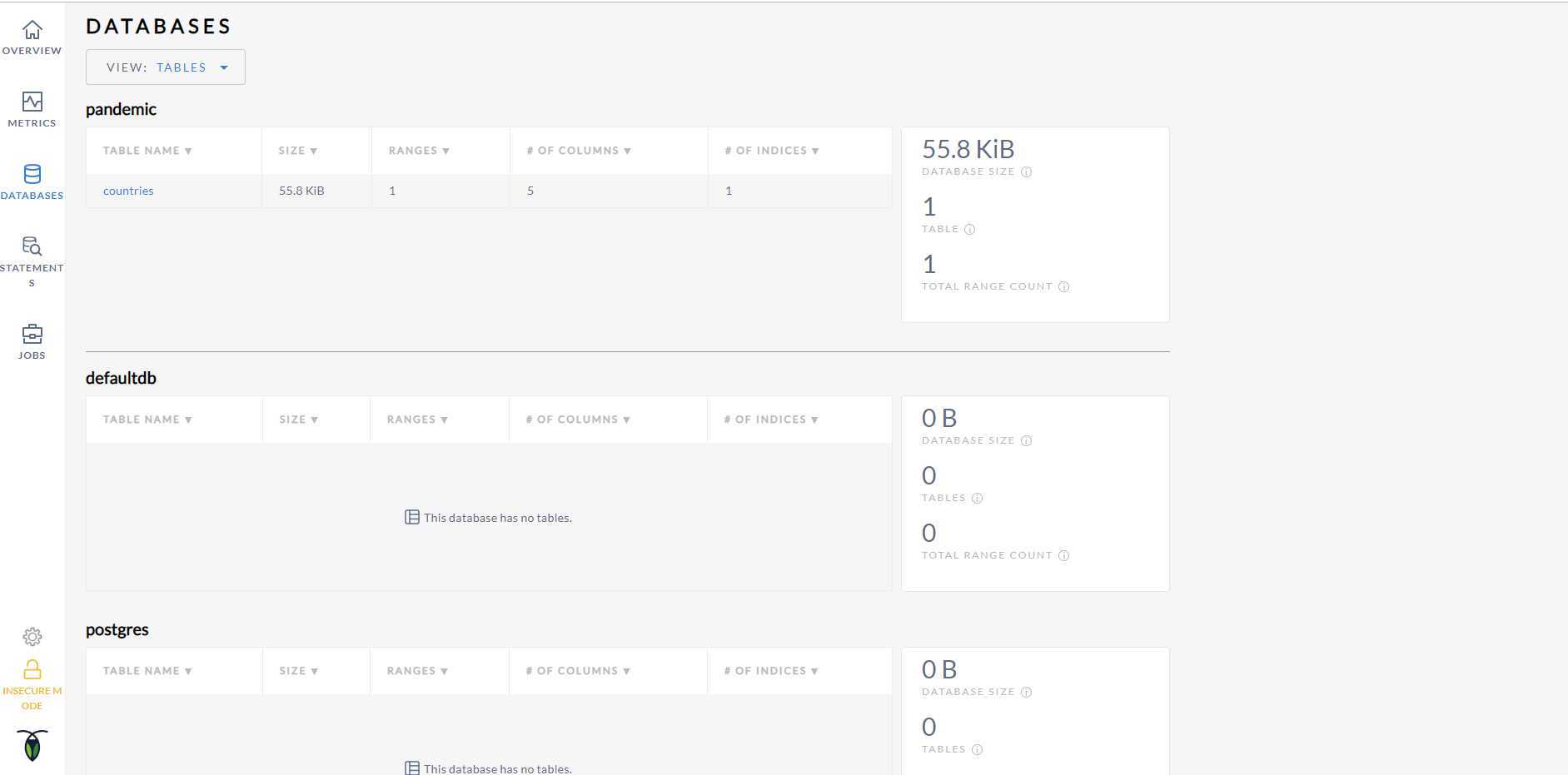

数据库

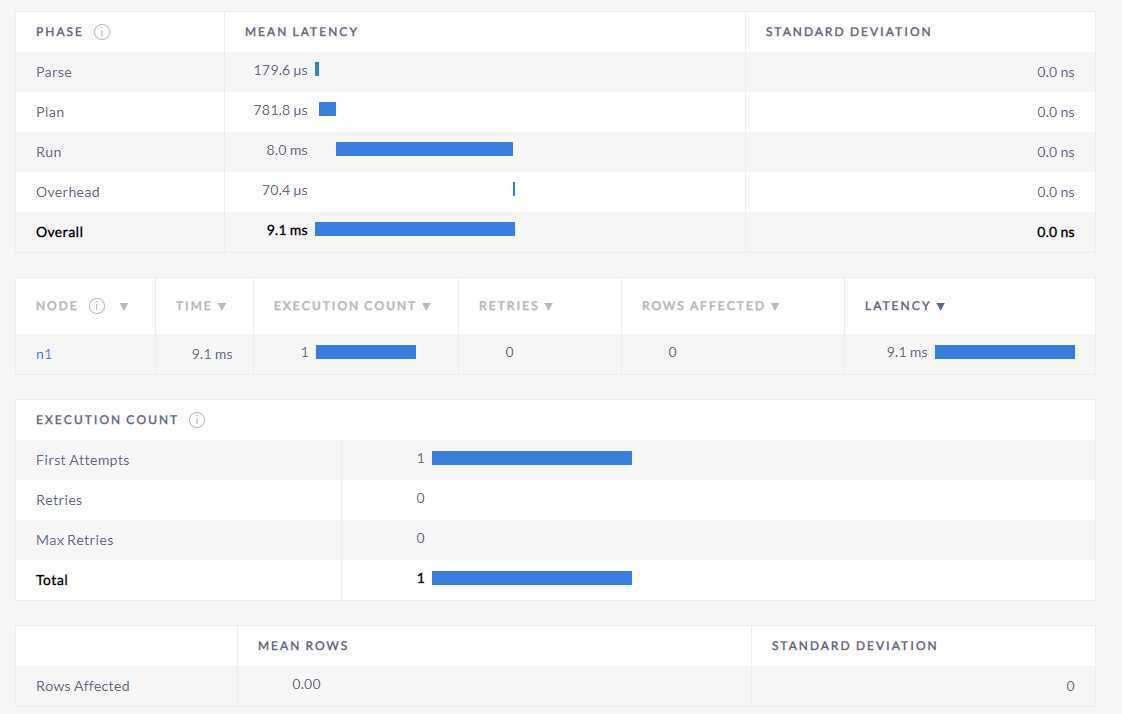

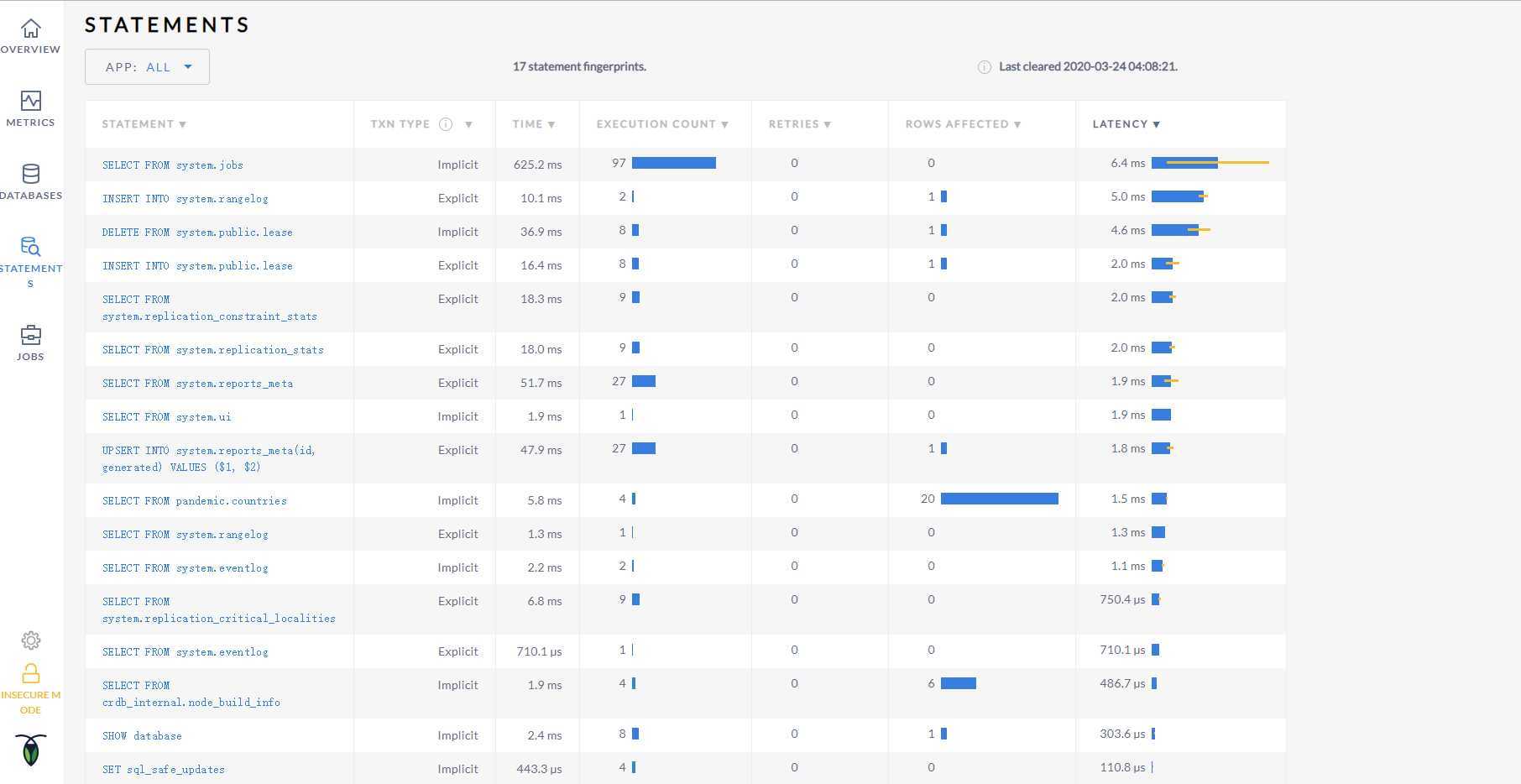

对操作的一些陈述, 包括底层的一些执行

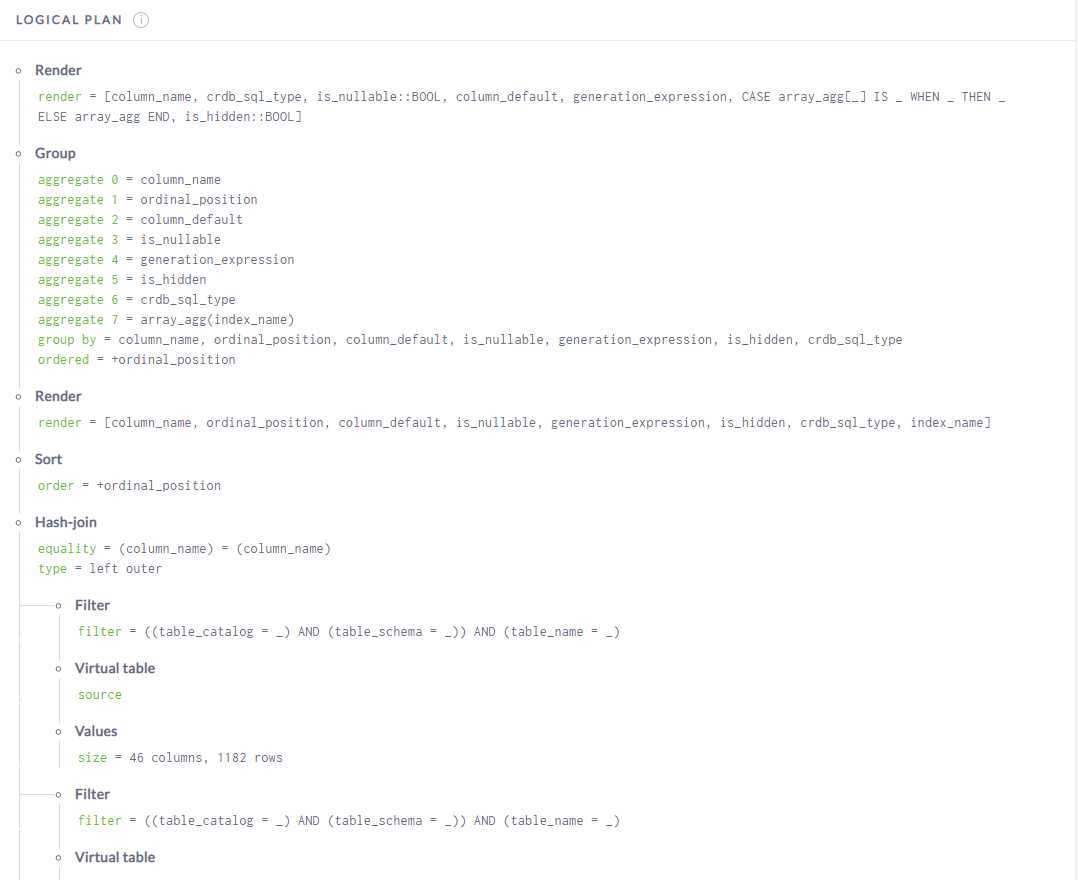

点进去可以看到底层的一些操作

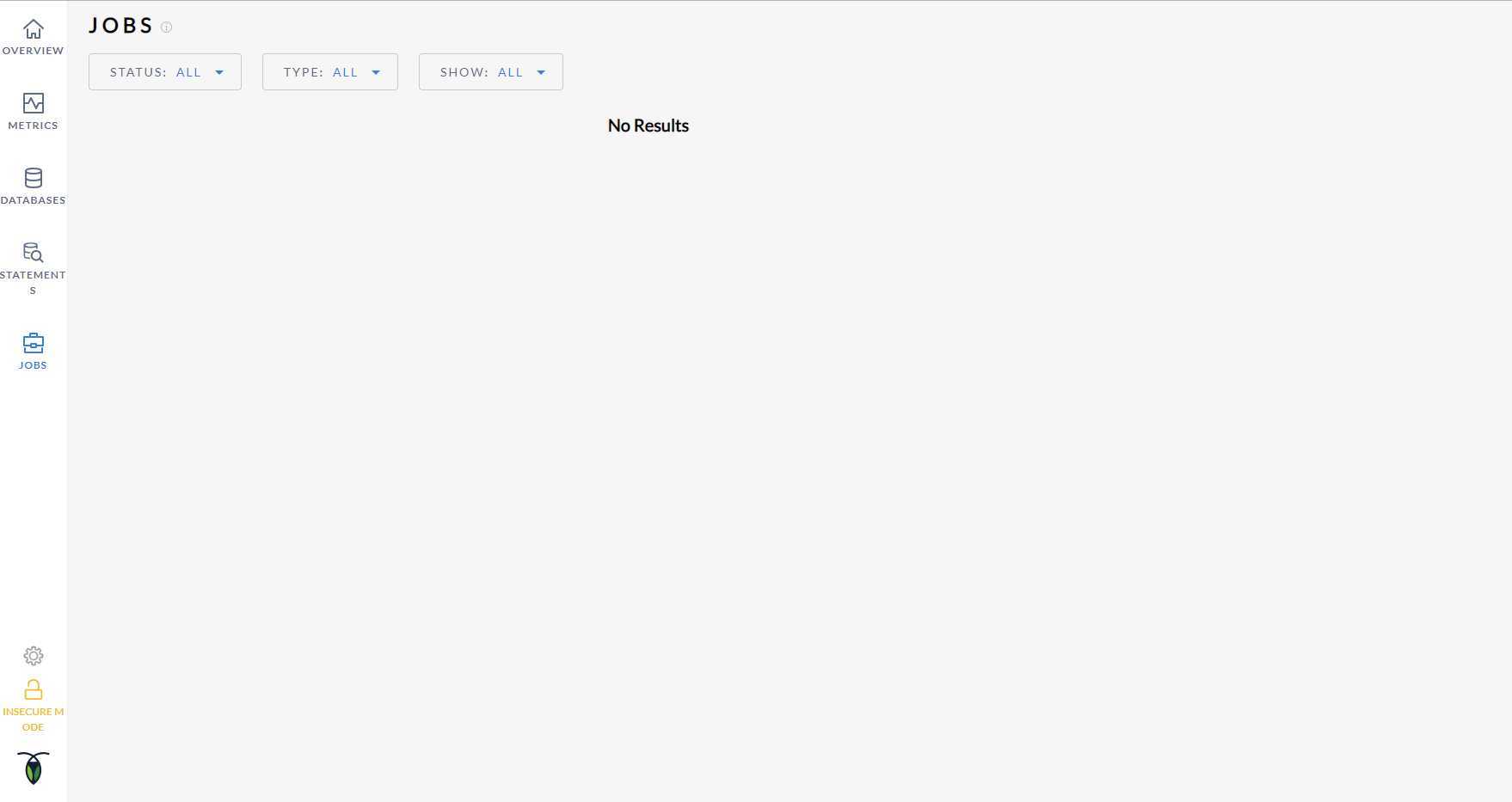

任务
