一、要求：

1、完成论文的题目、摘要、关键词、原文链接四项内容爬取；

2、存储到本地数据库中；

3、按照题目、关键词分类统计得到最热的十个领域方向；

4、热词越多，在热词云中显示的就越大，还要将热词与文章链接，点击热词云中的热词可以找到与之对应的文章题目；

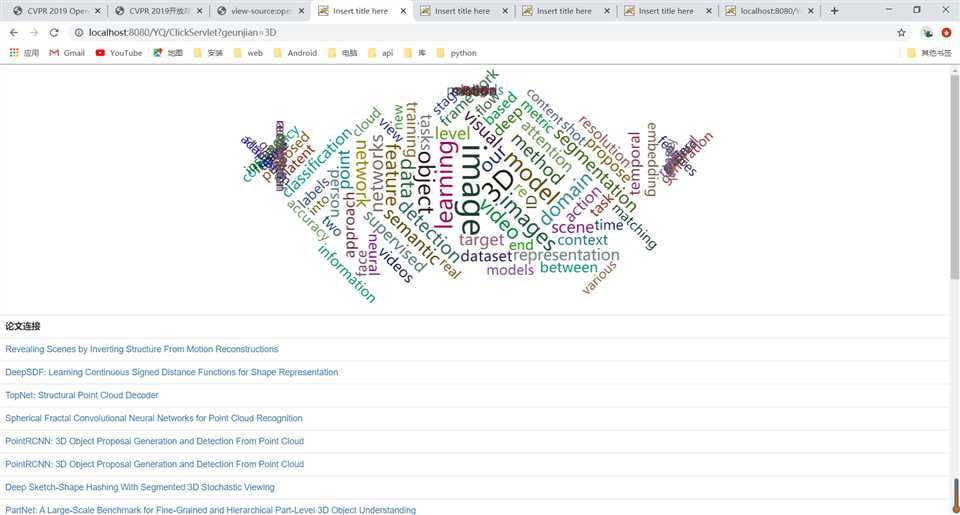

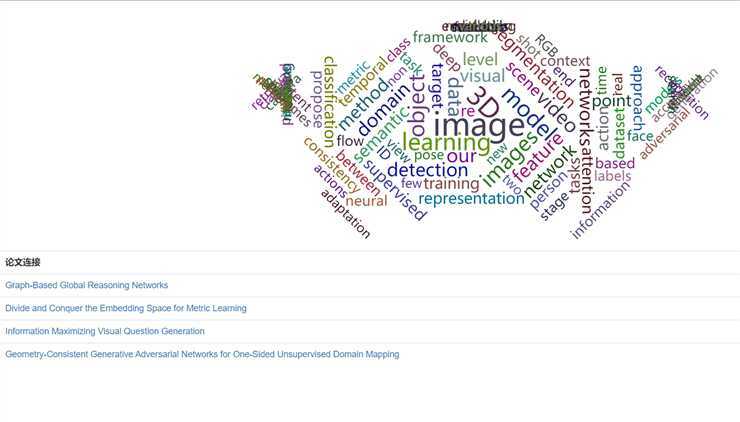

二、效果：

技术分享图片

三、设计思路：

1、爬取数据：

/**
*  业务
*/
public class LW {
    public static void main(String[] args) throws SQLException {
        LWDao dao = new LWDao();
        //dao.deleteAll();
        String s = HttpUtil.setUrl("http://openaccess.thecvf.com/CVPR2019.py");
        List<Paper> lw = JsoupNewsUtil.lw(s);
        for (int i = 0; i < lw.size(); i++) {
            dao.add(lw.get(i));
        }

    }

}

/**
*  工具
*/

public class HttpUtil {
    /**
     * 返回json
     * @param setUrl
     * @return
     */
    public static String setUrl(String setUrl){
        try {
            URL url = new URL(setUrl);
            HttpURLConnection conn = (HttpURLConnection)url.openConnection();
            conn.setConnectTimeout(5000);
            conn.setRequestMethod("GET");
            int responseCode = conn.getResponseCode();
            if (responseCode == HttpURLConnection.HTTP_OK){
                InputStream inputStream = conn.getInputStream();
                InputStreamReader inputStreamReader = new InputStreamReader(inputStream);
                BufferedReader reader = new BufferedReader(inputStreamReader);
                StringBuffer stringBuffer = new StringBuffer();
                String string = reader.readLine();
                while (string != null) {
                    stringBuffer.append(string);
                    string = reader.readLine();
                }
                return stringBuffer.toString();
            }
        } catch (MalformedURLException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "";
    }
}



public class JsoupNewsUtil {


    public static List<Paper> lw(String data){
        List<Paper> LWList = new ArrayList<Paper>();
        Document document = Jsoup.parse(data);
        //获取论文的内容
        Element content = document.getElementById("content");

        Elements dl = content.getElementsByTag("dl");
        Elements dt = dl.first().getElementsByTag("dt");
        for (Element element : dt) {
            Paper paper = new Paper();
            Elements a = element.getElementsByTag("a");
            String tm = a.first().text();
            String ywlj = a.first().attr("href");
            String jy = jy(ywlj);
            paper.setTm(tm);
            paper.setYwlj("http://openaccess.thecvf.com/"+ywlj);
            paper.setZy(jy);
            LWList.add(paper);
            if (LWList.size()>99){
                break;
            }
        }
        return LWList;
    }

    public static  String jy(String url){
        String s = HttpUtil.setUrl("http://openaccess.thecvf.com/"+url);
        Document document = Jsoup.parse(s);
        Element anAbstract = document.getElementById("abstract");
        String str = "";
        if (anAbstract != null) {
            str = anAbstract.text().trim();
        }
        return str;
    }
}

2、数据存储

public class DBUtils {

    private static DataSource dataSource = new ComboPooledDataSource();

    private static ThreadLocal<Connection> tl = new ThreadLocal<Connection>();

    // 直接可以获取一个连接池
    public static DataSource getDataSource() {
        return dataSource;
    }

    public static Connection getConnection() throws SQLException{
        return dataSource.getConnection();
    }

    // 获取连接对象
    public static Connection getCurrentConnection() throws SQLException {

        Connection con = tl.get();
        if (con == null) {
            con = dataSource.getConnection();
            tl.set(con);
        }
        return con;
    }

    // 开启事务
    public static void startTransaction() throws SQLException {
        Connection con = getCurrentConnection();
        if (con != null) {
            con.setAutoCommit(false);
        }
    }

    // 事务回滚
    public static void rollback() throws SQLException {
        Connection con = getCurrentConnection();
        if (con != null) {
            con.rollback();
        }
    }

    // 提交并且 关闭资源及从ThreadLocall中释放
    public static void commitAndRelease() throws SQLException {
        Connection con = getCurrentConnection();
        if (con != null) {
            con.commit(); // 事务提交
            con.close();// 关闭资源
            tl.remove();// 从线程绑定中移除
        }
    }

    // 关闭资源方法
    public static void closeConnection() throws SQLException {
        Connection con = getCurrentConnection();
        if (con != null) {
            con.close();
        }
    }

    public static void closeStatement(Statement st) throws SQLException {
        if (st != null) {
            st.close();
        }
    }

    public static void closeResultSet(ResultSet rs) throws SQLException {
        if (rs != null) {
            rs.close();
        }
    }
}


public class LWDao {
    /**
     *
     * @param
     * @return
     * @throws SQLException
     */
    public boolean add(Paper paper) throws SQLException {
        QueryRunner qr = new QueryRunner(DBUtils.getDataSource());
        String sql = "insert into paper (tm,zy,gjc,ywlj) " +
                "values(?,?,?,?)";
        int update = qr.update(sql,paper.getTm(),paper.getZy(),paper.getGjc(),paper.getYwlj());
        if (update > 0) {
            return true;
        } else {
            return false;
        }
    }

    public List<Paper> search() throws SQLException {
        QueryRunner qr = new QueryRunner(DBUtils.getDataSource());
        String sql = "select * from paper";
        List<Paper> query = qr.query(sql, new BeanListHandler<Paper>(Paper.class));
        return query;
    }

    public List<LunWen> search_() throws SQLException {
        QueryRunner qr = new QueryRunner(DBUtils.getDataSource());
        String sql = "select * from cvpr";
        List<LunWen> query = qr.query(sql, new BeanListHandler<LunWen>(LunWen.class));
        return query;
    }

    public boolean gjc(String gjc,int id) throws SQLException {

        QueryRunner qr = new QueryRunner(DBUtils.getDataSource());
        String sql = "update paper set fjc = ?   where id=? ";
        int n = qr.update(sql, gjc,id);
        if (n > 0) {
            return true;
        } else {
            return false;
        }
    }

    /**
     *
     * @return
     * @throws SQLException
     */
    public boolean deleteAll() throws SQLException {
        QueryRunner qr =new QueryRunner(DBUtils.getDataSource());
        String sql="delete from paper  ";
        int n = qr.update(sql);
        if (n > 0) {
            return true;
        } else {
            return false;
        }
    }
}

3、使用echart 的 wordCloud 实现热词云。

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="css/bootstrap.min.css" type="text/css" />
<script src="js/jquery-1.11.3.min.js" type="text/javascript"></script>
<script type="text/javascript" src="js/echarts.min.js"></script>
<script type="text/javascript" src="js/china.js"></script>
<script src="js/bootstrap.min.js" type="text/javascript"></script>
<script src=‘https://cdn.bootcss.com/echarts/3.7.0/echarts.simple.js‘></script>
<script src=‘js/echarts-wordcloud.js‘></script>
</head>
<body>
<div id="main" style="width: 100%;height: 400px"></div>
<div>
  <table class="table" style="width: 100%;align-content: center;" >
    <tr>
      <th align="center">论文连接</th>
    </tr>
    <c:forEach var="item" items="${list}">
      <tr>
        <td><a href="${item.lianjie }">${item.title}</a></td>
      </tr>
    </c:forEach>
  </table>
</div>
<script>
  var chart = echarts.init(document.getElementById(‘main‘));
  var dt;
  $.ajax({
    url : "PaperServlet_",
    async : false,
    type : "POST",
    success : function(data) {
      dt = data;
     // alert(dt[0].title);
    },
    error : function() {
      alert("请求失败");
    },
    dataType : "json"
  });
  var mydata = new Array(0);
  for (var i = 0; i < dt.length; i++) {
      var d = {};

      d["name"] = dt[i].name;
      //alert(dt[i].name);
      d["value"] = dt[i].value;
      mydata.push(d);
  }
  var option = {
    tooltip: {},
    series: [ {
      type: ‘wordCloud‘,
      gridSize: 2,
      sizeRange: [20, 50],
      rotationRange: [-90, 90],
      shape: ‘pentagon‘,
      width: 600,
      height: 300,
      drawOutOfBound: true,
      textStyle: {
        normal: {
          color: function () {
            return ‘rgb(‘ + [
              Math.round(Math.random() * 160),
              Math.round(Math.random() * 160),
              Math.round(Math.random() * 160)
            ].join(‘,‘) + ‘)‘;
          }
        },
        emphasis: {
          shadowBlur: 10,
          shadowColor: ‘#333‘
        }
      },
      data: mydata
    } ]
  };

  chart.setOption(option);
  chart.on(‘click‘, function (params) {
      var url = "ClickServlet?geunjian=" + params.name;
      window.location.href = url;
    });
  window.onresize = chart.resize;
</script>
</body>
</html>

4、热词集合的计算和传递

package com.me.servlet;

import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.google.gson.Gson;
import com.me.dao.LWDao;
import com.me.domain.LunWen;
import com.me.domain.Tu;

@WebServlet("/PaperServlet_")
public class PaperServlet_ extends HttpServlet {
    private static final long serialVersionUID = 1L;


    public PaperServlet_() {
        super();
    }


    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        response.setHeader("content-type", "text/html;charset=UTF-8");

        response.setCharacterEncoding("UTF-8");

        LWDao dao = new LWDao();
        List<LunWen> list = new ArrayList<LunWen>();
        List<Tu> list_tu = new ArrayList<Tu>();
        String [] str = new String[10000];
        String [] str_ = new String[10000];
        int [] b = new int[10000];
        int num = 0;
        int length1 = 0;
        try {
            list = dao.search_();
        } catch (SQLException e) {
            e.printStackTrace();
        }
        for(int i=0;i<list.size();i++) {
            if(list.get(i).getLianjie()!=null) {
                String ss = list.get(i).getLianjie().substring(6,list.get(i).getLianjie().length());
                list.get(i).setLianjie("http://openaccess.thecvf.com/"+ss);
            }
            String[] split = list.get(i).getGuanjian().split(" ");
            for(int j=0;j<split.length;j++) {
                str[num++] = split[j];
            }
        }
        for(int k=0;k<num;k++) {
            b[k]=0;
        }
        str_[0]=str[0];
        int tt=1;
        Boolean rt=true;
        for(int i=1;i<num;i++) {
            rt=false;
            for(int j=0;j<tt;j++) {
                if(str[i].equals(str_[j])) {
                    rt=true;
                    break;
                }
            }
            if(!rt) {
                str_[tt]=str[i];
                tt++;
            }
        }
        length1=tt;
        for(int i=0;i<length1;i++) {
            for(int j=0;j<num;j++) {
                if(str_[i].equals(str[j])) {
                    b[i]++;
                }
            }
        }
        int t3=0;
        int t2=0;
        String sr="";
        for(int i=0;i<length1-1;i++) {
            t3=i;
            for(int j=i+1;j<length1;j++) {
                if(b[t3]<b[j]) {
                    t3=j;
                }
            }
           if(t3!=i) {
               t2=b[i];
               b[i]=b[t3];
               b[t3]=t2;
               sr=str_[i];
               str_[i]=str_[t3];
               str_[t3]=sr;
           }
        }
        for(int i=0;i<100;i++) {
            Tu tu = new Tu();
            tu.name=str_[i];
            tu.value= b[i];
            list_tu.add(tu);
        }

        Gson gson = new Gson();
        String json = gson.toJson(list_tu);
        response.getWriter().write(json);
    }


    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // TODO Auto-generated method stub
        doGet(request, response);
    }

}

5、论文连接列表数据准备

package com.me.servlet;

import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.me.dao.LWDao;
import com.me.domain.LunWen;
import com.me.domain.Tu;

/**
 * Servlet implementation class LunServlet
 */
@WebServlet("/LunServlet")
public class LunServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#HttpServlet()
     */
    public LunServlet() {
        super();
        // TODO Auto-generated constructor stub
    }

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        response.setHeader("content-type", "text/html;charset=UTF-8");

        response.setCharacterEncoding("UTF-8");

        LWDao dao = new LWDao();
        List<LunWen> list = new ArrayList<LunWen>();
        try {
            list = dao.search_();
        } catch (SQLException e) {
            e.printStackTrace();
        }
        for(int i=0;i<list.size();i++) {
            if(list.get(i).getLianjie()!=null) {
                String ss = list.get(i).getLianjie().substring(6,list.get(i).getLianjie().length());
                list.get(i).setLianjie("http://openaccess.thecvf.com/"+ss);
            }

        }

        request.setAttribute("list",list);
        request.getRequestDispatcher("lw.jsp").forward(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // TODO Auto-generated method stub
        doGet(request, response);
    }



}

6、点击热词后包含热词的希望列表

package com.me.servlet;

import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.me.dao.LWDao;
import com.me.domain.LunWen;

/**
 * Servlet implementation class ClickServlet
 */
@WebServlet("/ClickServlet")
public class ClickServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;
    LWDao dao = new LWDao();

    public ClickServlet() {
        super();
        // TODO Auto-generated constructor stub
    }

    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String geunjian = request.getParameter("geunjian");
        System.out.println(geunjian);
        List<LunWen> guan = new ArrayList<LunWen>();
        try {
            guan = dao.login(geunjian);
        } catch (SQLException e) {
            e.printStackTrace();
        }
        for(int i=0;i<guan.size();i++) {
            if(guan.get(i).getLianjie()!=null) {
                String ss = guan.get(i).getLianjie().substring(6,guan.get(i).getLianjie().length());
                guan.get(i).setLianjie("http://openaccess.thecvf.com/"+ss);
            }

        }
        request.setAttribute("list", guan);
        System.out.println(guan.size());
        request.getRequestDispatcher("lw.jsp").forward(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // TODO Auto-generated method stub
        doGet(request, response);
    }

}

顶会热词统计

原文：https://www.cnblogs.com/20183544-wangzhengshuai/p/12702137.html

踩

(0)

评论一句话评论（0）

分享档案

更多>

2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
