Spring Cloud Gateway之全局过滤器的作用

时间：2020-05-11 16:49:52      阅读：382      评论：0      收藏：0      [点我收藏+]

一、使用注意事项

1、全局过滤器作用于所有的路由，不需要单独配置。

2、通过@Order来指定执行的顺序，数字越小，优先级越高。

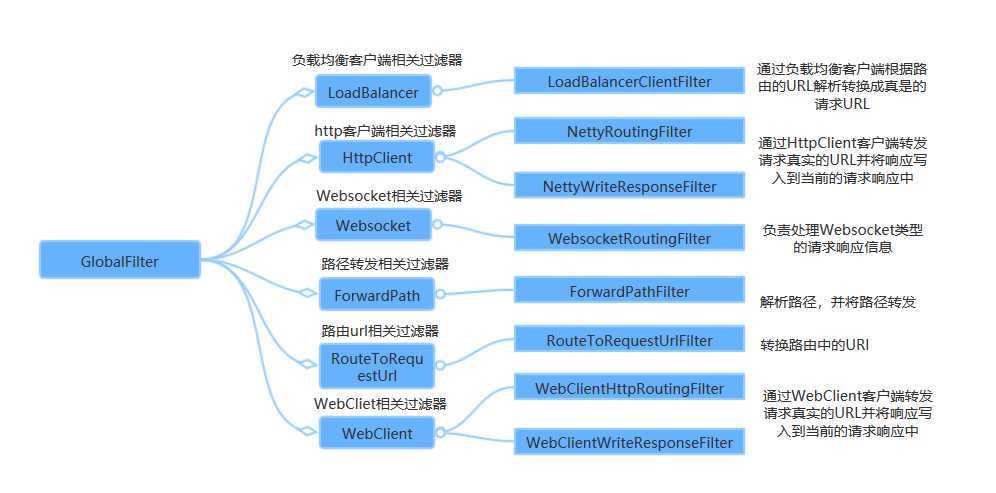

二、默认全局拦截器的整体架构







技术分享图片

三、实战场景，列如，校验token、记录日志（可参考这边https://www.cnblogs.com/hyf-huangyongfei/p/12849406.html）、替换负载均衡以后的路由等等

1、校验token

@Slf4j
public class AuthenFilter implements GlobalFilter, Ordered {

    @Resource
private IFeignClient feignClient;

    private static final String GATEWAY_ROUTE_BEAN = "org.springframework.cloud.gateway.support.ServerWebExchangeUtils.gatewayRoute";

    private static final String BEAR_HEAD = "bear";

    @Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest request = exchange.getRequest();
        String requestUrl = request.getPath().pathWithinApplication().value();
        //判断过滤器是否执行
if (!RequestUtils.isFilter(requestUrl)) {
//该请求转发，因为访问/leap,需要展示登录页
if (requestUrl.equals("/leap/") || requestUrl.equals("/leap")) {
ServerHttpRequest authErrorReq = request.mutate()
.path("/index.html")
.build();
                ServerWebExchange indexExchange = exchange.mutate().request(authErrorReq).build();
                return chain.filter(indexExchange);
            }
ResEntity res;
            ServerHttpResponse response = exchange.getResponse();
            Map<String, String> cookiesInfo = getCookiesInfo(request);
            String account = cookiesInfo.get("account");
            String token = cookiesInfo.get("token");
            //校验token
res = feignClient.verifyToken(token);
            log.info("校验token：{}", res.getMsg());
            //如果token失效清除cookies ，让用户解锁或者重新登录
if (200 == res.getHttpStatus()) {
response.addCookie(ResponseCookie.from("token", token).path("/").build());
                response.addCookie(ResponseCookie.from("userAccount", account).path("/").build());
            } else {
                log.error("网关过滤器AuthenFilter:{}", res.getMsg());
                //token失效，通过cookies失效告知前端，重新解锁
response.addCookie(ResponseCookie.from("token", token).path("/").maxAge(Duration.ofSeconds(0L)).build());
                response.addCookie(ResponseCookie.from("userAccount", account).path("/").maxAge(Duration.ofSeconds(0L)).build());
                ServerHttpRequest authErrorReq = request.mutate()
.path("/index.html")
.build();
                ServerWebExchange indexExchange = exchange.mutate().request(authErrorReq).build();
                return chain.filter(indexExchange);
            }

final ResEntity resEntity = feignClient.findUserByAccount(account);
            //判断用户是否存在
if (200 != resEntity.getHttpStatus() || null == resEntity.getData()) {
throw new BusinessException(ExceptionEnum.AUTH_USER_NOT_FOUND, account);
            }
//设置请求头信息
exchange = setHeader(exchange, resEntity);

        }

return chain.filter(exchange);
    }

/**
     * 获取cookies中的数据
     *
     * @param request 请求对象
     */
private Map<String, String> getCookiesInfo(ServerHttpRequest request) {
Map<String, String> map = new HashMap<>();
        Set<Map.Entry<String, List<HttpCookie>>> cookies = request.getCookies().entrySet();
        for (Map.Entry<String, List<HttpCookie>> entry : cookies) {
if ("userAccount".equals(entry.getKey())) {
map.put("account", entry.getValue().get(0).getValue());
            }
if ("token".equals(entry.getKey())) {
map.put("token", entry.getValue().get(0).getValue());
            }
        }
return map;

    }

/**
     * 设置头信息
     * am exchange
     *
     * @param resEntity
* @return
* @throws UnsupportedEncodingException
     */
private ServerWebExchange setHeader(ServerWebExchange exchange, ResEntity resEntity) {
final HashMap<String, String> claims = Maps.newHashMap();
        claims.put("jwt", UUID.randomUUID().toString().replaceAll("-", ""));
        ServerHttpRequest userInfo = null;
        try {
String user = URLEncoder.encode(JSON.toJSONString(resEntity.getData()), "UTF-8");
            userInfo = exchange.getRequest().mutate()
.header(BEAR_HEAD, JwtHelper.genToken(claims))
.header("userInfo", user)
.build();
            exchange = exchange.mutate().request(userInfo).build();
            //feign拦截器的线程局部变量
FeignRequestInterceptor.setContext(user);
        } catch (UnsupportedEncodingException e) {
throw new BusinessException(ExceptionEnum.COMMON_ENCODE_EXCEPTION, e, "网关拦截器");
        }

return exchange;
    }

/**
     * 过滤器的优先级
     *
     * @return
*/
@Override
public int getOrder() {
return 4;
    }
}

@Slf4j
@Configuration
public class FeignRequestInterceptor implements RequestInterceptor {

private static final String BEAR_HEAD = "bear";

    private static final String USER_INFO_HEAD = "hd-user";

    private static final ThreadLocal<String> USER_INFO = new ThreadLocal<>();

    public static void setContext(String userInfo) {
        USER_INFO.set(userInfo);
    }

public static void clean() {
        USER_INFO.remove();
    }

@Override
public void apply(RequestTemplate requestTemplate) {
final HashMap<String, String> claims = Maps.newHashMap();
        claims.put("jwt", UUID.randomUUID().toString().replaceAll("-", ""));
        requestTemplate.header(BEAR_HEAD, JwtHelper.genToken(claims));
        if (null != USER_INFO.get()) {
requestTemplate.header(USER_INFO_HEAD, USER_INFO.get());
        }

    }
}

2、更改负载均衡后的url

@Slf4j
public class VersionControlFilter implements GlobalFilter, Ordered {

private static final int VERSION_CONTROL_FILTER_ORDER = 101001;

    private static final String HTTP_PREFIX = "http://";

    private static final String SLASH = "/";

    private static final String STAR = "*";

    private static final String COLON = ":";

    private final RedisUtil redisUtil;

    private final ValueAnnotationUtils valueAnnotationUtils;

    public VersionControlFilter(RedisUtil redisUtil, ValueAnnotationUtils valueAnnotationUtils) {
this.redisUtil = redisUtil;
        this.valueAnnotationUtils = valueAnnotationUtils;
    }

@Override
public int getOrder() {
return VERSION_CONTROL_FILTER_ORDER;
    }

@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest request = exchange.getRequest();
        //获取远程ip地址
InetSocketAddress inetSocketAddress = request.getRemoteAddress();
        if (null == inetSocketAddress) {
return chain.filter(exchange);
        }
String clientIp = inetSocketAddress.getAddress().getHostAddress();
        //获取path
URI uri = request.getURI();
        String path = uri.getPath();

        //只有非白名单路径才版本控住
String requestPath = RequestUtils.getCurrentRequest(request);
        if (!RequestUtils.isFilter(requestPath)) {
//判断redis中是否存在key
boolean hasKey = redisUtil.exists(valueAnnotationUtils.getVersionControl() + valueAnnotationUtils.getActiveEnv());
            if (!hasKey) {
redisUtil.set(valueAnnotationUtils.getVersionControl() + valueAnnotationUtils.getActiveEnv(), JSON.toJSONString(new HashMap<>()));
            }
//先取出原本的key
Map<String, String> preMap =
                    JSON.parseObject(redisUtil.get(valueAnnotationUtils.getVersionControl() + valueAnnotationUtils.getActiveEnv()),
                            HashMap.class);
            //正常url 例如 /platform/user/me
String clientAddress = clientIp + path;
            String serviceIp = preMap.get(clientAddress);
            //非正常，匹配正则表达式 例如 /platform/user/* 或者 /platform/user/**
URI requestUrl = exchange.getRequiredAttribute(GATEWAY_REQUEST_URL_ATTR);
            if (StringUtils.isBlank(serviceIp)) {
serviceIp = getRegx(clientIp, path, preMap);
            }
if (StringUtils.isBlank(serviceIp)) {
return chain.filter(exchange);
            }
//负载均衡以后的路由地址 例如：http://160.5.34.210:9772/platform/user/me
int port = requestUrl.getPort();

            //替换到灰度的版本中
StringBuilder forwardAddress = new StringBuilder(HTTP_PREFIX);
            forwardAddress.append(serviceIp)
.append(COLON)
.append(port)
.append(path);
            //追加参数
if("GET".equalsIgnoreCase(request.getMethodValue())){
forwardAddress.append("?").append(uri.getQuery());
            }
            log.debug("VersionControlFilter 灰度转发的地址：{}", forwardAddress.toString());
            try {
requestUrl = new URI(forwardAddress.toString());
            } catch (URISyntaxException e) {
                log.error("VersionControlFilter URI不合法:{}", requestUrl);
            }

exchange.getAttributes().put(GATEWAY_REQUEST_URL_ATTR, requestUrl);
        }
return chain.filter(exchange);
    }

/**
     * 匹配正则规则
     *
     * @param clientIp 客户端ip
     * @param path     路径
     * @param map      redis中的数据
     * @return 服务器地址
     */
private String getRegx(String clientIp, String path, Map<String, String> map) {
String[] paths = path.split(SLASH);
        if (1 > paths.length) {
            log.error(" VersionControlFilter 请求路径：{}", path);
            throw new BusinessException(" VersionControlFilter 请求路径不合法");
        }
for (int i = 0; i < paths.length; i++) {
StringBuilder clientAddress = new StringBuilder(clientIp);
            String item = paths[i];
            if (StringUtils.isBlank(item)) {
continue;
            }
for (int j = 0; j <= i; j++) {
if (StringUtils.isBlank(paths[j])) {
continue;
                }
if (j == paths.length - 1) {
clientAddress.append(SLASH + STAR);
                } else {
clientAddress.append(SLASH).append(paths[j]);
                }
            }
if (i != paths.length - 1) {
clientAddress.append(SLASH + STAR + STAR);
            }

String serverIp = map.get(clientAddress.toString());
            if (StringUtils.isNotBlank(serverIp)) {
return serverIp;
            }
        }
return null;
    }

}

注意点：如果开启熔断，要注意熔断的线程隔离级别，否则Feign的请求拦截器在头中放入的数据，下游无法拿到。



@Autowired
private ValueAnnotationUtils valueAnnotationUtils;

@Resource
private IPlatformFunctionClient pfc;

@Resource
private IPlatformDubboService platformDubboService;

private static final String USER_INFO_HEAD = "hd-user";

private static final String GATEWAY_ROUTE_BEAN = "org.springframework.cloud.gateway.support.ServerWebExchangeUtils.gatewayRoute";

private static final String BEAR_HEAD = "bear";

@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest request = exchange.getRequest();
    //判断过滤器是否执行
String requestUrl = RequestUtils.getCurrentRequest(request);
    if (!RequestUtils.isFilter(requestUrl)) {
//该请求转发，因为访问/leap,需要展示登录页
if (requestUrl.equals("/leap/") || requestUrl.equals("/leap")) {
ServerHttpRequest authErrorReq = request.mutate()
.path("/index.html")
.build();
            ServerWebExchange indexExchange = exchange.mutate().request(authErrorReq).build();
            return chain.filter(indexExchange);
        }
ResEntity res;
        ServerHttpResponse response = exchange.getResponse();
        Map<String, String> cookiesInfo = getCookiesInfo(request);
        String account = cookiesInfo.get("account");
        String token = cookiesInfo.get("token");

        if (valueAnnotationUtils.getActiveEnv().equals("DEV")) {
//目前制定的方案是dev环境写死用户
account = "011336";
        }
if (valueAnnotationUtils.getActiveEnv().equals("UAT") || valueAnnotationUtils.getActiveEnv().equals("PRD")) {
res = platformDubboService.verifyToken(token);
            log.info("校验token：{}", res.getMsg());
            //如果token失效清除cookies ，让用户解锁或者重新登录
if (200 == res.getHttpStatus()) {
response.addCookie(ResponseCookie.from("token", token).path("/").build());
                response.addCookie(ResponseCookie.from("userAccount", account).path("/").build());
            }else {
                log.error("网关过滤器AuthenFilter:{}",res.getMsg());
                //token失效，通过cookies失效告知前端，重新解锁
response.addCookie(ResponseCookie.from("token", token).path("/").maxAge(Duration.ofSeconds(0L)).build());
                response.addCookie(ResponseCookie.from("userAccount", account).path("/").maxAge(Duration.ofSeconds(0L)).build());
                ServerHttpRequest authErrorReq = request.mutate()
.path("/index.html")
.build();
                ServerWebExchange indexExchange = exchange.mutate().request(authErrorReq).build();
                return chain.filter(indexExchange);
            }
        } else {
response.addCookie(ResponseCookie.from("userAccount", account).path("/").build());
        }
response.addCookie(ResponseCookie.from("expiredDate",
                String.valueOf(DateUtils.addMinutes(new Date(), 20).getTime())).maxAge(20 * 60).path(
"/").build());


        final ResEntity resEntity = pfc.findUserByAccount(account);
        //判断用户是否存在
if (200 != resEntity.getHttpStatus() || null == resEntity.getData()) {
throw new BusinessException(ExceptionEnum.AUTH_USER_NOT_FOUND, account);
        }
exchange = setHeader(exchange, resEntity);

        Route route = exchange.getAttribute(GATEWAY_ROUTE_BEAN);
        if (!("MSFA".equals(route.getId()) || "ACTIV".equals(route.getId()))) {
//判断url是否授权
final ResEntity<Boolean> isOk = pfc.hasPermission(route.getId(), requestUrl, request.getMethodValue());
            if (HttpStatus.OK.value() != isOk.getHttpStatus() || !isOk.getData()) {
throw new BusinessException(ExceptionEnum.AUTH_API_UNALLOW);
            }
        }

    }

return chain.filter(exchange);
}

/**
 * 获取cookies中的数据
 *
 * @param request 请求对象
 */
private Map<String, String> getCookiesInfo(ServerHttpRequest request) {
Map<String, String> map = new HashMap<>();
    Set<Map.Entry<String, List<HttpCookie>>> cookies = request.getCookies().entrySet();
    for (Map.Entry<String, List<HttpCookie>> entry : cookies) {
if ("userAccount".equals(entry.getKey())) {
map.put("account", entry.getValue().get(0).getValue());
        }
if ("token".equals(entry.getKey())) {
map.put("token", entry.getValue().get(0).getValue());
        }
    }
return map;

}

/**
 * 设置头信息
 * am exchange
 *
 * @param resEntity
* @return
* @throws UnsupportedEncodingException
 */
private ServerWebExchange setHeader(ServerWebExchange exchange, ResEntity resEntity) {
final HashMap<String, String> claims = Maps.newHashMap();
    claims.put("jwt", UUID.randomUUID().toString().replaceAll("-", ""));
    ServerHttpRequest userInfo = null;
    try {
String user = URLEncoder.encode(JSON.toJSONString(resEntity.getData()), "UTF-8");
        userInfo = exchange.getRequest().mutate()
.header(USER_INFO_HEAD, user)
.header(BEAR_HEAD, JwtHelper.genToken(claims))
.build();
        exchange = exchange.mutate().request(userInfo).build();
        FeignRequestInterceptor.setContext(user);
    } catch (UnsupportedEncodingException e) {
throw new BusinessException(ExceptionEnum.COMMON_ENCODE_EXCEPTION, e, "网关拦截器");
    }

return exchange;
}

/**
 * 过滤器的优先级
 *
 * @return
*/
@Override
public int getOrder() {
return 4;
}

Spring Cloud Gateway之全局过滤器的作用

原文：https://www.cnblogs.com/hyf-huangyongfei/p/12869745.html
踩
(0)
赞
(0)

举报
评论 一句话评论（0）
分享档案
更多>
2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
最新文章
更多>
教程昨日排行
更多>
友情链接
汇智网   PHP教程   插件网
关于我们 - 联系我们 - 留言反馈 - 联系我们:wmxa8@hotmail.com
© 2014 bubuko.com 版权所有
打开技术之扣，分享程序人生！
