Spring+Spring MVC框架启动的过程

时间:2020-05-17 15:56:07      阅读:67      评论:0      收藏:0      [点我收藏+]

Spring 的MVC,是基于Servlet功能实现的,通过实现Servlet接口的DispatcherServlet来封装其核心功能实现。

1 启动web容器后,会有一个servletContext对象该对象是全局唯一,项目中所有Servlet都共享该对象。ContextLoaderListener 装配ApplicationContext的配置信息
1 /**
2  * Initialize the root web application context.
3  */
4 @Override
5 public void contextInitialized(ServletContextEvent event) {
6    initWebApplicationContext(event.getServletContext());
7 }
在该方法中会创建WebApplicationContext实例并且并调用ServletContextsetAttribute方法,将其设置到ServletContext中,
属性的key为"org.springframework.web.context.WebApplicationContext.ROOT",最后的"ROOT"说明是Root WebApplicationContext

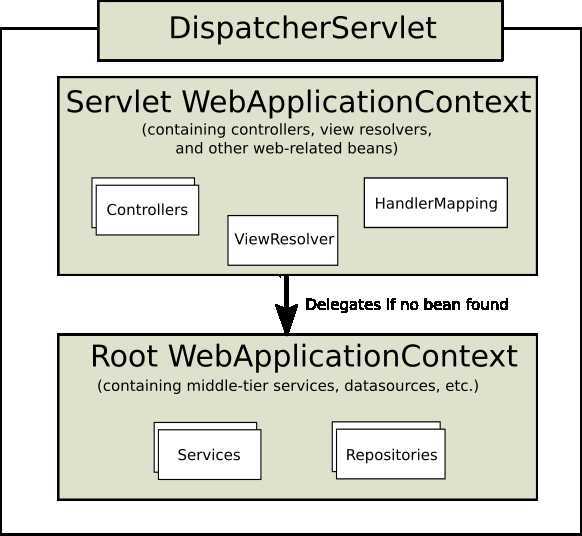

2 DispatcherServlet初始化,根据web.xml中的配置对*-servlet.xml进行加载初始化Servlet WebApplicationContext 调用FrameworkServlet中的initWebApplicationContext方法,
并且设置ServletWebApplicationContextparent为上面的root WebApplicationContext
protected WebApplicationContext initWebApplicationContext() {
   WebApplicationContext rootContext =
         WebApplicationContextUtils.getWebApplicationContext(getServletContext());
   WebApplicationContext wac = null;

   if (this.webApplicationContext != null) {
      // A context instance was injected at construction time -> use it
      wac = this.webApplicationContext;
      if (wac instanceof ConfigurableWebApplicationContext) {
         ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
         if (!cwac.isActive()) {
            // The context has not yet been refreshed -> provide services such as
            // setting the parent context, setting the application context id, etc
            if (cwac.getParent() == null) {
               // The context instance was injected without an explicit parent -> set
               // the root application context (if any; may be null) as the parent
               cwac.setParent(rootContext);
            }
            configureAndRefreshWebApplicationContext(cwac);
         }
      }
   }
   if (wac == null) {
      // No context instance was injected at construction time -> see if one
      // has been registered in the servlet context. If one exists, it is assumed
      // that the parent context (if any) has already been set and that the
      // user has performed any initialization such as setting the context id
      wac = findWebApplicationContext();
   }
   if (wac == null) {
      // No context instance is defined for this servlet -> create a local one
      wac = createWebApplicationContext(rootContext);
   }

   if (!this.refreshEventReceived) {
      // Either the context is not a ConfigurableApplicationContext with refresh
      // support or the context injected at construction time had already been
      // refreshed -> trigger initial onRefresh manually here.
      onRefresh(wac);
   }

   if (this.publishContext) {
      // Publish the context as a servlet context attribute.
      String attrName = getServletContextAttributeName();
      getServletContext().setAttribute(attrName, wac);
      if (this.logger.isDebugEnabled()) {
         this.logger.debug("Published WebApplicationContext of servlet ‘" + getServletName() +
               "‘ as ServletContext attribute with name [" + attrName + "]");
      }
   }

   return wac;
}

 技术分享图片



Spring+Spring MVC框架启动的过程

原文:https://www.cnblogs.com/dreamtaker/p/12905342.html
