ELK是一套开源的日志分析系统, 由 elasticsearch + logstash + kibana 组成.
官网介绍: https://www.elastic.co/cn/downloads
Elasticsearch(简称:ES)是一个开源的分布式搜索引擎, Elasticsearch 还是一个分布式文档数据库.并提供了大量数据的存储功能快速的搜索与分析功能.
起源于 Lucene, 基于 Java 语言开发的搜索引擎类库, 创建于 1999 年, 2005 年成为 Apache 顶级开源项目.Lucene 具有高性能, 以扩展的优点,
下载地址:https://www.elastic.co/cn/downloads/elasticsearch
elasticsearch7X版本自带JDK环境,之前版本需要安装JDK.
1. 关闭防火墙和selinux
[root@node6 ~]# setenforce 0
[root@node6 ~]# cat /etc/selinux/config
SELINUX=disabled
[root@node6 ~]# systemctl stop firewalld
[root@node6 ~]# systemctl disable firewalld
2. 修改系统打开最大文件句柄
[root@node6 ~]# cat /etc/security/limits.conf
# End of file
* soft nofile 655350
* hard nofile 655350
* soft nproc 20000
* hard nproc 20000
3. 修改内核参数
[root@node6 ~]# cat /etc/sysctl.conf
# For more information, see sysctl.conf(5) and sysctl.d(5).
fs.file-max=419430
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_syn_retries = 1
net.ipv4.tcp_tw_recycle = 1
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_fin_timeout = 1
net.ipv4.tcp_keepalive_time = 1200
net.ipv4.ip_local_port_range = 10000 65535
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_max_tw_buckets = 36000
net.ipv4.route.gc_timeout = 100
net.ipv4.tcp_syn_retries = 1
net.ipv4.tcp_synack_retries = 1
net.core.somaxconn = 16384
net.core.netdev_max_backlog = 16384
net.ipv4.tcp_max_orphans = 16384
net.ipv4.tcp_rmem = 4096 4096 16777216
net.ipv4.tcp_wmem = 4096 4096 16777216
net.ipv4.tcp_mem = 786432 2097152 3145728
#kernel.pty.max = 4
vm.max_map_count=262144
[root@node6 ~]# sysctl -p
4. 创建用户
[root@node6 ~]# useradd elasticsearch -M -s /sbin/nologin
5. 创建数据及日志目录
[root@node3 ~]# mkdir /data/elasticsearch/{data,logs} -p
[root@node3 ~]# chown elasticsearch:elasticsearch -R /data/elasticsearch/
[root@node6 ~]# wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.7.0-linux-x86_64.tar.gz [root@node6 ~]# rpm -ivh elasticsearch-7.7.0-x86_64.rpm
| 目录 | 主要配置文件 | 描述 |
| /usr/share/elasticsearch/bin/ | elasticsearch | 脚本文件存放目录,包括 elasticesearch,安装插件.运行统计数据等. |
|
/etc/elasticsearch/ |
elasticsearch.yml | 集群配置文件,jvm配置文件 |
| /usr/share/elasticsearch/jdk/ | java | java运行环境 |
| /data/elasticsearch/ | 日志和数据目录 | 数据文件及日志目录 |
| /usr/share/elasticsearch/lib/ | java类库 | |
|
/usr/share/elasticsearch/modules/ |
包含所有ES模块 | |
| /usr/share/elasticsearch/plugins/ | 包含所有已安装的插件 | |
[root@node6 ~]# cat /etc/elasticsearch/elasticsearch.yml # ---------------------------------- Cluster ----------------------------------- # 集群名称 cluster.name: es-cluster # ------------------------------------ Node ------------------------------------ # 节点 name node.name: node-6 # 节点是否参加 master 选举 node.master: true # 是否为数据节点 node.data: true # ----------------------------------- Paths ------------------------------------ # 数据目录 path.data: /data/elasticsearch/data # 日志文件存储路径 path.logs: /data/elasticsearch/logs # ----------------------------------- Memory ----------------------------------- # 是否启动时锁定内存 bootstrap.memory_lock: true # ---------------------------------- Network ----------------------------------- # 监听地址 network.host: 0.0.0.0 # 监听端口 http.port: 9200 # --------------------------------- Discovery ---------------------------------- # 自动发现节点 discovery.seed_hosts: ["172.16.0.206", "172.16.0.204","172.16.0.203"] # Bootstrap the cluster using an initial set of master-eligible nodes: # 初始化引导集群节点 cluster.initial_master_nodes: ["172.16.0.206", "172.16.0.204","172.16.0.203"]
配置建议:
官网配置建议: https://www.elastic.co/cn/blog/a-heap-of-trouble
vim /etc/elasticsearch/jvm.options -Xms2g -Xmx2g
# 启动服务并设为开机自启
[root@node6 ~]# systemctl start elasticsearch
[root@node6 ~]# systemctl enable elasticsearch

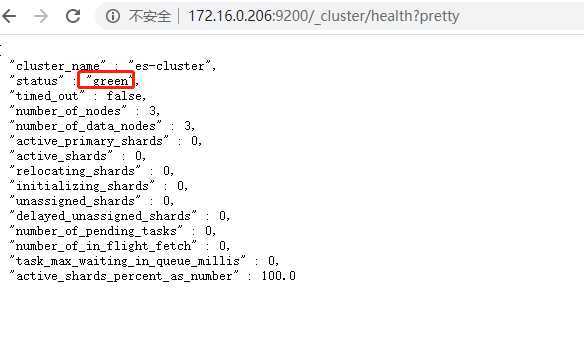

# 查看集群状态
[root@node6 ~]# curl http://172.16.0.206:9200/_cluster/health?pretty
{
"cluster_name" : "es-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 0,
"active_shards" : 0,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
# 查看各nodes 数据和主节点
[root@node6 ~]# curl http://172.16.0.206:9200/_cat/nodes?v
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
172.16.0.203 59 96 1 0.12 0.06 0.05 dilmrt - node-3
172.16.0.204 26 95 1 0.05 0.07 0.06 dilmrt * node-4
172.16.0.206 36 78 0 0.01 0.04 0.05 dilmrt - node-6
elasticsearch状态说明
elasticsearch-head 是集群管理, 数据可视化, 增删改查, 查询语句可视化工具. 从 ES5 版本后安装方式 和 ES2 以上版本有所不同. ES2 可使用安装插件方式进行安装, 但是从 ES5 之后需要使用 NodeJs来启动.
官网地址: https://github.com/mobz/elasticsearch-head

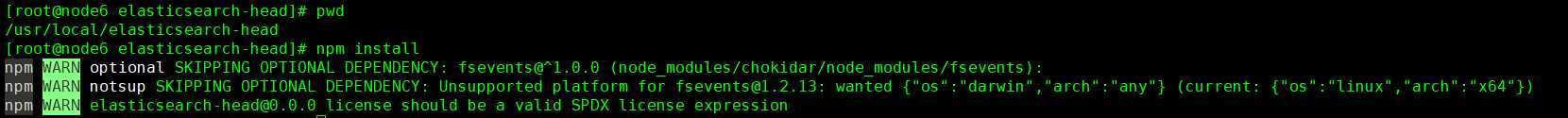

git clone git://github.com/mobz/elasticsearch-head.git cd elasticsearch-head yum install npm npm config set registry https://mirrors.huaweicloud.com/repository/npm/ npm install
修改默认监听地址
配置文件路径: path/elasticsearch-head/Gruntfile.js
在server下options选项中添加: hostname: ‘0.0.0.0‘,
connect: {
server: {
options: {
hostname: ‘0.0.0.0‘, # 新添加内容
port: 9100,
base: ‘.‘,
keepalive: true
}
}
}
修改默认连接地址
配置文件: path/elasticsearch-head/_site/app.js
# 修改http://localhost:9200 为 http://es-ip:9200
this.base_uri = this.config.base_uri || this.prefs.get("app-base_uri") || "http://172.16.0.206:9200";

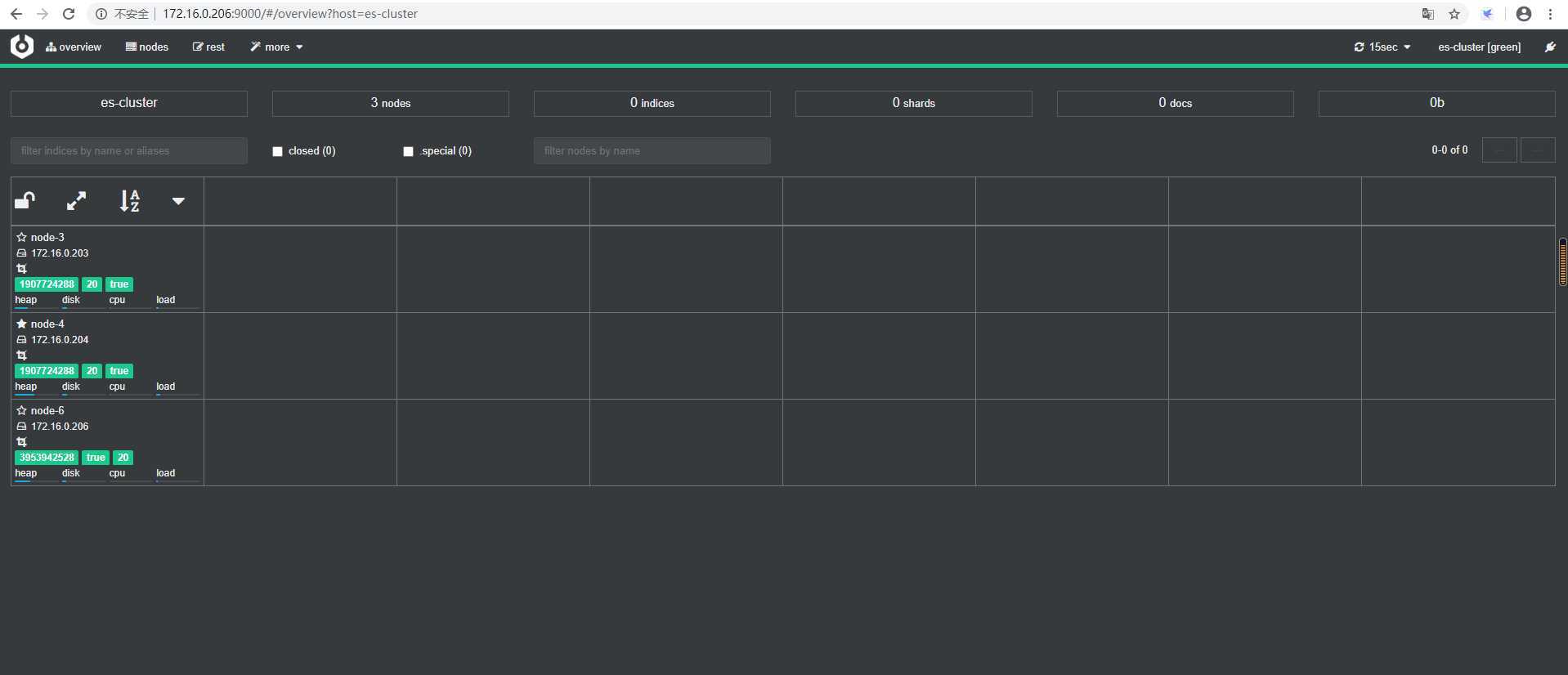

cerebro 和 elasticsearch-head 类似.是一款基于Web的ElasticSearch管理监控工具 图形化比elasticsearch-head更加友好.
项目地址: https://github.com/lmenezes/cerebro
wget https://github.com/lmenezes/cerebro/releases/download/v0.9.1/cerebro-0.9.1.tgz tar xf cerebro-0.9.1.tgz cd cerebro-0.9.1/
vim /usr/local/cerebro-0.9.1/conf/application.conf
hosts = [
{
host = "http://172.16.0.206:9200"
name = "es-cluster"
}
]
# 默认监听 0.0.0.0 bin/cerebro # 也可指定监听ip和端口号 bin/cerebro -Dhttp.port=1234 -Dhttp.address=127.0.0.1
