spring boot + mybatis + mybatis逆向工程 --- 心得

时间:2020-06-01 21:26:44      阅读:45      评论:0      收藏:0      [点我收藏+]

1.前言

  以前用惯了springMVC框架 ,以SSM 框架 来开发项目  ,现在因为需要,使用spring boot框架,那么mybatis该如何与spring boot结合呢?

  结构区别不大,但是配置文件的写法却改变了很多。

2.环境

spring boot  2.1.6.RELEASE

 mysql 5.5.28*win64

jdk 1.8.0_221

3.操作

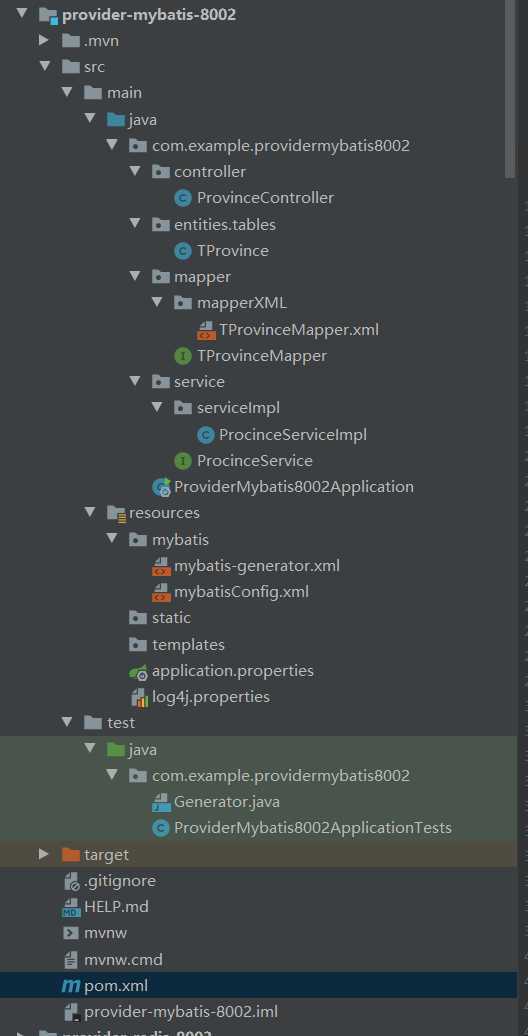

(1)目录结构

技术分享图片

 (2)pom.xml

技术分享图片
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>provider-mybatis-8002</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>provider-mybatis-8002</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- MySQL 依赖-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <!--            <scope>runtime</scope>-->
            <version>5.1.30</version>
        </dependency>
        <!--MySQL 数据源 依赖包-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>

        <!--        mybatis依赖-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.2</version>
        </dependency>
        <!-- mybatis的逆向工程依赖包-->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.2</version>
        </dependency>


    </dependencies>

    <build>
        <!--        -->
        <!--编译时 将 src/main/java 里面的xml文件 打包到src/main/resources-->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
        </resources>
        <!--        -->
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>
View Code

(3)application.properties

技术分享图片
spring.application.name=provider-mybatis-8002

server.port=8002


#mybatis设置
#mybatis配置文件所在路径
mybatis.config-location=classpath:mybatis/mybatisConfig.xml
#所有Entity别名类所在包
mybatis.type-aliases-package=com.example.providermybatis8002.entities.tables
#mapper映射文件[也可以放在 resources 里面]
#不论放在哪里,都必须使用classpath: 否则找不到 ,报错 org.apache.ibatis.binding.BindingException: Invalid bound statement (not found):
mybatis.mapper-locations= classpath:com/example/providermybatis8002/mapper/**/*.xml


#mysql配置
# 当前数据源操作类型
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
# mysql驱动包
spring.datasource.driver-class-name=org.gjt.mm.mysql.Driver
# 数据库名称
spring.datasource.url=jdbc:mysql://localhost:3306/clinic?characterEncoding=utf-8
# 数据库账户名
spring.datasource.username=root
# 数据库密码
spring.datasource.password=root
#
#
# 数据库连接池的最小维持连接数
spring.datasource.dbcp2.min-idle=5
# 初始化连接数
spring.datasource.dbcp2.initial-size=5
# 最大连接数
spring.datasource.dbcp2.max-total=5
# 等待连接获取的最大超时时间
spring.datasource.dbcp2.max-wait-millis=200
#
#
#
#
# 指明是否在从池中取出连接前进行检验,如果检验失败, 则从池中去除连接并尝试取出另一个,
#注意: 设置为true后如果要生效,validationQuery参数必须设置为非空字符串
spring.datasource.druid.test-on-borrow=false
#
# 指明连接是否被空闲连接回收器(如果有)进行检验.如果检测失败,则连接将被从池中去除.
#注意: 设置为true后如果要生效,validationQuery参数必须设置为非空字符串
spring.datasource.druid.test-while-idle=true
#
# 指明是否在归还到池中前进行检验,注意: 设置为true后如果要生效,
#validationQuery参数必须设置为非空字符串
spring.datasource.druid.test-on-return=false
#
# SQL查询,用来验证从连接池取出的连接,在将连接返回给调用者之前.
#如果指定,则查询必须是一个SQL SELECT并且必须返回至少一行记录
spring.datasource.druid.validation-query=select 1
View Code

(3)mybaitsConfig.xml

技术分享图片
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>

    <settings>
        <!-- 开启log4j日志,打印到控制台,关闭则注释掉该语句即可-->
        <!--        <setting name="logImpl" value="STDOUT_LOGGING"/>-->

        <!-- 开启驼峰命名转换:Table{create_time} -> Entity{createTime} -->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <!-- 使用列别名替换列名 默认:true -->
        <setting name="useColumnLabel" value="true"/>
        <!-- 使用jdbc的getGeneratedKeys获取数据库自增主键值 -->
        <setting name="useGeneratedKeys" value="true"/>
        <!-- 二级缓存开启 -->
        <setting name="cacheEnabled" value="true" />

    </settings>

</configuration>
View Code

(4)mybatis逆向工程配置文件   mybatis-generator.xml

技术分享图片
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <context id="testTables" targetRuntime="MyBatis3">
        <commentGenerator>
            <!-- 是否去除自动生成的注释 true:是 : false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>
        <!--数据库连接的信息:驱动类、连接地址、用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/clinic"
                        userId="root"
                        password="root">
        </jdbcConnection>
        <!--
            默认false,把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer,
            为true时把JDBC DECIMAL和NUMERIC类型解析为java.math.BigDecimal
        -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- targetProject:生成PO类的位置,重要!! -->
        <javaModelGenerator targetPackage="com.example.providermybatis8002.entities.tables"
                            targetProject="src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false"/>
            <!-- 从数据库返回的值被清理前后的空格 -->
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>
        <!-- targetProject:mapper映射文件生成的位置,重要!! -->
        <sqlMapGenerator targetPackage="com.example.providermybatis8002.mapper.mapperXML"
                         targetProject="src/main/java">
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>
        <!-- targetPackage:mapper接口生成的位置,重要!! -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.example.providermybatis8002.mapper"
                             targetProject="src/main/java">
            <!-- 是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="fasle"/>
        </javaClientGenerator>


        <!-- 指定数据库表,要生成哪些表,就写哪些表,要和数据库中对应,不能写错! -->
        <table tableName="t_province" enableCountByExample="false" enableUpdateByExample="false"
               enableSelectByExample="false" enableDeleteByExample="false"
               selectByExampleQueryId="false"/>

    </context>
</generatorConfiguration>
View Code

(5)mybatis逆向工程启动测试类

技术分享图片
package com.example.providermybatis8002;

import org.junit.Test;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

/**
 * 逆向工程
 */
public class Generator {

    /**
     * 注意,警惕,mmp,逆向工程不可重复运行第二次,如果要运行第二次,必须删除原来由逆向工程生成的所有文件,
     * 否则sql语句的id和方法会重复,重复,重复,但是文件个数不会变化,,,,
     * 运行不会报错,什么都没有,但是会找不到对应的mapper文件。
     */
    @Test
    public void run() {
        try {
            this.generator();
            System.out.println("成功");
        } catch (Exception e) {
            e.printStackTrace();
        }

    }

    private void generator() throws Exception {
        List<String> warnings = new ArrayList<String>();
        boolean overwrite = true;
        //加载配置文件
        File configFile = new File("src/main/resources/mybatis/mybatis-generator.xml");
        ConfigurationParser cp = new ConfigurationParser(warnings);
        Configuration config = cp.parseConfiguration(configFile);
        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        myBatisGenerator.generate(null);

    }

}
View Code

(6)执行 mybatis逆向工程启动测试类 ,会自动生成entity实体类 、mapper接口 和 mapper.xml

【我的习惯是mapper接口 和 mapper.xml 放在Java包里的mapper包里,容易找,

但部分人喜欢将该mapper包命名为dao将mapper接口放在里面  ,然后再 在resources包里新建mapper包,将mapper.xml文件放在里面。

其实作用都一样,只是配置有一点区别而已

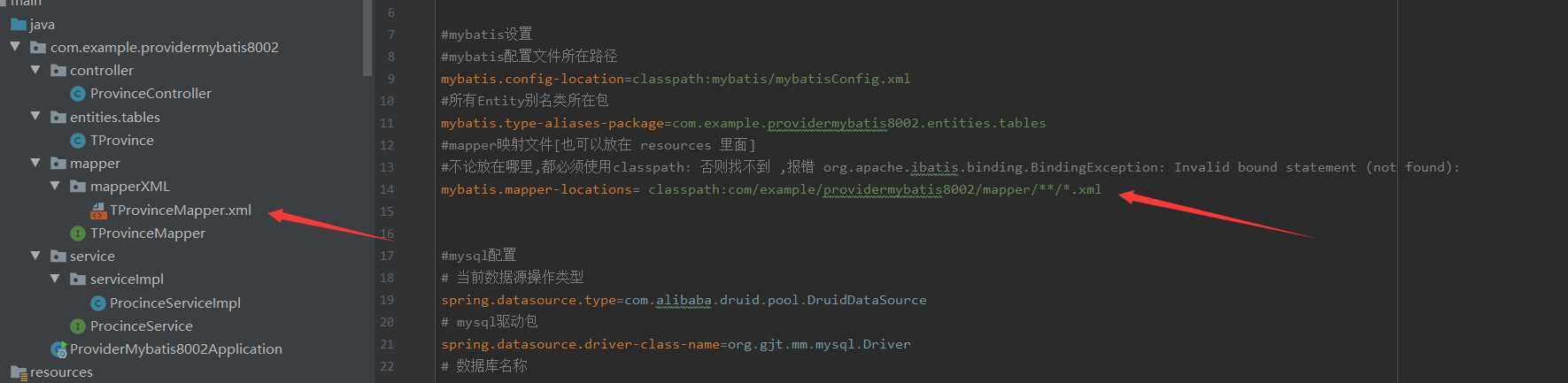

不论是哪种 ,application.properties文件 对mapper.xml的映射文件地址都需要使用 classpath的写法,否则会找不到

技术分享图片

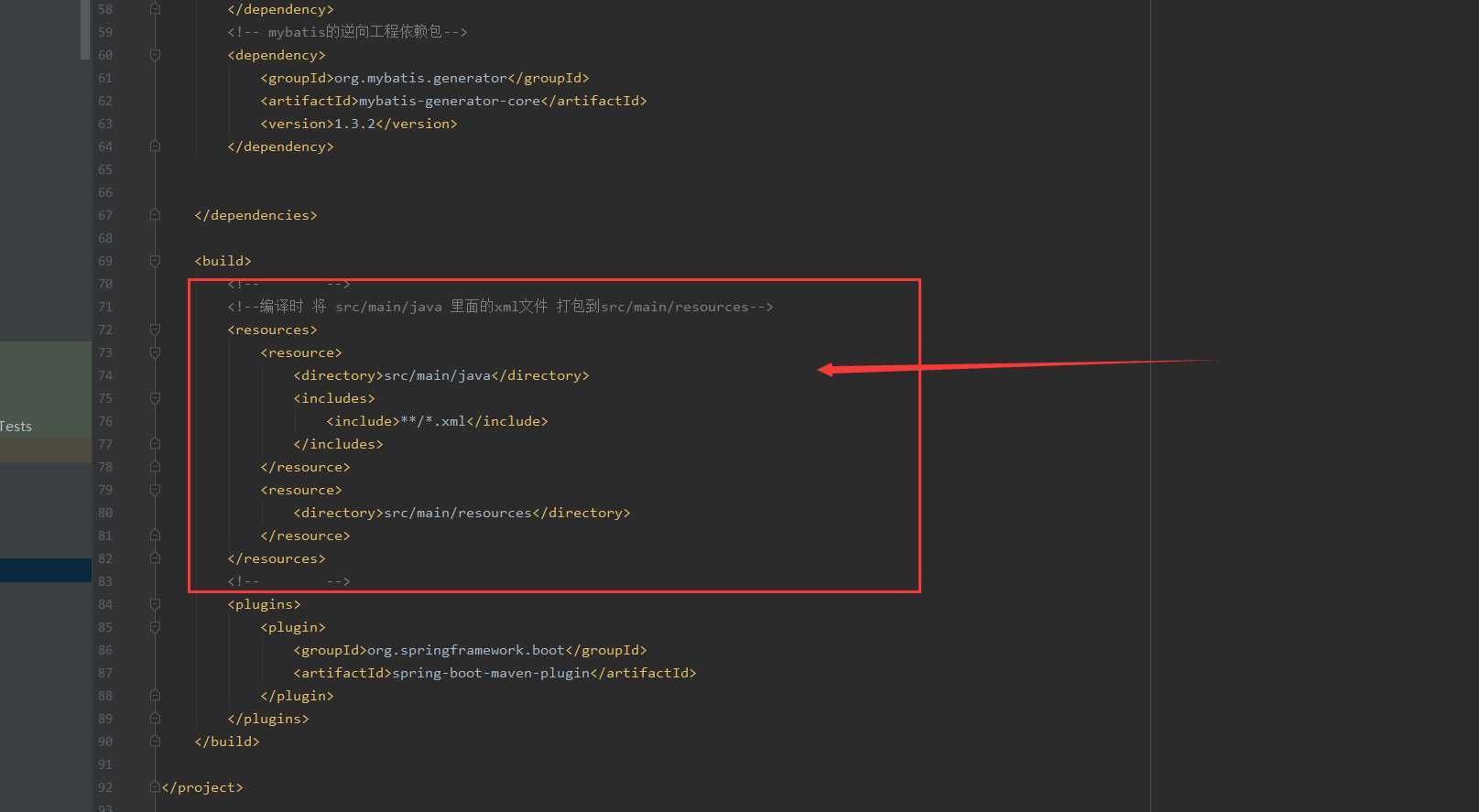

 同时,如果将mapper.xml文件写在Java包里面,呢么需要在pom.xml文件里需要添加编译设置 ,否则工程发布后,Java里面的xml文件不编译,如果写在resources包里面则不需要写

技术分享图片







(7)实体类

技术分享图片
package com.example.providermybatis8002.entities.tables;

public class TProvince {
    private Integer id;

    private String name;

    private Integer isuse;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public Integer getIsuse() {
        return isuse;
    }

    public void setIsuse(Integer isuse) {
        this.isuse = isuse;
    }

    @Override
    public String toString() {
        return "TProvince{" +
                "id=" + id +
                ", name=‘" + name + ‘\‘‘ +
                ", isuse=" + isuse +
                ‘}‘;
    }
}
View Code

(8)mapper接口

技术分享图片
package com.example.providermybatis8002.mapper;

import com.example.providermybatis8002.entities.tables.TProvince;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Component;

import java.util.List;

//如果不添加这个,会扫描不到 ;也可以不添加,但是必须去启动类使用 @MapperScan注解
//@Mapper
public interface TProvinceMapper {
    int deleteByPrimaryKey(Integer id);

    int insert(TProvince record);

    int insertSelective(TProvince record);

    TProvince selectByPrimaryKey(Integer id);

    int updateByPrimaryKeySelective(TProvince record);

    int updateByPrimaryKey(TProvince record);

    //查询所有
    List<TProvince> selectAll();

}
View Code

技术分享图片





 这个是我自定义的,不是自动生成的



(9)mapper.xml

技术分享图片
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.example.providermybatis8002.mapper.TProvinceMapper">
    <resultMap id="BaseResultMap" type="com.example.providermybatis8002.entities.tables.TProvince">
        <id column="id" property="id" jdbcType="INTEGER"/>
        <result column="name" property="name" jdbcType="VARCHAR"/>
        <result column="isuse" property="isuse" jdbcType="INTEGER"/>
    </resultMap>
    <sql id="Base_Column_List">
    id, name, isuse
  </sql>
    <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer">
        select
        <include refid="Base_Column_List"/>
        from t_province
        where id = #{id,jdbcType=INTEGER}
    </select>
    <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    delete from t_province
    where id = #{id,jdbcType=INTEGER}
  </delete>
    <insert id="insert" parameterType="com.example.providermybatis8002.entities.tables.TProvince">
    insert into t_province (id, name, isuse
      )
    values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{isuse,jdbcType=INTEGER}
      )
  </insert>
    <insert id="insertSelective" parameterType="com.example.providermybatis8002.entities.tables.TProvince">
        insert into t_province
        <trim prefix="(" suffix=")" suffixOverrides=",">
            <if test="id != null">
                id,
            </if>
            <if test="name != null">
                name,
            </if>
            <if test="isuse != null">
                isuse,
            </if>
        </trim>
        <trim prefix="values (" suffix=")" suffixOverrides=",">
            <if test="id != null">
                #{id,jdbcType=INTEGER},
            </if>
            <if test="name != null">
                #{name,jdbcType=VARCHAR},
            </if>
            <if test="isuse != null">
                #{isuse,jdbcType=INTEGER},
            </if>
        </trim>
    </insert>
    <update id="updateByPrimaryKeySelective" parameterType="com.example.providermybatis8002.entities.tables.TProvince">
        update t_province
        <set>
            <if test="name != null">
                name = #{name,jdbcType=VARCHAR},
            </if>
            <if test="isuse != null">
                isuse = #{isuse,jdbcType=INTEGER},
            </if>
        </set>
        where id = #{id,jdbcType=INTEGER}
    </update>
    <update id="updateByPrimaryKey" parameterType="com.example.providermybatis8002.entities.tables.TProvince">
    update t_province
    set name = #{name,jdbcType=VARCHAR},
      isuse = #{isuse,jdbcType=INTEGER}
    where id = #{id,jdbcType=INTEGER}
  </update>

    <!--  //查询所有-->
    <select id="selectAll" resultType="tProvince">
    select * from t_province
  </select>


</mapper>
View Code



注意了需要在mapper接口 加入 @Mapper注解 ,否则spring无法扫描到 ,

那么问题来了,每一个mapper接口都写@Mapper注解 ,是不是很烦?

解决的办法也很简单,去要去启动类添加@MapperScan注解 ,参数是装有需要扫描的mapper接口的包位置 ,这样mapper接口 加不加 @Mapper注解都无所谓

(10)启动类

技术分享图片
package com.example.providermybatis8002;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
//
//如果不添加这个注解 ,则必须去每一个mapper接口添加@Mapper注解
@MapperScan(basePackages = "com.example.providermybatis8002.mapper")
public class ProviderMybatis8002Application {

    public static void main(String[] args) {
        SpringApplication.run(ProviderMybatis8002Application.class, args);
    }

}
View Code





那么,现在该怎么调用呢? 其实跟 springMVC 的调用基本不差别 ,唯一不同的就是 以前实例 mapper接口 是使用 @Autowired ,但是在spring boot里

需要使用 @Resource  ,否则会报错,接口名下面出现红色波浪线 ,虽然并不影响使用 ,但是对强迫症很不友好



(11)service服务层接口

技术分享图片
package com.example.providermybatis8002.service;

import com.example.providermybatis8002.entities.tables.TProvince;

import java.util.List;
import java.util.Map;

public interface ProcinceService {

    public Map<String, Object> getAll();
}
View Code



(12)service服务层接口的实现类

技术分享图片
package com.example.providermybatis8002.service.serviceImpl;

import com.example.providermybatis8002.entities.tables.TProvince;
import com.example.providermybatis8002.mapper.TProvinceMapper;
import com.example.providermybatis8002.service.ProcinceService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.HashMap;
import java.util.List;
import java.util.Map;


@Service
public class ProcinceServiceImpl implements ProcinceService {

    //@Autowired是默认按照类型装配的 @Resource默认是按照名称装配的 ,都是注册bean的
//    @Autowired
    @Resource
    private TProvinceMapper tProvinceMapper;

    @Override
    public Map<String, Object> getAll() {
        Map<String, Object> map = new HashMap<>();
        List<TProvince> list = tProvinceMapper.selectAll();
//        System.out.println(list);
        map.put("data", list);
//        TProvince tProvince = tProvinceMapper.selectByPrimaryKey(100000);
//        System.out.println(tProvince);
//        if(tProvince == null){
//            System.out.println("44444");
//        }

        return map;
    }
}
View Code

(13)controller层

技术分享图片
package com.example.providermybatis8002.controller;


import com.example.providermybatis8002.service.ProcinceService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Map;

@RestController
public class ProvinceController {


    @Autowired
    private ProcinceService procinceService;


    @RequestMapping("/getall")
    public Map<String, Object> getAll(){
        return procinceService.getAll();
    }
}
View Code





4.测试

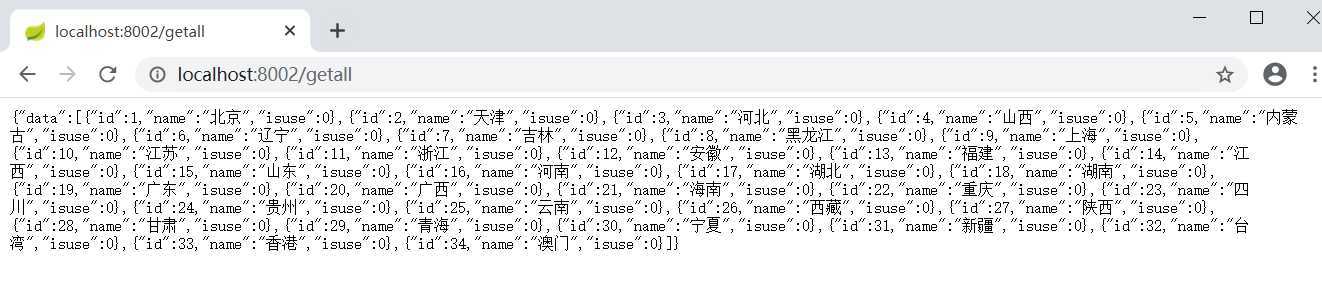

启动工程 ,访问端口 8002 , http://localhost:8002/getall

 技术分享图片





    成功 ,撒花!!!



-----------------------

参考博文原址:

https://blog.csdn.net/u012702547/article/details/88643598



spring boot + mybatis + mybatis逆向工程 --- 心得

原文:https://www.cnblogs.com/c2g5201314/p/13027283.html

(0)
(0)

举报
评论 一句话评论(0
关于我们 - 联系我们 - 留言反馈 - 联系我们:wmxa8@hotmail.com
© 2014 bubuko.com 版权所有
打开技术之扣,分享程序人生!
