RabbitMQ的主题（Topic）模式（五）

一、定义

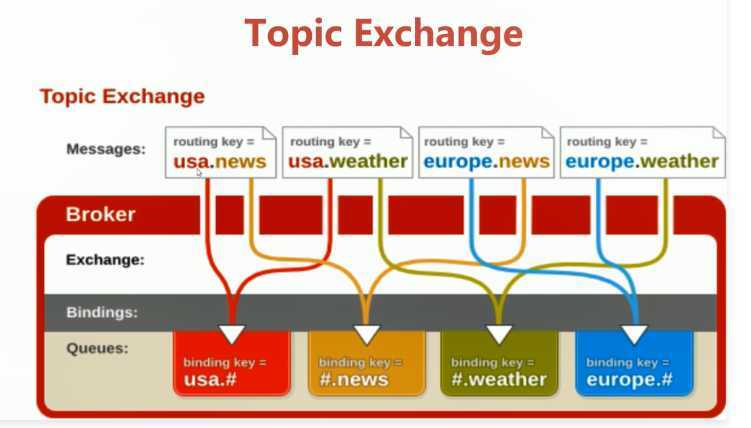

我们先来看一张图：

这张图有几个不同的routingkey，每个routingkey都是由两段组成的；
下面我们来编写代码来实现相关功能；

二、生产者生产消息

生产者发送四条消息，routingkey不相同，代码如下：

    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("msg send start!");
            TopicPublisher();
            Console.WriteLine("msg send end!");
        }
        static string EXCHANGE_NAME = "routing_exchange_topic";
        static void TopicPublisher()
        {
            var conn = RabbitMQHelper.GetConnection();
            var channel = conn.CreateModel();
            channel.ExchangeDeclare(exchange: EXCHANGE_NAME, type: ExchangeType.Topic);
            var routingKeyList = new List<string>() { "usa.news", "usa.weather", "europe.news", "europe.weather" };
            for (var i = 0; i < routingKeyList.Count; i++)
            {
                var msg = $"hello topic {routingKeyList[i]}！";

                channel.BasicPublish(
                    exchange: EXCHANGE_NAME,
                    routingKey: routingKeyList[i],
                    basicProperties: null,
                    body: Encoding.UTF8.GetBytes(msg));
                Console.WriteLine($"消息发送:" + msg);
            }
            Console.WriteLine($"消息发送完成！");
            channel.Close();
            conn.Close();
        }

    }

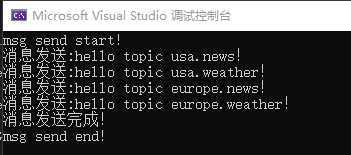

结果运行如图：

三、消费者

3.1 消费者1，绑定的routingkey为europe.#，代码如下：

        static string EXCHANGE_NAME = "routing_exchange_topic";
        static string QUEUE_NAME = "routing_queue_topic1";
        static void TopicConsumer1()
        {
            var conn = RabbitMQHelper.GetConnection();
            var channel = conn.CreateModel();
            channel.ExchangeDeclare(exchange: EXCHANGE_NAME, type: ExchangeType.Topic);
            channel.QueueDeclare(queue: QUEUE_NAME);
            // 绑定routingKey
            string routingKey = "europe.#";
            channel.QueueBind(queue: QUEUE_NAME, exchange: EXCHANGE_NAME, routingKey: routingKey);
            var consumer = new EventingBasicConsumer(channel);
            consumer.Received += (model, ea) =>
            {
                var body = ea.Body;
                var message = Encoding.UTF8.GetString(body.ToArray());
                Console.WriteLine($"Topic Consumer1 收到消息： {message}，时间：{DateTime.Now}");
            };
            channel.BasicConsume(queue: QUEUE_NAME, autoAck: true, consumer: consumer);
            Console.ReadKey();
            channel.Close();
            conn.Close();
        }
    }

3.2 消费者2，绑定的routingkey为#.weather，代码如下：

        static string EXCHANGE_NAME = "routing_exchange_topic";
        static string QUEUE_NAME = "routing_queue_topic2";
        static void TopicConsumer2()
        {
            var conn = RabbitMQHelper.GetConnection();
            var channel = conn.CreateModel();
            channel.ExchangeDeclare(exchange: EXCHANGE_NAME, type: ExchangeType.Topic);
            channel.QueueDeclare(queue: QUEUE_NAME);
            string routingKey = "#.weather";
            // 可以绑定多个routingKey
            channel.QueueBind(queue: QUEUE_NAME, exchange: EXCHANGE_NAME, routingKey: routingKey);
            var consumer = new EventingBasicConsumer(channel);
            consumer.Received += (model, ea) =>
            {
                var body = ea.Body;
                var message = Encoding.UTF8.GetString(body.ToArray());
                Console.WriteLine($"Topic Consumer2 收到消息： {message}，时间：{DateTime.Now}");
            };
            channel.BasicConsume(queue: QUEUE_NAME, autoAck: true, consumer: consumer);
            Console.ReadKey();
            channel.Close();
            conn.Close();
        }

3.3 查看运行结果

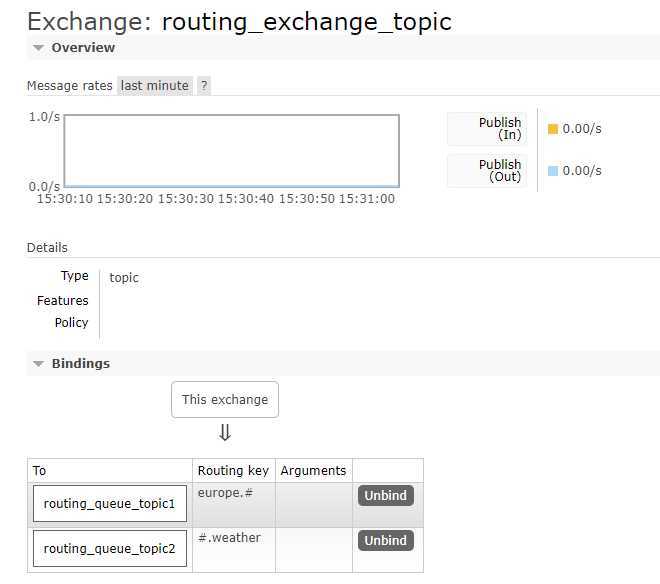

（1）队列绑定到交换机的结果如图：

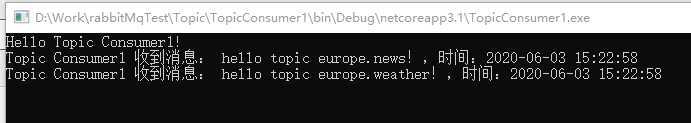

（2）消费者1的接收到的消息：

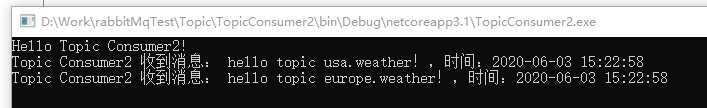

（3）消费者2的接收到的消息：

通过结果我们可以看到，消费者1和消费者2分别接收到了不同key的消息；

四、小结

1、topic模式，我们可以通过模糊匹配的，来接收自己想要的消息；使用Topic模式生产者在声明队列时需要制定消息到达队列方式为topic；
2、Consumer消费者，匹配消息时：#匹配一个或者多个关键字，*匹配一个关键字
3、参考文档：https://www.rabbitmq.com/tutorials/tutorial-five-dotnet.html
