ELK是Elasticsearch、Logstash、Kibana三款开源软件的简称，对外可以作为日志管理系统，它可以收集任何来源的日志，并且对日志进行分析与可视化展示
Elasticsearch是一款开源分布式搜索引擎，它的主要功能为提供收集、分析、存储数据
Logstash是一款服务端的数据传输软件，它的主要功能日志的收集、分析、过滤工具，它可以从不同的来源中提取数据，转换并存储到Elasticsearch中供后续处理
Kibana是一款基于web的图形界面，它的主要功能是搜索、分析和可视化存储在Elasticsearch中的日志数据
准备三台Centos7虚拟机，配置IP地址和hostname，关闭防火墙和selinux，同步系统时间，配置IP地址和hostname映射
| hostname | ip |
|---|---|
| 192.168.29.143 | node1 |
| 192.168.29.142 | node2 |
| 192.168.29.144 | node3 |
三台机器的部署架构为
| 结点 | 部署架构 |
|---|---|
| node1 | elasticsearch+logstash+kibana |
| node2 | elasticsearch |
| node3 | logstash+redis+nginx+httpd |
从官网下载elasticsearch、logstash、kibana的压缩包
安装Java环境
从官网下载jdk压缩包并解压
三个结点均要安装java环境
#添加环境变量
[root@node1 ~]# vi /etc/profile
JAVA_HOME=/usr/local/java
CLASS_PATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
PATH=$PATH:$JAVA_HOME/bin
export PATH JAVA_HOME CLASS_PATH
#重新读取环境变量
[root@node1 ~]# source /etc/profile
#查看java环境配置情况
[root@node1 ~]# java -version
java version "1.8.0_241"
Java(TM) SE Runtime Environment (build 1.8.0_241-b07)
Java HotSpot(TM) 64-Bit Server VM (build 25.241-b07, mixed mode)node3安装配置redis
[root@node3 ~]# yum install epel-release -y
[root@node3 ~]# yum install redis -y
#修改配置文件
[root@node3 ~]# vi /etc/redis.conf
bind 0.0.0.0
daemonize yes
#启动服务
[root@node3 ~]# systemctl start redisnode3安装配置Nginx
从nginx官网下载yum源配置文件
[root@node3 ~]# yum install nginx -y
#配置日志输出格式为json
[root@node3 ~]# vi /etc/nginx/nginx.conf
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main ‘{ "time_local": "$time_local", ‘
‘"remote_addr": "$remote_addr", ‘
‘"remote_user": "$remote_user", ‘
‘"body_bytes_sent": "$body_bytes_sent", ‘
‘"request_time": "$request_time", ‘
‘"status": "$status", ‘
‘"host": "$host", ‘
‘"request": "$request", ‘
‘"request_method": "$request_method", ‘
‘"uri": "$uri", ‘
‘"http_referrer": "$http_referer", ‘
‘"http_x_forwarded_for": "$http_x_forwarded_for", ‘
‘"http_user_agent": "$http_user_agent" ‘
‘}‘;
access_log /var/log/nginx/access.log main;
sendfile on;
keepalive_timeout 65;
include /etc/nginx/conf.d/*.conf;
}
#为了使Nginx和httpd不产生冲突，把Nginx监听端口改为8080
[root@node3 ~]# vi /etc/nginx/conf.d/default.conf
listen 8080;
#启动服务
[root@node3 ~]# systemctl start nginxnode3安装配置httpd
[root@node3 ~]# yum install httpd -y
#配置日志输出格式为json
[root@node3 ~]# vi /etc/httpd/conf/httpd.conf
<IfModule log_config_module>
LogFormat "{ \"@timestamp\": \"%{%Y-%m-%dT%H:%M:%S%z}t\", \"@version\": \"1\", \"tags\":[\"apache\"], \"message\": \"%h %l %u %t \\\"%r\\\" %>s %b\", \"clientip\": \"%a\", \"duration\": %D, \"status\": %>s, \"request\": \"%U%q\", \"urlpath\": \"%U\", \"urlquery\": \"%q\", \"bytes\": %B, \"method\": \"%m\", \"site\": \"%{Host}i\", \"referer\": \"%{Referer}i\", \"useragent\": \"%{User-agent}i\" }" ls_apache_json
<IfModule logio_module>
# You need to enable mod_logio.c to use %I and %O
#LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" %I %O" combinedio
</IfModule>
CustomLog "logs/access_log" ls_apache_json
</IfModule>
#启动服务
[root@node3 ~]# systemctl start httpd.service 系统设置
#node1和node2结点设置
[root@node1 ~]# cat /etc/security/limits.conf
* soft nofile 65540
* hard nofile 65540
#设置完需要重启机器 生效创建用户
#由于elasticsearch不能使用root用户运行，需要在node1和node2结点上创建kawhi用户
[root@node1 ~]# useradd kawhi
[root@node1 ~]# echo 123456 | passwd --stdin kawhi
[root@node2 ~]# useradd kawhi
[root@node2 ~]# echo 123456 | passwd --stdin kawhinode1和node2部署elasticsearch集群
上传压缩包并解压
[root@node1 ~]# tar -zxvf elasticsearch-7.6.0-linux-x86_64.tar.gz -C /usr/local/elasticsearch
[root@node2 ~]# tar -zxvf elasticsearch-7.6.0-linux-x86_64.tar.gz -C /usr/local/elasticsearch
#修改node1配置文件
[root@node1 ~]# vi /usr/local/elasticsearch/config/elasticsearch.yml
cluster.name: my-cluster
node.name: node1
bootstrap.memory_lock: false
network.host: 192.168.29.143
http.port: 9200
discovery.seed_hosts: ["192.168.29.143","192.168.29.142"]
cluster.initial_master_nodes: ["192.168.29.143"]
node.max_local_storage_nodes: 100
http.cors.enabled: true
http.cors.allow-origin: "*"
#修改node2配置文件
[root@node2 ~]# vi /usr/local/elasticsearch/config/elasticsearch.yml
cluster.name: my-cluster
node.name: node2
bootstrap.memory_lock: false
network.host: 192.168.29.142
http.port: 9200
discovery.seed_hosts: ["192.168.29.143","192.168.29.142"]
cluster.initial_master_nodes: ["192.168.29.143"]
#把elasticsearch的权限改为kawhi用户
[root@node1 ~]# chown -R kawhi:kawhi /usr/local/elasticsearch
[root@node2 ~]# chown -R kawhi:kawhi /usr/local/elasticsearch 启动服务
[root@node1 ~]# su kawhi
[root@node1 ~]# cd /usr/local/elasticsearch/bin/
[root@node1 ~]# nohup ./elasticsearch > /dev/null 2>&1
[root@node2 ~]# su kawhi
[root@node2 ~]# cd /usr/local/elasticsearch/bin/
[root@node2 ~]# nohup ./elasticsearch > /dev/null 2>&1 查看elasticsearch运行情况

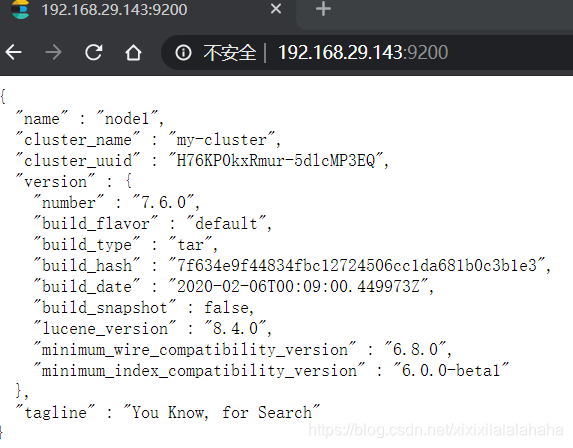

访问http://node1:9200

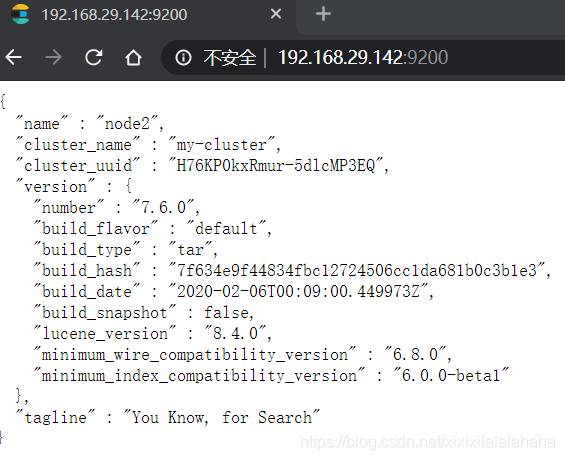

访问http://node2:9200
node1部署elasticsearch-head-master插件
#安装npm
[root@node1 ~]# yum install npm -y上传压缩包并解压
[root@node1 ~]# unzip elasticsearch-head-master.zip
[root@node1 ~]# mv elasticsearch-head-master/ /usr/local/head-master
[root@node1 ~]# cd /usr/local/head-master/_site
[root@node1 ~]# npm install启动服务
[root@node1 ~]# cd /usr/local/head-master/

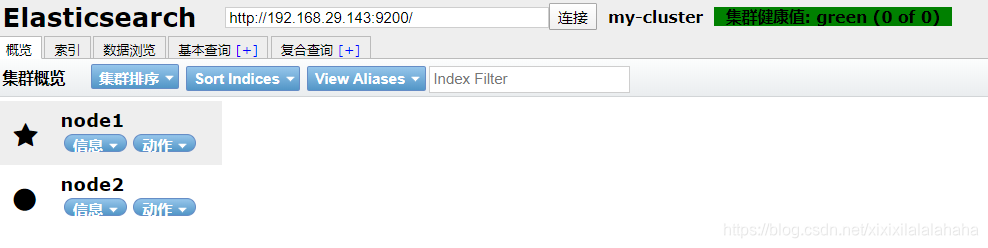

[root@node1 ~]# nohup npm run start >/dev/null 2>&1查看head-master插件运行情况
访问http://node1:9100
node1和node3结点部署logstash
上传压缩包并解压
[root@node1 ~]# tar -zvxf logstash-7.6.0.tar.gz -C /usr/local/logstash
[root@node3 ~]# tar -zvxf logstash-7.6.0.tar.gz -C /usr/local/logstash
#创建日志收集配置文件夹
[root@node1 ~]# mkdir /usr/local/logstash/conf.d/
[root@node3 ~]# mkdir /usr/local/logstash/conf.d/node1添加日志收集文件，从node3的redis数据库读取数据，存储到elasticsearch中
[root@node1 ~]# cat /usr/local/logstash/conf.d/redis_to_elk.conf
input {
redis {
port => "6379"
host => "192.168.29.144"
data_type => "channel"
key => "logstash:redis"
type => "redis-input"
}
}
output {
elasticsearch {
hosts => ["192.168.29.143"]
index => "logstash-%{+YYYY.MM.dd}"
}
}node3添加日志收集文件，把apache和nginx的日志存储到redis中
[root@node3 ~]# vi/usr/local/logstash/conf.d/web_to_redis.conf
input {
file {
path => ["/var/log/nginx/access.log"]
type => "nginx_log"
}
file {
path => ["/etc/httpd/logs/access_log"]
type => "apache_access_log"
}
}
output {
redis{
host => "192.168.29.144"
key => ‘logstash:redis‘
data_type => ‘channel‘
port => ‘6379‘
}
stdout {
codec => rubydebug
}
}启动服务
#node3结点
[root@node3 ~]# cd /usr/local/logstash/bin/
[root@node3 bin]# ./logstash -f /usr/local/logstash/conf.d/web_to_redis.conf &
#node1结点
[root@node1 ~]# cd /usr/local/logstash/bin/
[root@node1 bin]# ./logstash -f /usr/local/logstash/conf.d/redis_to_elk.conf &查看logstash运行情况

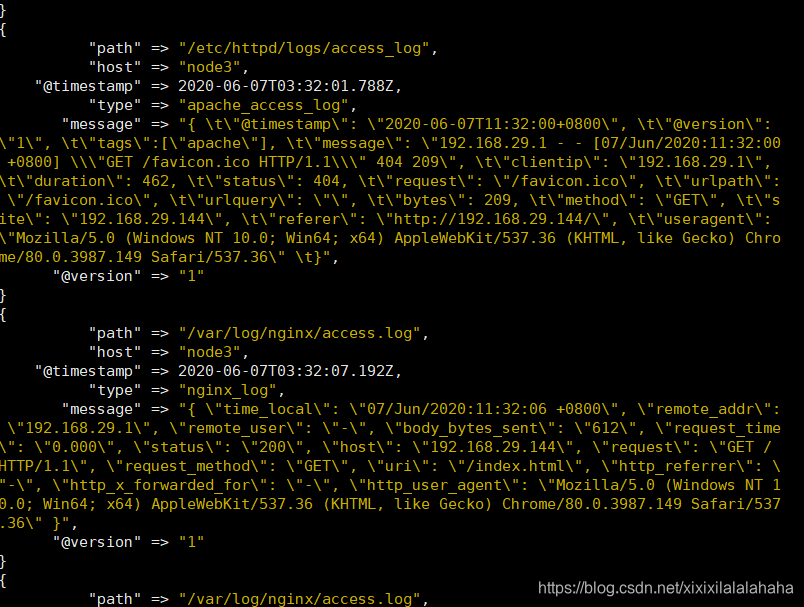

#命令行最后输出以下语句证明启动成功
Successfully started Logstash API endpoint {:port=>9600}node1结点部署 kibana
上传压缩包并解压
[root@node1 ~]# tar -zxvf kibana-7.6.0-linux-x86_64.tar.gz -C /usr/local/kibana
#修改配置文件
[root@node1 ~]# vi /usr/local/kibana/config/kibana.yml
server.host: "0.0.0.0"启动服务
[root@node1 ~]# cd /usr/local/kibana/bin/

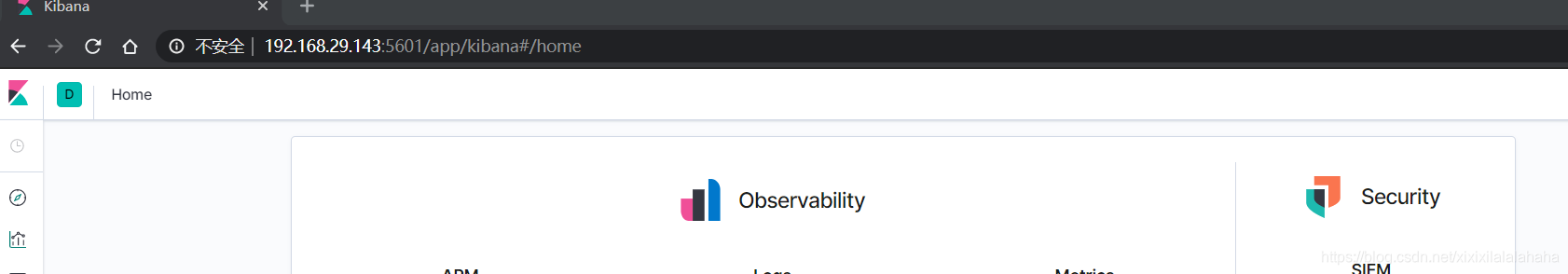

[root@node1 bin]# ./kibana --allow-root &查看kibana运行情况
[root@node1 ~]# netstat -tnlp |grep 5601
tcp 0 0 0.0.0.0:5601 0.0.0.0:* LISTEN 3644/./../node/bin/
ELK日志收集系统部件部署完成
生成日志
通过浏览器访问node3的Nginx服务器和apache服务器产生日志

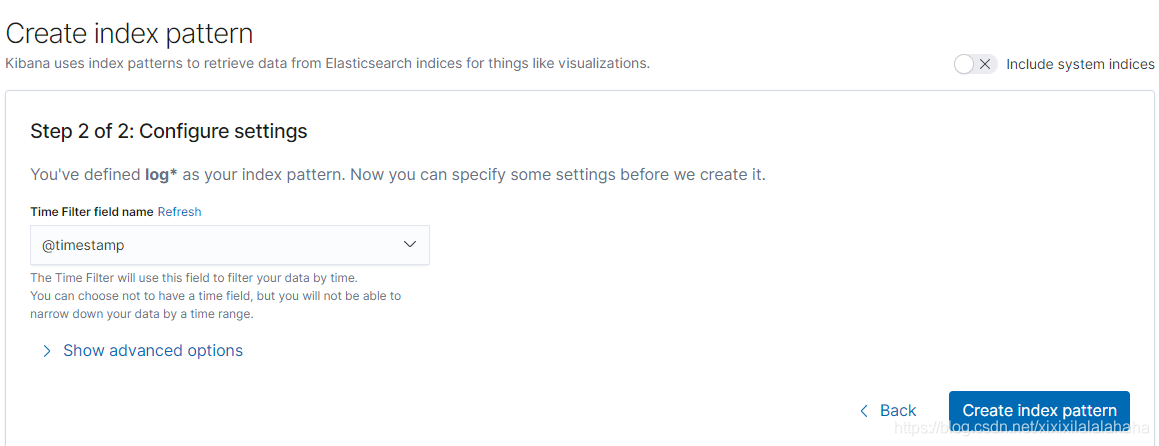

配置kibana的模板
根据node1中logstash日志收集文件中定义的output标签中的index属性格式进行填写查找模板

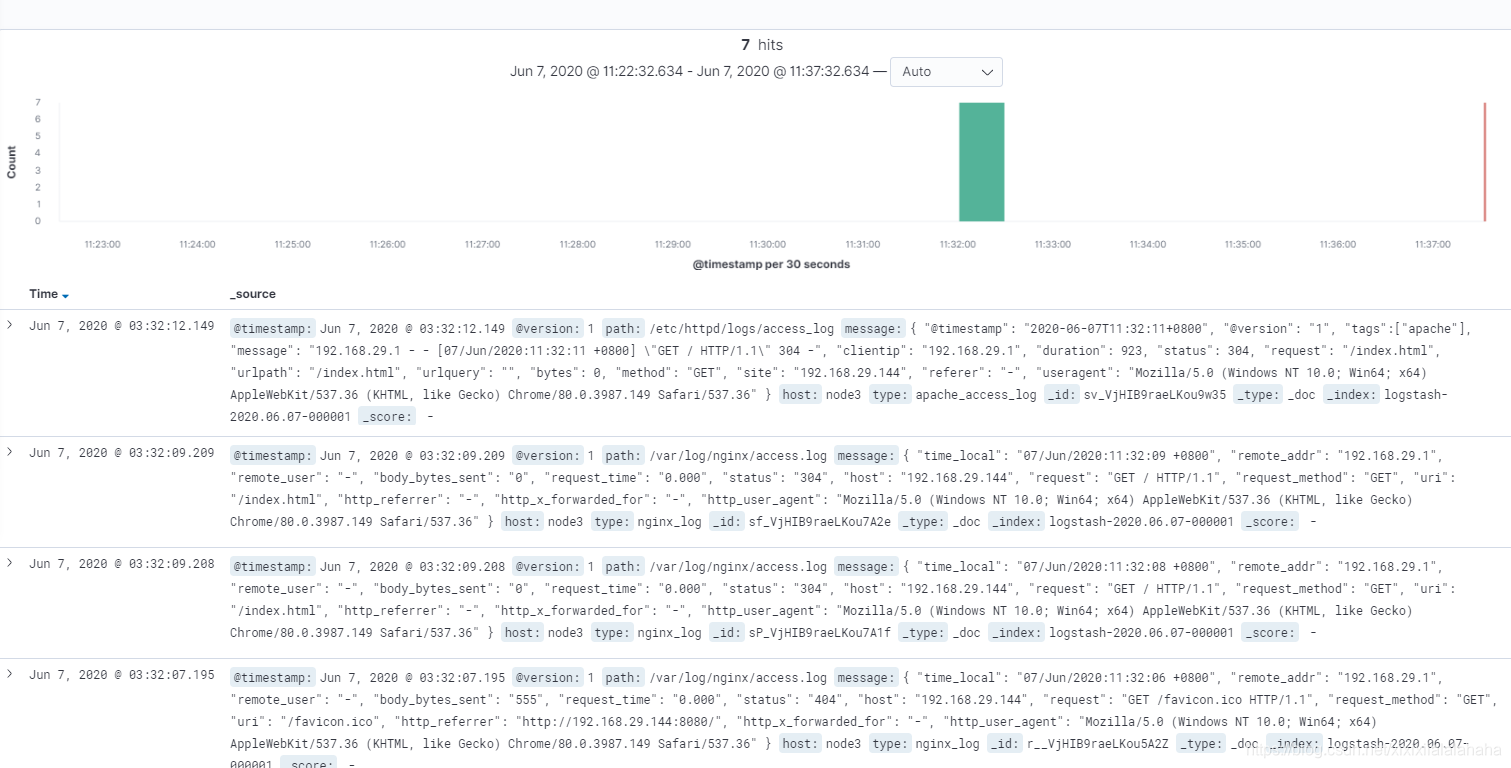

查看日志收集情况
自此ELK日志收集系统部署完成并成功运转
