End to end recovery of human shape and pose

End to end recovery of human shape and pose

一. 论文简介

从单张图像中恢复 2D keypoints + 3D keypoints + mesh + instrinsic，主要在数据量不充足的情况下进行弱监督。

主要做的贡献如下（可能之前有人已提出）：

1. Mesh supervised weakly
2. Iteration regression
3. Discriminator
4. projection

二. 模块详解

2.1 Mesh supervised weakly

论文未使用这部分做弱监督，在其它论文看见的，暂时略过。

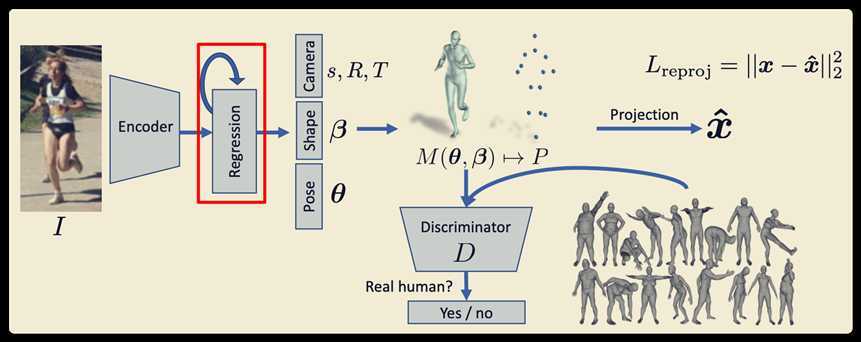

2.2 Iteration regression

• 注意不是权重共享
• 注意每次迭代的结果都进行loss计算，不是最后的结果才做loss
• 前向计算同样需要做迭代

class ThetaRegressor(LinearModel):
    def __init__(self, fc_layers, use_dropout, drop_prob, use_ac_func, iterations):
        super(ThetaRegressor, self).__init__(fc_layers, use_dropout, drop_prob, use_ac_func)
        self.iterations = iterations
        batch_size = max(args.batch_size + args.batch_3d_size, args.eval_batch_size)
        mean_theta = np.tile(util.load_mean_theta(), batch_size).reshape((batch_size, -1))
        self.register_buffer(‘mean_theta‘, torch.from_numpy(mean_theta).float())
    ‘‘‘
        param:
            inputs: is the output of encoder, which has 2048 features

        return:
            a list contains [ [theta1, theta1, ..., theta1], [theta2, theta2, ..., theta2], ... , ], shape is iterations X N X 85(or other theta count)
    ‘‘‘
    def forward(self, inputs):
        thetas = []
        shape = inputs.shape
        theta = self.mean_theta[:shape[0], :]
        for _ in range(self.iterations):
            total_inputs = torch.cat([inputs, theta], 1)
            theta = theta + self.fc_blocks(total_inputs) # 不共享权重
            thetas.append(theta) # 迭代的theta全部做loss回传
        return thetas

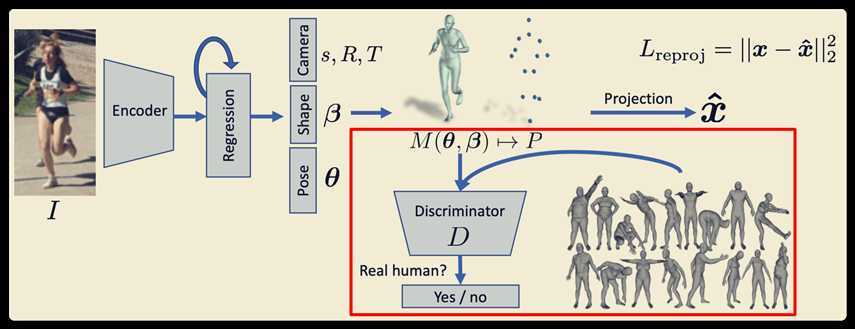

2.3 Discriminator

• Gan网络的基础
• 实际人体来自于SMPL模型

  # Discriminator类的前向计算，就是FC层的一些变换，输出一个vector
  def forward(self, thetas):
        batch_size = thetas.shape[0]
        cams, poses, shapes = thetas[:, :3], thetas[:, 3:75], thetas[:, 75:]
        shape_disc_value = self.shape_discriminator(shapes)
        rotate_matrixs = util.batch_rodrigues(poses.contiguous().view(-1, 3)).view(-1, 24, 9)[:, 1:, :]
        pose_disc_value, pose_inter_disc_value = self.pose_discriminator(rotate_matrixs)
        full_pose_disc_value = self.full_pose_discriminator(pose_inter_disc_value.contiguous().view(batch_size, -1))
        return torch.cat((pose_disc_value, full_pose_disc_value, shape_disc_value), 1)

  # 真实为1，错误为0
  def batch_encoder_disc_l2_loss(self, disc_value):
        k = disc_value.shape[0]
        return torch.sum((disc_value - 1.0) ** 2) * 1.0 / k

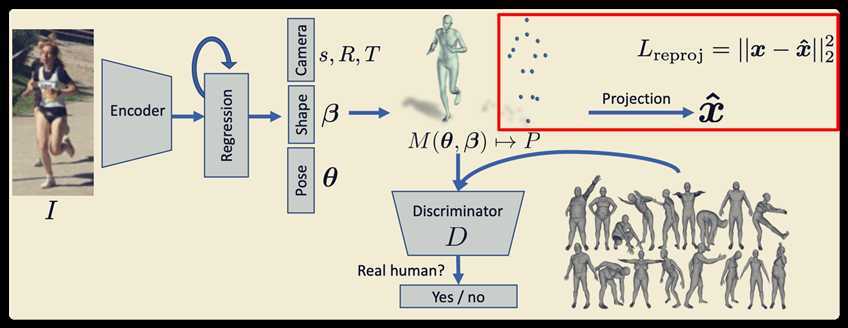

2.4 projection

• 相机坐标系到图像坐标系的投影，使用2D Loss
• 如果有三维坐标，直接使用3D Loss (如果mesh生产的3D点和实际标注3D点不相同，以mesh为准)
• s表示缩放比例，T代表平移，R表示旋转。其中s、T可以表示内参，R放在Mesh内部作为参数。

  def batch_orth_proj(X, camera):
    ‘‘‘
        X is N x num_points x 3
    ‘‘‘
    camera = camera.view(-1, 1, 3)
    X_trans = X[:, :, :2] + camera[:, :, 1:]
    shape = X_trans.shape
    return (camera[:, :, 0] * X_trans.view(shape[0], -1)).view(shape)
  # camera space to image space
  def _calc_detail_info(self, theta):
        cam = theta[:, 0:3].contiguous()
        pose = theta[:, 3:75].contiguous()
        shape = theta[:, 75:].contiguous()
        verts, j3d, Rs = self.smpl(beta = shape, theta = pose, get_skin = True)
        j2d = util.batch_orth_proj(j3d, cam)

        return (theta, verts, j2d, j3d, Rs)

三. 缺点

• 直接回归内参较为困难
• 数据量小，使用Gan进行监督很难得到鲁棒的结果。可能反而效果更差。
• mesh部分没有进行监督，浪费资源

pytorch代码

tensorflow代码
