第一个FPGA程序——100MHz时钟分频

`timescale 1ns / 1ps

module first_verilog(
    input clk,
    input rst,
    output reg  cycle_20ms
    );

reg [23:0] cnt_reg ;

always @(posedge clk)
begin
    if(rst)
    begin
        cnt_reg <= 24‘d1;
        cycle_20ms <= 1‘b0;
    end
    else
    begin
        cnt_reg <= cnt_reg + 24‘d1;
        if(cnt_reg == 24‘d1000000)
        begin
            cnt_reg <= 24‘d1;
            cycle_20ms <= ~cycle_20ms;
        end
    end
end

endmodule

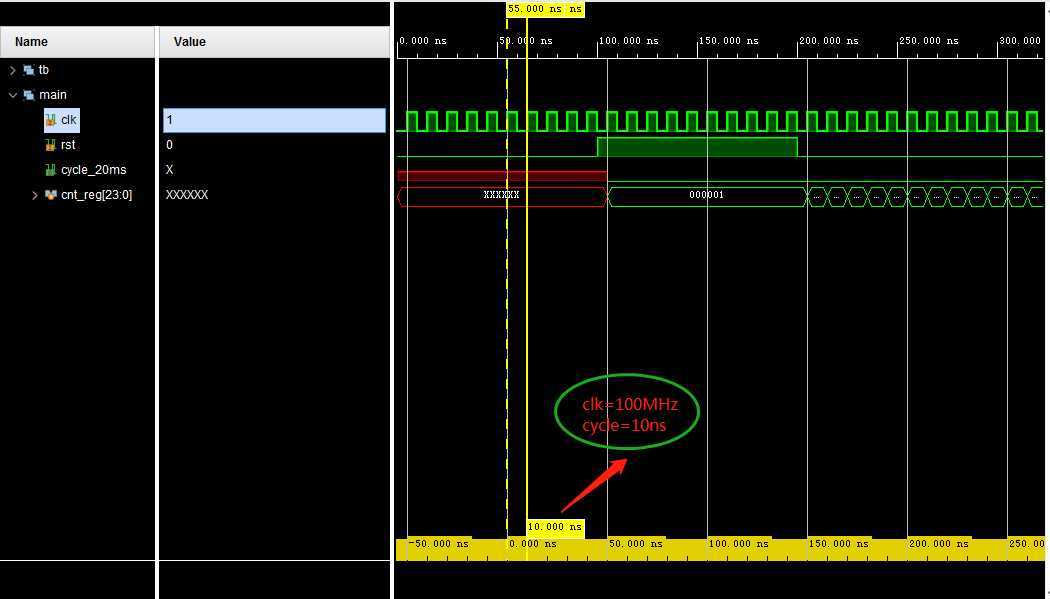

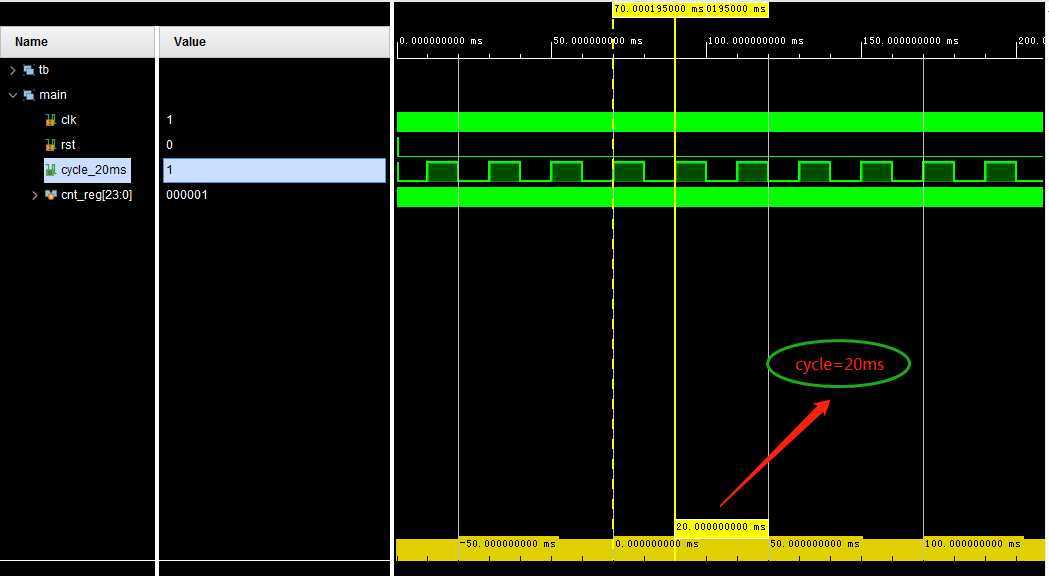

`timescale 1ns / 1ps

module tb_first_verilog();

reg     clk;
reg     rst;
reg    cycle_20ms;

first_verilog first_verilog_ins(
    .clk(clk),
    .rst(rst),
    .cycle_20ms());

parameter PERIOD = 10;

always
begin
    clk = 1‘b0;
    #(PERIOD/2);
    clk = 1‘b1;
    #(PERIOD/2);
end

initial
begin
    clk = 1‘b0;
    rst = 1‘b0;
    #(10 * PERIOD);
    rst = 1‘b1;
    #(10 * PERIOD);
    rst = 1‘b0;
end

endmodule
