CCNA实验：配置NAT静态映射

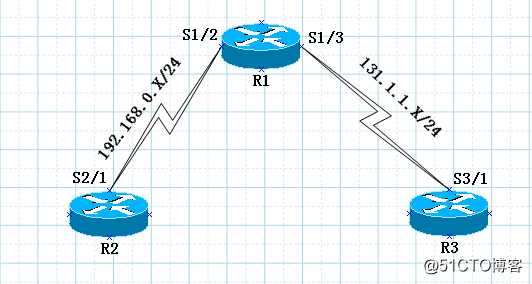

R2(config)#int s2/1
R2(config-if)#ip add 192.168.0.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#exit
R2(config)#router ospf 1
R2(config-router)#net 0.0.0.0 0.0.0.0 area 0
R2(config-router)#

R3(config)#int s3/1
R3(config-if)#ip add 131.1.1.3 255.255.255.0
R3(config-if)#no sh
R3(config-if)#exit
R3(config)#^Z
R3(config)#router ospf 1
R3(config-router)#net 0.0.0.0 0.0.0.0 area 0

第二步：在R1上定义NAT的静态映射
R1(config)#int s1/2
R1(config-if)#ip nat in
R1(config-if)#ip nat inside
R1(config)#int s1/3
R1(config-if)#ip nat outside
R1(config-if)#
第三步：在R1上定义NAT的静态映射
R1(config)#ip nat inside source static 192.168.0.2 131.1.1.1
R1(config)#exit
第四步：在R2上进行ping
R2#sh ip rou
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, * - candidate default
U - per-user static route, o - ODR
T - traffic engineered route

Gateway of last resort is not set

131.1.0.0/24 is subnetted, 1 subnets
O 131.1.1.0 [110/128] via 192.168.0.1, 00:09:10, Serial2/1
C 192.168.0.0/24 is directly connected, Serial2/1
R2#ping 131.1.1.3

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 131.1.1.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 48/72/104 ms
R2#
?
第五步：在R2ping的同时打开R1的nat过程
R1#debug ip nat detailed
IP NAT detailed debugging is on
R1#
00:21:08: NAT: i: icmp (192.168.0.2, 243) -> (131.1.1.3, 243) [5]
00:21:08: NAT: o: icmp (131.1.1.3, 243) -> (131.1.1.1, 243) [5]
00:21:08: NAT: i: icmp (192.168.0.2, 244) -> (131.1.1.3, 244) [6]
00:21:08: NAT: o: icmp (131.1.1.3, 244) -> (131.1.1.1, 244) [6]
00:21:08: NAT: i: icmp (192.168.0.2, 245) -> (131.1.1.3, 245) [7]
00:21:08: NAT: o: icmp (131.1.1.3, 245) -> (131.1.1.1, 245) [7]
00:21:08: NAT: i: icmp (192.168.0.2, 246) -> (131.1.1.3, 246) [8]
00:21:08: NAT: o: icmp (131.1.1.3, 246) -> (131.1.1.1, 246) [8]
00:21:08: NAT: i: icmp (192.168.0.2, 247) -> (131.1.1.3, 247) [9]
00:21:08: NAT: o: icmp (131.1.1.3, 247) -> (131.1.1.1, 247) [9]

R1#debug ip nat
IP NAT debugging is on
R1#
00:22:21: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [10]
//可以看到源地址是由192.168.0.2转换为131.1.1.1
00:22:21: NAT: s=131.1.1.3, d=131.1.1.1->192.168.0.2 [10]
00:22:21: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [11]
00:22:21: NAT: s=131.1.1.3, d=131.1.1.1->192.168.0.2 [11]
00:22:21: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [12]
00:22:21: NAT: s=131.1.1.3, d=131.1.1.1->192.168.0.2 [12]
00:22:21: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [13]
00:22:21: NAT: s=131.1.1.3, d=131.1.1.1->192.168.0.2 [13]
00:22:21: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [14]
00:22:21: NAT: s=131.1.1.3, d=131.1.1.1->192.168.0.2 [14]
R1#

R1#sh ip nat statistics
Total active translations: 1 (1 static, 0 dynamic; 0 extended)
Outside interfaces:
Serial1/3
Inside interfaces:
Serial1/2
Hits: 30 Misses: 0
Expired translations: 0
Dynamic mappings:
R1#

R1#sh ip nat translations
Pro Inside global Inside local Outside local Outside global
--- 131.1.1.1 192.168.0.2 --- ---
R1#
第六步：在R3上pingR2的192.168.0.2接口

R3#ping 192.168.0.2

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.0.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/57/108 ms
R3#
第七步：在R1上进行debug ip nat查看转换过程
R1#
00:26:47: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [5]
00:26:47: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [6]
00:26:47: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [7]
00:26:47: NAT: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [8]
00:26:47: NAT*: s=192.168.0.2->131.1.1.1, d=131.1.1.3 [9]
R1#
