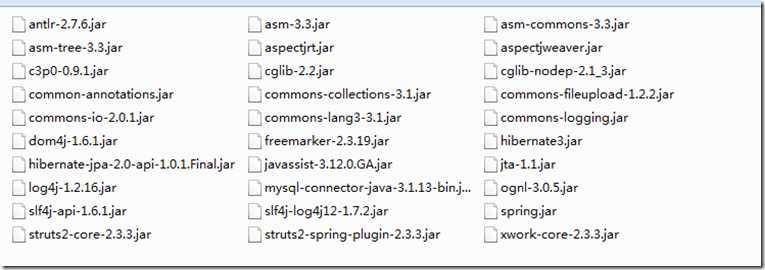

1.需要的所有的关于strtus2 ,Spring,Hibernate 的jar包
2.复制log4j.properties 和 struts.xml文件到src目录下
log4j.properties
### direct log messages to stdout ### log4j.appender.stdout=org.apache.log4j.ConsoleAppender log4j.appender.stdout.Target=System.out log4j.appender.stdout.layout=org.apache.log4j.PatternLayout log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n ### direct messages to file hibernate.log ### #log4j.appender.file=org.apache.log4j.FileAppender #log4j.appender.file.File=hibernate.log #log4j.appender.file.layout=org.apache.log4j.PatternLayout #log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n ### set log levels - for more verbose logging change ‘info‘ to ‘debug‘ ### log4j.rootLogger=warn, stdout #log4j.logger.org.hibernate=info log4j.logger.org.hibernate=info ### log HQL query parser activity #log4j.logger.org.hibernate.hql.ast.AST=debug ### log just the SQL #log4j.logger.org.hibernate.SQL=debug ### log JDBC bind parameters ### log4j.logger.org.hibernate.type=info #log4j.logger.org.hibernate.type=debug ### log schema export/update ### log4j.logger.org.hibernate.tool.hbm2ddl=info ### log HQL parse trees #log4j.logger.org.hibernate.hql=debug ### log cache activity ### #log4j.logger.org.hibernate.cache=debug ### log transaction activity #log4j.logger.org.hibernate.transaction=debug ### log JDBC resource acquisition #log4j.logger.org.hibernate.jdbc=debug ### enable the following line if you want to track down connection ### ### leakages when using DriverManagerConnectionProvider ### #log4j.logger.org.hibernate.connection.DriverManagerConnectionProvider=trace
struts.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.3//EN" "http://struts.apache.org/dtds/struts-2.3.dtd"> <struts> <bean class="org.springframework.orm.hibernate3.support.OpenSessionInViewFilter"></bean> <constant name="struts.objectFactory" value="spring"></constant> <package name="default" namespace="/" extends="struts-default"> </package> </struts>
3.在WEB-INF下添加并配置web.xml,applicationContext-beans.xml,applicationContext-dbs.xml,applicationContext-tx.xml
web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app id="WebApp_9" version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"> <context-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/applicationContext-*.xml</param-value> </context-param> <filter> <filter-name>hibernateFilter</filter-name> <filter-class>org.springframework.orm.hibernate3.support.OpenSessionInViewFilter</filter-class> </filter> <filter-mapping> <filter-name>hibernateFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <filter> <filter-name>struts2</filter-name> <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class> </filter> <filter-mapping> <filter-name>struts2</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <welcome-file-list> <welcome-file>index.html</welcome-file> </welcome-file-list> </web-app>
applicationContext-beans.xml
<?xml version="1.0" encoding="UTF-8"?> <!-- - Application context definition for JPetStore‘s business layer. - Contains bean references to the transaction manager and to the DAOs in - dataAccessContext-local/jta.xml (see web.xml‘s "contextConfigLocation"). --> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"> </beans>
applicationContext-dbs.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"> <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close"> <property name="driverClass" value="com.mysql.jdbc.Driver" /> <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/ssh30311?useUnicode=true&characterEncoding=UTF-8" /> <property name="user" value="root" /> <property name="password" value="962297fabaoyi" /> <!--初始化时获取的连接数,取值应在minPoolSize与maxPoolSize之间。Default: 3 --> <property name="initialPoolSize" value="1" /> <!--连接池中保留的最小连接数。 --> <property name="minPoolSize" value="1" /> <!--连接池中保留的最大连接数。Default: 15 --> <property name="maxPoolSize" value="300" /> <!--最大空闲时间,60秒内未使用则连接被丢弃。若为0则永不丢弃。Default: 0 --> <property name="maxIdleTime" value="60" /> <!--当连接池中的连接耗尽的时候c3p0一次同时获取的连接数。Default: 3 --> <property name="acquireIncrement" value="5" /> <!--每60秒检查所有连接池中的空闲连接。Default: 0 --> <property name="idleConnectionTestPeriod" value="60" /> </bean> </beans>
applicationContext-tx.xml
<?xml version="1.0" encoding="UTF-8"?> <!-- - Application context definition for JPetStore‘s business layer. - Contains bean references to the transaction manager and to the DAOs in - dataAccessContext-local/jta.xml (see web.xml‘s "contextConfigLocation"). --> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"> <bean id="sessionFactory" class="org.springframework.orm.hibernate3.LocalSessionFactoryBean"> <property name="dataSource" ref="dataSource" /> <!-- <property name="mappingResources"> <list> <value>com/xunpoit/ssh2/entity/User.hbm.xml</value> </list> </property> --> <property name="hibernateProperties"> <value> hibernate.dialect=org.hibernate.dialect.MySQL5Dialect hibernate.hbm2ddl.auto=update hibernate.show_sql=true hibernate.format_sql=true </value> </property> </bean> <bean id="transactionManager" class="org.springframework.orm.hibernate3.HibernateTransactionManager"> <property name="sessionFactory" ref="sessionFactory"></property> </bean> <tx:advice id="txAdvice" transaction-manager="transactionManager"> <tx:attributes> <tx:method name="add*" propagation="REQUIRED" /> <tx:method name="del*" propagation="REQUIRED" /> <tx:method name="modify*" propagation="REQUIRED" /> <tx:method name="*" read-only="true" /> </tx:attributes> </tx:advice> <!-- <aop:config> <aop:pointcut expression="execution(* com.xunpoit.ssh2.manager.impl.*.*(..))" id="allMethod" /> <aop:advisor advice-ref="txAdvice" pointcut-ref="allMethod" /> </aop:config> --> </beans>
经上几步,环境就搭建成功了!
原文:http://www.cnblogs.com/fabaoyi/p/3555351.html
