部署Dashboard

1.1创建目录(master-1节点)

[root@master-1 ~]# mkdir /root/dashboard && cd /root/dashboard/
[root@master-1 ~]# kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml

1.2 修改端口

#修改为nodeport端口50000
#注意镜像地址无法下载, 使用另外的镜像替换
mirrorgooglecontainers/kubernetes-dashboard-amd64:v1.10.1
[root@master-1 ~]# sed -i ‘/targetPort:/a\ \ \ \ \ \ nodePort: 50000\n\ \ type: NodePort‘ recommended-2.0.yaml

1.3 部署

[root@master-1 dashboard]# kubectl apply -f recommended-2.0.yaml

1.4查看服务端口

[root@master-1 dashboard]# kubectl get services -n kube-system
NAME                   TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE
coredns                ClusterIP   10.0.0.2     <none>        53/UDP,53/TCP,9153/TCP   19d
kubelet                ClusterIP   None         <none>        10250/TCP                12d
kubernetes-dashboard   NodePort    10.0.0.218   <none>        443:50000/TCP            16s

1.5创建用户授权

[root@master-1 dashboard]# kubectl create serviceaccount  dashboard-admin -n kube-system
[root@master-1 dashboard]# kubectl create clusterrolebinding  dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

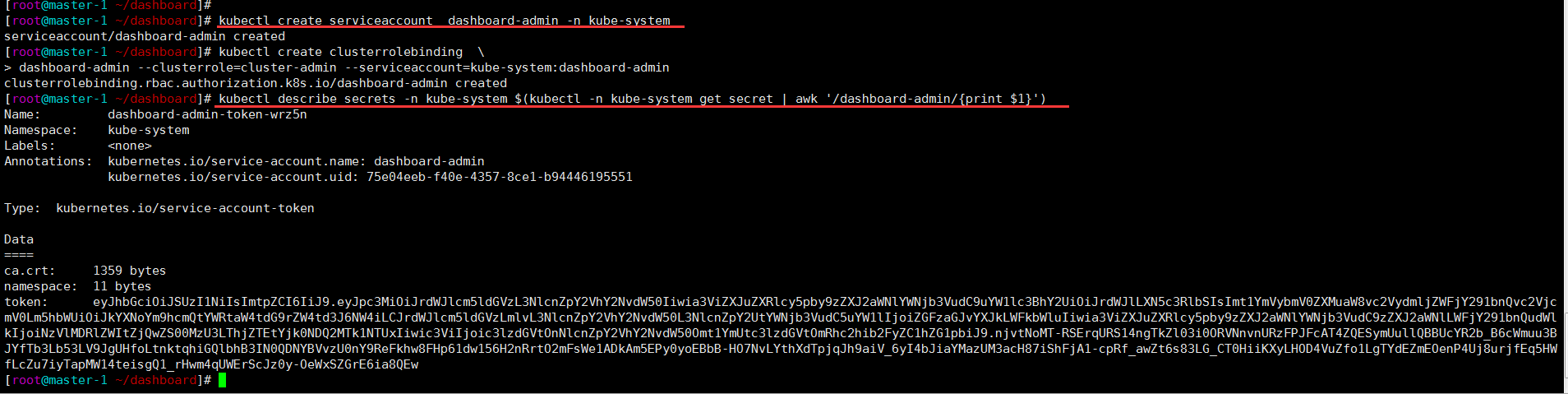

1.6获取Token

#获取token
[root@master-1 ~]# kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk ‘/dashboard-admin/{print $1}‘)

1.7 登录系统

#如果之前有安装过其他的版本的dashboard, 那么切换node节点IP访问

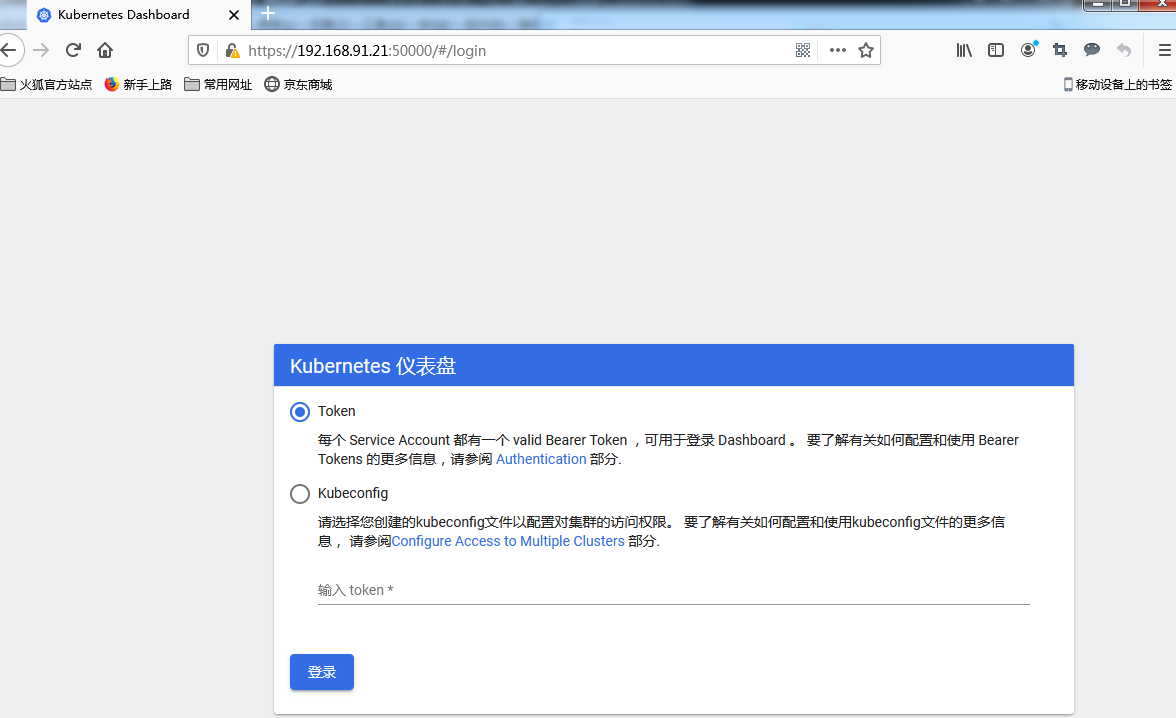

1.8 web操作

访问doshboard所在node节点

https://192.168.91.21:50000

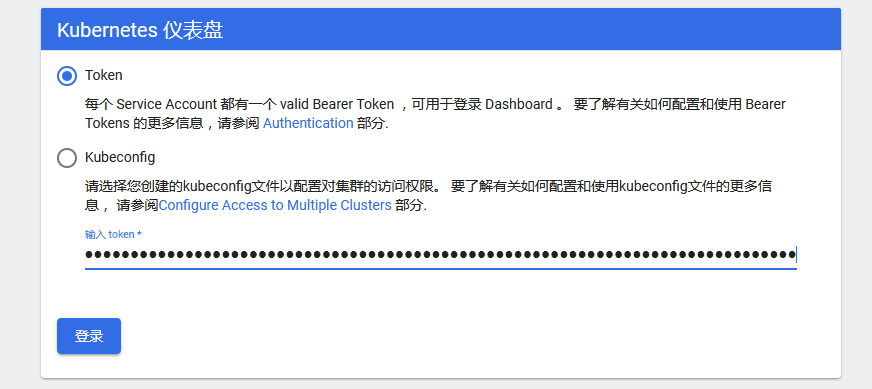

复制token

kubernetes-dashboard-10

原文：https://www.cnblogs.com/liangchen4/p/14100132.html
