什么是ACL和RBAC

ACL

Access Control list：访问控制列表
优点：简单易用，开发便捷
缺点：用户和权限直接挂钩，导致在授予时的复杂性，比较分散，不便于管理
例子：常见的文件系统权限设计，直接给用户加权限

RBAC

Role Based Access Control：基于角色的访问控制
权限与角色相关联，用户通过成为适当角色的成员而得到这些角色的权限
优点：简化了用户与权限的管理，通过对用户进行分类，使得角色与权限关联起来
缺点：开发比ACL相对复杂
例子：基于RBAC模型的权限验证框架，Apache Shiro

什么是Apache Shiro

官网地址

点我直达

介绍

　　Apache Shiro是一个强大且易用的Java安全框架,执行身份验证、授权、密码和会话管理。使用Shiro的易于理解的API,您可以快速、轻松地获得任何应用程序,从最小的移动应用程序到最大的网络和企业应用程序。

什么是身份认证

　　Authentication，身份认证，一般就是登陆校验

什么是授权

　　Authorization，给用户分配角色或者访问某些资源的权限

什么是会话管理

　　Session Management，用户的会话管理员，多数情况下是web session

什么是加密

　　Cryptography，数据加密，比如密码加解密

核心概念

Subject

　　我们把用户或者程序称为主体，主体去访问系统或者资源

SecurityManager

　　安全管理器，Subject的认证和授权都要在安全管理器下进行

Realm

　　数据域，Shiro和安全数据的连接器，通过realm获取认证授权相关信息

Authenticator

　　认证器，主要负责Subject的认证

Authorizer

　　授权器，主要负责Subject的授权，控制Subject拥有的角色或者权限

Crytography

　　加解密，Shiro的包含易于使用和理解的数据加解密方法，简化了很多复杂的API

Cache Manager

　　缓存管理器，比如认证或授权信息，通过缓存进行管理，提高性能

快速上手

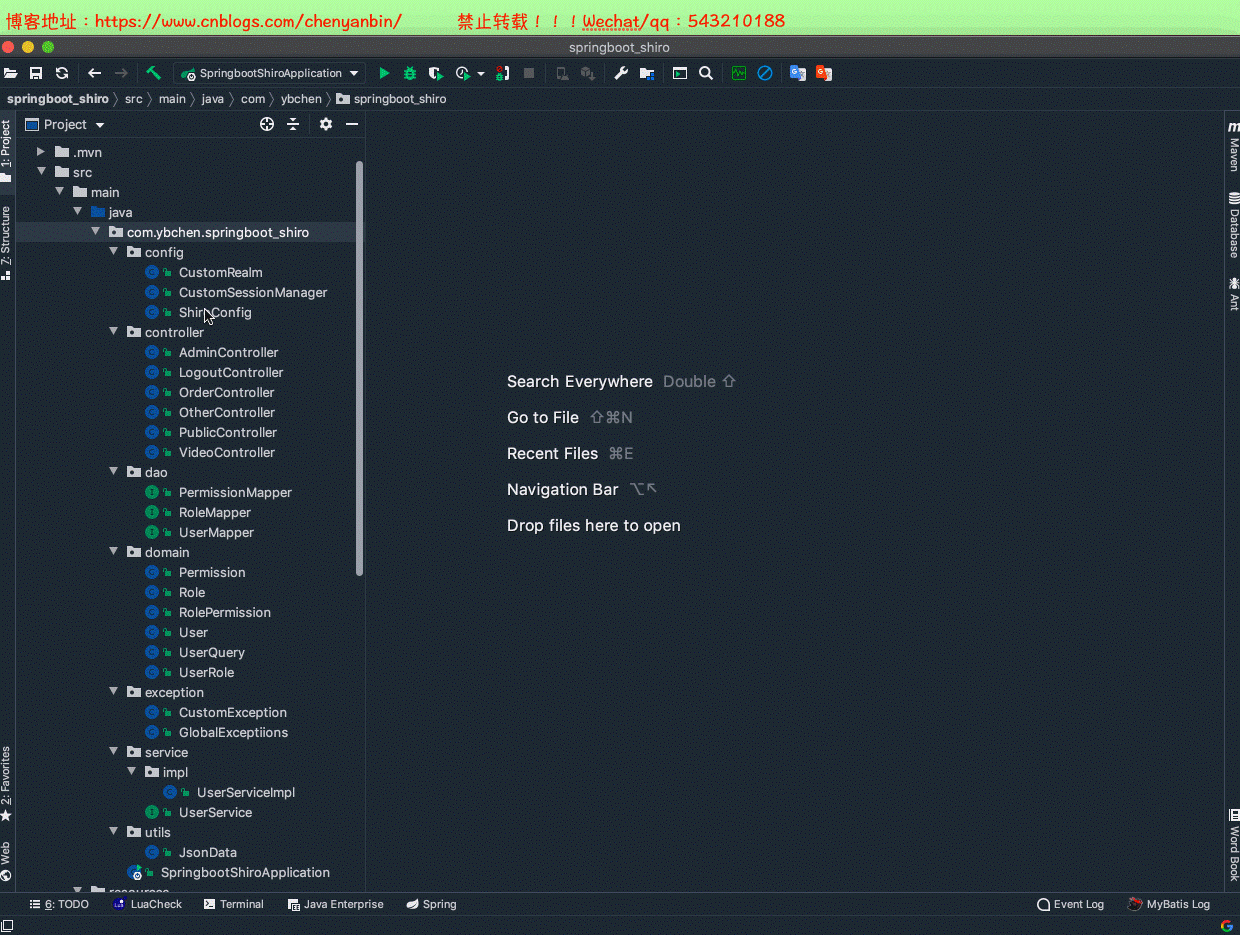

构建项目

技术分享图片

认证和授权

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.realm.SimpleAccountRealm;
import org.apache.shiro.subject.Subject;
import org.junit.Before;
import org.junit.Test;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2020/12/27 7:43 下午
 * @Versiion：1.0
 */
public class QuickStartTest {
    private DefaultSecurityManager defaultSecurityManager = new DefaultSecurityManager();
    private SimpleAccountRealm accountRealm = new SimpleAccountRealm();

    @Before
    public void init() {
        //初始化数据源，模拟从数据库中取的数据
        accountRealm.addAccount("laochen", "123");
        accountRealm.addAccount("laowang", "123456");
        //构建环境
        defaultSecurityManager.setRealm(accountRealm);
    }

    @Test
    public void testAuthentication() {
        //设置上下文
        SecurityUtils.setSecurityManager(defaultSecurityManager);
        //获取当前主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laowang", "123456");
        subject.login(usernamePasswordToken);
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
    }

}

QuickStartTest.java

常用API

        //是否有对应的角色
        subject.hasRole("root");
        //获取subject名
        subject.getPrincipal();
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断
        subject.checkRole("admin");
        //检查是否有对应的角色
        subject.hasRole("admin");
        //退出登录
        subject.logout();

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.realm.SimpleAccountRealm;
import org.apache.shiro.subject.Subject;
import org.junit.Before;
import org.junit.Test;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2020/12/27 7:43 下午
 * @Versiion：1.0
 */
public class QuickStartAPITest {
    private DefaultSecurityManager defaultSecurityManager = new DefaultSecurityManager();
    private SimpleAccountRealm accountRealm = new SimpleAccountRealm();

    @Before
    public void init() {
        //初始化数据源，模拟从数据库中取的数据
        accountRealm.addAccount("laochen", "123","root","admin");
        accountRealm.addAccount("laowang", "123456","user");
        //构建环境
        defaultSecurityManager.setRealm(accountRealm);
    }

    @Test
    public void testAuthentication() {
        //设置上下文
        SecurityUtils.setSecurityManager(defaultSecurityManager);
        //获取当前主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laochen", "123");
        subject.login(usernamePasswordToken);
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
        //是否有对应的角色
        System.out.println("是否有对应的root角色："+subject.hasRole("root"));
        //获取subject名
        System.out.println("获取subject名："+subject.getPrincipal());
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断，没有的话，直接报错
        subject.checkRole("admin");
        //检查是否有对应的角色
        System.out.println("是否存在admin角色："+subject.hasRole("admin"));
        //退出登录
        subject.logout();
        System.out.println("退出登录后，认证结果：" + authenticated);
    }

}

QuickStartAPITest.java

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.1</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ybchen</groupId>
    <artifactId>springboot_shiro</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot_shiro</name>
    <description>SpringBoot整合Shiro</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.3</version>
        </dependency>
        <!--Shiro-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.7.0</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

pom.xml

realm实战

作用

　　Shiro从Realm获取安全数据

概念

principal：主体的标识，可以有多个，但是需要具有唯一性，如：手机号、邮箱
credential：凭证，一般就是密码

内置ini realm

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.config.IniSecurityManagerFactory;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.Factory;
import org.junit.Before;
import org.junit.Test;

/**
 * @Description：从ini配置文件中读取用户与角色
 * @Author：chenyanbin
 * @Date：2020/12/27 8:52 下午
 * @Versiion：1.0
 */
public class QuickStartIniTest {
    @Before
    public void init() {

    }

    @Test
    public void testAuthentication() {
        //创建SecurityManager工厂，通过配置文件ini创建
        Factory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:shiro.ini");
        SecurityManager securityManager=factory.getInstance();
        //将securityManager设置到当前运行环境中
        SecurityUtils.setSecurityManager(securityManager);
        //获取主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laochen", "123");
        subject.login(usernamePasswordToken);
        //判断是否成功
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
        //是否有对应的角色
        System.out.println("是否有对应的root角色："+subject.hasRole("root"));
        //获取subject名
        System.out.println("获取subject名："+subject.getPrincipal());
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断，没有的话，直接报错
        subject.checkRole("admin");
        //检查是否有对应的角色
        System.out.println("是否存在admin角色："+subject.hasRole("admin"));
        //退出登录
        subject.logout();
        System.out.println("退出登录后，认证结果：" + authenticated);
    }
}

QuickStartIniTest.java

# 格式 name=password,role1,role2,..roleN
[users]
# 账户=laochen；密码=123；角色=admin
laochen = 123, admin
laowang = 456, user

# 格式 role=permission1,permission2...permissionN 也可以用通配符
# 下面配置user的权限为所有video:find,video:buy，如果需要配置video全部操作crud 则 user = video:*
[roles]
user = video:find,video:buy
# ‘admin‘ role has all permissions, indicated by the wildcard ‘*‘
admin = *

shiro.ini

校验权限

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.config.IniSecurityManagerFactory;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.Factory;
import org.junit.Before;
import org.junit.Test;

/**
 * @Description：从ini配置文件中读取用户与角色
 * @Author：chenyanbin
 * @Date：2020/12/27 8:52 下午
 * @Versiion：1.0
 */
public class QuickStartIniTest {
    @Before
    public void init() {

    }

    @Test
    public void testAuthentication() {
        //创建SecurityManager工厂，通过配置文件ini创建
        Factory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:shiro.ini");
        SecurityManager securityManager=factory.getInstance();
        //将securityManager设置到当前运行环境中
        SecurityUtils.setSecurityManager(securityManager);
        //获取主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laochen", "123");
        subject.login(usernamePasswordToken);
        //判断是否成功
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
        //是否有对应的角色
        System.out.println("是否有对应的root角色："+subject.hasRole("root"));
        //获取subject名
        System.out.println("获取subject名："+subject.getPrincipal());
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断，没有的话，直接报错
        subject.checkRole("admin");
        //检查是否有对应的角色
        System.out.println("是否存在admin角色："+subject.hasRole("admin"));
        //================权限，没有的话直接报错================
        subject.checkPermission("video:delete");
        System.out.println("是否有video:delete权限："+subject.isPermitted("video:delete"));
        //退出登录
        subject.logout();
        System.out.println("退出登录后，认证结果：" + subject.isAuthenticated());
    }
}

QuickStartIniTest.java

# 格式 name=password,role1,role2,..roleN
[users]
# 账户=laochen；密码=123；角色=admin
laochen = 123, admin
laowang = 456, user

# 格式 role=permission1,permission2...permissionN 也可以用通配符
# 下面配置user的权限为所有video:find,video:buy，如果需要配置video全部操作crud 则 user = video:*
[roles]
user = video:find,video:buy
# ‘admin‘ role has all permissions, indicated by the wildcard ‘*‘
admin = *

shiro.ini

注：配置文件必须ini结尾

内置JdbcRealm

方式一

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.config.IniSecurityManagerFactory;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.Factory;
import org.junit.Test;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2020/12/27 10:40 下午
 * @Versiion：1.0
 */
public class QuickStartJdbcIniTest {
    @Test
    public void testAuthentication(){
        //创建SecurityManager工厂，通过配置文件ini创建
        Factory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:jdbcrealm.ini");
        SecurityManager securityManager=factory.getInstance();
        //将securityManager设置到当前运行环境中
        SecurityUtils.setSecurityManager(securityManager);
        //获取主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laochen", "123");
        subject.login(usernamePasswordToken);
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
        //是否有对应的角色
        System.out.println("是否有对应的root角色："+subject.hasRole("root"));
        //获取subject名
        System.out.println("获取subject名："+subject.getPrincipal());
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断，没有的话，直接报错
        subject.checkRole("role1");
        //检查是否有对应的角色
        System.out.println("是否存在role1角色："+subject.hasRole("role1"));
        //================权限，没有的话直接报错================
        //subject.checkPermission("video:delete");
        System.out.println("是否有video:buy权限："+subject.isPermitted("video:buy"));
        //退出登录
        subject.logout();
        System.out.println("退出登录后，认证结果：" + subject.isAuthenticated());
    }
}

QuickStartJdbcIniTest.java

#声明Realm，指定realm类型
jdbcRealm=org.apache.shiro.realm.jdbc.JdbcRealm
#配置数据源
#dataSource=com.mchange.v2.c3p0.ComboPooledDataSource
dataSource=com.alibaba.druid.pool.DruidDataSource
# mysql-connector-java 5 用的驱动url是com.mysql.jdbc.Driver，mysql-connector-java6以后用的是com.mysql.cj.jdbc.Driver
dataSource.driverClassName=com.mysql.cj.jdbc.Driver
#避免安全警告
dataSource.url=jdbc:mysql://127.0.0.1:3306/shiro?characterEncoding=UTF-8&serverTimezone=UTC&useSSL=false
#账号、密码
dataSource.username=root
dataSource.password=root
#指定数据源
jdbcRealm.dataSource=$dataSource
#开启查找权限, 默认是false
jdbcRealm.permissionsLookupEnabled=true
#指定SecurityManager的Realms实现，设置realms，可以有多个，用逗号隔开
securityManager.realms=$jdbcRealm

jdbcrealm.ini

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 50731
 Source Host           : localhost:3306
 Source Schema         : shiro

 Target Server Type    : MySQL
 Target Server Version : 50731
 File Encoding         : 65001

 Date: 27/12/2020 23:06:45
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for roles_permissions
-- ----------------------------
DROP TABLE IF EXISTS `roles_permissions`;
CREATE TABLE `roles_permissions` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `role_name` varchar(100) DEFAULT NULL COMMENT ‘角色名‘,
  `permission` varchar(100) DEFAULT NULL COMMENT ‘权限名‘,
  PRIMARY KEY (`id`),
  UNIQUE KEY `idx_roles_permissions` (`role_name`,`permission`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of roles_permissions
-- ----------------------------
BEGIN;
INSERT INTO `roles_permissions` VALUES (4, ‘admin‘, ‘video:*‘);
INSERT INTO `roles_permissions` VALUES (3, ‘role1‘, ‘video:buy‘);
INSERT INTO `roles_permissions` VALUES (2, ‘role1‘, ‘video:find‘);
INSERT INTO `roles_permissions` VALUES (5, ‘role2‘, ‘*‘);
INSERT INTO `roles_permissions` VALUES (1, ‘root‘, ‘*‘);
COMMIT;

-- ----------------------------
-- Table structure for user_roles
-- ----------------------------
DROP TABLE IF EXISTS `user_roles`;
CREATE TABLE `user_roles` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `username` varchar(100) DEFAULT NULL COMMENT ‘用户名‘,
  `role_name` varchar(100) DEFAULT NULL COMMENT ‘角色名‘,
  PRIMARY KEY (`id`),
  UNIQUE KEY `idx_user_roles` (`username`,`role_name`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user_roles
-- ----------------------------
BEGIN;
INSERT INTO `user_roles` VALUES (1, ‘laochen‘, ‘role1‘);
INSERT INTO `user_roles` VALUES (2, ‘laochen‘, ‘role3‘);
INSERT INTO `user_roles` VALUES (4, ‘laowang‘, ‘admin‘);
INSERT INTO `user_roles` VALUES (3, ‘laowang‘, ‘root‘);
COMMIT;

-- ----------------------------
-- Table structure for users
-- ----------------------------
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `username` varchar(100) DEFAULT NULL COMMENT ‘用户名‘,
  `password` varchar(100) DEFAULT NULL COMMENT ‘密码‘,
  `password_salt` varchar(100) DEFAULT NULL COMMENT ‘密码加盐规则‘,
  PRIMARY KEY (`id`),
  UNIQUE KEY `idx_users_username` (`username`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of users
-- ----------------------------
BEGIN;
INSERT INTO `users` VALUES (1, ‘laochen‘, ‘123‘, NULL);
INSERT INTO `users` VALUES (2, ‘laowang‘, ‘456‘, NULL);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

建表语句.sql

注意

　　表名和字段要对应上，否则自定义定，继承：AuthorizingRealm，重写sql查询语句！！！！并重新指定realm类型！！！！

技术分享图片

方式二

技术分享图片

package com.ybchen.springboot_shiro;

import com.alibaba.druid.pool.DruidDataSource;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.realm.jdbc.JdbcRealm;
import org.apache.shiro.subject.Subject;
import org.junit.Test;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2020/12/27 10:40 下午
 * @Versiion：1.0
 */
public class QuickStartJdbc2Test {
    @Test
    public void testAuthentication() {
        DefaultSecurityManager securityManager = new DefaultSecurityManager();
        DruidDataSource ds = new DruidDataSource();
        ds.setDriverClassName("com.mysql.cj.jdbc.Driver");
        ds.setUrl("jdbc:mysql://127.0.0.1:3306/shiro?characterEncoding=UTF-8&serverTimezone=UTC&useSSL=false");
        ds.setUsername("root");
        ds.setPassword("root");
        JdbcRealm jdbcRealm = new JdbcRealm();
        //开启查找权限, 默认是false
        jdbcRealm.setPermissionsLookupEnabled(true);
        //配置数据源
        jdbcRealm.setDataSource(ds);
        //jdbc与DefaultSecurityManager关联
        securityManager.setRealm(jdbcRealm);
        //=======================下面内容相同==============================
        //将securityManager设置到当前运行环境中
        SecurityUtils.setSecurityManager(securityManager);
        //获取主体
        Subject subject = SecurityUtils.getSubject();
        //模拟用户登录，账户、密码
        UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken("laochen", "123");
        subject.login(usernamePasswordToken);
        //判断是否成功
        boolean authenticated = subject.isAuthenticated();
        System.out.println("认证结果：" + authenticated);
        //是否有对应的角色
        System.out.println("是否有对应的root角色：" + subject.hasRole("root"));
        //获取subject名
        System.out.println("获取subject名：" + subject.getPrincipal());
        //检查是否有对应的角色，无返回值，直接在SecurityManager里面进行判断，没有的话，直接报错
        subject.checkRole("role1");
        //检查是否有对应的角色
        System.out.println("是否存在role1角色：" + subject.hasRole("role1"));
        //================权限，没有的话直接报错================
        //subject.checkPermission("video:delete");
        System.out.println("是否有video:buy权限：" + subject.isPermitted("video:buy"));
        //退出登录
        subject.logout();
        System.out.println("退出登录后，认证结果：" + subject.isAuthenticated());
    }
}

QuickStartJdbc2Test.java

自定义realm

　　继承AuthorizingRealm，重写授权方法doGetAuthorizationInfo、重写认证方法doGetAuthenticationInfo。

　　UsernamePasswordToken：对应就是shiro的token中有Principal和Credential。

　　SimpleAuthorizationInfo：代表用户角色权限信息

　　SimpleAuthenticationInfo：代表该用户的认证信息

技术分享图片

package com.ybchen.springboot_shiro;

import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;

import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;

/**
 * @Description：自定义Realm
 * @Author：chenyanbin
 * @Date：2020/12/28 8:41 下午
 * @Versiion：1.0
 */
public class CustomRealm extends AuthorizingRealm {
    private final Map<String, String> userInfoMap = new HashMap<>();
    //role-->permission
    private final Map<String, Set<String>> permissionMap = new HashMap<>();
    //user-->role
    private final Map<String, Set<String>> roleMap = new HashMap<>();

    /**
     * 代码块初始化数据
     */
    {
        userInfoMap.put("laochen", "123");
        userInfoMap.put("laowang", "456");
        //================================
        Set<String> set1 = new HashSet<>();
        set1.add("video:find");
        set1.add("video:buy");
        Set<String> set2 = new HashSet<>();
        set2.add("video:add");
        set2.add("video:delete");
        permissionMap.put("laochen", set1);
        permissionMap.put("laowang", set2);
        //================================
        Set<String> set3 = new HashSet<>();
        Set<String> set4 = new HashSet<>();
        set3.add("role1");
        set3.add("role2");
        set4.add("root");
        roleMap.put("laochen", set3);
        roleMap.put("laowang", set4);
    }

    /**
     * 授权认证
     *
     * @param principals
     * @return
     */
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        System.out.println("授权 AuthorizationInfo");
        String name = (String) principals.getPrimaryPrincipal();
        //权限
        Set<String> permissions = getPermissionsByNameFromDB(name);
        //角色
        Set<String> roles = getRoleByNameFromDB(name);
        SimpleAuthorizationInfo simpleAuthorizationInfo=new SimpleAuthorizationInfo();
        simpleAuthorizationInfo.setRoles(roles);
        simpleAuthorizationInfo.setStringPermissions(permissions);
        return simpleAuthorizationInfo;
    }

    /**
     * 模拟从数据库中取角色
     *
     * @param name
     * @return
     */
    private Set<String> getRoleByNameFromDB(String name) {
        return roleMap.get(name);
    }

    /**
     * 模拟从数据库中取权限
     *
     * @param name
     * @return
     */
    private Set<String> getPermissionsByNameFromDB(String name) {
        return permissionMap.get(name);
    }

    /**
     * 登录认证
     *
     * @param token
     * @return
     * @throws AuthenticationException
     */
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        System.out.println("认证 doGetAuthenticationInfo");
        //用户名
        String name = (String) token.getPrincipal();
        //从DB中根据用户取密码
        String pwd = getPwdByUserNameFromDB(name);
        if (pwd == null || "".equals(pwd)) {
            return null;
        }
        SimpleAuthenticationInfo simpleAuthenticationInfo = new SimpleAuthenticationInfo(name, pwd, this.getName());
        return simpleAuthenticationInfo;
    }

    /**
     * 模拟从数据库中取密码
     *
     * @param name
     * @return
     */
    private String getPwdByUserNameFromDB(String name) {
        return userInfoMap.get(name);
    }
}

CustomRealm.java

package com.ybchen.springboot_shiro;

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.subject.Subject;
import org.junit.Before;
import org.junit.Test;

/**
 * @Description：自定义realm
 * @Author：chenyanbin
 * @Date：2020/12/28 8:43 下午
 * @Versiion：1.0
 */
public class QuickCustomRealmTest {
    private CustomRealm customRealm=new CustomRealm();
    private DefaultSecurityManager defaultSecurityManager=new DefaultSecurityManager();

    @Before
    public void init() {
        //构建环境
        defaultSecurityManager.setRealm(customRealm);
        SecurityUtils.setSecurityManager(defaultSecurityManager);
    }

    @Test
    public void testAuthentication(){
        //获取当前操作的主体
        Subject subject = SecurityUtils.getSubject();
        //用户输入账号、密码
        UsernamePasswordToken usernamePasswordToken=new UsernamePasswordToken("laochen","123");
        subject.login(usernamePasswordToken);
        System.out.println("认证结果："+subject.isAuthenticated());
        //拿到主体标识属性
        System.out.println("获取subject名："+subject.getPrincipal());
        //是否有role1角色，没有则报错
        subject.checkRole("role1");
        //是否有对应的角色
        System.out.println("是否有对应的角色："+subject.hasRole("role1"));
        //是否有对应的权限
        System.out.println("是否有对应的权限："+subject.isPermitted("video:find"));
    }
}

QuickCustomRealmTest.java

Filter过滤器

核心过滤器
- DefaultFilter，配置那个路径对应那个拦截器进行处理
authc：org.apache.shiro.web.filter.authc.FormAuthenticationFilter
- 需要认证登录才能访问
user：org.apache.shiro.web.filter.authc.UseerrFilter
- 用户拦截器，表示必须存在用户
anon：org.apache.shiro.web.filter.authc.AnonymoousFilter
- 匿名拦截器，不需要登录即可访问的资源，匿名用户或游客，一般用于过滤静态资源。
roles：org.apache.shiro.web.filter.authz.RolesAuthorizationFilter
- 角色授权拦截器，验证用户是否拥有角色
- 参数可写多个，表示某些角色才能通过，多个参数时，写roles["root,role1"]，当有多个参数时必须每个参数都通过才算通过
perms：org.apache.shiro.web.filter.authz.PermissionsAuthorizationFilter
- 权限授权拦截器，验证用户是否拥有权限
- 参数可写多个，表示需要某些权限才能通过，多个参数写perms["user,admin"]，当有多个参数时必须每个参数都通过才算可以
authcBasci：org.apache.shiro.web.filter.authc.BasicHttpAuthenticationFilter
- httpBasic，身份验证拦截器
logout：org.apache.shiro.web.filter.authc.LogoutFilter
- 退出拦截器，执行后会直接跳转到shiroFilterFactoryBean.setLoginUrl()，设置的url
port：org.apache.shiro.web.filter.authz.PortFilter
- 端口拦截器，可通过的端口
ssl：org.apache.shiro.web.filter.authz.SslFilter
- ssl拦截器，只有请求协议是https才能通过

技术分享图片

Filter配置路径

路径通配符支持?、*、**，注意通配符匹配不包含目录分隔符“/”
*：可以匹配所有，不加*，可以进行前缀匹配，但多个冒号就需要多个*来匹配

url权限采取第一次匹配优先的方式
?：匹配一个字符，如：/user?，匹配：/user1，但不匹配：/user/
*：匹配零个或多个字符串，如：/add*，匹配：/addtest，但不匹配：/user/1
**：匹配路径中的零个或多个路径，如：/user/**将匹配：/user/xxx/yyy

Shiro权限控制注解

注解方式

@RequiresRoles(value={"admin","editor"},logical=Logical.AND)
- 需要角色：admin和editor两个角色，AND表示两个同时成立
RequiresPermissions(value={"user:add","user:del"},logical.OR)
- 需要权限user:add或user:del权限其中一个，OR是或的意思
@RequiresAuthentication
- 已经授过权，调用Subject.isAuthenticated()返回true
@RequiresUser
- 身份验证或通过记住我登录过的

技术分享图片

使用文件的方式

　　使用ShiroConfig。

编程方式

技术分享图片

SpringBoot整合Shiro

技术栈

　　前后端分离+SpringBoot+Mysql+Mybatis+Shiro+Redis+JDK8

数据库表

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 50731
 Source Host           : localhost:3306
 Source Schema         : shiro_2

 Target Server Type    : MySQL
 Target Server Version : 50731
 File Encoding         : 65001

 Date: 03/01/2021 22:36:28
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for permission
-- ----------------------------
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `name` varchar(255) DEFAULT NULL COMMENT ‘权限名称‘,
  `url` varchar(255) DEFAULT NULL COMMENT ‘路径‘,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8 COMMENT=‘权限‘;

-- ----------------------------
-- Records of permission
-- ----------------------------
BEGIN;
INSERT INTO `permission` VALUES (1, ‘video_update‘, ‘/api/video/update‘);
INSERT INTO `permission` VALUES (2, ‘video_delete‘, ‘/api/video/delete‘);
INSERT INTO `permission` VALUES (3, ‘video_add‘, ‘/api/video/add‘);
INSERT INTO `permission` VALUES (4, ‘order_list‘, ‘/api/order/list‘);
INSERT INTO `permission` VALUES (5, ‘user_list‘, ‘/api/user/list‘);
COMMIT;

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `name` varchar(255) DEFAULT NULL COMMENT ‘角色名称‘,
  `description` varchar(255) DEFAULT NULL COMMENT ‘描述‘,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8 COMMENT=‘角色‘;

-- ----------------------------
-- Records of role
-- ----------------------------
BEGIN;
INSERT INTO `role` VALUES (1, ‘admin‘, ‘系统管理员‘);
INSERT INTO `role` VALUES (2, ‘root‘, ‘超级管理员‘);
INSERT INTO `role` VALUES (3, ‘user‘, ‘普通用户‘);
COMMIT;

-- ----------------------------
-- Table structure for role_permission
-- ----------------------------
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `role_id` int(11) DEFAULT NULL COMMENT ‘角色id‘,
  `permission_id` int(11) DEFAULT NULL COMMENT ‘权限id‘,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=9 DEFAULT CHARSET=utf8 COMMENT=‘角色-权限‘;

-- ----------------------------
-- Records of role_permission
-- ----------------------------
BEGIN;
INSERT INTO `role_permission` VALUES (1, 1, 1);
INSERT INTO `role_permission` VALUES (2, 1, 2);
INSERT INTO `role_permission` VALUES (3, 2, 1);
INSERT INTO `role_permission` VALUES (4, 2, 2);
INSERT INTO `role_permission` VALUES (5, 2, 3);
INSERT INTO `role_permission` VALUES (6, 2, 4);
INSERT INTO `role_permission` VALUES (7, 2, 5);
INSERT INTO `role_permission` VALUES (8, 3, 5);
COMMIT;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `username` varchar(255) DEFAULT NULL COMMENT ‘用户名‘,
  `password` varchar(255) DEFAULT NULL COMMENT ‘密码‘,
  `create_time` datetime DEFAULT NULL COMMENT ‘创建时间‘,
  `salt` varchar(255) DEFAULT NULL COMMENT ‘加盐‘,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8 COMMENT=‘用户‘;

-- ----------------------------
-- Records of user
-- ----------------------------
BEGIN;
INSERT INTO `user` VALUES (1, ‘laochen‘, ‘123‘, NULL, NULL);
INSERT INTO `user` VALUES (2, ‘laowang‘, ‘456‘, NULL, NULL);
INSERT INTO `user` VALUES (3, ‘laoli‘, ‘789‘, NULL, NULL);
COMMIT;

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ‘主键‘,
  `role_id` int(11) DEFAULT NULL COMMENT ‘角色id‘,
  `user_id` int(11) DEFAULT NULL COMMENT ‘用户id‘,
  `remark` varchar(255) DEFAULT NULL COMMENT ‘备注‘,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 COMMENT=‘角色-用户关联表‘;

-- ----------------------------
-- Records of user_role
-- ----------------------------
BEGIN;
INSERT INTO `user_role` VALUES (1, 1, 1, ‘laochen是系统管理员‘);
INSERT INTO `user_role` VALUES (2, 2, 2, ‘laowang是超级管理员‘);
INSERT INTO `user_role` VALUES (3, 3, 3, ‘laoli是普通用户‘);
INSERT INTO `user_role` VALUES (4, 1, 2, ‘laowang是系统管理员‘);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

shiro_2.sql

项目结构

技术分享图片

package com.ybchen.springboot_shiro.config;

import com.ybchen.springboot_shiro.domain.Role;
import com.ybchen.springboot_shiro.domain.User;
import com.ybchen.springboot_shiro.service.UserService;
import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @Description：自定义realm
 * @Author：chenyanbin
 * @Date：2021/1/2 11:16 下午
 * @Versiion：1.0
 */
public class CustomRealm extends AuthorizingRealm {
    @Autowired
    private UserService userService;

    /**
     * 进行权限校验的时候会调用
     *
     * @param principals
     * @return
     */
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        System.out.println("CustomRealm doGetAuthorizationInfo 授权");
        //获取用户名
        String userName = (String) principals.getPrimaryPrincipal();
        User user = userService.findAllUserInfoByUserName(userName);
        if (user == null) {
            return null;
        }
        //角色集合
        List<String> stringRoleList = new ArrayList<>();
        //权限集合
        List<String> stringPermissionList = new ArrayList<>();
        List<Role> roleList = user.getRoleList();
        stringRoleList = roleList.stream().map(
                obj -> {
                    stringPermissionList.addAll(obj.getPermissionList()
                            .stream()
                            .map(per ->
                                    per.getName()).collect(Collectors.toList()));
                    return obj.getName();
                }).collect(Collectors.toList());
        SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
        simpleAuthorizationInfo.addRoles(stringRoleList);
        simpleAuthorizationInfo.addStringPermissions(stringPermissionList);
        return simpleAuthorizationInfo;
    }

    /**
     * 用户登录的时候会调用
     *
     * @param token
     * @return
     * @throws AuthenticationException
     */
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        System.out.println("CustomRealm doGetAuthenticationInfo 认证");
        //从token中获取用户信息
        String uesrName = (String) token.getPrincipal();
        User user = userService.findAllUserInfoByUserName(uesrName);
        if (user == null) {
            return null;
        }
        //密码
        String pwd = user.getPassword();
        if (pwd == null || "".equals(pwd)) {
            return null;
        }
        return new SimpleAuthenticationInfo(uesrName, pwd, this.getClass().getName());
    }
}

CustomRealm.java

package com.ybchen.springboot_shiro.config;

import org.apache.shiro.web.servlet.ShiroHttpServletRequest;
import org.apache.shiro.web.session.mgt.DefaultWebSessionManager;
import org.apache.shiro.web.util.WebUtils;

import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import java.io.Serializable;

/**
 * @Description：自定义SessionManager
 * @Author：chenyanbin
 * @Date：2021/1/3 4:54 下午
 * @Versiion：1.0
 */
public class CustomSessionManager extends DefaultWebSessionManager {
    public static final String AUTHORIZATION="token";

    public CustomSessionManager() {
        super();
    }

    @Override
    protected Serializable getSessionId(ServletRequest request, ServletResponse response) {
        //获取sessionId
        String sessionId= WebUtils.toHttp(request).getHeader(AUTHORIZATION);
        if (sessionId!=null){
            request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID_SOURCE,
                    ShiroHttpServletRequest.COOKIE_SESSION_ID_SOURCE);
            request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID, sessionId);
            request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID_IS_VALID, Boolean.TRUE);
            return sessionId;
        }else {
            return super.getSessionId(request,response);
        }
    }
}

CustomSessionManager.java

package com.ybchen.springboot_shiro.config;

import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.session.mgt.SessionManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.LinkedHashMap;
import java.util.Map;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 4:12 下午
 * @Versiion：1.0
 */
@Configuration
public class ShiroConfig {
    @Bean
    public ShiroFilterFactoryBean shiroFilter(SecurityManager securityManager) {
        System.out.println("ShiroConfig ShiroFilterFactoryBean 执行");
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        //设置SecurityManager
        shiroFilterFactoryBean.setSecurityManager(securityManager);
        //如果访问需要登录的某个接口，却没有登录，则调用此接口(如果不是前后端分离，则跳转页面)
        shiroFilterFactoryBean.setLoginUrl("/pub/need_login");
        //shiroFilterFactoryBean.setLoginUrl("/xxx.jsp");
        //登录成功后，跳转的链接，若前后端分离，没必要设置这个
        //shiroFilterFactoryBean.setSuccessUrl("");
        //登录成功，未授权会调用此方法
        shiroFilterFactoryBean.setUnauthorizedUrl("/pub/not_permit");
        //拦截路径，必须使用:LinkedHashMap，要不然拦截效果会时有时无，因为使用的是无序的Map
        Map<String, String> filterChainDefinitionMap = new LinkedHashMap<>();
        //key=正则表达式路径，value=org.apache.shiro.web.filter.mgt.DefaultFilter
        //退出过滤器
        filterChainDefinitionMap.put("/logout", "logout");
        //匿名可以访问，游客模式
        filterChainDefinitionMap.put("/pub/**", "anon");
        //登录用户才可以访问
        filterChainDefinitionMap.put("/authc/**", "authc");
        //管理员角色才能访问
        filterChainDefinitionMap.put("/admin/**", "roles[admin]");
        //有编辑权限才能访问
        filterChainDefinitionMap.put("/video/update", "perms[video_update]");
        //authc：url必须通过认证才可以访问
        //anon：url可以匿名访问
        //过滤链是顺序执行，从上而下，一般把/**，放到最下面
        filterChainDefinitionMap.put("/**", "authc");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap);
        return shiroFilterFactoryBean;
    }

    @Bean
    public SecurityManager securityManager() {
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        //如果不是前后端分离，不用设置setSessionManager
        securityManager.setSessionManager(sessionManager());
        securityManager.setRealm(customRealm());
        return securityManager;
    }

    /**
     * 自定义realm
     *
     * @return
     */
    @Bean
    public CustomRealm customRealm() {
        CustomRealm customRealm = new CustomRealm();
        //因为数据库密码存的是明文，所以无需使用双重md5校验
//        customRealm.setCredentialsMatcher(hashedCredentialsMatcher());
        return customRealm;
    }

    /**
     * 密码验证器，双重md5
     *
     * @return
     */
    @Bean
    public HashedCredentialsMatcher hashedCredentialsMatcher() {
        HashedCredentialsMatcher hashedCredentialsMatcher = new HashedCredentialsMatcher();
        //设置散列算法，使用md5算法
        hashedCredentialsMatcher.setHashAlgorithmName("md5");
        //散列次数，使用2次md5算法，相当于md5(md5(xxx))
        hashedCredentialsMatcher.setHashIterations(2);
        return hashedCredentialsMatcher;
    }

    /**
     * 自定义SessionManager
     *
     * @return
     */
    @Bean
    public SessionManager sessionManager() {
        CustomSessionManager customSessionManager = new CustomSessionManager();
        //超时时间，默认 30分钟，会话超时，单位毫秒
//        customSessionManager.setGlobalSessionTimeout(200000);
        return customSessionManager;
    }
}

ShiroConfig.java

package com.ybchen.springboot_shiro.controller;

import com.ybchen.springboot_shiro.utils.JsonData;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Arrays;
import java.util.List;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 7:22 下午
 * @Versiion：1.0
 */
@RestController
@RequestMapping("admin")
public class AdminController {
    @GetMapping("/video/video_list")
    public JsonData videoList() {
        List<String> list = Arrays.asList("docker", "k8s", "jenkins");
        return JsonData.buildSuccess(list);
    }
}

AdminController.java

package com.ybchen.springboot_shiro.controller;

import org.springframework.web.bind.annotation.RestController;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 10:01 下午
 * @Versiion：1.0
 */
@RestController
public class LogoutController {
//    /**
//     * 退出，没必要能这个，退出时，前端直接将token清空即可
//     * 还需要获取前端传来的token，然后从shiro从清空指定的session_id
//     * @return
//     */
//    @GetMapping("logout")
//    public JsonData logout(){
//        Subject subject= SecurityUtils.getSubject();
//        subject.logout();
//        return JsonData.buildSuccess("退出成功");
//    }
}

LogoutController.java

package com.ybchen.springboot_shiro.controller;

import com.ybchen.springboot_shiro.utils.JsonData;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.Map;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 6:28 下午
 * @Versiion：1.0
 */
@RestController
@RequestMapping("authc")
public class OrderController {
    /**
     * 购买记录
     * @return
     */
    @GetMapping("/video/play_record")
    public JsonData findMyPlayRecord(){
        Map<String,String> recordMap=new HashMap<>();
        recordMap.put("1","SpringBoot");
        recordMap.put("2","SpringMvc");
        return JsonData.buildSuccess(recordMap);
    }
}

OrderController.java

package com.ybchen.springboot_shiro.controller;

import com.ybchen.springboot_shiro.utils.JsonData;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 9:20 下午
 * @Versiion：1.0
 */
@RestController
public class OtherController {
    @GetMapping("a")
    public JsonData a(){
        return JsonData.buildSuccess("ok");
    }
}

OtherController.java

package com.ybchen.springboot_shiro.controller;

import com.ybchen.springboot_shiro.domain.UserQuery;
import com.ybchen.springboot_shiro.utils.JsonData;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.subject.Subject;
import org.springframework.web.bind.annotation.*;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 1:12 上午
 * @Versiion：1.0
 */
@RestController
@RequestMapping("pub")
public class PublicController {
    /**
     * 需要登录
     *
     * @return
     */
    @GetMapping("need_login")
    public JsonData needLogin() {
        return JsonData.buildSuccess(-1, "温馨提示：请使用对应的账号登录");
    }

    /**
     * 没权限
     *
     * @return
     */
    @GetMapping("not_permit")
    public JsonData notPermit() {
        return JsonData.buildSuccess(-1, "温馨提示：拒绝访问，没权限");
    }

    /**
     * 首页
     *
     * @return
     */
    @GetMapping("index")
    public JsonData index() {
        List<String> list = Arrays.asList("SpringBoot", "SpringMvc", "Mysql", "Redis");
        return JsonData.buildSuccess(list);
    }

    /**
     * 登录接口
     *
     * @param userQuery
     * @param request
     * @param response
     * @return
     */
    @PostMapping("login")
    public JsonData login(@RequestBody UserQuery userQuery, HttpServletRequest request, HttpServletResponse response) {
        //拿到主体
        Subject subject = SecurityUtils.getSubject();
        try {
            UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken(userQuery.getUserName(), userQuery.getPassword());
            subject.login(usernamePasswordToken);
            Map<String,Object> info=new HashMap<>();
            info.put("msg","登录成功");
            info.put("session_id",subject.getSession().getId());
            return JsonData.buildSuccess(info);
        }catch (Exception e){
            e.printStackTrace();
            return JsonData.buildError("账号或密码错误");
        }
    }
}

PublicController.java

package com.ybchen.springboot_shiro.controller;

import com.ybchen.springboot_shiro.utils.JsonData;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 9:41 下午
 * @Versiion：1.0
 */
@RestController
@RequestMapping("video")
public class VideoController {
    @GetMapping("update")
    public JsonData updateVideo() {
        return JsonData.buildSuccess("更新成功");
    }
    @GetMapping("add")
    public JsonData add(){
        return JsonData.buildSuccess("添加成功");
    }
}

VideoController.java

package com.ybchen.springboot_shiro.dao;

import com.ybchen.springboot_shiro.domain.Permission;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

import java.util.List;

/**
 * 权限
 */
public interface PermissionMapper {
    /**
     * 根据roleId查询所有权限
     * @param roleId
     * @return
     */
    @Select("select p.id id,p.name name,p.url url from role_permission rp " +
            "left join permission p on rp.permission_id=p.id " +
            "where rp.role_id=#{roleId}")
    List<Permission> findByPermissionListByRoleId(@Param("roleId") int roleId);
}

PermissionMapper.java

package com.ybchen.springboot_shiro.dao;

import com.ybchen.springboot_shiro.domain.Role;
import org.apache.ibatis.annotations.*;
import org.apache.ibatis.mapping.FetchType;

import java.util.List;

/**
 * 角色
 */
public interface RoleMapper {
    /**
     * 根据用户查询所有的角色
     *
     * @param userId 用户id
     * @return
     */
    @Select("select r.id id,r.name name,r.description description  from  user_role ur " +
            "left join role r on ur.role_id=r.id " +
            "where ur.user_id=#{userId}")
    @Results(
            value = {
                    @Result(id = true, property = "id", column = "id"),
                    @Result(property = "name", column = "name"),
                    @Result(property = "description", column = "description"),
                    @Result(property = "permissionList", column = "id",
                            many = @Many(select = "com.ybchen.springboot_shiro.dao.PermissionMapper.findByPermissionListByRoleId",
                                    fetchType = FetchType.DEFAULT))
            }
    )
    List<Role> findRoleListByUserId(@Param("userId") int userId);
}

RoleMapper.java

package com.ybchen.springboot_shiro.dao;

import com.ybchen.springboot_shiro.domain.User;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

/**
 * 用户
 */
public interface UserMapper {
    /**
     * 根据用户名查询用户
     *
     * @param userName 用户名
     * @return
     */
    @Select("select * from user where username=#{userName}")
    User findByUserName(@Param("userName") String userName);

    /**
     * 根据主键查询用户
     *
     * @param id 主键
     * @return
     */
    @Select("select * from user where id=#{userId}")
    User findById(@Param("userId") int id);

    /**
     * 根据用户名和密码查询用户
     *
     * @param userName 用户名
     * @param password 密码
     * @return
     */
    @Select("select * from user where userName=#{userName} and password=#{password}")
    User findByUserNameAndPassword(@Param("userName") String userName, @Param("password") String password);
}

UserMapper.java

package com.ybchen.springboot_shiro.domain;

/**
 * @Description：权限
 * @Author：chenyanbin
 * @Date：2021/1/2 11:47 下午
 * @Versiion：1.0
 */
public class Permission {
    /**
     * 主键
     */
    private int id;
    /**
     * 权限名称
     */
    private String name;
    /**
     * 路径
     */
    private String url;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    @Override
    public String toString() {
        return "Permission{" +
                "id=" + id +
                ", name=‘" + name + ‘\‘‘ +
                ", url=‘" + url + ‘\‘‘ +
                ‘}‘;
    }
}

Permission.java

package com.ybchen.springboot_shiro.domain;

import java.util.ArrayList;
import java.util.List;

/**
 * @Description：角色
 * @Author：chenyanbin
 * @Date：2021/1/2 11:43 下午
 * @Versiion：1.0
 */
public class Role {
    /**
     * 主键
     */
    private int id;
    /**
     * 角色名称
     */
    private String name;
    /**
     * 描述
     */
    private String description;
    /**
     * 权限集合
     */
    private List<Permission> permissionList=new ArrayList<>();

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }

    public List<Permission> getPermissionList() {
        return permissionList;
    }

    public void setPermissionList(List<Permission> permissionList) {
        this.permissionList = permissionList;
    }

}

Role.java

package com.ybchen.springboot_shiro.domain;

/**
 * @Description：角色权限
 * @Author：chenyanbin
 * @Date：2021/1/2 11:44 下午
 * @Versiion：1.0
 */
public class RolePermission {
    /**
     * 主键
     */
    private int id;
    /**
     * 角色id
     */
    private int roleId;
    /**
     * 权限id
     */
    private int permissiionId;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public int getRoleId() {
        return roleId;
    }

    public void setRoleId(int roleId) {
        this.roleId = roleId;
    }

    public int getPermissiionId() {
        return permissiionId;
    }

    public void setPermissiionId(int permissiionId) {
        this.permissiionId = permissiionId;
    }

    @Override
    public String toString() {
        return "RolePermission{" +
                "id=" + id +
                ", roleId=" + roleId +
                ", permissiionId=" + permissiionId +
                ‘}‘;
    }
}

RolePermission.java

package com.ybchen.springboot_shiro.domain;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

/**
 * @Description：用户表
 * @Author：chenyanbin
 * @Date：2021/1/2 11:41 下午
 * @Versiion：1.0
 */
public class User {
    /**
     * 主键
     */
    private int id;
    /**
     * 用户名
     */
    private String username;
    /**
     * 密码
     */
    private String password;
    /**
     * 创建时间
     */
    private Date createTime;
    /**
     * 密码加盐
     */
    private String salt;
    /**
     * 角色集合
     */
    private List<Role> roleList=new ArrayList<>();

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public String getSalt() {
        return salt;
    }

    public void setSalt(String salt) {
        this.salt = salt;
    }

    public List<Role> getRoleList() {
        return roleList;
    }

    public void setRoleList(List<Role> roleList) {
        this.roleList = roleList;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username=‘" + username + ‘\‘‘ +
                ", password=‘" + password + ‘\‘‘ +
                ", createTime=" + createTime +
                ", salt=‘" + salt + ‘\‘‘ +
                ", roleList=" + roleList +
                ‘}‘;
    }
}

User.java

package com.ybchen.springboot_shiro.domain;

import java.io.Serializable;

/**
 * @Description：接收用户名和密码
 * @Author：chenyanbin
 * @Date：2021/1/3 6:19 下午
 * @Versiion：1.0
 */
public class UserQuery implements Serializable {
    private String userName;
    private String password;

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    @Override
    public String toString() {
        return "UserQuery{" +
                "userName=‘" + userName + ‘\‘‘ +
                ", password=‘" + password + ‘\‘‘ +
                ‘}‘;
    }
}

UserQuery.java

package com.ybchen.springboot_shiro.domain;

/**
 * @Description：用户角色
 * @Author：chenyanbin
 * @Date：2021/1/2 11:46 下午
 * @Versiion：1.0
 */
public class UserRole {
    /**
     * 主键
     */
    private int id;
    /**
     * 角色id
     */
    private int roleId;
    /**
     * 用户id
     */
    private int userId;
    /**
     * 备注
     */
    private String remark;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public int getRoleId() {
        return roleId;
    }

    public void setRoleId(int roleId) {
        this.roleId = roleId;
    }

    public int getUserId() {
        return userId;
    }

    public void setUserId(int userId) {
        this.userId = userId;
    }

    public String getRemark() {
        return remark;
    }

    public void setRemark(String remark) {
        this.remark = remark;
    }

    @Override
    public String toString() {
        return "UserRole{" +
                "id=" + id +
                ", roleId=" + roleId +
                ", userId=" + userId +
                ", remark=‘" + remark + ‘\‘‘ +
                ‘}‘;
    }
}

UserRole.java

package com.ybchen.springboot_shiro.exception;

/**
 * @Description：自定义异常
 * @Author：chenyanbin
 * @Date：2021/1/3 7:31 下午
 * @Versiion：1.0
 */
public class CustomException extends RuntimeException{
    private Integer code;
    private String msg;

    public CustomException(Integer code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    @Override
    public String toString() {
        return "CustomException{" +
                "code=" + code +
                ", msg=‘" + msg + ‘\‘‘ +
                ‘}‘;
    }
}

CustomException.java

package com.ybchen.springboot_shiro.exception;

import com.ybchen.springboot_shiro.utils.JsonData;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * @ClassName：GlobalExceptiions
 * @Description：TODO
 * @Author：chenyb
 * @Date：2020/12/9 11:34 上午
 * @Versiion：1.0
 */
@ControllerAdvice
public class GlobalExceptiions {
    private final Logger logger = LoggerFactory.getLogger(getClass());

    @ExceptionHandler(value = Exception.class)
    @ResponseBody
    public JsonData handle(Exception ex) {
        logger.info("[ 全局异常 ] ===============》 {}", ex);
        if (ex instanceof CustomException) {
            CustomException customException = (CustomException) ex;
            return JsonData.buildError(customException.getCode(), customException.getMsg());
        }
        return JsonData.buildError("系统内部错误，请联系管理员！");
    }
}

GlobalExceptiions.java

package com.ybchen.springboot_shiro.service.impl;

import com.ybchen.springboot_shiro.dao.RoleMapper;
import com.ybchen.springboot_shiro.dao.UserMapper;
import com.ybchen.springboot_shiro.domain.Role;
import com.ybchen.springboot_shiro.domain.User;
import com.ybchen.springboot_shiro.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 1:15 上午
 * @Versiion：1.0
 */
@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;
    @Autowired
    private RoleMapper roleMapper;

    @Override
    public User findAllUserInfoByUserName(String userName) {
        User user = userMapper.findByUserName(userName);
        //用户角色的集合
        List<Role> roleList = roleMapper.findRoleListByUserId(user.getId());
        user.setRoleList(roleList);
        return user;
    }

    @Override
    public User findSimpleUserInfoById(int userId) {
        return userMapper.findById(userId);
    }

    @Override
    public User findSimpleUserInfoByUserName(String userName) {
        return userMapper.findByUserName(userName);
    }
}

UserServiceImpl.java

package com.ybchen.springboot_shiro.service;

import com.ybchen.springboot_shiro.domain.User;

public interface UserService {
    /**
     * 获取全部用户信息，包括角色、权限
     * @param userName
     * @return
     */
    User findAllUserInfoByUserName(String userName);

    /**
     * 获取用户基本信息
     * @param userId
     * @return
     */
    User findSimpleUserInfoById(int userId);

    /**
     * 根据用户名查询用户信息
     * @param userName
     * @return
     */
    User findSimpleUserInfoByUserName(String userName);
}

UserService.java

package com.ybchen.springboot_shiro.utils;

import java.io.Serializable;

public class JsonData implements Serializable {
    private static final long serialVersionUID = 1L;
    /**
     * 状态码，0表示成功过，1表示处理中，-1表示失败
     */
    private Integer code;
    /**
     * 业务数据
     */
    private Object data;
    /**
     * 信息描述
     */
    private String msg;

    public JsonData() {
    }

    public JsonData(Integer code, Object data, String msg) {
        this.code = code;
        this.data = data;
        this.msg = msg;
    }

    /**
     * 成功，不用返回数据
     *
     * @return
     */
    public static JsonData buildSuccess() {
        return new JsonData(0, null, null);
    }

    /**
     * 成功，返回数据
     *
     * @param data 返回数据
     * @return
     */
    public static JsonData buildSuccess(Object data) {
        return new JsonData(0, data, null);
    }

    /**
     * 成功，返回数据
     *
     * @param code 状态码
     * @param data 返回数据
     * @return
     */
    public static JsonData buildSuccess(int code, Object data) {
        return new JsonData(code, data, null);
    }

    /**
     * 失败，返回信息
     *
     * @param msg 返回信息
     * @return
     */
    public static JsonData buildError(String msg) {
        return new JsonData(-1, null, msg);
    }

    /**
     * 失败，返回信息和状态码
     *
     * @param code 状态码
     * @param msg  返回信息
     * @return
     */
    public static JsonData buildError(Integer code, String msg) {
        return new JsonData(code, null, msg);
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    @Override
    public String toString() {
        return "JsonData{" +
                "code=" + code +
                ", data=" + data +
                ", msg=‘" + msg + ‘\‘‘ +
                ‘}‘;
    }
}

JsonData.java

package com.ybchen.springboot_shiro;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
//扫描mapper
@MapperScan(value = "com.ybchen.springboot_shiro.dao")
public class SpringbootShiroApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootShiroApplication.class, args);
    }

}

SpringbootShiroApplication.java

server.port=12888
#============数据库=================
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/shiro_2?useUnicode=true&characterEncoding=utf-8&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
# 使用阿里巴巴druid数据源，默认使用自带的
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
# 开启控制台打印sql
mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
# mybatis下划线转驼峰配置
mybatis.configuration.map-underscore-to-camel-case=true

application.properties

package com.ybchen.springboot_shiro;

import org.apache.shiro.crypto.hash.SimpleHash;
import org.junit.Test;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 10:12 下午
 * @Versiion：1.0
 */
public class Md5Test {
    @Test
    public void testMd5(){
        String hashName="md5";
        String pwd="123";
        SimpleHash simpleHash = new SimpleHash(hashName, pwd, null, 2);
        System.out.println(simpleHash);
    }
}

Md5Test.java

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.1</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ybchen</groupId>
    <artifactId>springboot_shiro</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot_shiro</name>
    <description>SpringBoot整合Shiro</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
        <!--druid-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.3</version>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--shiro-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.7.0</version>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.4</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

pom.xml

项目源码

链接: https://pan.baidu.com/s/1adjwICKge83YcPycE8ZaEQ  密码: if9s

项目postman测试

127.0.0.1:12888/pub/index

127.0.0.1:12888/pub/not_permit

127.0.0.1:12888/pub/need_login

127.0.0.1:12888/pub/login

127.0.0.1:12888/authc/video/play_record

127.0.0.1:12888/admin/video/video_list

127.0.0.1:12888/video/add

127.0.0.1:12888/video/update

技术分享图片

备注

　　因为链接较多，就不一一做gif动图了，直接导入项目源码，请求的时候，在header上加入token即可~

Filter过滤器

业务需求

一个接口，可以让2个角色中的任意一个访问
自定义一个类，继承：AuthorizationFilter

package com.ybchen.springboot_shiro.config;

import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.CollectionUtils;
import org.apache.shiro.web.filter.authz.AuthorizationFilter;

import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import java.util.Set;

/**
 * @Description：自定义Filter
 * @Author：chenyanbin
 * @Date：2021/1/4 11:14 下午
 * @Versiion：1.0
 */
public class CustomRolesOrAuthorizationFilter extends AuthorizationFilter {
    @Override
    protected boolean isAccessAllowed(ServletRequest request, ServletResponse response, Object mappedValue) throws Exception {
        Subject subject = getSubject(request, response);
        //filterChainDefinitionMap.put("/admin/**", "roles[admin,user]"); mappedValue <==> admin,user
        String[] rolesArray = (String[]) mappedValue;
        if (rolesArray == null || rolesArray.length == 0) {
            return true;
        }
        Set<String> roles = CollectionUtils.asSet(rolesArray);
        //当前subject是roles中的任意一个，则有权限访问
        for (String role : roles) {
            if (subject.hasRole(role)) {
                return true;
            }
        }
        return false;
    }
}

技术分享图片

    @Bean
    public ShiroFilterFactoryBean shiroFilter(SecurityManager securityManager) {
        System.out.println("ShiroConfig ShiroFilterFactoryBean 执行");
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        //设置SecurityManager
        shiroFilterFactoryBean.setSecurityManager(securityManager);
        //如果访问需要登录的某个接口，却没有登录，则调用此接口(如果不是前后端分离，则跳转页面)
        shiroFilterFactoryBean.setLoginUrl("/pub/need_login");
        //shiroFilterFactoryBean.setLoginUrl("/xxx.jsp");
        //登录成功后，跳转的链接，若前后端分离，没必要设置这个
        //shiroFilterFactoryBean.setSuccessUrl("");
        //登录成功，未授权会调用此方法
        shiroFilterFactoryBean.setUnauthorizedUrl("/pub/not_permit");

        //设置自定义Filter
        Map<String, Filter> filterMap=new LinkedHashMap<>();
        filterMap.put("roleOrFilter",new CustomRolesOrAuthorizationFilter());
        shiroFilterFactoryBean.setFilters(filterMap);

        //拦截路径，必须使用:LinkedHashMap，要不然拦截效果会时有时无，因为使用的是无序的Map
        Map<String, String> filterChainDefinitionMap = new LinkedHashMap<>();
        //key=正则表达式路径，value=org.apache.shiro.web.filter.mgt.DefaultFilter
        //退出过滤器
        filterChainDefinitionMap.put("/logout", "logout");
        //匿名可以访问，游客模式
        filterChainDefinitionMap.put("/pub/**", "anon");
        //登录用户才可以访问
        filterChainDefinitionMap.put("/authc/**", "authc");
        //管理员角色才能访问
//        filterChainDefinitionMap.put("/admin/**", "roles[admin,user]");
        filterChainDefinitionMap.put("/admin/**", "roleOrFilter[admin,user]");
        //有编辑权限才能访问
        filterChainDefinitionMap.put("/video/update", "perms[video_update]");
        //authc：url必须通过认证才可以访问
        //anon：url可以匿名访问
        //过滤链是顺序执行，从上而下，一般把/**，放到最下面
        filterChainDefinitionMap.put("/**", "authc");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap);
        return shiroFilterFactoryBean;
    }

Redis整合CacheManager

原因

　　授权的时候每次都去查询数据库，对于频繁访问的接口，性能和响应速度比较慢，此处可以使用缓存，提高响应速度，也可以使用Guava(本地内存缓存)。

　　Redis(分布式缓存)还不了解的小伙伴，在这里我就不一一讲解了，可以看我以前写过的博客。

Redis 从入门到精通：点我直达
Redis 微信抢红包，电商场景下秒杀系统设计：点我直达
Redis 高级项目实战：点我直达

添加依赖

        <!--shiro+redis-->
        <dependency>
            <groupId>org.crazycake</groupId>
            <artifactId>shiro-redis</artifactId>
            <version>3.3.1</version>
        </dependency>

在ShiroConfig中添加如下代码

//使用自定义cacheManager
    securityManager.setCacheManager(cacheManager());

    /**
     * 配置redisManager
     * @return
     */
    public RedisManager getRedisManager(){
        RedisManager redisManager=new RedisManager();
        redisManager.setHost("127.0.0.1:6379");
        //连接那个数据库
        redisManager.setDatabase(0);
        //设置密码
//        redisManager.setPassword("123");
        return redisManager;
    }

    /**
     * 设置具体cache实现类
     * @return
     */
    public RedisCacheManager cacheManager(){
        RedisCacheManager redisCacheManager=new RedisCacheManager();
        redisCacheManager.setRedisManager(getRedisManager());
        return redisCacheManager;
    }

技术分享图片

修改CustomRealm

技术分享图片

设置redis缓存过期时间

技术分享图片

Redis整合SessionManager

为啥Session也要持久化

　　重启应用，用户无感知，可以继续以原先的状态继续访问。

修改shiroconfig

技术分享图片

package com.ybchen.springboot_shiro.config;

import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.session.mgt.SessionManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.crazycake.shiro.RedisCacheManager;
import org.crazycake.shiro.RedisManager;
import org.crazycake.shiro.RedisSessionDAO;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.servlet.Filter;
import java.util.LinkedHashMap;
import java.util.Map;

/**
 * @Description：
 * @Author：chenyanbin
 * @Date：2021/1/3 4:12 下午
 * @Versiion：1.0
 */
@Configuration
public class ShiroConfig {
    @Bean
    public ShiroFilterFactoryBean shiroFilter(SecurityManager securityManager) {
        System.out.println("ShiroConfig ShiroFilterFactoryBean 执行");
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        //设置SecurityManager
        shiroFilterFactoryBean.setSecurityManager(securityManager);
        //如果访问需要登录的某个接口，却没有登录，则调用此接口(如果不是前后端分离，则跳转页面)
        shiroFilterFactoryBean.setLoginUrl("/pub/need_login");
        //shiroFilterFactoryBean.setLoginUrl("/xxx.jsp");
        //登录成功后，跳转的链接，若前后端分离，没必要设置这个
        //shiroFilterFactoryBean.setSuccessUrl("");
        //登录成功，未授权会调用此方法
        shiroFilterFactoryBean.setUnauthorizedUrl("/pub/not_permit");

        //设置自定义Filter
        Map<String, Filter> filterMap=new LinkedHashMap<>();
        filterMap.put("roleOrFilter",new CustomRolesOrAuthorizationFilter());
        shiroFilterFactoryBean.setFilters(filterMap);

        //拦截路径，必须使用:LinkedHashMap，要不然拦截效果会时有时无，因为使用的是无序的Map
        Map<String, String> filterChainDefinitionMap = new LinkedHashMap<>();
        //key=正则表达式路径，value=org.apache.shiro.web.filter.mgt.DefaultFilter
        //退出过滤器
        filterChainDefinitionMap.put("/logout", "logout");
        //匿名可以访问，游客模式
        filterChainDefinitionMap.put("/pub/**", "anon");
        //登录用户才可以访问
        filterChainDefinitionMap.put("/authc/**", "authc");
        //管理员角色才能访问
//        filterChainDefinitionMap.put("/admin/**", "roles[admin,user]");
        filterChainDefinitionMap.put("/admin/**", "roleOrFilter[admin,user]");
        //有编辑权限才能访问
        filterChainDefinitionMap.put("/video/update", "perms[video_update]");
        //authc：url必须通过认证才可以访问
        //anon：url可以匿名访问
        //过滤链是顺序执行，从上而下，一般把/**，放到最下面
        filterChainDefinitionMap.put("/**", "authc");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap);
        return shiroFilterFactoryBean;
    }

    @Bean
    public SecurityManager securityManager() {
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        //如果不是前后端分离，不用设置setSessionManager
        securityManager.setSessionManager(sessionManager());
        //使用自定义cacheManager
        securityManager.setCacheManager(cacheManager());
        securityManager.setRealm(customRealm());
        return securityManager;
    }

    /**
     * 配置redisManager
     * @return
     */
    public RedisManager getRedisManager(){
        RedisManager redisManager=new RedisManager();
        redisManager.setHost("127.0.0.1:6379");
        //连接那个数据库
        redisManager.setDatabase(0);
        //设置密码
//        redisManager.setPassword("123");
        return redisManager;
    }

    /**
     * 设置具体cache实现类
     * @return
     */
    public RedisCacheManager cacheManager(){
        RedisCacheManager redisCacheManager=new RedisCacheManager();
        redisCacheManager.setRedisManager(getRedisManager());
        //设置缓存过期时间
        redisCacheManager.setExpire(20);
        return redisCacheManager;
    }

    /**
     * 自定义realm
     *
     * @return
     */
    @Bean
    public CustomRealm customRealm() {
        CustomRealm customRealm = new CustomRealm();
        //因为数据库密码存的是明文，所以无需使用双重md5校验
//        customRealm.setCredentialsMatcher(hashedCredentialsMatcher());
        return customRealm;
    }

    /**
     * 密码验证器，双重md5
     *
     * @return
     */
    @Bean
    public HashedCredentialsMatcher hashedCredentialsMatcher() {
        HashedCredentialsMatcher hashedCredentialsMatcher = new HashedCredentialsMatcher();
        //设置散列算法，使用md5算法
        hashedCredentialsMatcher.setHashAlgorithmName("md5");
        //散列次数，使用2次md5算法，相当于md5(md5(xxx))
        hashedCredentialsMatcher.setHashIterations(2);
        return hashedCredentialsMatcher;
    }

    /**
     * 自定义SessionManager
     *
     * @return
     */
    @Bean
    public SessionManager sessionManager() {
        CustomSessionManager customSessionManager = new CustomSessionManager();
        //超时时间，默认 30分钟，会话超时，单位毫秒
//        customSessionManager.setGlobalSessionTimeout(200000);
        //配置session持久化
        customSessionManager.setSessionDAO(redisSessionDAO());
        return customSessionManager;
    }

    /**
     * 自定义session持久化
     * @return
     */
    public RedisSessionDAO redisSessionDAO(){
        RedisSessionDAO redisSessionDAO=new RedisSessionDAO();
        redisSessionDAO.setRedisManager(getRedisManager());
        return redisSessionDAO;
    }
}

ShiroConfig.java

Shiro整合Redis后的源码

链接: https://pan.baidu.com/s/1cNQfBiw50A-U5izzOQclpw  密码: 6wqt

SpringBoot整合Shiro权限框架实战

原文：https://www.cnblogs.com/chenyanbin/p/shiro.html

踩

(0)

评论一句话评论（0）

分享档案

更多>

2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
