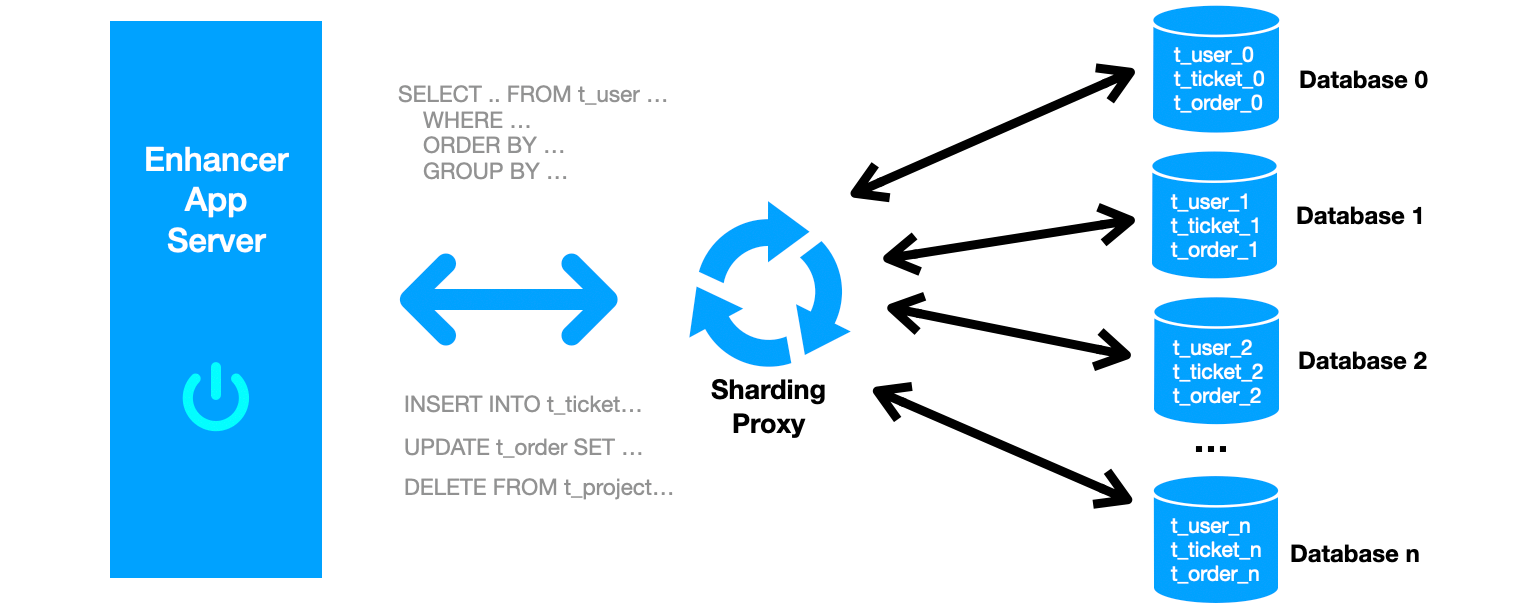

本文将通过一个简单实例,介绍如何使用 ShardingSphere 分片中间件,实现 Enhancer 应用对后台分布式数据库的操作。希望对您使用 Enhancer 应用管理大型分布式业务数据有所启发。
CREATE TABLE `t_user` (
`id` int(11) NOT NULL DEFAULT ‘0‘,
`name` varchar(40) DEFAULT NULL,
`gender` char(1) DEFAULT NULL,
`phone` varchar(20) DEFAULT NULL,
`address` varchar(255) DEFAULT NULL,
`created` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
[xxxx]
(含中括号)为需要自行修改部分:authentication:
users:
root:
password: [xxx]
[db_account_xxx]:
password: [xxx]
authorizedSchemas: user_db
props:
max-connections-size-per-query: 1
acceptor-size: 16 # The default value is available processors count * 2.
executor-size: 16 # Infinite by default.
proxy-frontend-flush-threshold: 128 # The default value is 128.
# LOCAL: Proxy will run with LOCAL transaction.
# XA: Proxy will run with XA transaction.
# BASE: Proxy will run with B.A.S.E transaction.
proxy-transaction-type: LOCAL
proxy-opentracing-enabled: false
proxy-hint-enabled: false
query-with-cipher-column: true
sql-show: false
check-table-metadata-enabled: false
[xxxx]
(含中括号)为需要自行修改部分: schemaName: user_db
dataSourceCommon:
connectionTimeoutMilliseconds: 30000
idleTimeoutMilliseconds: 60000
maxLifetimeMilliseconds: 1800000
maxPoolSize: 50
minPoolSize: 1
maintenanceIntervalMilliseconds: 30000
dataSources:
ds_0:
url: jdbc:mysql://[数据库IP地址0]:3306/user_db_0?serverTimezone=UTC&useSSL=false&characterEncoding=utf8
username: [xxx]
password: [xxx]
ds_1:
url: jdbc:mysql://[数据库IP地址1]:3306/user_db_1?serverTimezone=UTC&useSSL=false&characterEncoding=utf8
username: [xxx]
password: [xxx]
ds_2:
url: jdbc:mysql://[数据库IP地址2]:3306/user_db_2?serverTimezone=UTC&useSSL=false&characterEncoding=utf8
username: [xxx]
password: [xxx]
ds_3:
url: jdbc:mysql://[数据库IP地址3]:3306/user_db_3?serverTimezone=UTC&useSSL=false&characterEncoding=utf8
username: [xxx]
password: [xxx]
rules:
- !SHARDING
tables:
t_user:
actualDataNodes: ds_${0..3}.t_user # 配置表的实际数据节点数 0 ... n。
keyGenerateStrategy:
column: id
keyGeneratorName: snowflake
bindingTables:
- t_user
defaultDatabaseStrategy:
standard:
shardingColumn: id
shardingAlgorithmName: database_inline
defaultTableStrategy:
none:
shardingAlgorithms:
database_inline:
type: INLINE
props:
algorithm-expression: ds_${id % 4} # 使用简单的用 t_user 表的 id 字段对数据库节点数 n 求余规则来分片。
allow-range-query-with-inline-sharding: true
keyGenerators:
snowflake:
type: SNOWFLAKE
props:
worker-id: 123

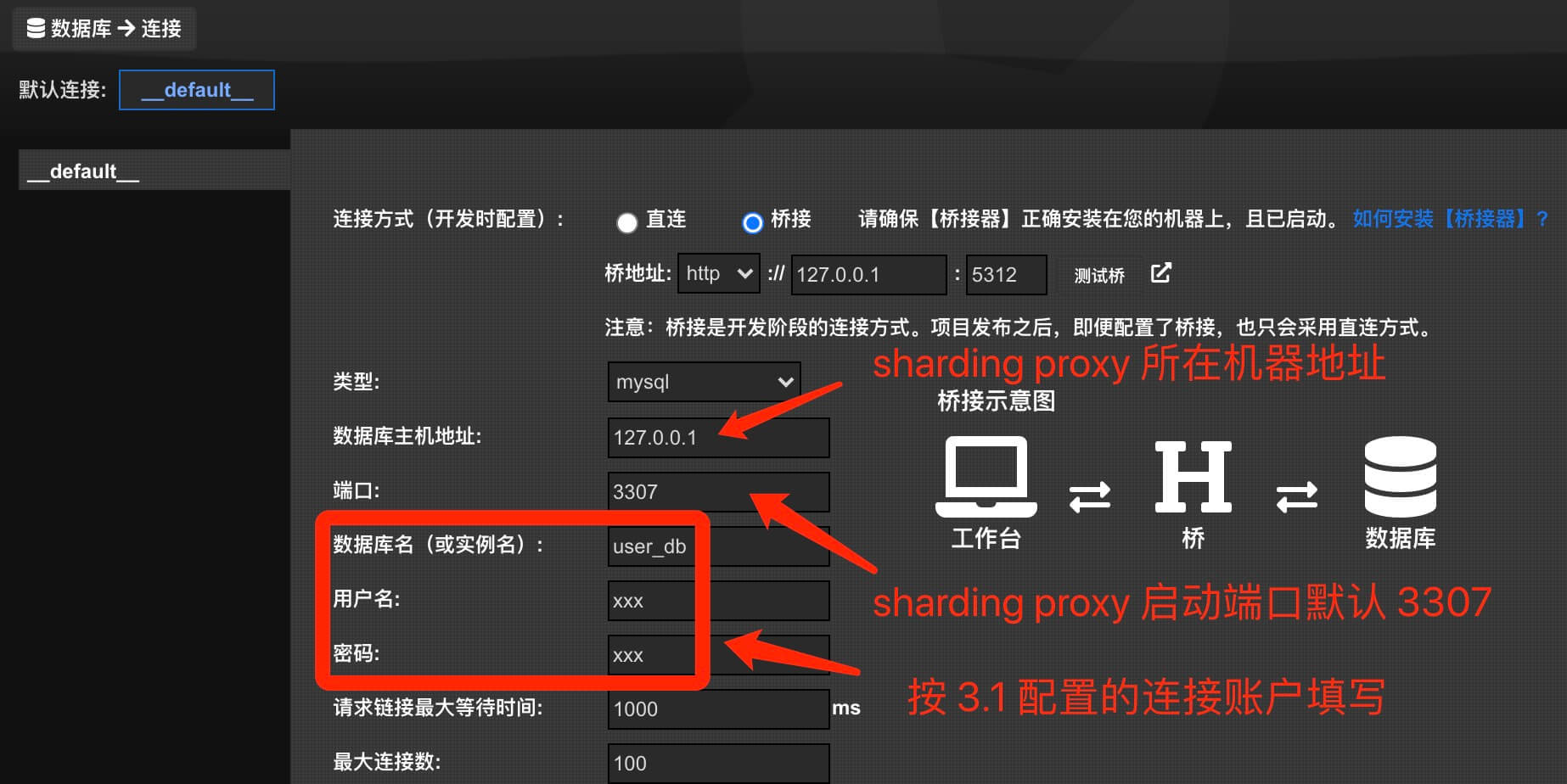

4.1. 在工作台-全局配置-数据库-连接中配置 3.1 所配置的数据库服务连接[用户 db_account_xxx]和[密码 password],地址为 apache-shardingsphere-xxx-shardingsphere-proxy-bin 所在的机器地址,若在本机则填写为 127.0.0.1,端口号为 3307
, 库名为 user_db。

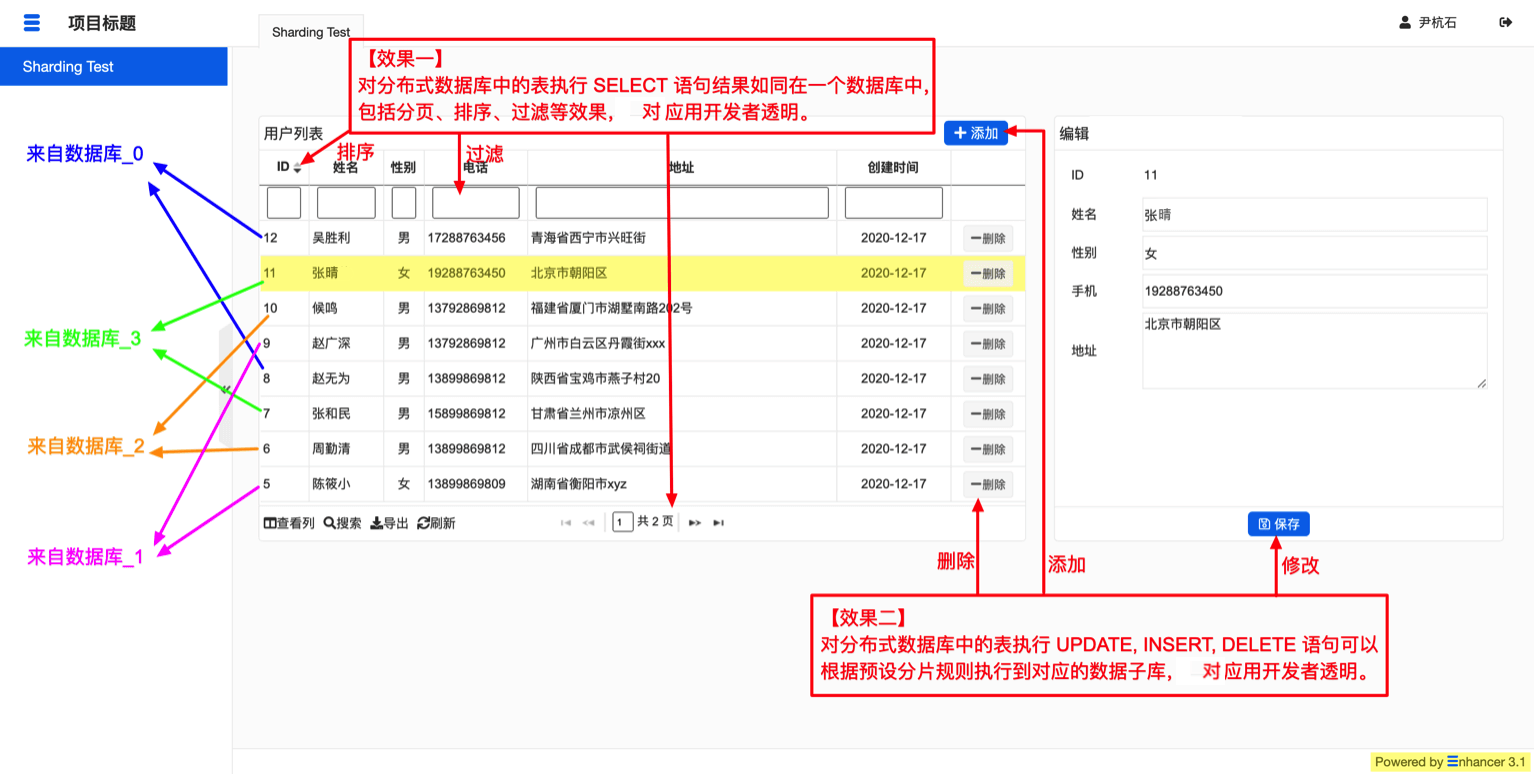

SELECT * FROM t_user
本例仅仅是实现了对单一表的分片增、删、改、查操作。在分布式数据库实战业务开发中,对于一些复杂场景,尤其是在金融级数据强完整性、强一致性、强可用性的要求下,分片中间件并不能做到完全对应用开发层透明,比如多个大表跨数据库 join, 分布式事务等等。此时一般需要通过应用层合理设计,来补偿或者规避这些问题(比如支付宝不允许你跨年查账,也不会提供一个界面同时呈现总账和明细账,需要用户分多次多层点开逐步呈现)。对于已经采用 IOE 结构实现的大规模金融级应用来说,在不改动应用层的情况下就实现去 IOE,还有很长的路要走。而对于一般电商、社交级互联网应用使用 Enhancer + ShardingSphere 来实现对分布式数据库的管理,会是一个不错的选择。
Enhancer + ShardingSphere 实现分布式数据库应用开发
