通过find_blobs函数可以找到色块.我们来讨论一下，find_blobs的细节。
image.find_blobs(thresholds, roi=Auto, x_stride=2, y_stride=1, invert=False, area_threshold=10, pixels_threshold=10, merge=False, margin=0, threshold_cb=None, merge_cb=None)
这里的参数比较多。
red = (xxx,xxx,xxx,xxx,xxx,xxx) blue = (xxx,xxx,xxx,xxx,xxx,xxx) yellow = (xxx,xxx,xxx,xxx,xxx,xxx) img=sensor.snapshot() red_blobs = img.find_blobs([red]) color_blobs = img.find_blobs([red,blue, yellow])
roi是“感兴趣区”。
left_roi = [0,0,160,240]
blobs = img.find_blobs([red],roi=left_roi)
x_stride 就是查找的色块的x方向上最小宽度的像素，默认为2，如果你只想查找宽度10个像素以上的色块，那么就设置这个参数为10：
blobs = img.find_blobs([red],x_stride=10)
y_stride 就是查找的色块的y方向上最小宽度的像素，默认为1，如果你只想查找宽度5个像素以上的色块，那么就设置这个参数为5：
blobs = img.find_blobs([red],y_stride=5)
all_blobs = img.find_blobs([red,blue,yellow],merge=True) red_blobs = img.find_blobs([red],merge=True) blue_blobs = img.find_blobs([blue],merge=True) yellow_blobs = img.find_blobs([yellow],merge=True)
一个颜色阈值的结构是这样的：
red = (minL, maxL, minA, maxA, minB, maxB)
元组里面的数值分别是L A B 的最大值和最小值。
OpenMV 的IDE里加入了阈值选择工具，极大的方便了对于颜色阈值的调试。
首先运行hello world.py让IDE里的framebuffer显示图案。

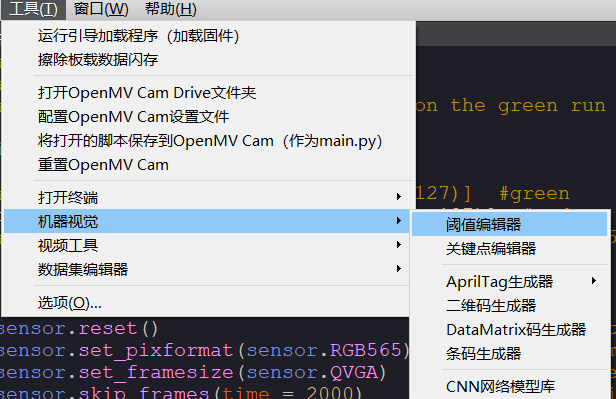

然后打开 工具 →机器视觉 → 阈值编译器

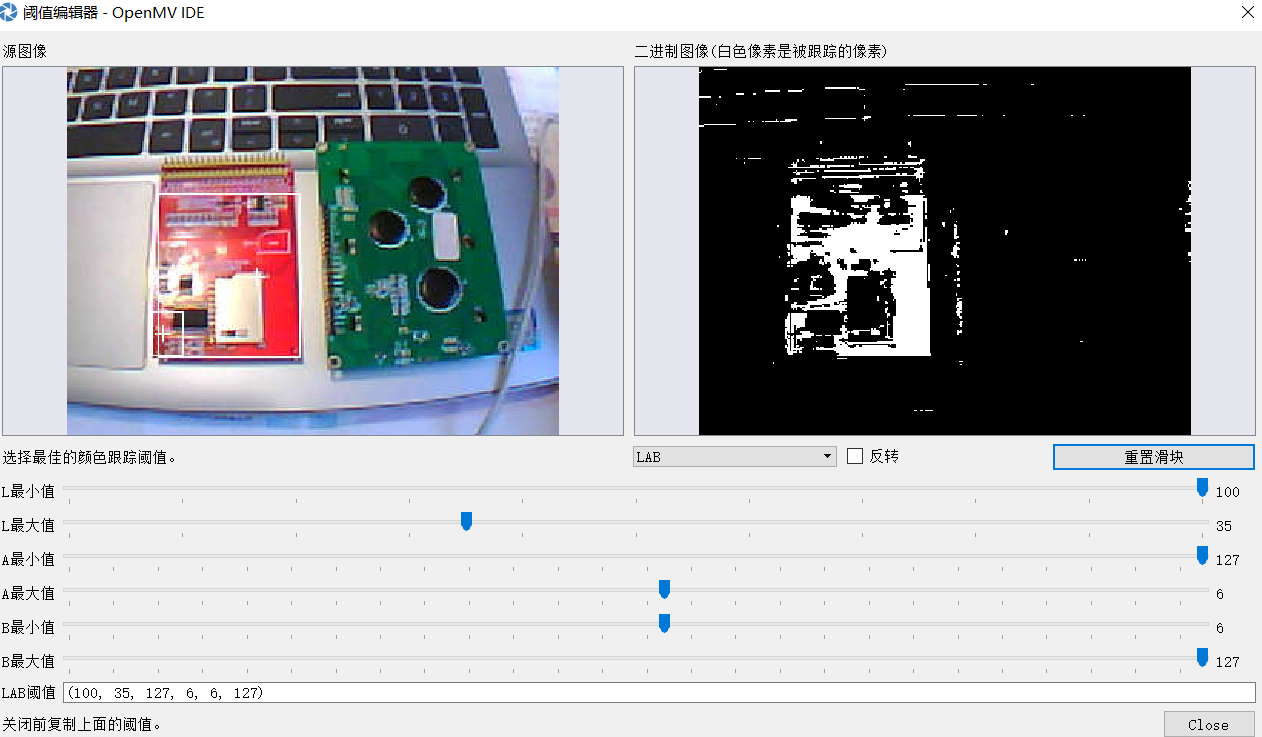

点击 Frame Buffer可以获取IDE中的图像，Image File可以自己选择一个图像文件。
拖动六个滑块，可以实时的看到阈值的结果，我们想要的结果就是，将我们的目标颜色变成白色，其他颜色全变为黑色。
单颜色识别之红色：
import sensor, image, time
#thresholds = [(66, 0, -51, -8, 6, 127)] #green
thresholds = [(30, 100, 15, 127, 15, 127)] #red
#thresholds = [(66, 0, -51, -8, 6, 127),(30, 100, 15, 127, 15, 127)] #元组里面,包含列表,进行多种颜色识别
sensor.reset() # Reset and initialize the sensor.
sensor.set_pixformat(sensor.RGB565) # Set pixel format to RGB565 (or GRAYSCALE)
sensor.set_framesize(sensor.QVGA) # Set frame size to QVGA (320x240)
sensor.skip_frames(time = 2000) # Wait for settings take effect.
sensor.set_auto_gain(False)
sensor.set_auto_whitebal(False) #关掉白平衡和自动增益
clock = time.clock() # Create a clock object to track the FPS.
while(True):
clock.tick() # Update the FPS clock.
img = sensor.snapshot() # Take a picture and return the image.
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200,merge=True):
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200):
for blob in img.find_blobs([thresholds[0]],pixels_threshold=200,area_threshold=200):
img.draw_rectangle(blob.rect())
img.draw_cross(blob.cx(),blob.cy())
print(clock.fps()) # Note: OpenMV Cam runs about half as fast when connecte

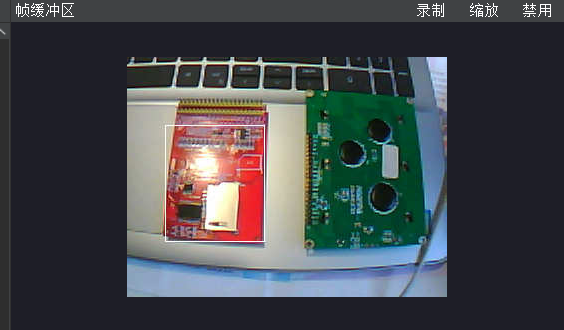

现象：
单颜色识别之绿色：
import sensor, image, time
thresholds = [(66, 0, -51, -8, 6, 127)] #green
#thresholds = [(30, 100, 15, 127, 15, 127)] #red
#thresholds = [(66, 0, -51, -8, 6, 127),(30, 100, 15, 127, 15, 127)] #元组里面,包含列表,进行多种颜色识别
sensor.reset() # Reset and initialize the sensor.
sensor.set_pixformat(sensor.RGB565) # Set pixel format to RGB565 (or GRAYSCALE)
sensor.set_framesize(sensor.QVGA) # Set frame size to QVGA (320x240)
sensor.skip_frames(time = 2000) # Wait for settings take effect.
sensor.set_auto_gain(False)
sensor.set_auto_whitebal(False) #关掉白平衡和自动增益
clock = time.clock() # Create a clock object to track the FPS.
while(True):
clock.tick() # Update the FPS clock.
img = sensor.snapshot() # Take a picture and return the image.
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200,merge=True):
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200):
for blob in img.find_blobs([thresholds[0]],pixels_threshold=200,area_threshold=200):
img.draw_rectangle(blob.rect())
img.draw_cross(blob.cx(),blob.cy())
print(clock.fps()) # Note: OpenMV Cam runs about half as fast when connected

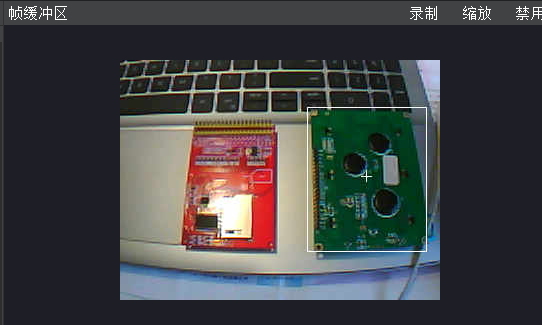

现象：
多颜色识别之合并：
import sensor, image, time
#thresholds = [(66, 0, -51, -8, 6, 127)] #green
#thresholds = [(30, 100, 15, 127, 15, 127)] #red
thresholds = [(66, 0, -51, -8, 6, 127),(30, 100, 15, 127, 15, 127)] #元组里面,包含列表,进行多种颜色识别
sensor.reset() # Reset and initialize the sensor.
sensor.set_pixformat(sensor.RGB565) # Set pixel format to RGB565 (or GRAYSCALE)
sensor.set_framesize(sensor.QVGA) # Set frame size to QVGA (320x240)
sensor.skip_frames(time = 2000) # Wait for settings take effect.
sensor.set_auto_gain(False)
sensor.set_auto_whitebal(False) #关掉白平衡和自动增益
clock = time.clock() # Create a clock object to track the FPS.
while(True):
clock.tick() # Update the FPS clock.
img = sensor.snapshot() # Take a picture and return the image.
for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200,merge=True):
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200):
#for blob in img.find_blobs([thresholds[0]],pixels_threshold=200,area_threshold=200):
img.draw_rectangle(blob.rect())
img.draw_cross(blob.cx(),blob.cy())
print(clock.fps()) # Note: OpenMV Cam runs about half as fast when connected

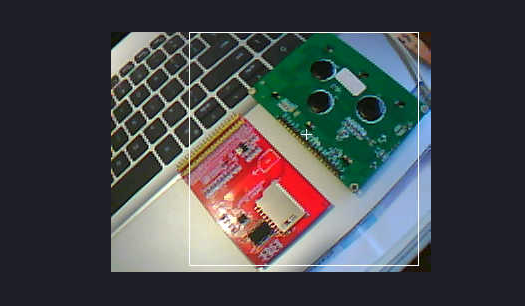

现象：
多颜色识别之不合并：
import sensor, image, time
#thresholds = [(66, 0, -51, -8, 6, 127)] #green
#thresholds = [(30, 100, 15, 127, 15, 127)] #red
thresholds = [(66, 0, -51, -8, 6, 127),(30, 100, 15, 127, 15, 127)] #元组里面,包含列表,进行多种颜色识别
sensor.reset() # Reset and initialize the sensor.
sensor.set_pixformat(sensor.RGB565) # Set pixel format to RGB565 (or GRAYSCALE)
sensor.set_framesize(sensor.QVGA) # Set frame size to QVGA (320x240)
sensor.skip_frames(time = 2000) # Wait for settings take effect.
sensor.set_auto_gain(False)
sensor.set_auto_whitebal(False) #关掉白平衡和自动增益
clock = time.clock() # Create a clock object to track the FPS.
while(True):
clock.tick() # Update the FPS clock.
img = sensor.snapshot() # Take a picture and return the image.
#for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200,merge=True):
for blob in img.find_blobs(thresholds,pixels_threshold=200,area_threshold=200):
#for blob in img.find_blobs([thresholds[0]],pixels_threshold=200,area_threshold=200):
img.draw_rectangle(blob.rect())
img.draw_cross(blob.cx(),blob.cy())
print(clock.fps()) # Note: OpenMV Cam runs about half as fast when connected

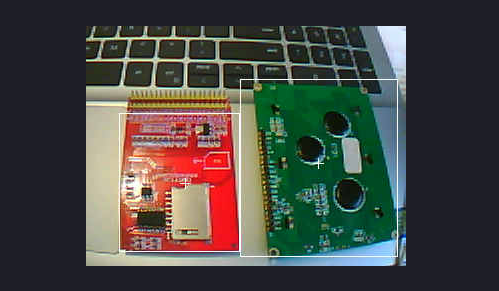

现象：
